Shure SLXD15/DL4B Portable Digital Wireless Lavalier System | Frequency: G58 (470-514 MHz)
Shure SLXD15/DL4B Portable Digital Wireless Lavalier System | Frequency: G58 (470-514 MHz)
SoundPro Item: 142082 | Part Number: SLXD15/DL4B-G58
In stock and ready to ship
- Powerful, portable digital wireless receiver for on-camera cold shoe mounting and audio bag use
- Dual 1/8” outputs including a headphone monitor out and switchable line/mic output
- Use Multi-Mic Mode to scan and sync over IR multiple clean frequencies, and monitor multiple sources from a single receiver with user-configurable front-panel controls
- Bright OLED display screen for key system function readouts and remaining battery life on transmitter and receiver
- Transparent 24-bit digital audio
- Extended 20 Hz to 20 kHz frequency range (microphone dependent)
- 118 dB dynamic range
- Digital predictive switching diversity
- 44 MHz tuning bandwidth (region dependent)
- 32 available channels per frequency band (region dependent)
- Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
- Easy pairing of transmitters and receivers over scan and IR sync
- Up to 8 hours from 2 AA batteries or optional Shure SB903 rechargeable battery
- Charging contacts for use with optional SBC203 docking charger
- TQG connectivity offers a variety of microphone options
- Ergonomic, durable plastic construction bodypack transmitter
- Rugged metal construction portable receiver design

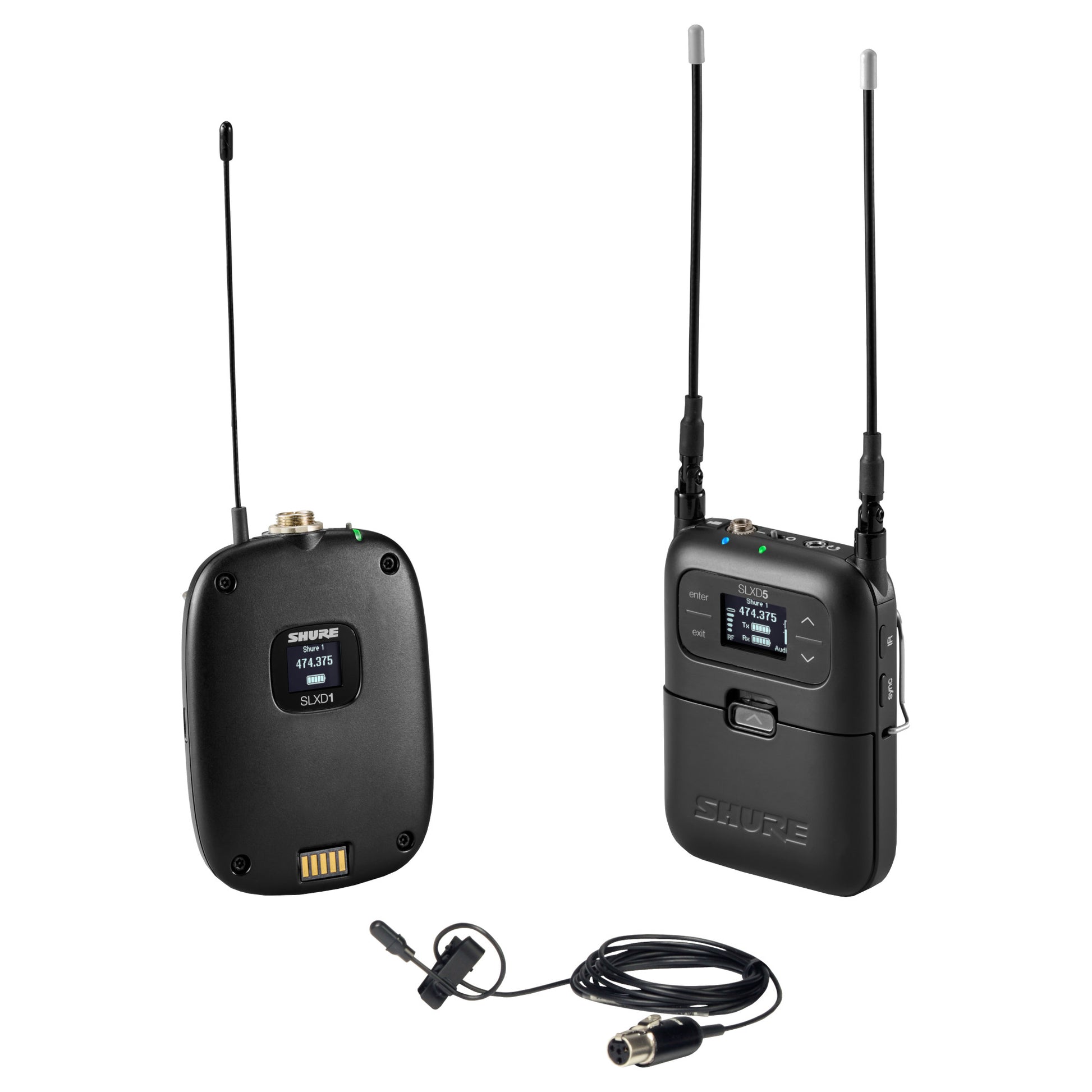

The SLXD15/DL4B Portable digital wireless bodypack system delivers transparent, 24-bit digital audio and rock-solid RF performance for videographers, ENG and field production, film and location sound applications. Operate up to 32 compatible systems per 44 MHz band, with easy setup and optional rechargeability accessories. The SLXD1 features a TQG connector for compatibility with a wide selection of lavalier microphones. Includes SLXD1 bodypack wireless transmitter with DuraPlex DL4B Omnidirectional Lavalier Microphone, SLXD5 single-channel portable receiver, two zippered carrying pouches and two pairs of AA alkaline batteries.
- System
- RF
- RF Carrier Frequency Range: 470–937.5 MHz (Varies by Region. See Frequency Range and Output Power Table.)
- Working Range: 100 m (328 ft) Note: Actual range depends on RF signal absorption, reflection and interference.
- RF Tuning Step Size
- JB Band: 125 kHz
- All Other Bands: 25 kHz
- Varies by region.
- Image Rejection: >70 dB (typical)
- RF Sensitivity: −97 dBm at 10-5 BER
- AUDIO
- Latency: 3.2 ms
- High-Pass/Low Cut Filter: 150 Hz, –12 dB/octave (Note: factory default is for the HPF to be off)
- Audio Frequency Response: 20 Hz–20 kHz (+1, −2 dB)
- Audio Dynamic Range (A-weighted, 20 Hz–20 kHz, typical): 118 dB (@1% THD)
- Total Harmonic Distortion: <0.02%
- System Audio Polarity
- XLR: Positive pressure on microphone diaphragm produces positive voltage on pin
- 2 with respect to pin 3 of XLR output.
- TRS: Postive pressure on microphone diaphragm produces positive voltage on the tip of the 6.35 mm (1/4-inch) with respect to the ring of the 6.35 mm output.
- Mic Offset Range: 0 to 21 dB (in 3 dB steps)
- TEMPERATURE RANGE (Note: Battery characteristics may limit this range.)
- Operating Temperature Range: 0°F to 122°F (−18°C to 50°C)
- Storage Temperature Range: −20°F to 165°F (−29°C to 74°C)
- NOTE: This Radio equipment is intended for use in musical professional entertainment and similar applications. This Radio apparatus may be capable of operating on some frequencies not authorized in your region. Please contact your national authority to obtain information on authorized frequencies and RF power levels for wireless microphone products.
- RF
- SLXD1
- Battery Type: Rechargeable Li-Ion or 1.5V AA batteries
- Dimensions (H×W×D): 3.86×2.68×1” (98×68×25.5mm)
- Weight: 3.1 oz (89 g)
- Housing: PC/ABS
- AUDIO INPUT
- Connector: 4-Pin male mini connector (TA4M)
- Configuration: Unbalanced
- Impedance: 1 MΩ
- Maximum Input Level: 8.2 dBV (2.57 Vrms, 7.27 Vpp)
- Preamplifier Equivalent Input Noise (EIN): –118 dBV
- RF OUTPUT
- Antenna Type: 1/4 Wave
- Occupied Bandwidth: <200 kHz
- Modulation Type: Shure Propietary Digital
- Power: 1 mW/10 Mw (Varies by region. See Frequency Range and Output Power Table.)
- SLXD5
- Dimensions (H×W×D): 4.21×2.68×1” (107×68×25.3 mm)
- Weight: 1.8 lb (182 g)
- Housing: Aluminum
- Power Requirements Battery: Rechargeable Li-Ion or 1.5 V AA batteries
- Power Supply: SBC-DC-903 Battery Eliminator, or 5 VDC via USB-C
- RF INPUT
- Spurious Rejection: >75 dB (Typical)
- Impedance: 50Ω
- Phantom Power Protection: Yes
- Antenna Type: 1/4 Wave Whip
- AUDIO OUTPUT
- Audio Frequency Response: 20 Hz – 20 kHz (+1, -3 dB)
- Connector Type: 1/8" (3.5 mm), ×2
- Configuration
- Balanced (Mono): Tip=audio +, Ring=audio –, Sleeve=ground
- Dual Mono: Tip = left, Ring = Right, Sleeve = Ground
- Impedance (Camera)
- Balanced (Mono) Line: 450Ω
- Balanced (Mono) Mic: 240Ω
- Dual Mono Line: 400Ω
- Dual Mono Mic: 200Ω
- Full Scale Output Camera (Balanced Line): 15 dBV
- Headphone: 13 mW @ 64Ω Load
- DL4
- Microphone Capsule: MEMS
- Polar Pattern: Omnidirectional
- Frequency Response: 20 Hz - 20 kHz
- Sensitivity: –42.5 dBV (7.5 mVRMS) @ 1 kHz
- Self-Noise: 31 dB SPL-A (A-weighted, Equivalent Acoustical)
- Signal-to-Noise Ratio: 63 dB
- Maximum SPL: 132.0 dB SPL (1 kHz @ 1% THD, typical)
- Dynamic Range: 101 dB (Typical)
- Microphone Current Draw: 220 µA, maximum
- Bias Voltage (Recommended Operating Voltage): 5 VDC
- Cable Diameter: 1.6 mm
- Cable Length: 66 in (1.67 m)
- Net Weight: 15g (0.53 oz)
- Capsule Dimensions (L×D): 14.5×5.2 mm
