• Shure UA834V In-Line Antenna Amplifier
1 2

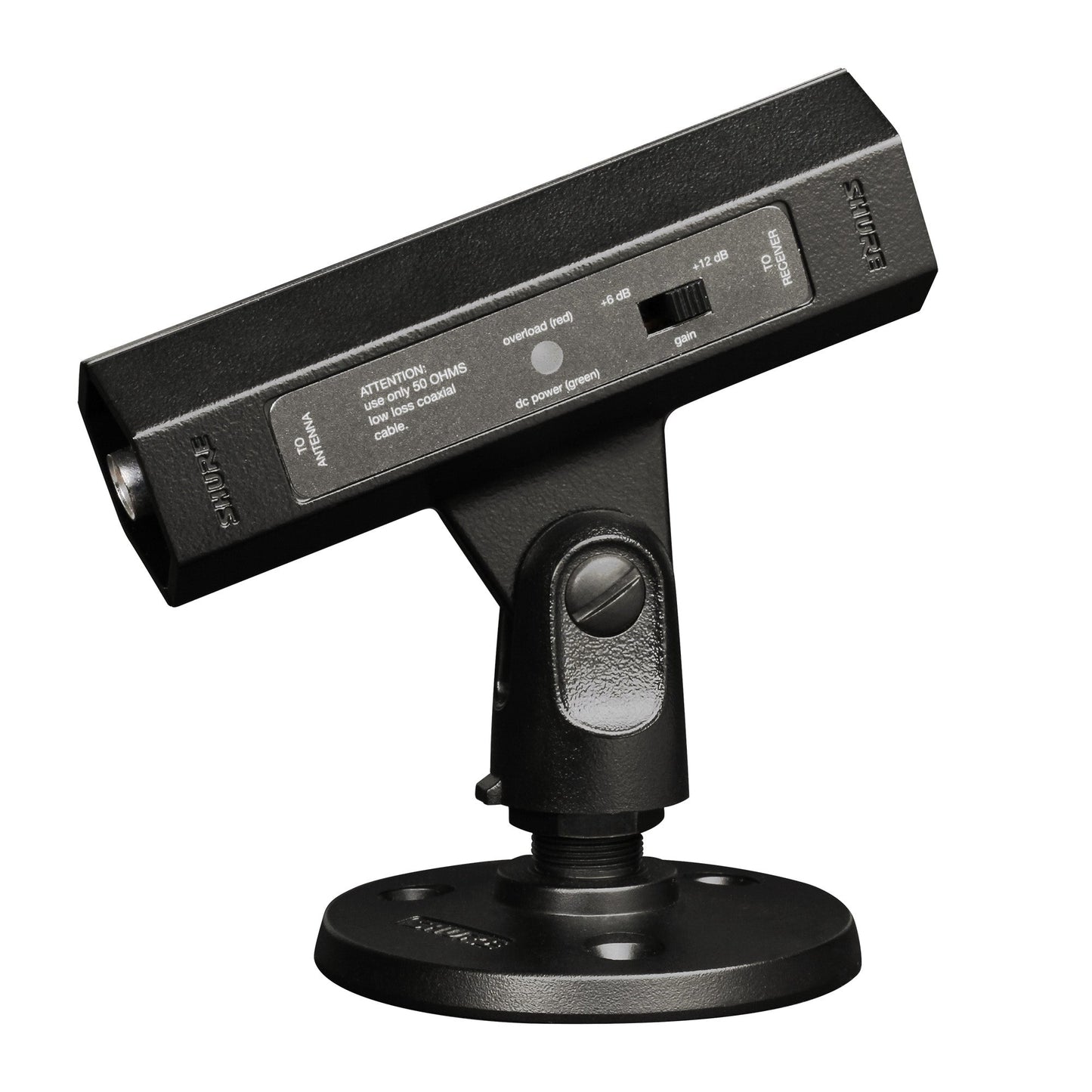

Shure UA834 In-Line Antenna Amplifier | Frequency: UA834WB (470-902 MHz)

Shure UA834 In-Line Antenna Amplifier | Frequency: UA834WB (470-902 MHz)

SoundPro Item: 89856 | Part Number: UA834WB

$200.00
$200.00 $200.00
Your Price Sold out
MSRP: $200.00 | MAP: $200.00

In stock and ready to ship

  • Compatible with UR4 ULX wireless microphone receiver, UA845UWB, and UA844+ Antenna Distribution System
  • Mountable on supplied desk-/wall-mount or on a microphone stand
  • Two-position gain selector switch to adjust for longer coaxial cable lengths (6dB position for cables under 25 ft, 12dB position for cables over 25 ft
Log in or register for YOUR best price

The Shure UA834 is a low-noise, in-line VHF and UHF antenna amplifier. It is intended for remote-mounting antennas to a Shure receiver or Model UA845UWB, or UA844+ distribution amplifier in a large installation.

UA834 replaces UA830. In-Line UHF Antenna Amplifier for remote mounting antennas with BLX4R, SLX4, QLX-D, ULX-D, UR4 and AXT400 receivers or UA844+ and UA845UWB Antenna Distribution Systems. Antenna amplifier is available in different frequency bands.

The unit receives power through its output port from the Shure receiver, UABIAST or distribution amplifier. When an antenna is remote mounted, the UA834 amplifies the received radio signals to compensate for insertion loss in the coaxial cable. A gain selector switch adjusts for longer lengths of coaxial cable.

View full details

Specifications

Dimensions
Dimensions with Stand (HxWxD)
4.25" x 1.25" x 4.8"
Weight
Weight with Stand
14.8 oz
Electrical
Power Requirements
10 to 15 V DC bias from coaxial connection, 0.60-0.72W
Audio
Impedance
50Ω
Signal Gain
+/-2dB switchable; +6dB +12dB
Connectivity
Connector Type
BNC, female
Absolute Max RF Input
+5dBm
Input Third-order Intercept Point (IIP3)
>10dBm
Construction
Housing
cast aluminum, black painted finish
