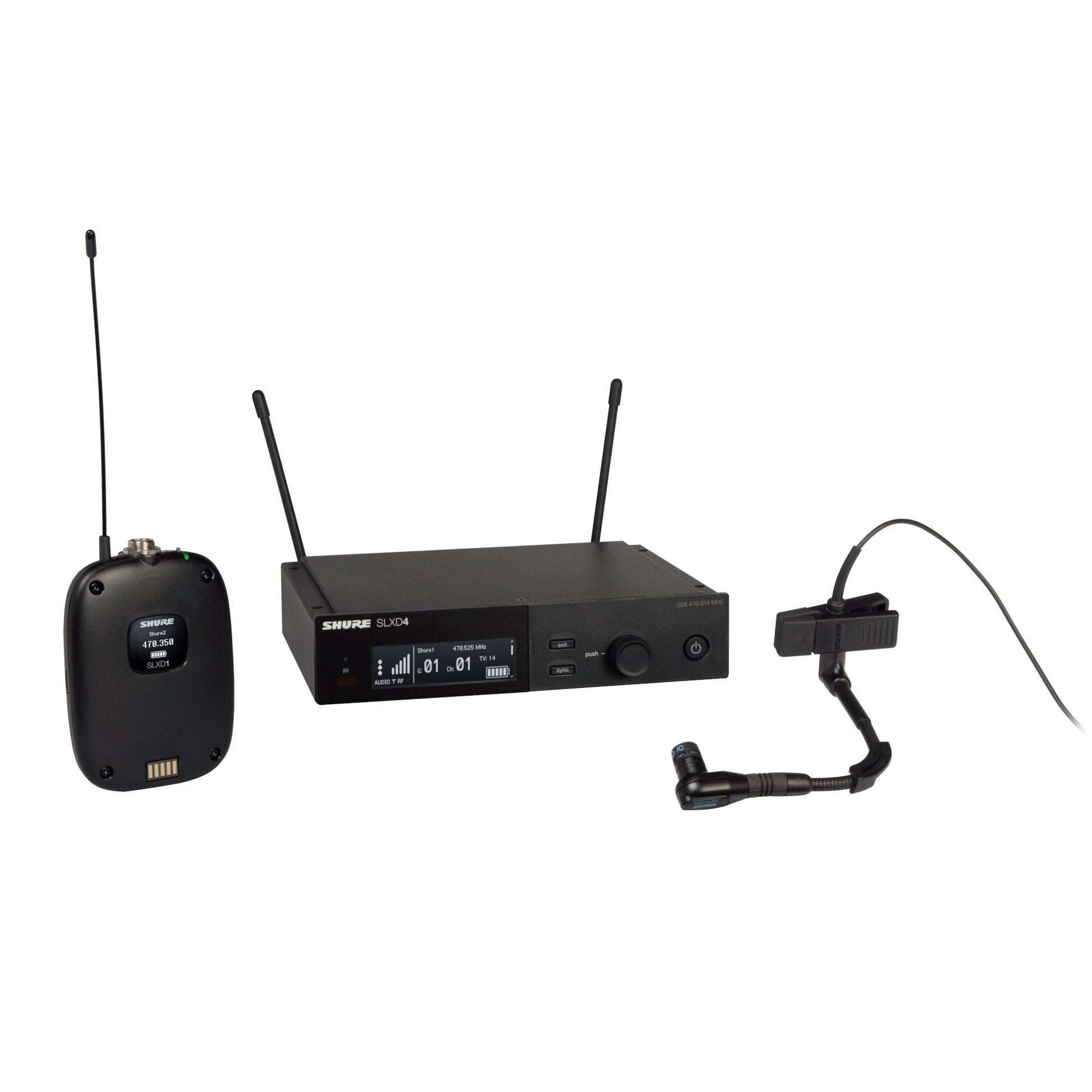

Shure SLXD14/98H Wireless Instrument System | Frequency: J52 (558-602 MHz and 614-616 MHz)
Shure SLXD14/98H Wireless Instrument System | Frequency: J52 (558-602 MHz and 614-616 MHz)
SoundPro Item: 46571 | Part Number: SLXD14/98H-J52
Usually ships in 5-7 business days
- Extended 20 Hz to 20 kHz frequency range (microphone dependent)
- 120 dB dynamic range
- Digital predictive switching diversity
- 44 MHz tuning bandwidth (region dependent)
- 32 available channels per frequency band (region dependent)
- Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
- Easy pairing of transmitters and receivers over IR scan and sync
- Up to 8 hours from 2 AA batteries or optional Shure SB903 rechargeable battery
Step onto the stage with confidence with Shure's SLXD14/98H Wireless Instrument Microphone System. This wireless system is perfect for musicians who crave increased freedom of movement to engage with their audiences from the stage--or maybe just musicians who like the idea of less gear to trip over.
- RF
- RF Carrier Frequency Range: 470-937.5MHz
- Working Range: 328 ft (100m)
- RF Tuning Step Size
- JB Band: 125kHz
- All Other Bands: 25kHz
- Image Rejection: >70 dB (typical)
- RF Sensitivity: -97dBm at 10 BER
- Audio
- Latency: 3.2ms
- High-Pass/Low Cut Filter: 150Hz, -12dB/octave
- Audio Frequency Response: 20Hz - 20,000Hz (+1, -2dB)
- Audio Dynamic Range (A-weighted, 20Hz-20kHz, typical): 118dB (@ 1% THD)
- THD: <0.02%
- System Audio Polarity
- XLR: positive pressure on microphone diaphragm 2 with respect to pin 3 of XLR output
- TRS: positive pressure on microphone diaphragm produces positive voltage on the tip of the 6.35mm with respect to the ring of the 6.35mm output
- Mic Offset Range: 0 to 21 dB (in 3 dB steps)
