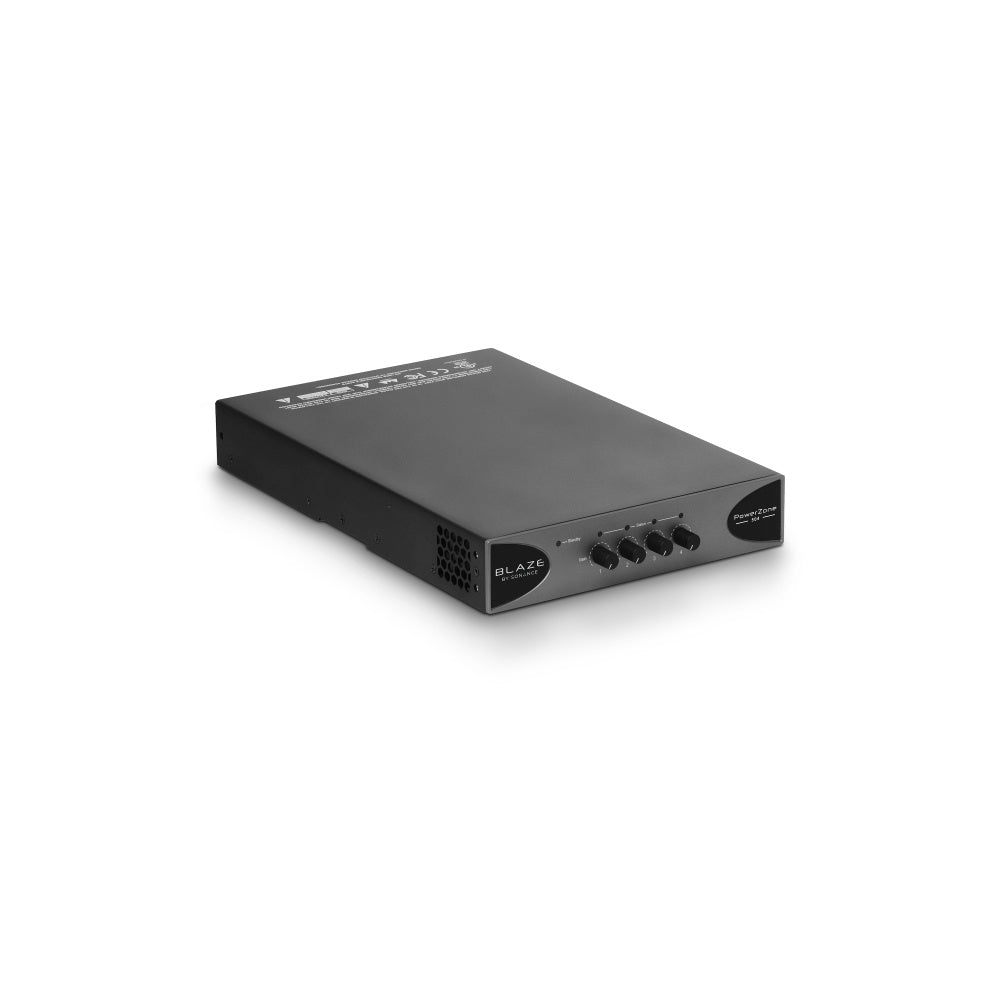

• 205646_Sonance-PowerZone-504-4-Channel-Installation-Amplifier-1U-_-Universal_ALT1sqr

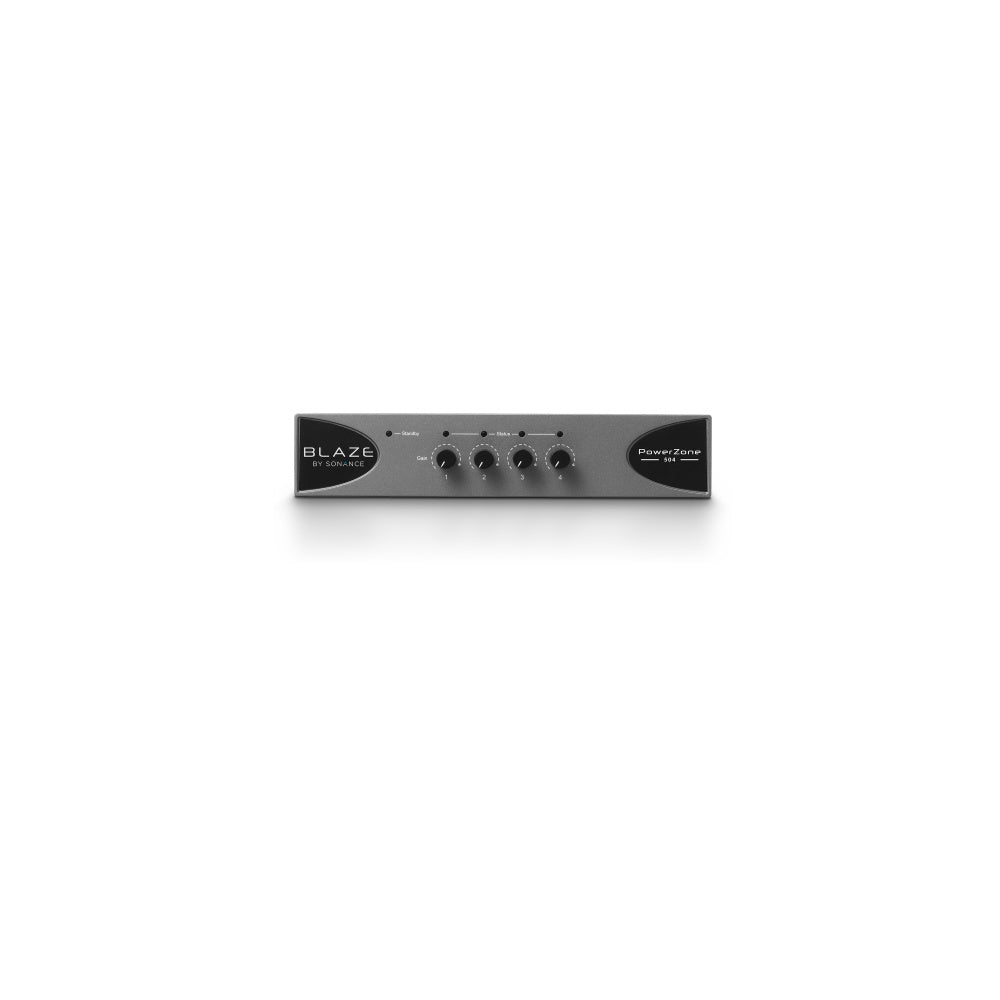

  • 205646_Sonance-PowerZone-504-4-Channel-Installation-Amplifier-1U-_-Universal_ALT2sqr

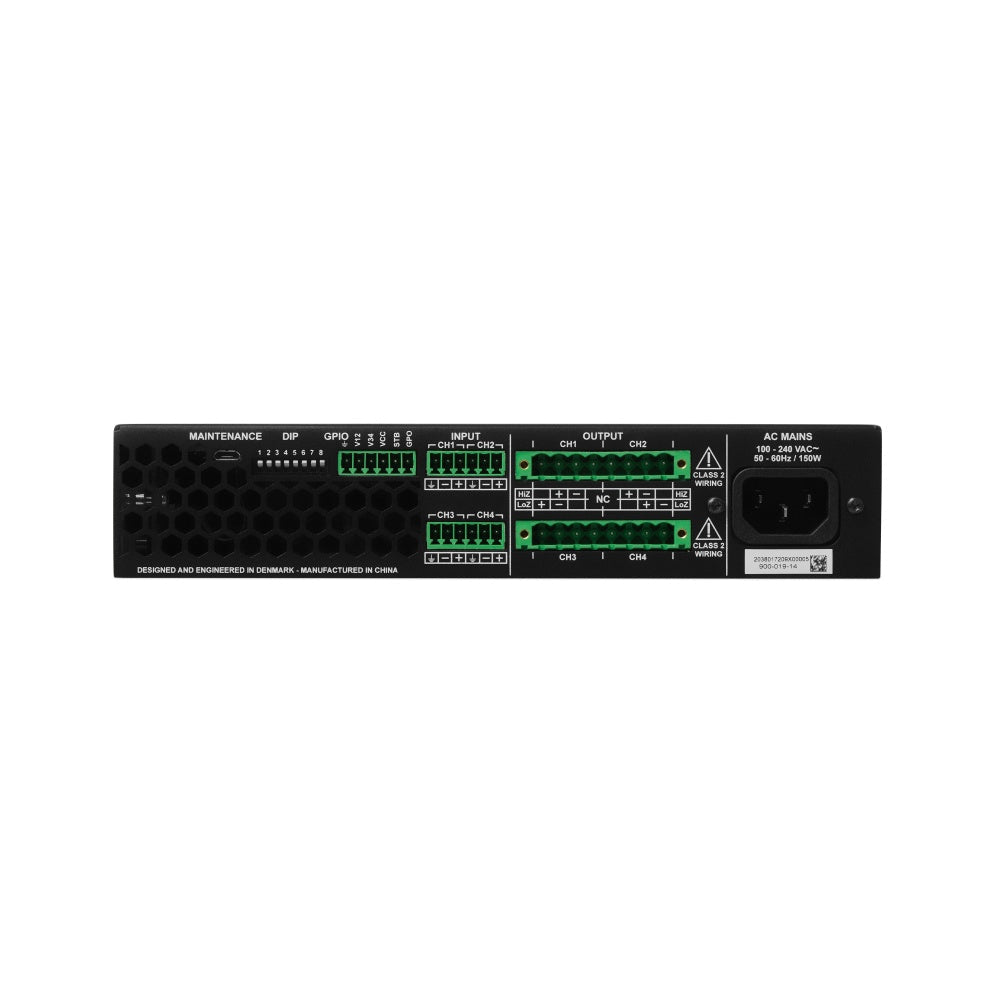

  • 205646_Sonance-PowerZone-504-4-Channel-Installation-Amplifier-1U-_-Universal_ALT3sqr

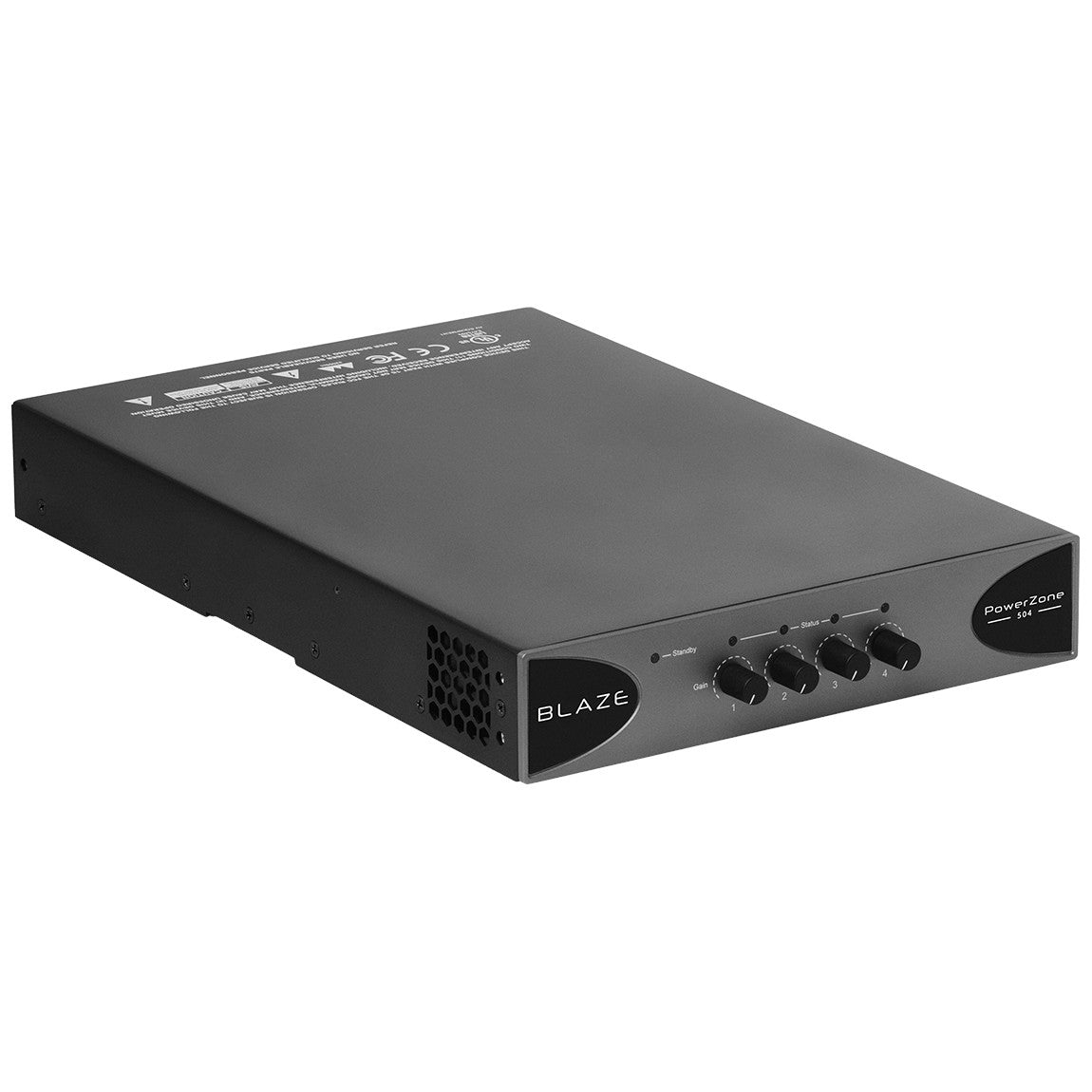

  • Blaze Audio PowerZone 504 Installation Power Amplifier

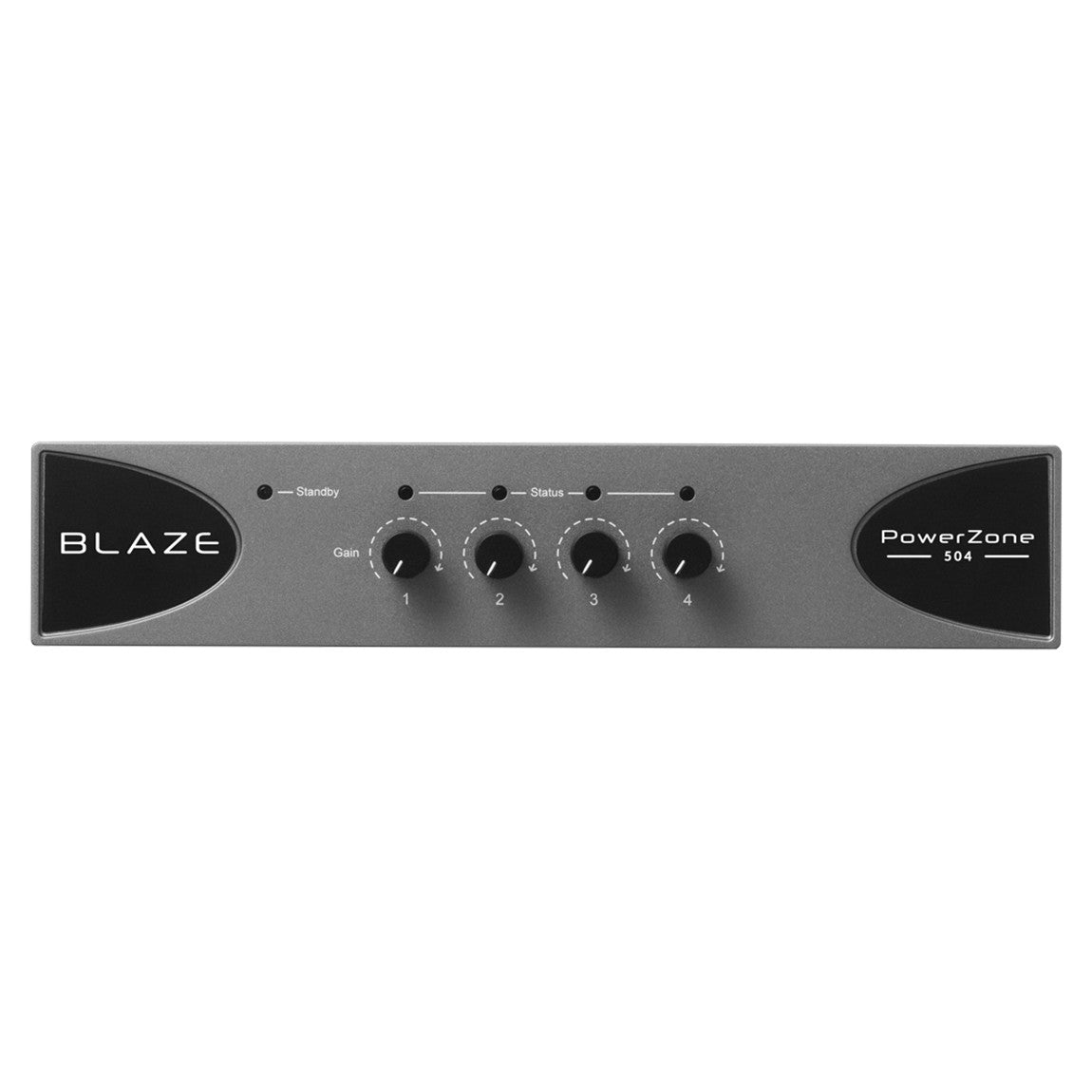

  • Blaze Audio PowerZone 504 Installation Power Amplifier front

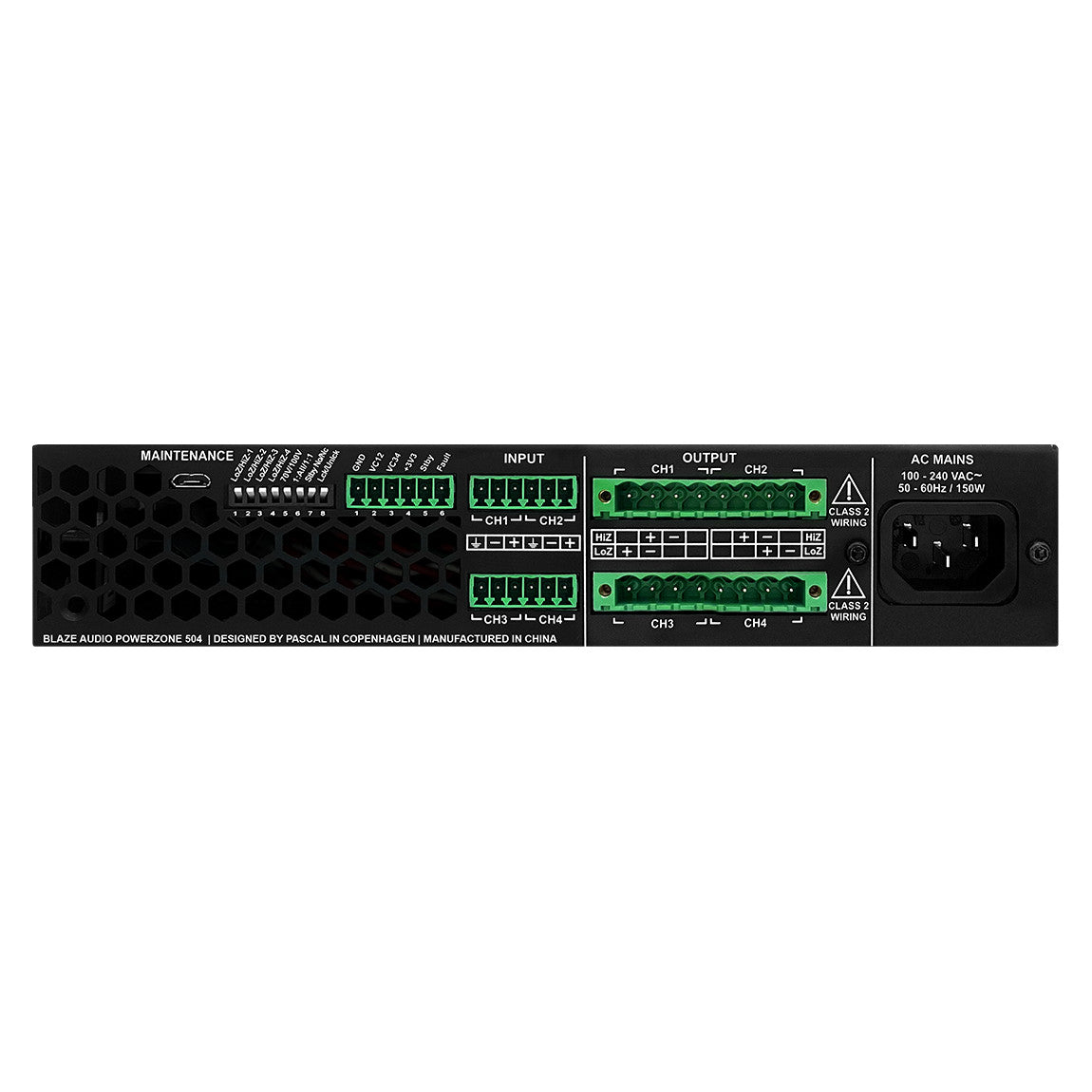

  • Blaze Audio PowerZone 504 Installation Power Amplifier back
1 6

Sonance PowerZone 504 4-Channel Installation Amplifier 1U

Sonance PowerZone 504 4-Channel Installation Amplifier 1U

SoundPro Item: 205646 | Part Number: UBX-888-002

$1,200.00
$1,200.00 $1,200.00
Your Price Sold out
MSRP: $1,200.00 | MAP: $1,200.00

Usually ships in 5-7 business days

  • 4-Channel Class-D Amplifier With Per-Output Lo-Z (4-16Ω) Or Hi-Z (70V/100V) Switching
  • Intelligent Power-Sharing Distributes Total Output Proportionally Across All 4 Channels
  • Compact Half-Rack Chassis Ideal For Closets, AV Cabinets, And Hidden Installations
  • Rack-Mount, Surface, And Rear-Support Brackets Available For Versatile Placement
  • Universal Power Cord Configuration
  • Backed By A 5-Year Manufacturer Warranty
Log in or register for YOUR best price

The Sonance PowerZone 504 is a 4-channel non-networked Class-D installation amplifier engineered for projects that need affordable, reliable audio power across multiple zones without the overhead of a networked DSP platform. Each of the four output channels is independently switchable between Lo-Z (4-16 ohm) and Hi-Z (70V/100V) operation, letting one chassis simultaneously drive low-impedance background speakers and constant-voltage lines.

Power-sharing technology proportionally distributes the amplifier's total available power across channels, ensuring program-dependent material gets the headroom it needs without wasting capacity on quieter zones. The compact half-rack chassis fits desks, closets, AV cabinets, and tight rack spaces where a 1U amplifier would be too wide, and the optional rack ears, surface, and rear-support kits adapt the 504 to nearly any install location.

Backed by a 5-year warranty, the PowerZone 504 ships ready for universal deployment.

The PowerZone 504's combination of multi-mode operation and intelligent power-sharing delivers more usable system flexibility than fixed quad-channel amplifiers at the same price point. Specify rack-mount, surface-mount, or rear-support hardware separately to complete the installation.

View full details

Specifications

Warranty
FIVE (5) YEAR
Country of Origin
THA
UPC
810103860322
HTS Code
8518.40.2000
Product Weights and Dims
Product Dimensions
8.66" x 1.73" x 13.31" (219.96 mm x 43.94 mm x 338.07 mm)
Height
1.73" (43.94 mm)
Width
8.66" (219.96 mm)
Depth
13.31" (338.07 mm)
Weight
5.29 lbs. (2.4 kg)
Shipping Weights and Dims
Base UOM
EA
Base Dimensions
11.5" x 3.35" x 19.45" (292.1 mm x 85.09 mm x 494.03 mm)
Base Height
3.35" (8.51 cm)
Base Width
11.5" (29.21 cm)
Base Depth
19.45" (49.4 cm)
Base Weight
7.05 lbs. (3.2 kg)
Master Pack Height
20.71" (52.6 cm)
Master Pack Width
12.95" (32.89 cm)
Master Pack Depth
15.67" (39.8 cm)
Master Pack Weight
30.64 lbs. (13.9 kg)
Master Pack Units
4
Pallet Units
84
