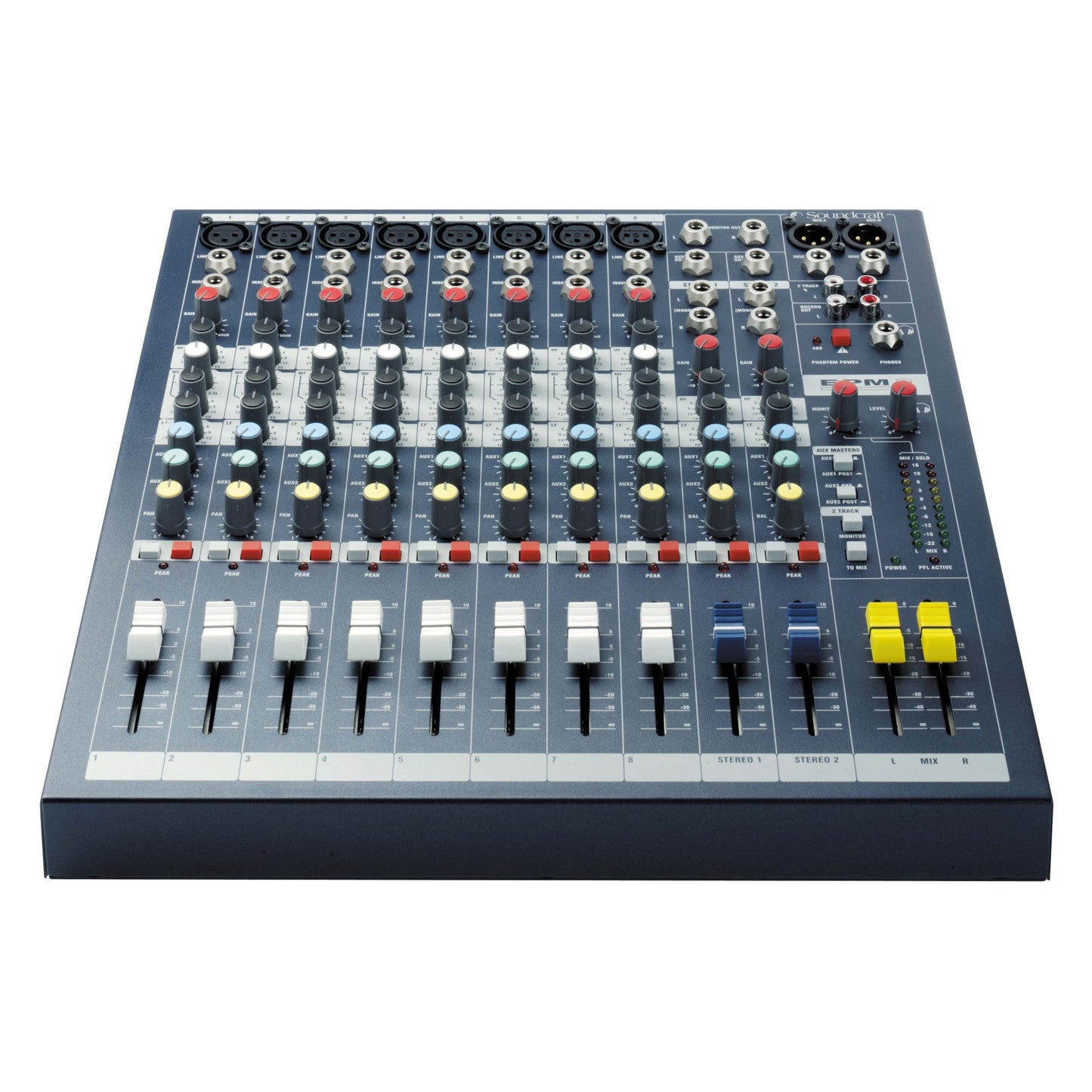

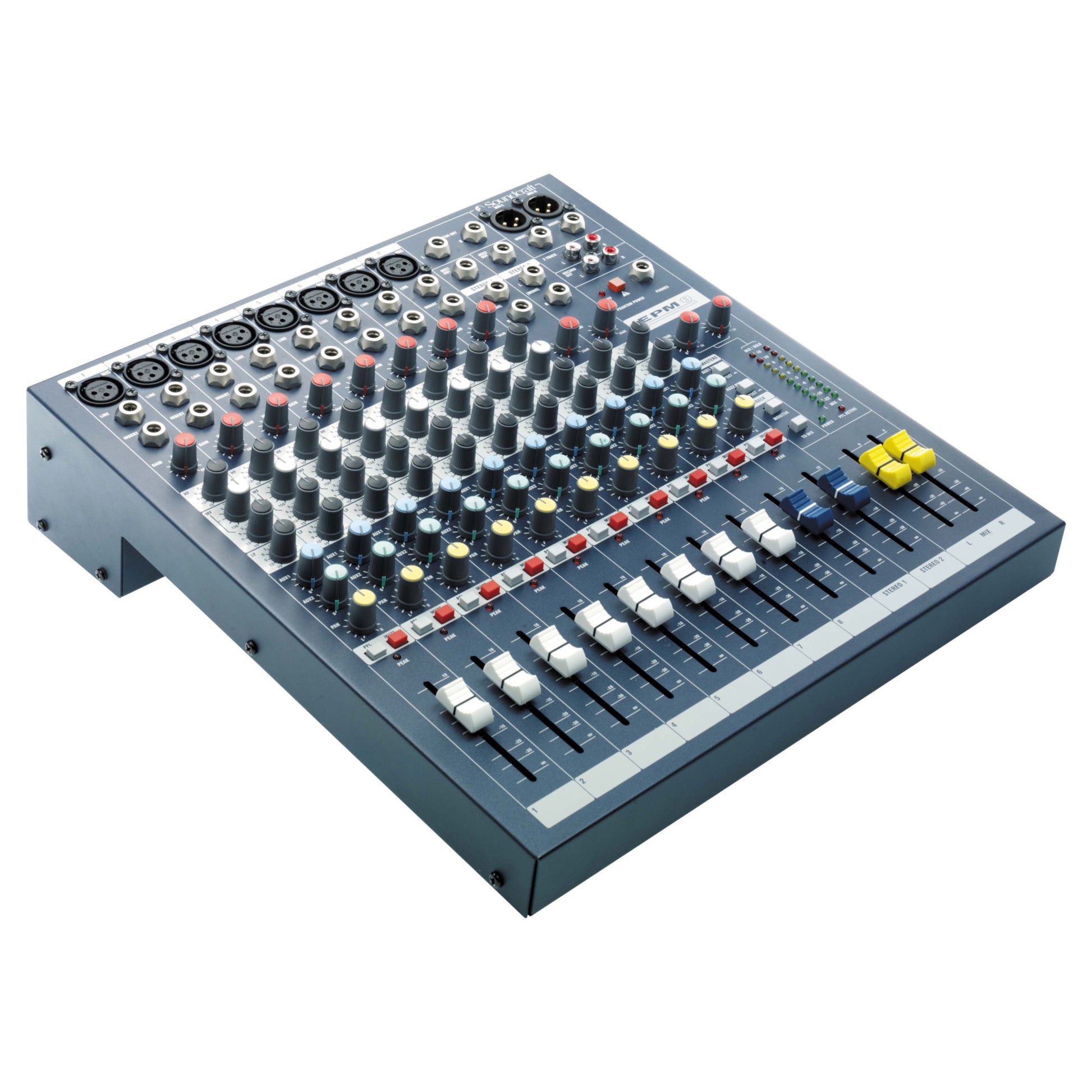

Soundcraft EPM8 8+2 Channel Analog Mixer

Soundcraft EPM8 8+2 Channel Analog Mixer

SoundPro Item: 48615 | Part Number: RW5735US

$415.00
$505.00 $415.00
Your Price Sold out
MSRP: $505.00 | MAP: $415.00

Usually ships in 5-7 business days

  • 2 configurable auxiliary buses
  • XLR-type and ¼" metal jack connector sockets
  • RCA phono stereo playback inputs and record outputs
  • 3-band EQ with a swept mid on mono inputs
  • 2-band EQ on stereo inputs
  • TRS insert sockets and inserts on all mono inputs and mix output
  • Ten-segment LED output metering
  • Intuitive and comprehensive solo system
  • Headphone output
  • Easily rack mountable
Log in or register for YOUR best price

The EPM8 from Soundcraft is an 8+2 Channel Analog Mixer. Part of its affordable EPM line, it combines the basic tools you need with the professional-caliber audio you long for—all in a user-friendly, streamlined build.

View full details
  • Frequency Response (Mic/Line input to any output)20Hz to 20kHz +/-0.5dB
  • THD & Noise (-30dBu Input routed to Mix, Mic gain 30dB) <0.007%
  • Mic Input EIN (22Hz-22kHz unweighted)-128dBu (150Ω source)
  • Bus Noise (Measured RMS, 20Hz to 20kHz Bandwidth Line inputs selected at unity gain and terminated 150Ω)
    • Mix: Mix at Max, Faders down: <-85dBu
  • Crosstalk (typically @1kHz)
    • Channel Mute: >96dB
    • Fader cut-off (rel +10 mark): >96dB
    • Aux Send pot offness: >86dB
  • Input & Output Impedances
    • Microphone Input: 2.4kΩ
    • Line Input: 11kΩ
    • Stereo Input: 100kΩ
    • Outputs: 75Ω
  • Input & Output Levels
    • Mic/Line input Maximum Level: +17dBu
    • Line input Maximum Level: +30dBu
    • Stereo Input Maximum Level: +30dBu
    • Mix Output Maximum level: +20dBu
    • Headphones (at 200Ω): 300mW
  • EQ (Mono Input)
    • HF: 12kHz, ±15dB, shelving
    • Mid: 150Hz - 3.5kHz, ±15dB, Q=1.5
    • LF: 60Hz, ±15dB, shelving
  • Metering12-segment LED bargraphs for Mix L&R outputs
  • Operating conditions
    • Temperature Range: -10ºC to +30ºC
    • Relative Humidity: 0% to 80%
  • Power SupplyIntegral lightweight switched-mode PSU
  • AC mains supply85V-270V AC, 50/60Hz universal input
  • Power consumptionLess than 20W
  • Dimensions (WxHxD)13x3.56x14.25" (330x90.5x362 mm)
  • Weight12.34 lbs (5.6 kg)
