• Soundcraft FX16ii 16-Channel Mixer
1 1

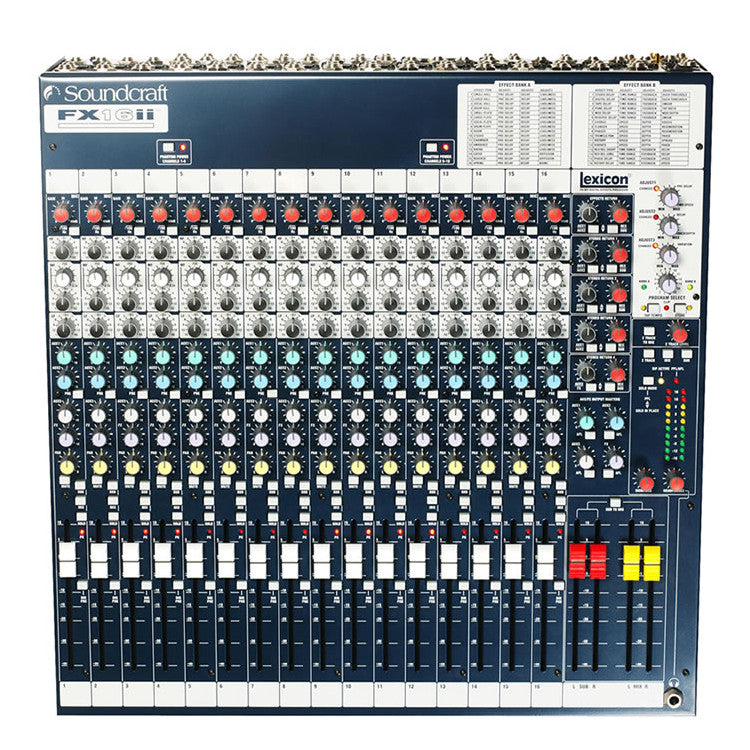

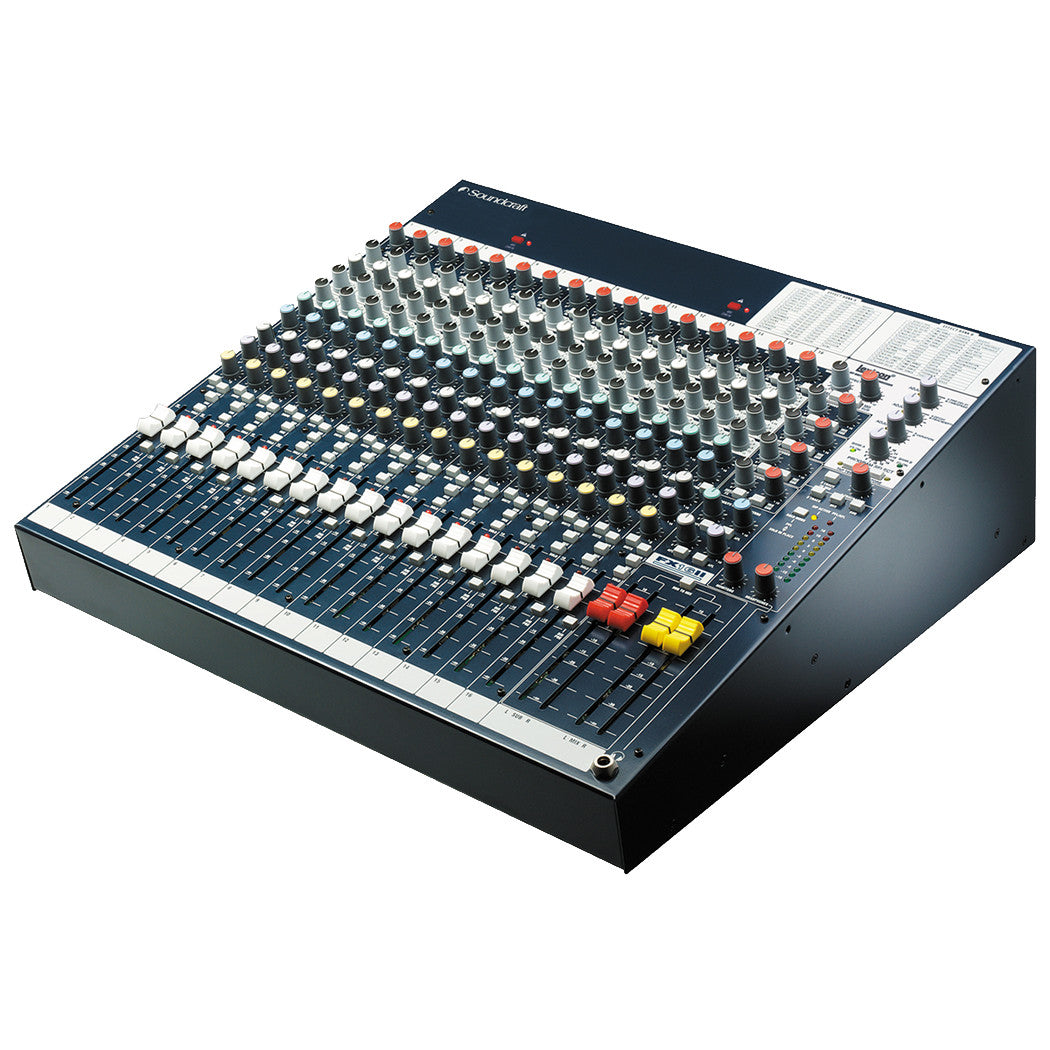

Soundcraft FX16ii 16-Channel Analog Mixer

Soundcraft FX16ii 16-Channel Analog Mixer

SoundPro Item: 48649 | Part Number: RW5757US

$1,245.00
$1,285.00 $1,245.00
Your Price Sold out
MSRP: $1,285.00 | MAP: $1,245.00

Usually ships in 5-7 business days

  • 26 inputs
  • 16 mono microphone channels
  • 4 stereo returns
  • 4-bus architecture, with sub-group routable to mix
  • Built-in 24 bit Lexicon digital effects processor
  • 32 FX settings
  • Tap Tempo
  • 3 FX parameter adjust rotaries
  • User FX settings store function
  • Direct outputs for multi-track recording individually switch-able for pre-post-fade operation
  • Inserts on all mono channels
  • Inserts on stereo mix output
  • Classic Soundcraft 3-band EQ with swept mid-band
  • Stereo 18dB/octave 100Hz high-pass filter
  • Dual global +48V phantom power split channels 1-8 and 9-16
  • Channel Mute control
  • 10-segment tri-colored metering
  • Two sub-group outputs
  • Separate mono sum output
  • Integral universal power supply
Log in or register for YOUR best price

The FX16ii from SoundCraft is a 16-channel analog mixer for live and recording applications. The second iteration of the popular FX16 analog mixer, the FX16ii boasts classic quality, legendary build, 4-bus architecture, and 16 mic inputs and direct outputs in a rack-mounting frame—as well as adds a 24-bit Lexicon onboard effects section and universal internal power supply. The FX16ii also features 16 mic/line inputs and 26 inputs to mix in total (including stereo returns and tape return to mix), 2 buses for sending groups of instruments to additional speakers (or sub-grouped to your mix), and 16 Direct Outputs that can be individually switchable pre or post fader (great for multitrack recording or live use). Other available features include Solo In Place for studio monitoring and PFL Solo for channel gain set-up.

View full details
  • Frequency Response (mic/line input to any output)+/-1dB, 20Hz - 20kHz
  • THD (mic sensitivity -30dBu, +14dBu @ mix output)<0.09% @ 1kHz
  • Noise
    • Mic Input EIN (max. gain): -127dBu (150Ω source)
    • Aux, Mix and Masters (@0dB, faders down): <-84dBu
  • Crosstalk (@1kHz)
    • Channel Mute: > 96dB
    • Fader Cut-Off (rel +10 mark): > 96dB
    • Aux Send Pots Offness: > 86dB
  • EQ (mono inputs)
    • HF: 12kHz, +/-15dB
    • MF (swept): 150Hz - 3.5kHz, +/-15dB
    • LF: 80Hz, +/-15dB
    • Q: 1.5
  • Power Consumptionless than 40W
  • Input and Output Levels
    • Mic Input: +15dBu max
    • Line Input: 10kΩ
    • Stereo Input: 65kΩ (stereo), 35kΩ (mono)
    • Outputs: 150kΩ (balanced), 75kΩ (unbalanced)
  • Operating Temperature Range41°F to 104°F (5°C to 40°C)
  • Dimensions19" x 17.42" x 5.83"
