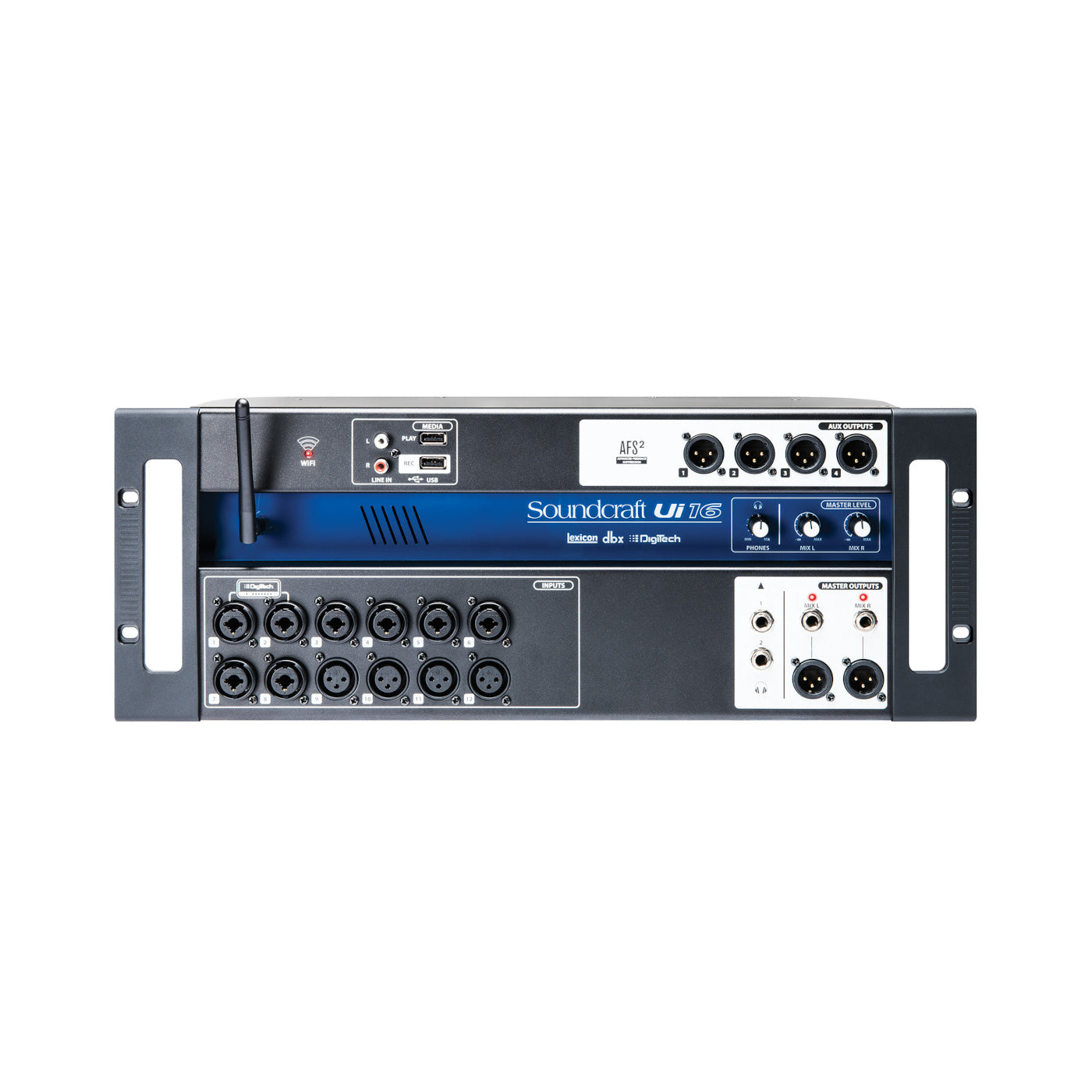

  • Soundcraft Ui16 Remote-Controlled Digital Mixer front

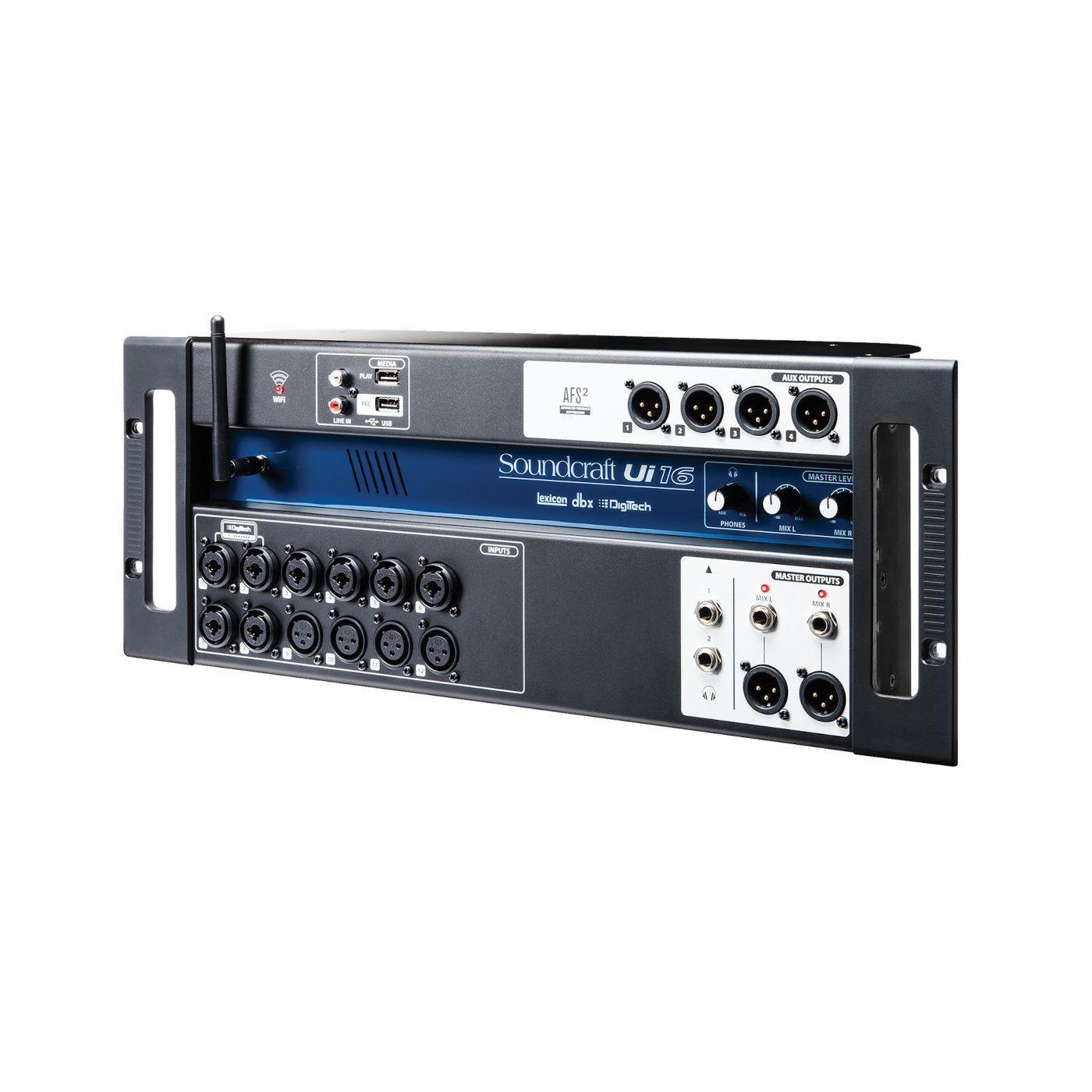

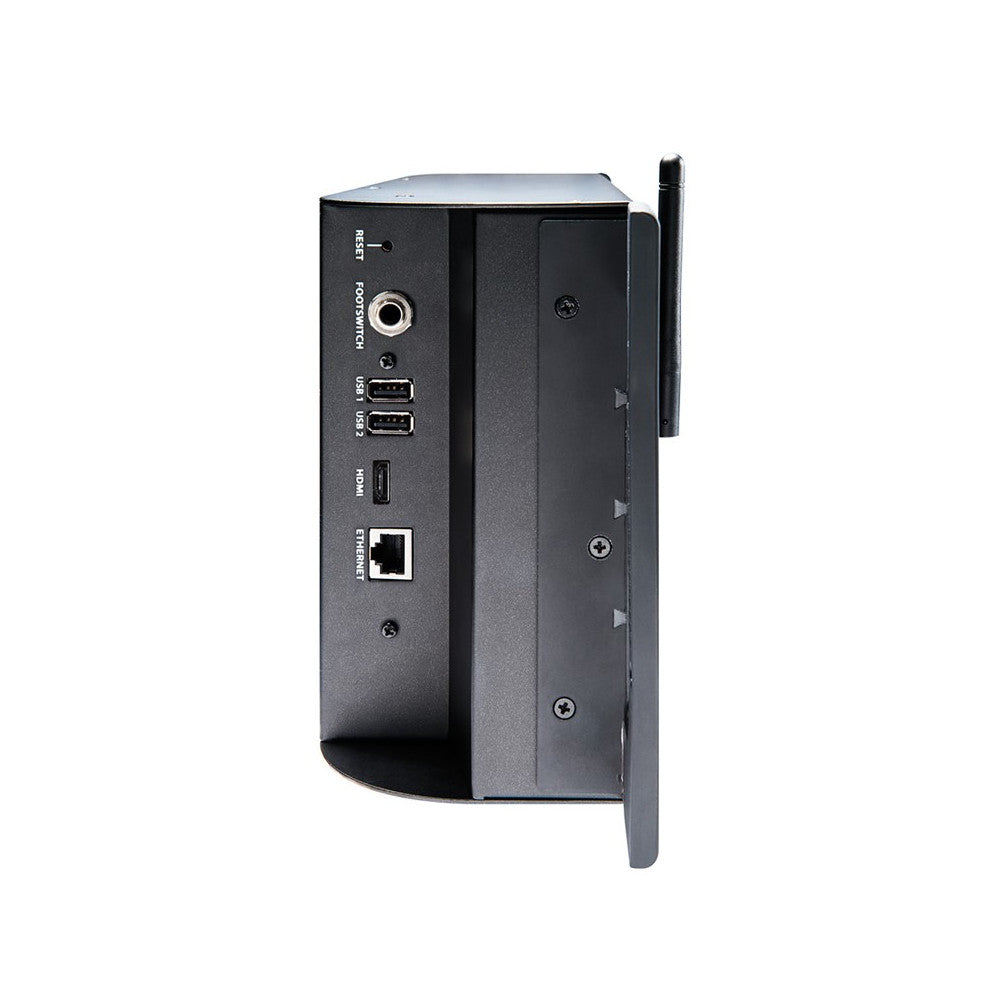

  • Soundcraft Ui16 Remote-Controlled Digital Mixer side
  • Soundcraft Ui16 Remote-Controlled Digital Mixer lifestyle horizontal
  • Soundcraft Ui16 Remote-Controlled Digital Mixer lifestyle vertical
1 5

Soundcraft Ui16 Remote Controlled 16-Channel Digital Mixer

Soundcraft Ui16 Remote Controlled 16-Channel Digital Mixer

SoundPro Item: 25495 | Part Number: Ui16

$639.00
$640.00 $639.00
Your Price Sold out
MSRP: $640.00 | MAP: $639.00

Usually ships in 5-7 business days

  • Tablet/PC/Smartphone Controlled Digital Mixer
  • Integrated Wi-Fi
  • Cross-platform compatibility with iOS, Android, Windows, Mac OS, and Linux devices
  • Use up to 10 control devices (tablets, phones, PCs) simultaneously
  • Legendary Harman Signal Processing from dbx®, Digitech®, and Lexicon®
  • Fully recallable and remote-controlled mic preamps
  • 4-band Parametric EQ, High-Pass Filter, Compressor, De-esser and Noise Gate on input channels
  • 31-band Graphic EQ, Noise Gate and Compressor on all outputs
  • Real-Time Frequency Analyser (RTA) on inputs and outputs
  • 3 dedicated Lexicon® FX effects processors: Reverb, Delay and Chorus
  • Subgroups, Mute Groups, View Groups, and more mixer controls
  • Show/Snapshot recall with channel safes and security lockout
  • 2-channel USB audio playback and recording
  • Password-protected Access limitation system
  • Sync ID (multiple browser windows staying in channel Sync)
Log in or register for YOUR best price

The Ui16 from Soundcraft is a 16-channel digital mixer characterized by its remote-control capability that provides expanded freedom for your sound mixing application.

The Ui16 boasts eight XLR combo mic/line inputs, four XLR mic inputs, two channels of Hi- Z/instrument inputs, as well as a stereo RCA line input. A 2-channel USB media player is included, along with four balanced XLR Aux outputs, two quarter-inch headphone outputs with level control, plus balanced stereo XLR and quarter-inch main outputs. Two-channel USB audio playback is compatible with MP3, WAV and AIFF formats, and 2-channel USB Record direct-to-memory devices functionality is possible as well.

View full details
  • Frequency Response20Hz-20kHz +/- 0.25 dB
  • THD-20dBFS @ 1kHz <0.006%
  • Noise
    • Residual Noise -96dBu
    • Mic Input E.I.N.22Hz-22kHz unweighted: -109dB EIN
    • Mix Noise masters at unity < -90dBu
    • 1 input to Mix at Unity gain < -86dBu
  • Cross Talk (@1kHz)
    • Channel ON attenuation <120dB
    • Channel Fader Attenuation <120dB
    • Mic-Mic -103dB@ 1kHz, -93dB@ 10kHz
    • Line-Line -103dB@ 1kHz, -93dB@ 10kHz
  • Input GainMic/Line Gain -40dB to +50dB (0.1dB steps, Step accuracy depends on size of fader in GUI)
  • Gate
    • Threshold -inf to +6dB
    • Auto Attack
    • Auto Release
  • Compressor
    • Threshold -90dB +6dB
    • Ratio 1:1 - 50:1
    • Attack 1ms - 400ms
    • Release 10ms - 2000ms
    • Makeup Gain -24dB - +48dB
  • EQ Channel
    • 4 band parametriq EQ
    • Each Band Freq 20Hz to 22kHz
    • Q .05 - 15
    • Gain -20dB to +20dB
    • HPF 20Hz to 1kHz
  • De-esser
    • Threshold -90dB to 6dB
    • Ratio infinity to 1:1
    • Frequency 2kHz to 15kHz
  • EQ Ouputs32 band GEQ, 20Hz - 20KHz +-15dB
  • Compressor outputs
    • Threshold -90dB +6dB
    • Ratio 1:1 - 50:1
    • Attack 1ms - 400ms
    • Release 10ms - 2000ms
    • Makeup Gain -24dB - +48dB
  • dbx® AFS on all outputs12 parametric EQ’s (6 fixed, 6 floating)
  • LatencyMic in - ADC -DSP -DAC - Line output 1.8ms
  • Input and Output Impedances
    • Mic input 10kΩ
    • Line Input 10kΩ
    • Hi-Z Input 250kΩ
    • Outputs all at 100Ω
  • USB
    • Max Current 500mA
    • Max Current available to all ports 900mA
  • Power
    • Consumption (typical) < 25W
    • AC input voltage range 88-265VAC auto sensing
    • AC frequency 47-63Hz
  • Operating Conditions
    • Temperature range 5°C - 45°C
    • Humidity 0%-90%
    • Storage Temperature -20°C to 60°C
