• Soundcraft Ui24R 24-Channel Digital Mixer
1 1

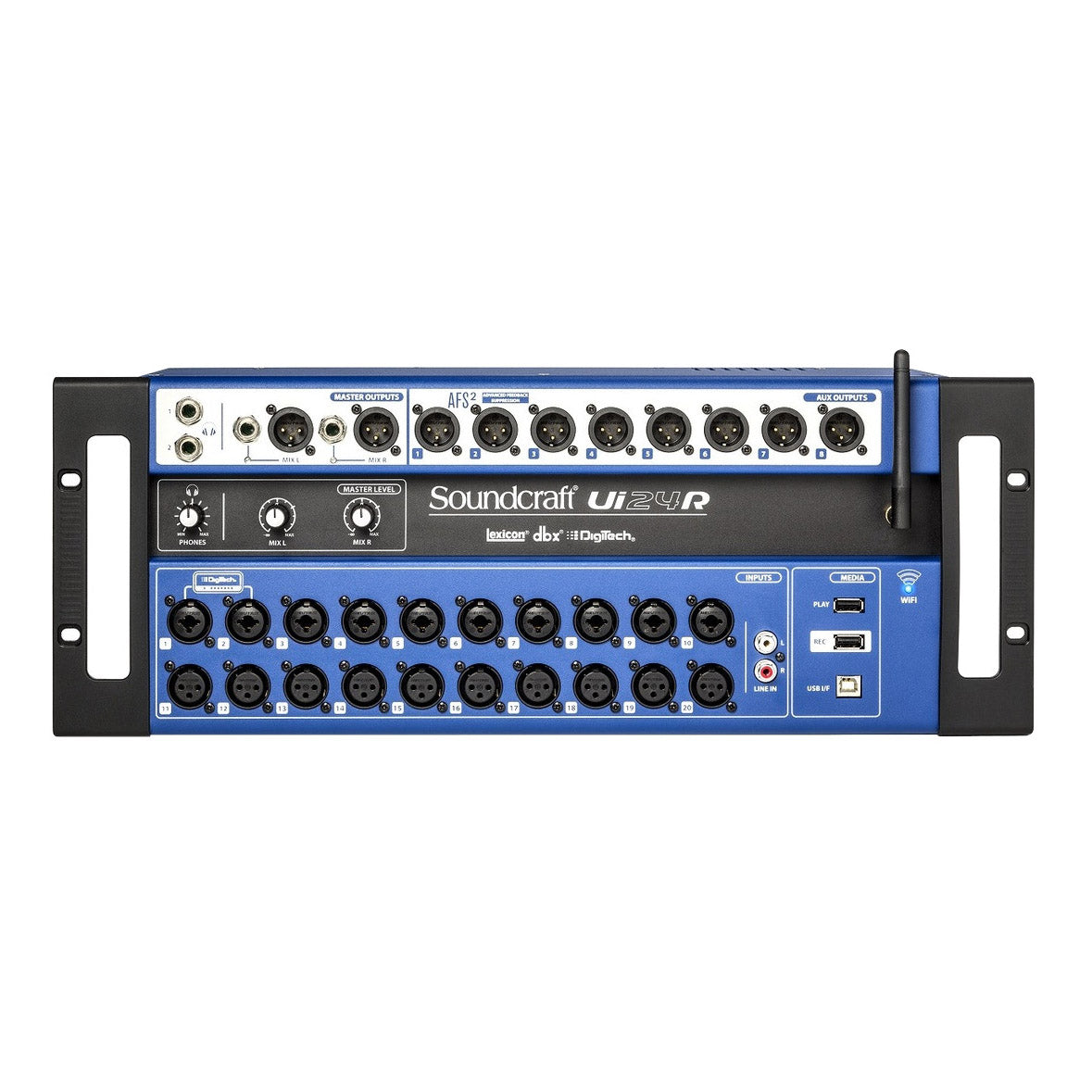

Soundcraft Ui24R Remote Controlled 24-Channel Digital Mixer

Soundcraft Ui24R Remote Controlled 24-Channel Digital Mixer

SoundPro Item: 74571 | Part Number: UI24R

$1,620.00
$1,945.00 $1,620.00
Your Price Sold out
MSRP: $1,945.00 | MAP: $1,620.00

In stock and ready to ship

  • Renowned Soundcraft quality and performance
  • Built-in dual-band Wi-Fi eliminates the need for a router to provides a reliable connection to up to 10 mobile devices in mission critical situations
  • Control Ui24R from iOS, Android, Windows, Mac OS and Linux browsers without installing additional apps
  • Record and mix with the warmth of 20 professional-quality Studer-designed preamps
  • dbx compression and iconic Lexicon reverb and delay processing
  • 2 channels of DigiTech guitar amp modeling
  • Dual-path, redundant multi-track recording of all 24 inputs to USB drive and connected Mac/PC
  • 24 simultaneous inputs (10 combo 1/4" TRS/XLR, 10 XLR, 2 line level, 2 digital)
  • 4-band parametric EQ, high-pass filter, compressor, de-esser, and noise gate on input channels
  • 31-band graphic EQ, noise gate, compressor, and dbx® AFS2 Automatic Feedback Suppression on all outputs
  • Real-time frequency analyzer (RTA) on inputs and outputs
  • Compatible with Mac/PC DAWs and other music software
  • Compatible with Harman Connected PA application and system for easier setup and control
  • 4U rackmount design
Log in or register for YOUR best price

The Ui24 from Soundcraft is a 24-channel digital mixer characterized by its remote-control capability that provides expanded freedom for your sound mixing application.

The Ui24R is a complete, rack-mountable, digital mixing and multi-track recording system that delivers flexible I/O, pristine sound quality, intuitive wireless control, and roadworthy reliability-all in a streamlined design. From the stage to the studio, Soundcraft Ui24R is the ultimate system for artists, venues and engineers who need to save space and deliver superior sound.

View full details
  • Frequency Response20Hz - 20kHz +/-0.5dB
  • THD
    • Mic Input (min gain to bus) @ 1kHz <0.005%
    • Mic Input (max gain to bus) @1kHz <0.008%
  • Noise
    • Residual Noise -96dBu
    • Mic Input EIN 22Hz - 22kHz unweighted -128dB EIN
  • Input Gainmic/line gain -6dB to +58dB (step accuracy depends on size of fader in GUI)
  • Gate
    • Theshold -inf to +6dB
    • Attack 1ms to 400ms
    • Release 5ms to 2000ms
    • Hold 1ms to 2000ms
    • Depth -inf to 0dB
  • Compressor
    • Threshold -90dB +6dB
    • Ratio 1:1 - 50:1
    • Attack 1ms - 400ms
    • Release 10ms - 2000ms
    • Makeup Gain -24dB - +48dB
  • EQ Channel
    • 4 band parametriq EQ
    • Each band freq 20Hz to 22kHz
    • Q .05 - 15
    • Gain -20dB to +20dB
    • HPF 20Hz to 1kHz (selectable slopes)
    • LPF 22kHz to 1kHz (selectable slopes)
  • De-esser
    • Threshold -90dB to 6dB
    • Ratio Infinity to 1:1
    • Frequency 2kHz to 15kHz
  • Compressor Outputs
    • Threshold -90dB +6dB
    • Ratio 1:1 - 50:1
    • Attack 1ms - 400ms
    • Release 10ms - 2000ms
    • Makeup Gain -24dB - +48dB
  • dbx® AFS on all outputs12 parametric EQ's (6 fixed, 6 floating)
  • Latencyall processing on for inputs and outputs 3.2ms
  • Input and Output Levels
    • Mic Input +19.5dBu max
    • Line Input +19.5dBu max
    • Mix Output +20.5dBu max
    • Headphone Outputs 500mW 1 output used (@120Ω), 380mW both outputs used
  • Input and Output Impedances
    • Mic Input 1-2 4.2kΩ input 3-20 6kΩ
    • Line Input 12kΩ
    • Hi-Z Input >600kΩ
    • Balanced Outputs <150Ω
  • USB
    • Max Current 500mA
    • Max Current Available to All Ports 900mA
  • Power
    • Consumption (typical) <65W
    • AC Input Voltage Range 88-265VAC auto sensing
    • AC Frequency 47-63Hz
