• Soundcraft Vi1 32 Channel Mixing Console
1 1

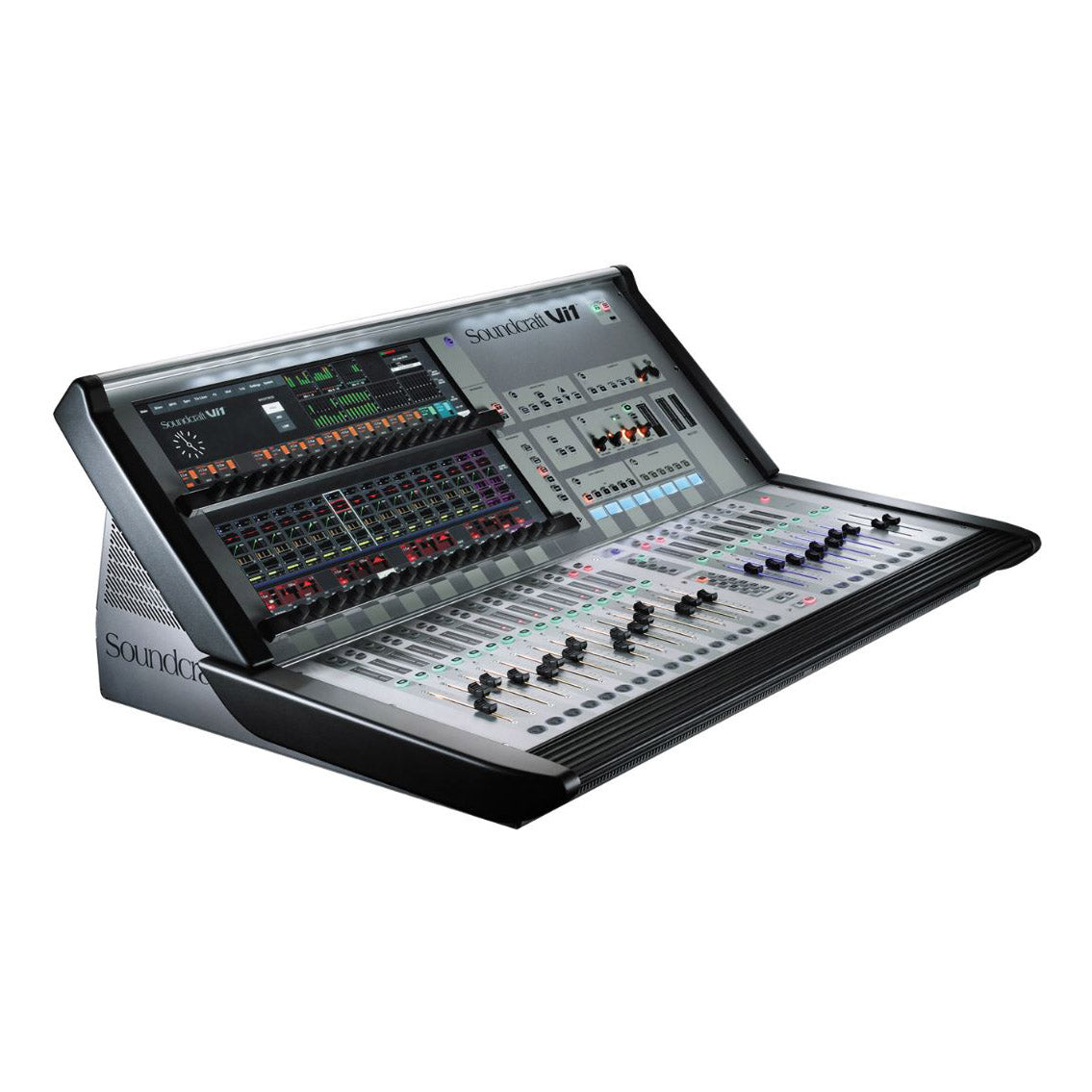

Soundcraft Vi1-32 Mixing Console

Soundcraft Vi1-32 Mixing Console

SoundPro Item: 53138 | Part Number: E947.300000

$20,415.00
$20,415.00 $20,415.00
Your Price Sold out
MSRP: $20,415.00 | MAP: $20,415.00

Usually ships in 5-7 business days

  • Smaller version of Vi console, still has Vistronics™ user interface and sound quality
  • Widescreen Vistonics interface similar to Vi6 or Vi4
  • Soundcraft FaderGlow™
  • 4 stereo Lexicon effects engines
  • BSS Audio graphic EQs on all output busses
  • Integral dynamics on all channels
  • Desk is compatible with Vi2, 4, and 6 show files
Log in or register for YOUR best price

Get all your mixing needs demand in a single package with Soundcraft’s Vi1-32 Mixing Console. This complete, standalone solution offers 32 channels of analog input to 27 analog outputs, plus 6 digital inputs, 4 Stereo FX Returns and 6 digital outputs. At just over a meter wide, this mixing console includes 16 motorized channel faders with fixed and user-definable layers, 8 output/VCA faders and 2 master faders.

View full details
  • Frequency Response
    • Stagebox Mic Input to Line Output: +0/-1dB, 20Hz - 20kHz
    • AES/EBU In to AES/EBU Out: +0/-0.2dB, 20Hz - 20kHz
  • THD and Noise
    • 22Hz - 22kHz: <0.01% @ 1kHz
    • Local Mic IN (min gain) to Local Line Out: <0.003% @ 1kHz
    • Stagebox Mic In (min gain) to Local Line Out: <0.020% @ 1kHz
    • Local Line In to Line Out: <0.003% @ 1kHz
  • Mic Input EIN (22Hz-22kHz bandwidth, unweighted)<-125dBu (150Ω source)
  • Residual Noise (stagebox line output; no inputs routed, mix fader @ 0dB)-95dBu
  • CMRR (stagebox mic input)80dB @ 1kHz
  • Sampling Frequency48kHz
  • Latency (stagebox mic input to local line output)<2 ms @ 48kHz
  • AES/EBU Input Sample Rate32-108kHz (with SRC enabled)
  • DSP Resolution40-bit floating point
  • Internal Clock
    • Accuracy: <+/-50ppm
    • Jitter: <+/-5ns
  • External SyncBNC wordclock
  • Input & Output Levels
    • Mic Inputs: +23dBu max
    • Line Outputs: +22dBu max
    • Nominal Operating Level: +4dBu (-18dBFS)
  • Input & Output Impedances
    • Mic Inputs: 2k7Ω
    • All other analog Inputs: >10kΩ
    • Line Outputs: <75Ω
    • AES/EBU Outputs: 110Ω
  • Oscillator20Hz to 20kHz/Pink/White Noise, variable level
  • Channel HP Filter20Hz-600Hz, 18dB per octave
  • Channel LP Filter1kHz-20kHz, 18dB per octave
  • EQ (inputs and bus outputs)
    • HF: 20Hz-20kHz, +/-18dB, Q= 0.3-8.7 or shelving
    • Hi-Mid: 20Hz-20kHz, +/-18dB, Q=0.3-8.7
    • Lo-Mid: 20Hz-20kHz, +/-18dB, Q=0.3-8.7
    • LF: 20Hz-20kHz, +/-18dB, Q= 0.3-8.7or shelving
  • MeteringInternal 10-segment LED bargraphs plus 4-segment gain reduction meters for all inputs and Outputs. Peak hold variable from 0-2s.
  • Mains Voltage Operating Range90-264V, 47-63Hz, autoranging
  • Mains Power Consumption155W
