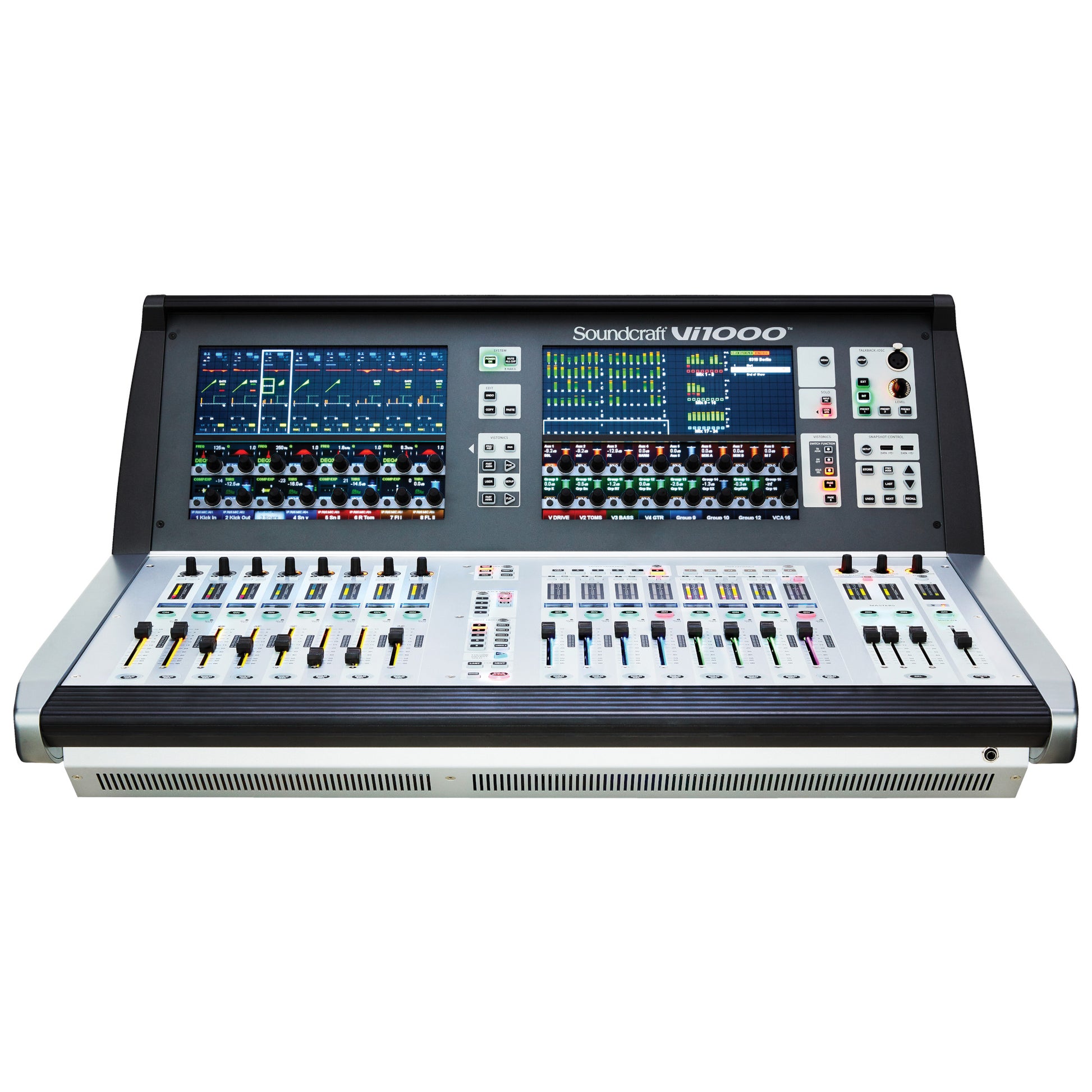

Soundcraft Vi1000 96-Channel Live Sound Digital Mixing Console
Soundcraft Vi1000 96-Channel Live Sound Digital Mixing Console
SoundPro Item: 31549 | Part Number: Vi1000
Usually ships in 5-7 business days
- Digital Mixing Console
- For smaller-scale live sound applications such as touring, rental companies, corporate AV applications, music venues, theaters, and house of worship
- 96 input channels with 24 mono/stereo mix busses, plus LRC master busses
- Vistonics II proprietary ‘knobs-on-glass’ functionality; key to the console’s streamlined, intuitive operational interface and widely praised as the easiest-to-use digital console on the market
- SpiderCore™ integrated DSP engine ensures superior audio performance
- Soundcraft Faderglow color coding illuminates the fader slots according to function
- Integrated Dante™ interface facilitates instant connection to industry standard Dante audio networks
- Two double-slot expansion slots for Stagebox connection or option card installation
- Built-in Lexicon world-class reverb, delay, and pitch effects from the industry’s leading brand
- Onboard BSS DPR901ii dynamic EQ digitally modelled after the original, industry-standard BSSanalog unit
- Integrated microphone monitoring for AKG, Shure®, and Sennheiser wireless systems
- Included vMIX automatic microphone mixing for two groups of up to 16 mics in conference ortheatrical applications
- Proven electronic and mechanical design delivers the performance and reliability Vi Series consoles are known for
The Vi1000 from Soundcraft is a 96-channel digital mixing console. This compact mixer is designed specifically for smaller-scale live sound applications such as touring, rental companies, corporate AV applications, music venues, theaters, and house of worship installations.

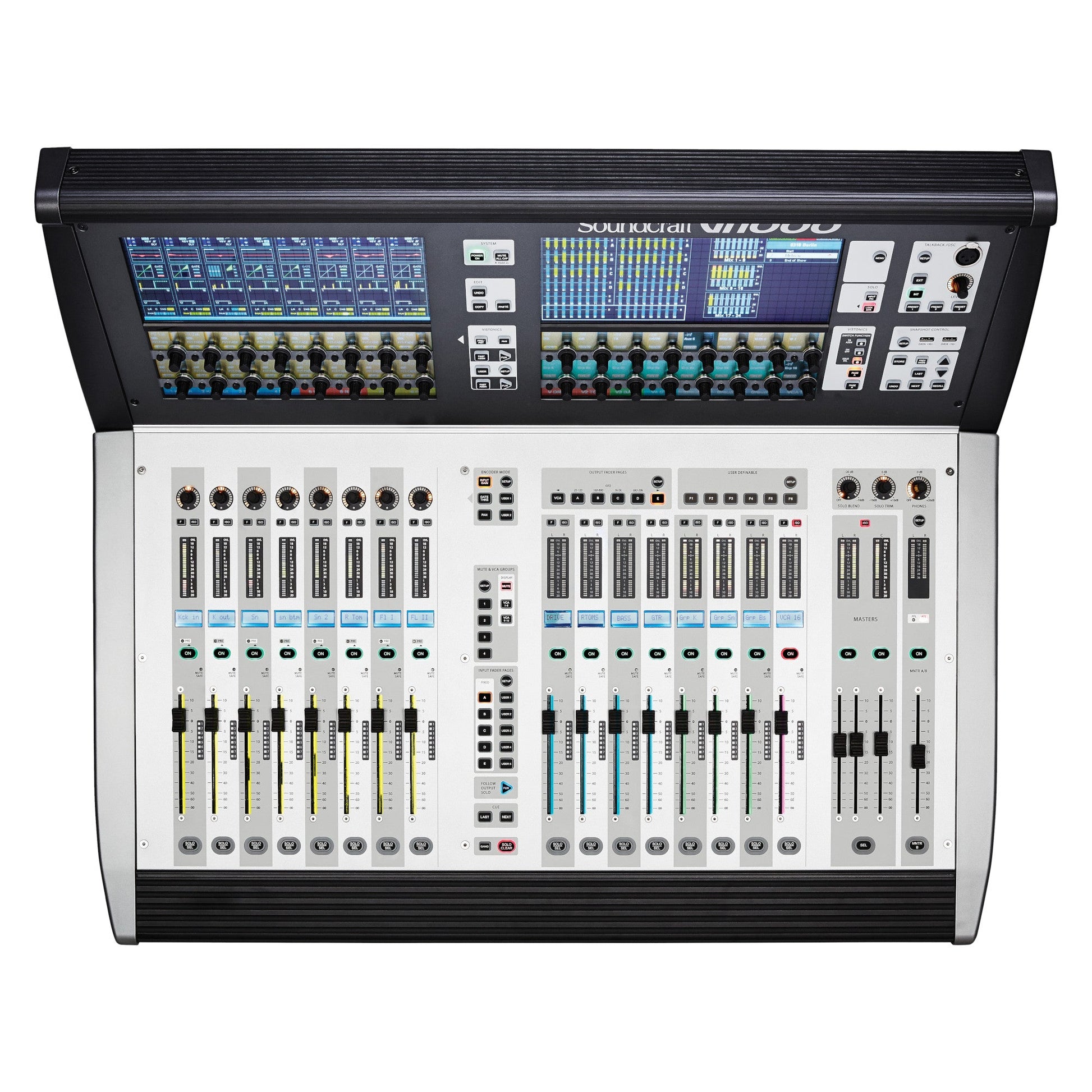

- Control Surface
- Input Faders: 8 (16 when assigned to output faders)
- Output Faders: 8 + 3 + 1
- Total Faders: 20
- Vistonics II screens: 2 (1 input, 1 master)

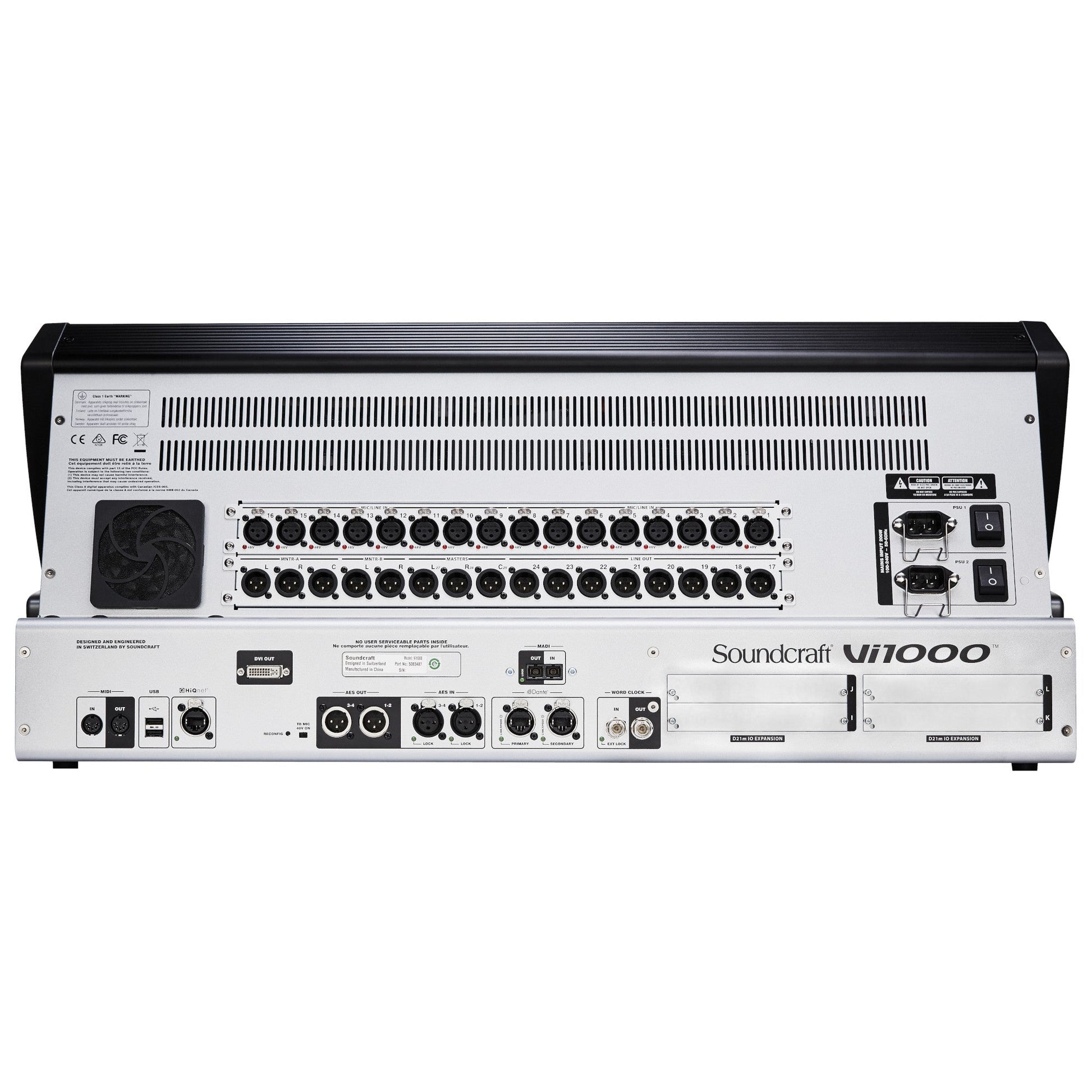

- Local I/O Physical Connectors
- Total I/O count: 212 in/212 out
- Mic/Line Inputs: 16 Soundcraft HQ preamps
- Line Outputs: 16
- AES/EBU In (with SRC): 2 (4ch)
- AES/EBU Out: 2 (4ch)
- TB Mic in: 1 front panel with rear panel 48V on/off sw
- Phones out: 1 stereo jack, under front armrest
- Dante ports: 1x 64ch
- MADI Optical: 64 in/64 out
- D21m Option Slots: 2x double/4 single (total 128ch)
- DSP Mixing Core
- Input Channels: 96 mono Pairable to 48 stereo
- Busses - Aux/Grp: 24 mono or stereo
- Busses - Matrix: From bus pool – max 16 mono/stereo
- Busses - Master: 3 (LRC)
- Assignable Insert Points: 64 external + 8 DEQ + 4FX
- Lexicon FX: 4 Stereo reverb/delay/pitch effects
- BSS GEQ: All mono/stereo busses and masters
- BSS DPR901ii DEQ: 8 instances
- vMIX Automixing: 2x16ch instances
- External Control Ports
- Ethernet: 1 (for Mirroring and external control)
- MIDI: 1 In 2 Out
- Mains Input: 2, switched, for redundant PSUs.
- USB2.0: 4 (2 front, 2 rear)
- Wordclock: In /Out 2x BNC
- Weight
- Vi1000 console only: 25kg (55lbs)
- Vi1000 console incl. standard shipping carton: 46kg (102lbs)
- Dimensions84mm (33.2”) x 803mm (31.6”) x 351mm (13.8”)
