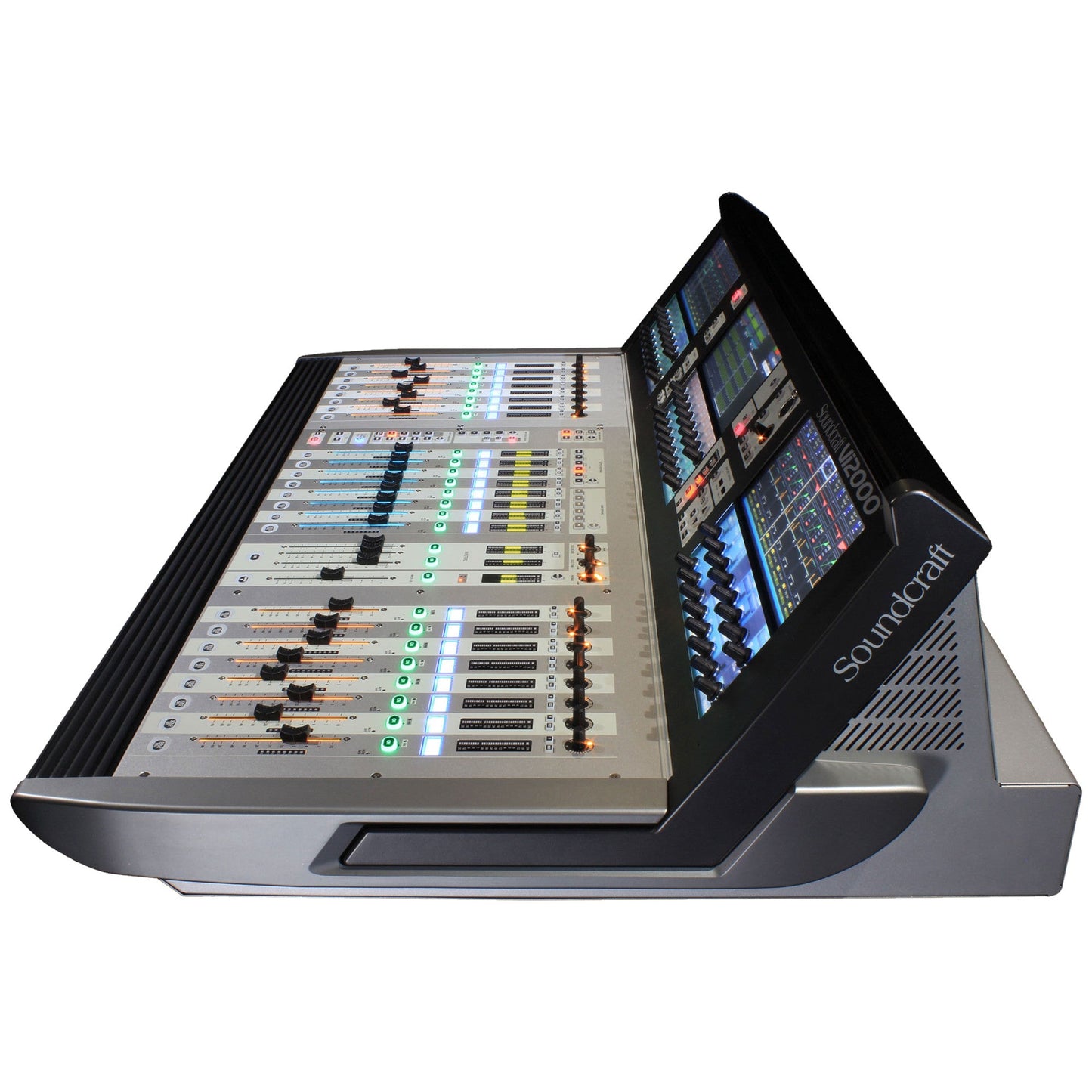

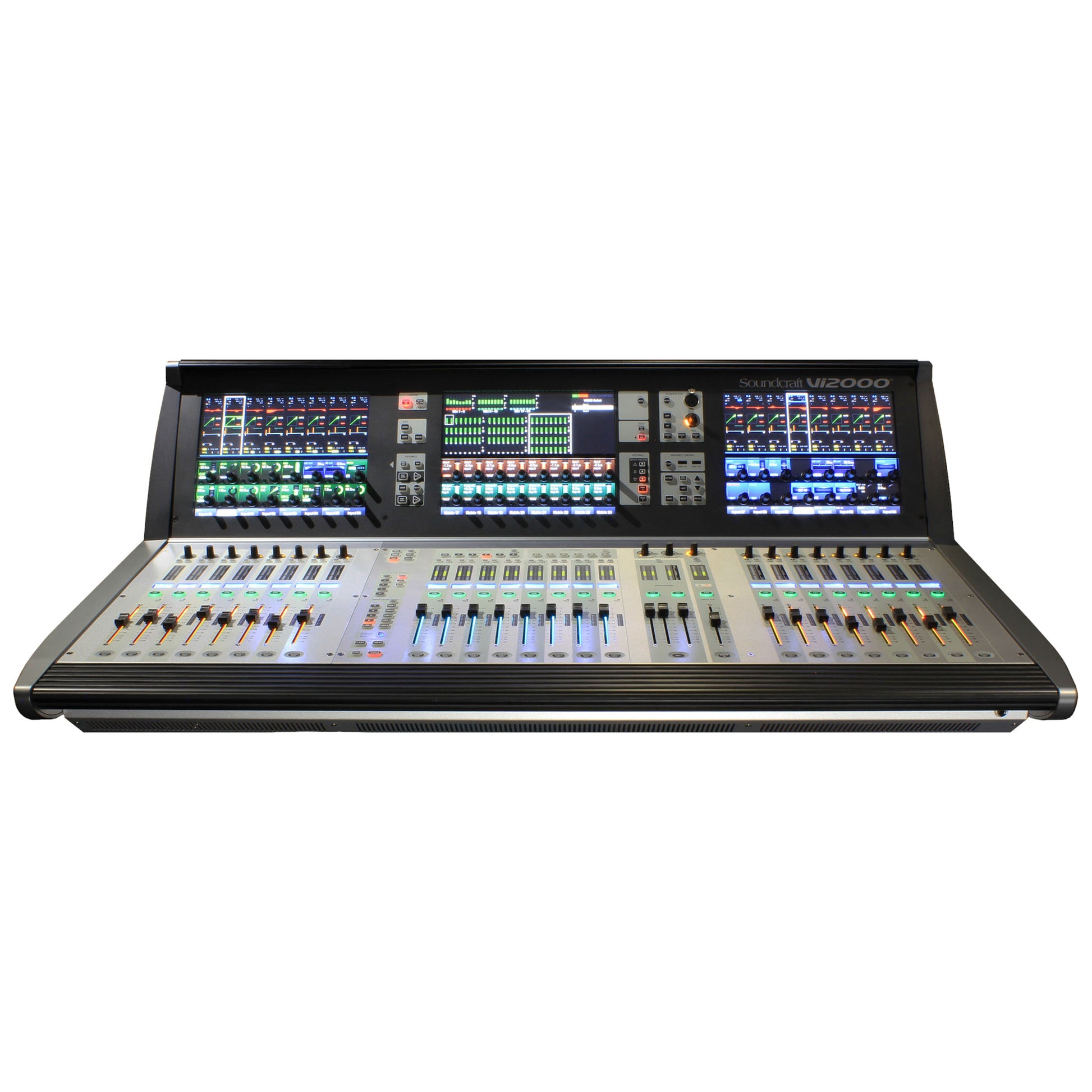

Soundcraft Vi2000 96-Channel Live Sound Digital Mixing Console

Soundcraft Vi2000 96-Channel Live Sound Digital Mixing Console

SoundPro Item: 81712 | Part Number: Vi2000

$47,745.00
$47,745.00 $47,745.00
Your Price Sold out
MSRP: $47,745.00 | MAP: $47,745.00

Usually ships in 5-7 business days

  • Unparalleled mixing power for live touring, install and corporate AV
  • Vistonics-based control surface
  • Soundcraft® SpiderCore
  • vMIX automatic microphone mixing
  • Full complement of on-board mic and line IO
  • Two 64ch expansion slots
  • Built-in 64x64ch Dante interface
  • Ultra-compact frame design
Log in or register for YOUR best price

The Vi2000 from Soundcraft is a 96-channel digital mixing console that is designed for live touring, install and corporate AV markets. Experience pro-quality sound via this mixer’s 40-bit floating-point DSP environment via premium STUDER, BSS, Lexicon, and dbx algorithms. Professional-grade features are packed into an ultra-compact frame of 1.15m in width, with 16 input faders and 8 output faders.

View full details
  • Frequency Response - Stagebox Mic input to Line output +0/-1dB, 20Hz-20kHz
  • AES/EBU In to AES/EBU Out +0/-0.2dB, 20Hz-20kHz
  • THD+Noise 22Hz-22kHz
  • Stagebox Mic In (min gain) to Local Line Out <0.003% @ 1kHz
  • Stagebox Mic In (max gain) to Local Line Out <0.020% @ 1kHz
  • Local Line In to Line Out <0.003% @ 1kHz
  • Mic Input E.I.N <-126dBu (150Ω source)
  • Residual Noise -91dBu Stagebox line output; no inputs routed, Mix fader @0dB
  • CMRR, Stagebox Mic input 80dB @ 1kHz
  • Sampling Frequency 48kHz
  • Latency: Stagebox Mic Input to Local Line output < 2ms @48kHz
  • AES/EBU Input Sample Rate 32-108kHz (with SRC enabled)
  • DSP Resolution 40-bit floating point
  • Internal Clock Accuracy < +/- 50ppm
  • Internal Clock Jitter < +/- 2ns
  • External Sync BNC Wordclock
  • Input & Output Levels - Mic Inputs +28dBu max
  • Input & Output Levels - Line Inputs +22dBu max
  • Input & Output Levels - Line Outputs +22dBu max
  • Nominal Operating Level +4dBu (-18dBFS)
  • Input & Output Impedances - Mic Inputs 2k7Ω
  • Input & Output Impedances - All other analog Inputs >10kΩ
  • Input & Output Impedances - Line Outputs <75Ω
  • Input & Output Impedances - AES/EBU Outputs 110Ω
  • Oscillator 20Hz to 20kHz/Pink/White Noise, variable level
  • Oscillator - Stagebox HP Filter 80Hz fixed, 12dB per octave
  • Oscillator - Channel HP Filter 20Hz-600Hz, 18dB per octave
  • Oscillator - Channel LP Filter 1kHz-20kHz, 18dB per octave
  • EQ (Inputs and Bus Outputs) - HF 20Hz-20kHz, +/-18dB, Q=0.3-8.7 or shelving
  • EQ (Inputs and Bus Outputs) - Hi-Mid 20Hz-20kHz, +/-18dB, Q=0.3-8.7
  • EQ (Inputs and Bus Outputs) - Lo-Mid 20Hz-20kHz, +/-18dB, Q=0.3-8.7
  • EQ (Inputs and Bus Outputs) - LF 20Hz-20kHz, +/-18dB, Q=0.3-8.7 or shelving
  • Metering Internal 20-segment LED bargraphs plus 9-segment gain reduction meters for all inputs and Outputs. Peak hold variable from 0-2s.
  • Mains Power Consumption 250W
  • Temperature/Humidity Range - Operating Temperature Range 0°C to 45°C (32°F to 113°F)
  • Temperature/Humidity Range - Relative Humidity 0% - 90%, non-condensing Ta=40°C (104°F)
  • Temperature/Humidity Range - Storage Temperature Range -20°C to 60°C (-4°F to 140°F)
  • Height (Console Only) 351mm (13.8")
  • Width (Console Only) 1155mm (45.5")
  • Depth (Console Only) 803mm (31.6")
  • Weight (Console Only) 45.2kg (99.6lb)
  • Height (with standard shipping carton) 610mm (24")
  • Width (with standard shipping carton)1280mm (50.4")
  • Depth (with standard shipping carton) 950mm (37.4")
  • Weight (with standard shipping carton) 61kg (134.5lb)
  • Height (with factory flightcase) 1121mm (44.1")
  • Width (with factory flightcase) 1243mm (48.9")
  • Depth (with factory flightcase) 517mm (20.4")
  • Weight (with factory flightcase)120kg (265lb)
