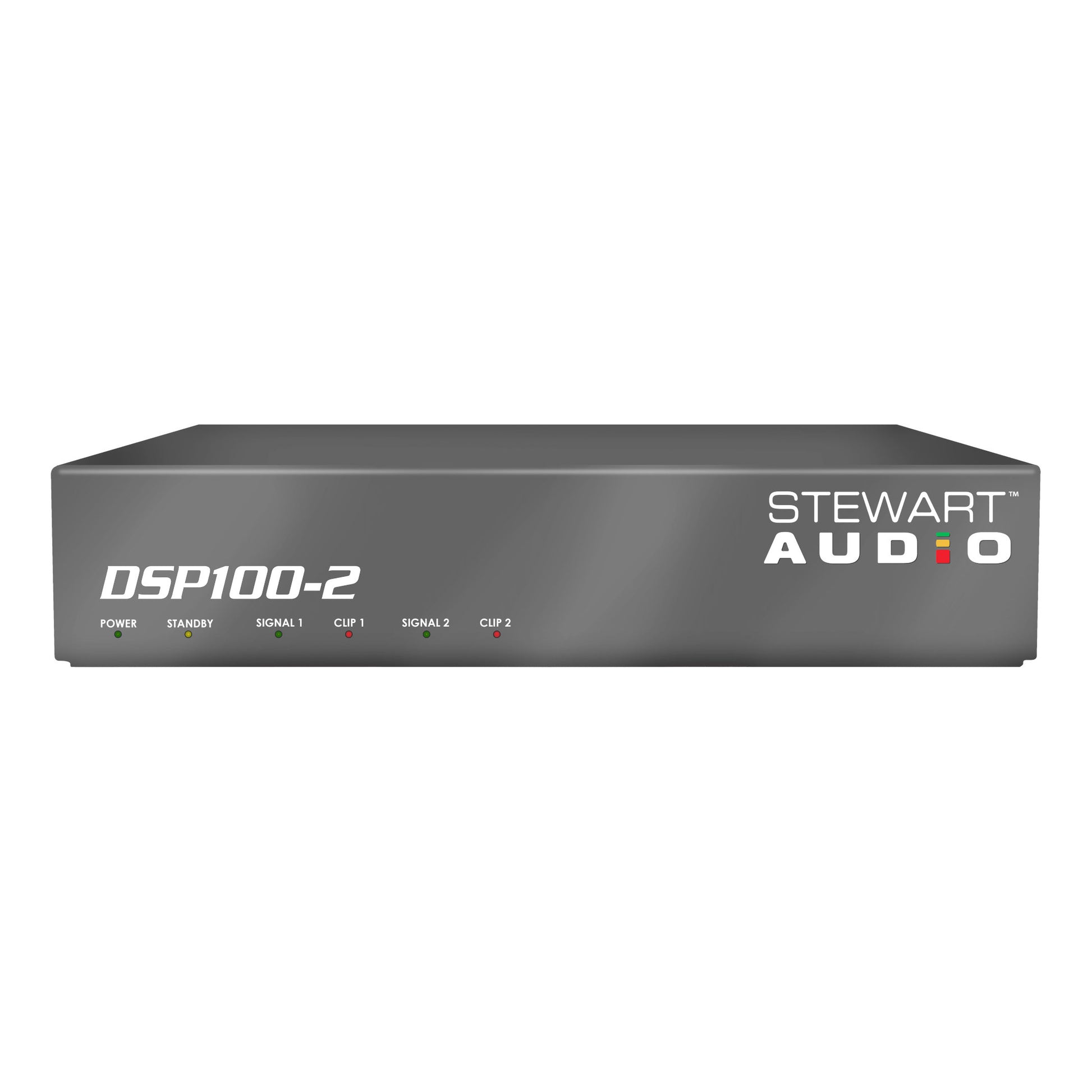

• Stewart Audio DSP100-2-CV 2-Channel DSP-Enabled Amplifier
1 1

Stewart Audio DSP100-2-CV 2-Channel DSP-Enabled Amplifier

Stewart Audio DSP100-2-CV 2-Channel DSP-Enabled Amplifier

SoundPro Item: 16810 | Part Number: DSP100-2-CV

$854.00
$999.00 $854.00
Your Price Sold out
MSRP: $999.00 | MAP: $854.00

Usually ships in 5-7 business days

  • Onboard full featured DSP
  • Configurable via USB port
  • Convection cooled, 1/2 rack enclosure
  • 2 balanced + 2 RCA analog line/mic inputs
  • 2 Dante™ input channels
  • Remote Volume Control
  • Made in the USA
Log in or register for YOUR best price

The DSP100-2-CV is an affordable amplifier with fully integrated DSP designed to optimize the speakers and overcome the acoustical limitations of a zone. The DSP100-2-CV provides 100W from each of the two 70/100V output channels. The robust, full function DSP includes a full cross-point mixer, EQ, filters, limiters, and more. A USB port makes programing simple, fast and repeatable for large installations. The remove volume control operates with a wide range of devices. You won't find a more cost effective way to bring outstanding sound quality to two zones on the market today.

View full details
  • Output Power100W x 1 @ 70V / 100V
  • Frequency Response100 Hz - 20kHz
  • THD+N<.1% @ Full Power
  • Signal-to-Noise Ratio>100dB
  • Input Sensivity 1V (0 dBV)
  • Input impedance (Balanced/UnbalanceD)7.2K Ohms/3.6K Ohms
  • Current Draw - Standby, 1/8 power 12W/65W (Varies by model)
  • Amplifier Class D
  • Remote Volume 0-10VDC
  • External Mute Contact-Closure
  • Input Connectors 3.5mm Euroblock and RCA
  • Output Connectors 5mm Euroblock
  • LED Indicators Power, Standby, Signal, and Clip
  • Controls USB for programming, Remote Volume, Trim Knobs
  • Optional Network InputDante™
  • Power Supply Input 110/240 VAC 50/60Hz (Universal Input)
  • CoolingConvection–Cooling (No Fans)
  • Construction Aluminum Chassis
  • Mounting Rack-Mountable
  • Dimensions (HxWxD) 1.7x8.4x10.7 inches
  • Weight 4.5lbs max (varies by model)
