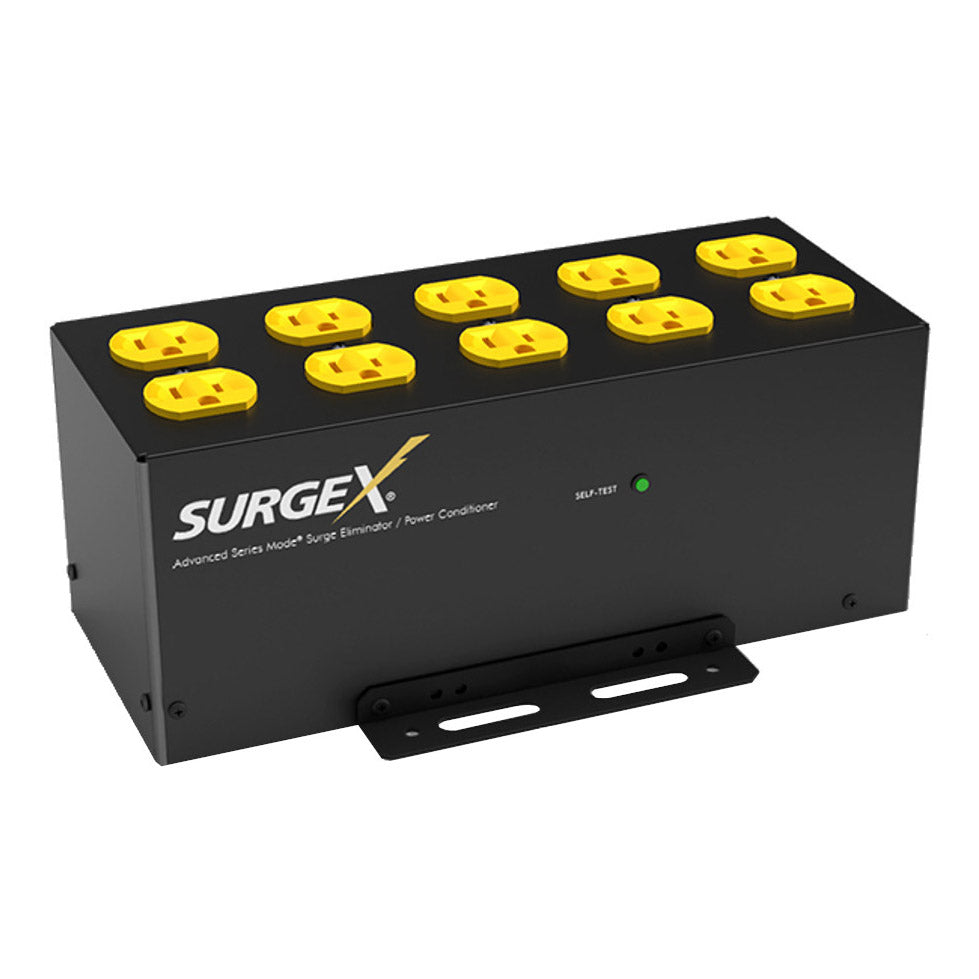

SurgeX SA-1810 Standalone Power Surge Protector
SurgeX SA-1810 Standalone Power Surge Protector
SoundPro Item: 19138 | Part Number: SA-1810
Usually ships in 5-7 business days
- Compact design
- Non-sacrificial components
- 10 receptacle configuration
- 9' grounded 3-wire cord
- Magnetic shielding steel enclosure
The SurgeX SA-1810 is a standalone power surge protector and conditioner device that safeguards mission-critical equipment in environments outside of a rack. Its compact design easily fits along, behind, or near equipment, takes up minimal space, and is perfect for AV, surveillance, and monitoring systems.
Featuring Advanced Series Mode technology and Impedance Tolerant EMI/RFI filtration, it provides patented surge elimination and power conditioning for equipment that relies on peak AV performance. It is comprised of non-sacrificial components that never degrade or fail, guaranteeing equipment stays protected. It eliminates surge energy up to 6,000 Volts without producing harmful ground contamination or common mode disturbances that can cause hissing sounds and pixelation on AV systems to ensure pristine sound and video.
- Load Rating15A
- Voltage Rating120V
- Power Requirement (no load)4W
- Surge Let-through Voltage (6000 Volt Surge)0 Volts
- Max. Applied Surge Voltage6000 Volts*
- Max. Applied Surge Currentunlimited (due to current limiting)*
- Max. Applied Surge Energyunlimited (due to current limiting)*
- Endurance (C62.41-1991 category B3 pulses1 KV > 500,000; 3 KV > 10,000; 6 KV > 1000
- EMI/RFI Filter (normal mode, 50Ω load)
- > 20 dB, 38 kHz – 50 MHz
- > 30 dB, 160 kHz – 50 MHz
- 25 dB @ 100 kHz; 39 dB @ 300 kHz; 60 dB @ 3 MHz; 44 dB @ 30 MHz
- EMI/RFI Filter (common mode, 50Ω load)
- > 10 dB, 280 kHz – 50 MHz
- > 20 dB, 1.7 MHz – 50 MHz
- > 30 dB, 9 MHz – 27 MHz
- 11 dB @ 300 kHz; 19 dB @ 1 MHz; 26 dB @ 5 MHz; 34 dB @ 20 MHz
- Over-Current Auto Shutdowncircuit breaker
- Temperature Range5°C to 35°C
- Humidity Range5% to 95% RH non-condensing
- Weight8.5 pounds
