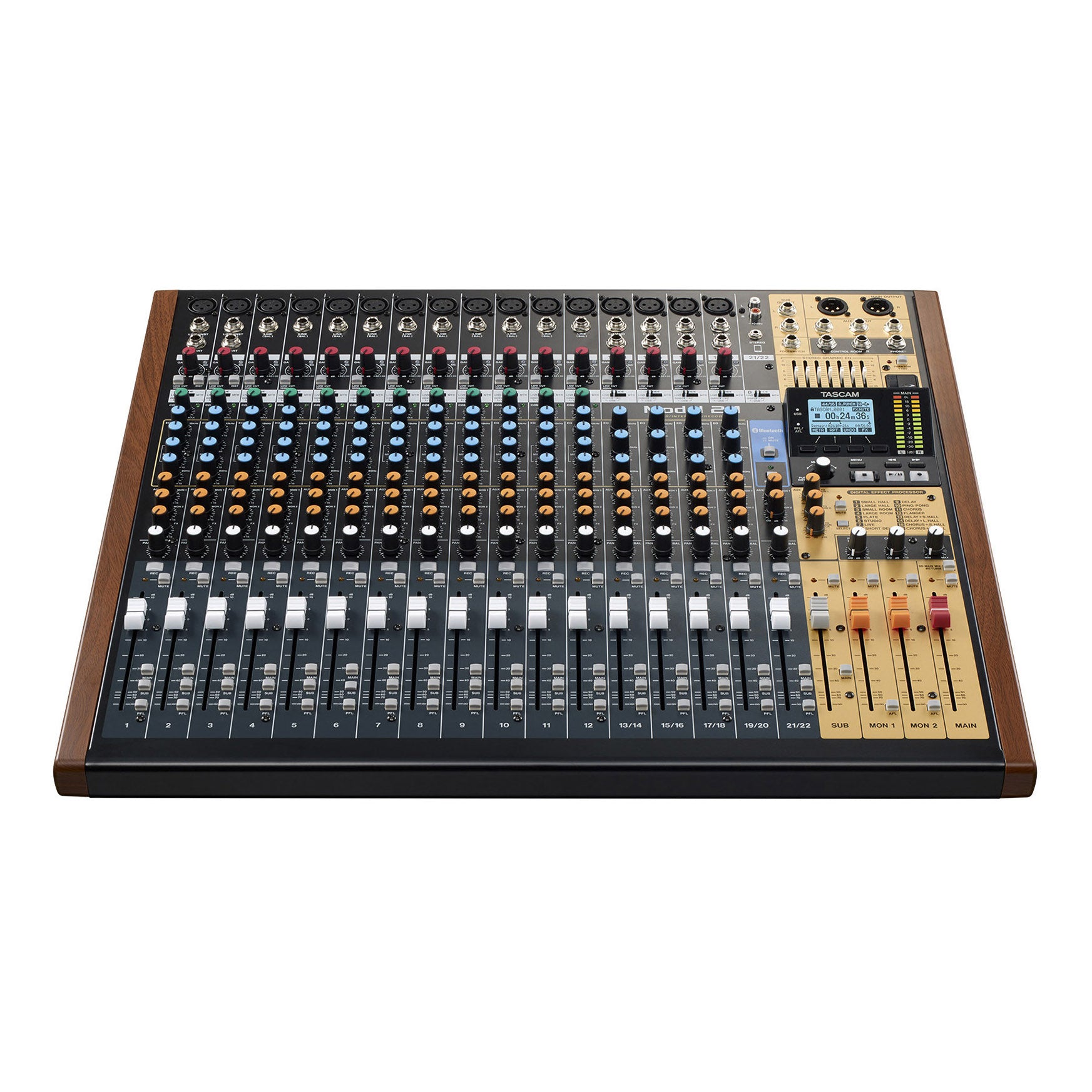

TASCAM Model 24 24-Channel Multitrack Recording Mixer
TASCAM Model 24 24-Channel Multitrack Recording Mixer
SoundPro Item: 24886 | Part Number: MODEL 24
Usually ships in 5-7 business days
- All-in-one, multitrack recorder with 22 channel mixer and USB audio interface
- WAV 48kHz/24-bit, 24 channel multitrack recording to SD, SDHC and SDXC cards
- Built-in USB audio interface to send/receive audio data to/from DAW
- 22 inputs (20 balanced, 12 monaural, and 4 stereo)
- 16 Tascam microphone preamps
- Input Mode switch on every input channel
- Tascam Ultra-HDDA Mic Pre-amp (Channels 1 to 12)
- Preamp gain controller with overload indicator (Channels 1 to 12)
- 3-band EQ with a sweepable mid-range frequency (Channels 1 to 12)
- 100kHz low-cut filter (Channels 1 to 12)
- 7-band graphic EQ
- 16 pre-set effects
- 100mm long-throw faders for precise adjustment
- Mute, Main/Sub, PLF switches on every input channel
- Bluetooth® input supporting both AAC and SBC codecs
- SUB outputs via XLR balanced and RCA unbalanced connectors
- LINE inputs via RCA pin and 1/8" stereo mini jacks
- 3 AUX outputs (Monitor 1, Monitor 2, FX)
- 1 stereo output for control room
- Phantom power (+48V)
- 1/4" stereo headphone output
- Backlit buttons for key operations such as REC and Play
- Multi jog-dial for quick menu operation
- 12-segment LED output level meters
The best of both worlds, Tascam's Model 24 is a full featured 24 track digital multitrack recorder and 24 channel USB audio interface with integrated analog mixdown capabilities. From stage to studio, the Model 24 helps you bring your music together in one easy-to-use device. Whether used for rehearsal, live shows or studio production, this triple-function recording console perfectly meets the needs of today’s working and recording musician. Designed to be both lightweight and rugged, the Model 24 can easily be carried from studio to stage with the confidence that Tascam’s legendary reliability will keep the music going.
One glance is all you need: Model 24 was developed for easy and immediate operation, with everything you need right at your fingertips. 100mm faders allow for precise control over volume. A full set of familiar EQ and Auxiliary knobs remove the need for menu diving, and all input/output connections are on the surface for quick and easy access.
Featuring 16 high-grade Tascam mic preamps in addition to multiple sets of stereo line inputs, the Model 24 delivers studio quality audio performance right from the start. When it’s time to record, the Model 24 allows musicians and engineers to capture up to 24 tracks simultaneously (at 24bit/48kHz resolution) directly to the SD card, with the ability to support punch in/out 8 tracks at the same time. And once the take is done, the Model 24 can easily playback any or all of the recorded tracks through the console for immediate mixdown.
In addition to studio quality mic preamps and powerful EQ and routing options, the Model 24 features a dedicated stereo channel 1/8", dual RCA Bluetooth connectivity. This means mobile devices can be easily integrated into the mix for rehearsal playback, walk-in music and more. Finally, the Model 24 can also act as a powerful audio interface and will connect directly to your PC or Mac for easy integration with your preferred DAW.
- Recording Section
- Supported Media: SD (512MB to 2GB), SDHC (4GB to 32GB), SDXC (64GB to 512GB), Class 10 or higher required.
- File System
- SD Card: FAT16
- SDHC Card: FAT32
- SDXC Card: exFAT
- Recording File Format: WAV(BWF)
- Playback Format: WAV, BWF
- Sampling Frequency: 44.1k / 48k Hz
- Bit Depth: 16 / 24 bit
- Max. Recordable Channel Number: 24ch (22ch + 2 stereo mix)
- Audio Inputs
- Mic In (CH1 to 12, 13/14 to 19/20)
- Connector: XLR 3-31 (1: GND, 2: HOT, 3: COLD)
- Max. Input Level: +10dBu
- Nominal Input Level: -8dBu
- Min. Input Level: -58dBu
- Gain Adjustable Range: 0 to 50dB
- Input Impedance: 1.8kΩ
- Phantom Power Supply: +48V
- Line In (CH 1 to 20)
- Connector: 1/4" (6.3mm) TRS Phone jack (balanced)
- Max. Input Level: +22dBu
- Nominal Input Level: +4dBu
- Gain Adjustable Range: -10 to +40 dB: CH1 to 12, +20 to +30dB: CH13/14 to 19/20
- Input Impedance: 22kΩ
- Insert (CH 1 and 2)
- Connector: 1/4" (6.3mm) TRS Phone jack (T: Send, R: Return, S: GND)
- Return (ring)
- Max. Input Level: +18dBu
- Nominal Input Level: 0dBu
- Input Impedance: 10kΩ
- Send (tip)
- Max. Output Level: +18dBu
- Nominal Output Level: 0dBu
- Output Impednace: 100Ω
- RCA Input
- Connector: RCA pin jack (unbalanced)
- Max. Input Level: +8dBV
- Nominal Input Level: -10dBV
- Input Impedance: 10kΩ
- Stereo Input
- Connector: 1/8" (3.5mm) stereo mini jack (unbalanced)
- Max. Input Level: +8dBV
- Nominal Input Level: -10dBV
- Input Impedance: 10kΩ
- Outputs
- Main Output
- Connector: XLR 3-32 (1: GND, 2: HOT, 3: COLD)
- Max. Output Level: +22dBu
- Nominal Output Level: +4dBu
- Output Impedance: 100Ω
- Sub Out, Monitor, FX Out, Control Room Out
- Connector: 1/4" (6.3mm) TRS Phone jack (T: HOT, R: COLD, S: GND)
- Max. Output Level: +16dBu
- Nominal Output Level: -2dBu
- Output Impedance: 100Ω
- Phones Out
- Connector: 1/4" (6.3mm) Stereo Phone jack
- Output Level: 80mW + 80mW (32Ω loaded)
- Remote Connector (compatible with Tascam RC-1F foot switch)1/4" (6.3mm) TS phone jack
- USB Audio (for connection with PC)
- Connector: USB B type 4-pin
- Format: USB2.0 High-Speed, Mass-storage class/USB Audio Class
- Sampling Rate: 44.1k / 48k Hz
- Bit Depth: 16 / 24 bit
- Max. Inputs: 24
- Max. Outputs: 22
- Bluetooth®
- Version: 4.0
- Output Class: Class 2 (transmission range approx. 33 ft, may vary)
- Supported Profile: A2DP, AVRCP 1.0
- Supported A2DP Codecs: SBC, AAC
- A2DP Content Protection: SCMS-T
- Channel EQ
- Low-Cut: 100Hz, -18dB/octave
- Hi-Shelving: +15dB / -15dB, cut off frequency = 12kHz
- Mid
- Peaking Mono: +15dB / -15dB, 100Hz to 8kHz variable
- Peaking Stereo: +15dB / -15dB, center frequency = 600Hz
- Mid Band Q Fix, 0.55
- Low-Shelving: +15dB / -15dB, cut off frequency = 80Hz
- Graphic EQ
- Band: 7-band
- Frequency: 125 / 250 / 500 / 1k / 2k / 4k / 8k Hz
- Gain: +15dB / -15dB
- FX Types
- 1. Small Hall
- 2. Large Hall
- 3. Small Room
- 4. Large Room
- 5. Plate
- 6. Studio
- 7. Live
- 8. Short Delay
- 9. Delay
- 10. Ping Pong
- 11. Chorus
- 12. Flanger
- 13. Delay + S. Hall
- 14. Delay + L. Hall
- 15. Chorus + S. Hall
- 16. Chorus + L. Hall
- PowerAC 100 to 240V, 50/60Hz
- Power Consumption52W
- Audio Performance
- Residual Output Noise: -100dBu (MAIN OUT, MAIN fader: MIN)
- EIN: -128dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max)
- THD
- 0.01% or less (MIC IN to MAIN OUT, Max input level, 1kHz, GAIN min.)
- 0.004% or less (MIC IN to MAIN OUT, +4dBu, 1kHz, GAIN min.)
- Frequency Response
- 20Hz to 30kHz (+0.5/-1.0dB: Analog)
- 20Hz to 20kHz (+0.5/-1.0dB: Digital)
- Crosstalk: -80dB, channels / input and output (1kHz, PAN fully counter clockwise / fully clockwise)
- Max. Gain (EQ and -EQ flatten, PAN fully counter clockwise/fully clockwise)
- Mic to Main Out: 74dB
- Mic to Insert Out: 50dB
- Mic to Sub Out: 74dB
- Mic to CR Out: 79dB
- Mic to Monitor Out: 75dB
- Mic to FX Out: 75dB
- USB/SD to Main Out: 24dB
- Dimensions (WxHxD)22.67" x 20.2" x 4.43"
- Weight22.04 pounds
