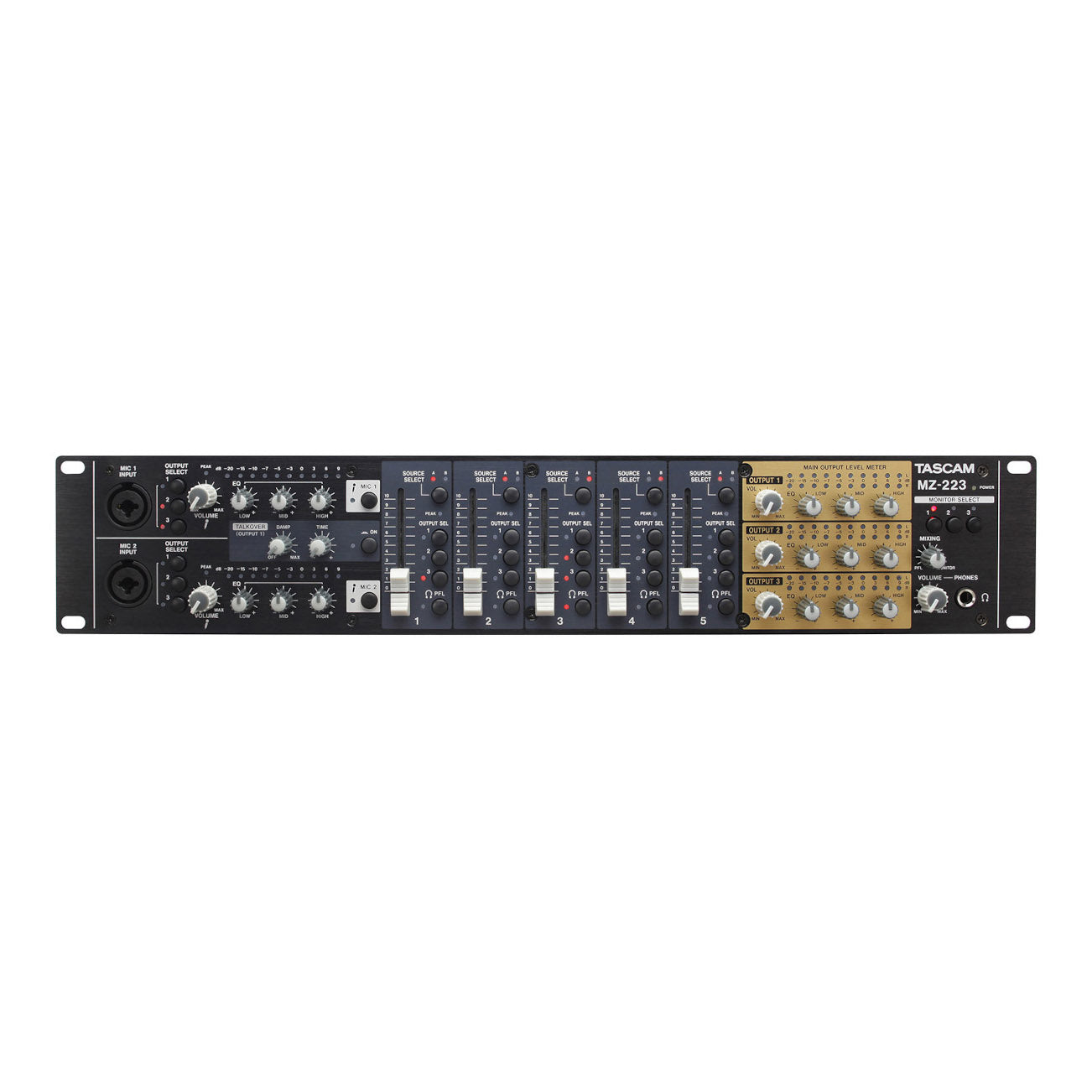

TASCAM MZ-223 Triple Output Zone Mixer

A powerful multi-channel, multi-zone mixer housed in a compact 2U desgn, the TASCAM MZ-223 offers versatile multi-zone audio routing, mixing, and segregation of several audio sources simultaneously. Source content can include music, spoken word (microphone), phonograph, and more and are easily controlled via familiar sliders and assignment controls on the front panel. Designed for easy integration in virtually any system, the TASCAM MZ-223 is ideal for small format install applications such as moderate sized hotels, restaurants, meeting rooms, schools, or any situation that demands independently routed audio.

The MZ-223 allows multiple audio sources to be mixed, segregated, and routed to 3 independent zones or destinations using familiar volume sliders and assignment buttons. Input signals can be inserted via 5 audio channels, each consisting of 2 sets of unbalanced RCA stereo pairs. A total of 10 sets of RCA inputs are provided. Channels 1 and 2 can be set to accommodate phono-level signals for use with a turntable. In addition located conveniently on the front panel, 2 mic-compatible XLR.

The independent 3-zone outputs each have a combination of balanced professional XLR or RCA unbalanced configurations for long runs or connection to common residential power amplifiers or speakers. This flexibility, for example, allows music to be routed to ZONE1, ambient noise or natural sounds to ZONE2, a separate music track or a voice announcement can be routed to ZONE3, while the convenient “Talkover” function will automatically lower any mixed channel source so the microphone can be heard while speaking.
