• Telefunken TF47 Large Diaphragm Multi-Pattern Condenser Microphone
1 1

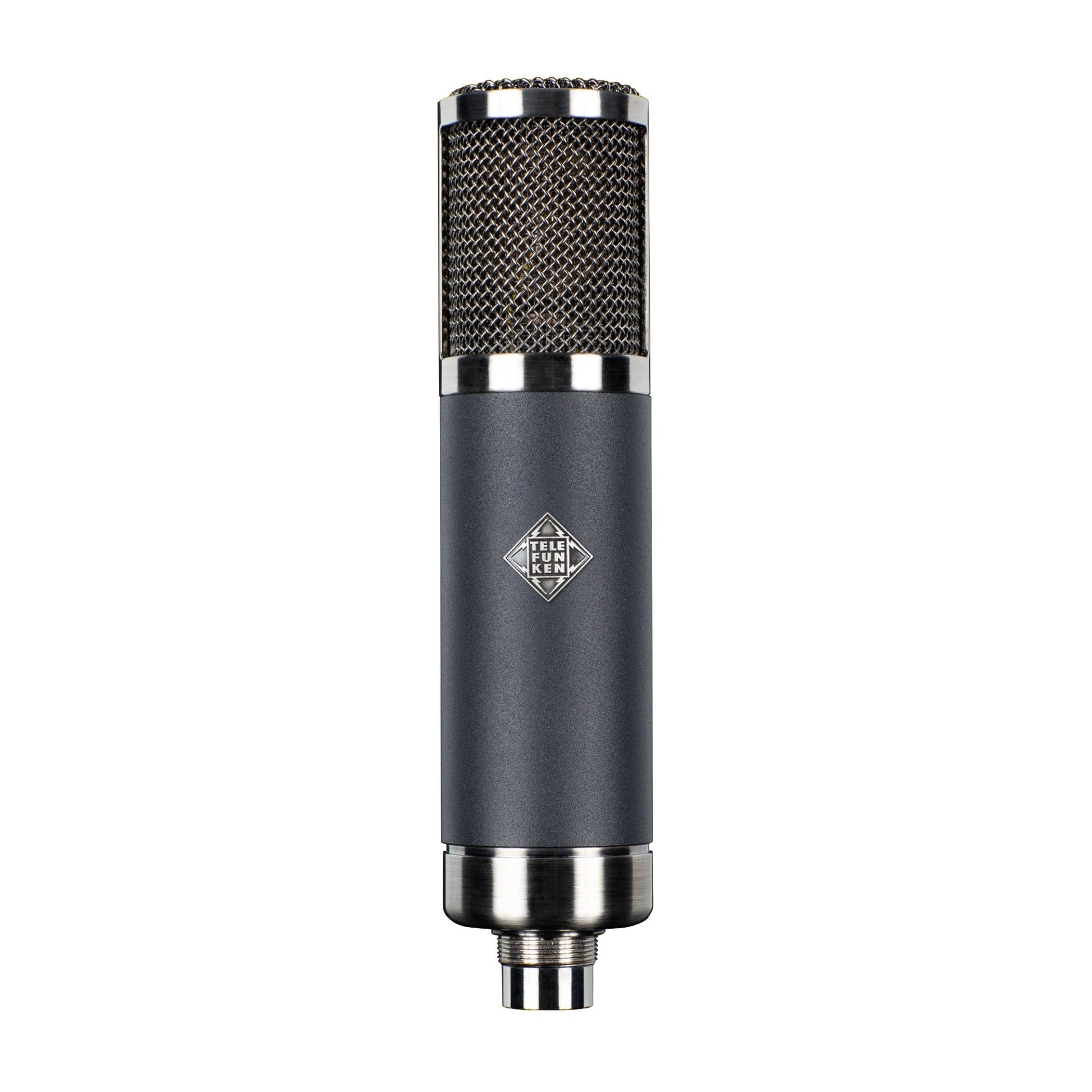

Telefunken TF47 Large Diaphragm Condenser Microphone

Telefunken TF47 Large Diaphragm Condenser Microphone

SoundPro Item: 39254 | Part Number: TF47

$1,895.00
$2,179.00 $1,895.00
Your Price Sold out
MSRP: $2,179.00 | MAP: $1,895.00

Usually ships in 5-7 business days

  • Forward mid-range, reminiscent of the U47
  • Smooth and detailed top end
  • Full and round low end
  • Hand assembled in the USA
  • K47-style capsule and BV8 transformer, similar to the U47
  • Ideal for vocals (R&B, rap, female soul), upright bass, toms and kick out, trombone, cello, and percussion
Log in or register for YOUR best price

The Telefunken TF47 is a new design based on the "German" sound, drawing inspiration from the historic U47 and M49. With a deep low end and a forward midrange, the TF47 is excellent for adding depth and presence to any source. These characteristics make it especially ideal for recording vocals, guitar amps, and drums.

At the heart of the TF47 is an all-brass K47-style capsule, new old stock 5840W vacuum tube, and custom-made historically accurate BV8 transformer (as found in the U47). These components deliver a warm and punchy sound reminiscent of the U47 with a pleasant top end articulation that sits perfect in a mix.

View full details
  • Transducer TypeCondenser
  • Polar Patterns (selectable)Cardioid, Figure-8, Omnidirectional
  • Frequency Range20 Hz - 20 kHz, ±3 dB
  • Output Impedance< 300 ohms
  • Sensitivity22 mV/Pa, ±1 dB
  • THD at 1kHz at 1 Pa (amplifier)<0.3%
  • Max. SPL (for 1% THD)125 dB
  • S/N Ratio84 dBA
  • Self Noise (amplifier)10 dBA
  • Power Sourceexternal power supply
  • TransformerTELEFUNKEN Elektroakustik BV8
  • Dimensions7.87" length x 1.81" diameter
  • Weight1.57 pounds
