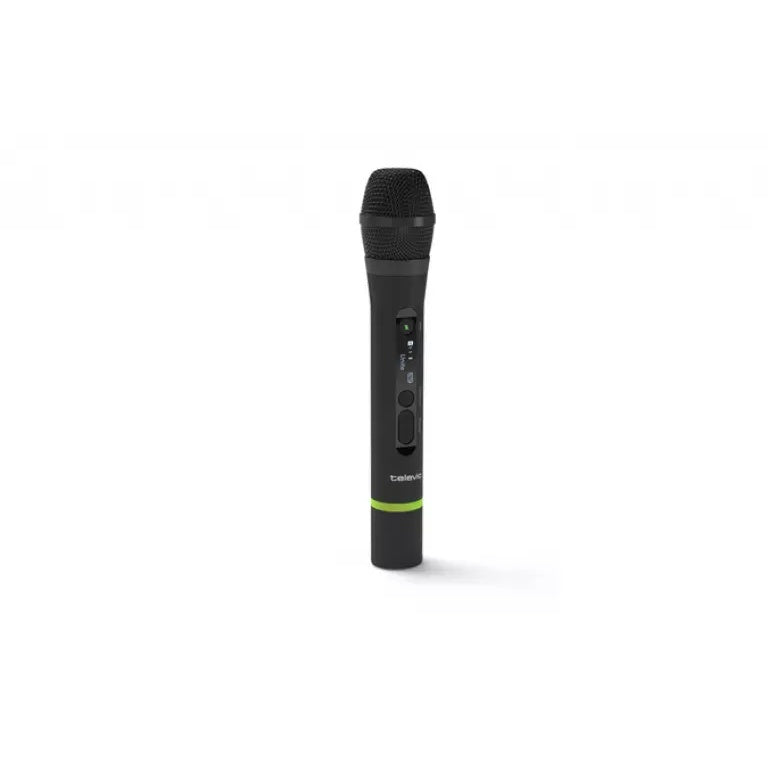

• Unite TH upright front view with black mesh grille, control buttons on the handle, and green ring at the base, Televic
1 1

Televic 71.98.4014 Unite TH (NA) Digital Handheld Wireless Transmitter

Televic 71.98.4014 Unite TH (NA) Digital Handheld Wireless Transmitter

SoundPro Item: 212424 | Part Number: 71.98.4014 UNITE TH (NA)

Pricing available upon request

Pricing available upon request

Your Price Sold out

Usually ships in 5-7 business days

  • Integrated DSP Optimizes Speech Intelligibility And Suppresses Background Noise In Real Time
  • Customizable Encryption Blocks Unauthorized Listening On Wireless Links
  • DECT Radio With Automatic Frequency Management Simplifies Deployment
  • Dual Integrated Antennas Maintain Signal Strength Across Different Hand Positions
  • Bluetooth Audio Interface Allows Monitoring Through Headphones
  • Programmable Mute Button With Backlit LED Gives Clear Status And Optional Push-To-Mute
  • OLED Display Shows Channel, Battery, And Menu Information At A Glance
Log in or register for YOUR best price

The Unite TH is the handheld talker microphone for Televic's digital Unite wireless communication system, aimed at presenters, tour guides, conference chairs, and interpreters who need clean speech pickup without running cable. This version is built for the North American DECT band, so it fits deployments and rental inventory in that region.

Operating mode defines its job on site. Run it as a master that transmits and receives, as a sub-master linked to a master for a two-way connection, or as a wireless microphone through a Unite AP4 Access Point. One handheld form factor can cover a boardroom discussion, a moving group tour, or a multilingual interpreting session, which keeps training and spares simple for integrators and AV staff.

Setup is straightforward for technicians. Configure it from the handheld menu, or push settings from a Unite Cockpit charger using the free Unite Manager PC software. Compared with a standard handheld wireless mic, it adds speech-focused processing and system-level communication roles, making it a stronger fit when intelligibility and flexible deployment matter more than simple point-to-point transmission.

Downloads

View full details

Specifications

Dimensions
Length Including Microphone Capsule
258 mm
Shaft Diameter
34 mm
Capsule Diameter
48 mm
Weight
Weight With Battery
225 g
Electrical
Battery Type
Lithium-ion
Battery Cell
Samsung INR18650-29E
Battery Voltage
3.65 V
Battery Capacity
2850 mAh / 10.40 Wh
Battery Life Master Default Setting
17 h
Battery Life Master With One Additional Sub-Master
13 h
Battery Life Master With Two Additional Sub-Masters
10 h
Battery Life Sub-Master Used With AP4
25 h
Charging Time With Unite Charger
4.5 hours
Charging Time Via USB (Device Switched Off)
12 hours
USB-C Power Requirement
USB 2.0/3.0 compliant power adapters, 5 V output
Audio
Microphone Amplification
0 to 33 dB in 3 dB increments
Transducer Type
Electret condenser (back electret)
Operating Principle
Pressure gradient transducer
Polar Pattern
Cardioid
Max Sound Pressure Level
120 dB SPL (at 1 kHz)
Audio Bandwidth HD
50 Hz - 14 kHz (-3 dB)
Audio Bandwidth SD
50 Hz - 7 kHz (-3 dB)
DSP Functions
Automatic level control (ALC), Noise gate, Noise canceller, Compressor, Equalizer, Low-cut filter, Ducker
Latency Master (Broadcast) HD
22 ms
Latency Master (Broadcast) SD
18 ms
Latency Sub-Master (To Master) HD
17.5 ms
Latency Sub-Master (To Master) SD
13.5 ms
Performance
Operating Modes
Master (transmitting and receiving), Sub-master (bi-directional connection with another master), Sub-master AP4 (wireless microphone with Unite AP4 Access Point)
Simultaneous Active Microphones
Up to three open microphones: 1x master + 2x sub-master, 1x master + 2x RP-T (talkback), or 1x master + 1x sub-master + 1x RP-T (talkback)
DECT Radio Frequency Range
1,920 to 1,930 MHz (NA)
DECT Transmission Power
Up to 250 mW (peak), three settings
DECT Transmission Power NA Standard
max. 20.6 dBm
DECT Transmission Power NA Mid
~ 9 dBm
DECT Transmission Power NA Low
~ 2 dBm
Operating Range
Up to 300 m with unobstructed line of sight in the open
Encryption
AES-256, customizable
Connectivity
Bluetooth Version
V4.2 (HFP, A2DP)
USB Connector
USB-C
Display
High contrast, monochrome OLED
Construction
Housing Material
Plastic (PC-ABS, painted)
Microphone Grille Material
Hardened steel (painted)
Environmental
Operating Temperature
-10 to +40 °C / -14 to +104 °F
Storage Temperature
-20 to +45 °C / -4 to +113 °F
USB Charging Temperature
0 to +35 °C / +32 to +95 °F
Charger Charging Temperature
0 to +35 °C / +32 to +95 °F
Relative Humidity
0 to 90%
