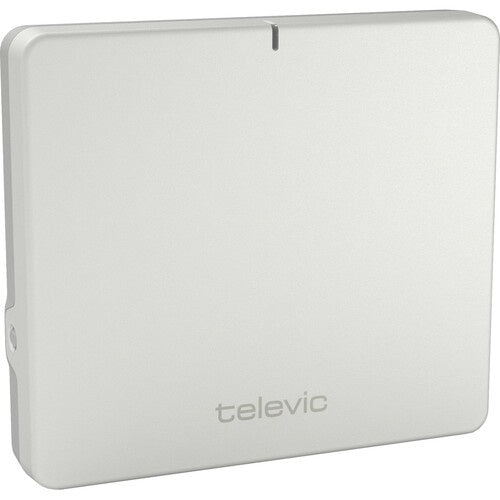

• Unite AP4 angled front view, white housing with Televic logo and small LED indicator slot at top edge, Televic
1 1

Televic 71.98.4031 Unite AP4 (NA) Digital 4 Channel Access Point

Televic 71.98.4031 Unite AP4 (NA) Digital 4 Channel Access Point

SoundPro Item: 212426 | Part Number: 71.98.4031 UNITE AP4 (NA)

Pricing available upon request

Pricing available upon request

Your Price Sold out

Usually ships in 5-7 business days

  • Dante Interface Integrates Directly With Networked Audio Systems
  • Balanced Analog Phoenix I/O Bridges Existing Consoles And Processors
  • PoE Powering Simplifies Cabling To Ceiling And Wall Locations
  • Integrated Antennas With High Range Keep Deployment Simple
  • Removable Mounting Plate Supports Wall, Ceiling, Tripod, Or VESA Installs
Log in or register for YOUR best price

The Unite AP4 is the hub of a Televic Unite wireless network, built for integrators and AV teams who need to move multiple audio channels to wireless receivers without running cable to every listener or talent position. It suits interpreting, assistive listening, and wireless microphone deployments, and it can be configured as a transmitter in Broadcast mode or as a receiver with return path in Full Duplex mode.

This North America version operates in the 1920-1930 MHz DECT band, making it the regional model for US installations. Because it bridges both Dante and balanced analog sources, it fits into existing console, DSP, and network audio workflows. Multiple access points can be linked to grow channel count, which gives larger facilities a scalable path instead of replacing hardware as needs change.

The free Unite Manager PC software handles configuration, monitoring, maintenance, and pairing of transmitters, receivers, chargers, and other access points from one place. That centralized control keeps commissioning and ongoing service manageable for rental houses, venue technicians, and installed system integrators.

Downloads

View full details

Specifications

Dimensions
Length
10.2"
Width
9.92"
Height
1.89"
Weight
860 g (30.34 oz.)
Electrical
Power Supply Input Voltage
100 - 240 V AC, 47-63 Hz
Power Supply Input Current
Max. 0.8 A
Power Supply Output Voltage
12 V DC
Power Supply Output Current
3 A
DC Input Power Consumption
Max. 12 W
PoE Power (Dante Port)
12 W, IEEE 802.3af-2003, 36 V - 57 V
AC Cable Length
2 m (2.19 yds.)
DC Cable Length
1.5 m (1.64 yds.)
Audio
Operating Mode
Broadcast (4 channels)
Audio Bandwidth (HD)
50 Hz - 14 kHz (-3 dB)
Maximum Input Level (4-Channel In)
+7 dBu
Input Level For 0 dBFS At 0 dB Gain
+5 dBu
Dante Sampling Rate
48 kHz
Dante Sampling Rate Pull-Up/Down Support
Yes
Dante Encoding Formats
PCM16, PCM24 and PCM32
Dante Latency Values
1 ms, 2 ms and 5 ms
Performance
DECT Radio Frequency Range
1,920 to 1,930 MHz (NA)
DECT Transmission Power
Up to 250 mW (peak), depending on the country
DECT Operating Range
Up to 300 m outside (line of sight)
RF Coverage
Up to 10,000 m2
Latency Master (Broadcast) HD
22 ms
Latency Master (Broadcast) SD
18 ms
Latency Sub-Master HD
17.5 ms
Latency Sub-Master SD
13.5 ms
Encryption
AES-256 bit
Antenna
Diversity, internal
Antenna Polar Pattern
Two omnidirectional antennas with front-facing main lobe
Minimum Distance Between Units
2 m (2.19 yds.)
Maximum Channels (8 Synchronized Units)
32
Connectivity
Ethernet
RJ 45
USB-C
Currently not implemented
Sync Input
RJ 45
Sync Output
RJ 45
Digital Audio
Dante (RJ 45)
Analog Audio
Phoenix socket, balanced, 3.5 mm contact spacing, two-rowed, 6-pin
Required Network Cable
Cat 5e AWG 24/1 F/UTP, shielded, assignment 1:1
Maximum Cable Length (Ethernet, Dante, Sync)
100 m (109 yds.)
Maximum Total Sync Cable Length
700 m (766 yds.)
Network Default
DHCP (IP)
Static IP Address Support
Yes
Dante Device Name
Changeable
Dante Localization Function
No
AES67 Support
No
Construction
VESA Mount Pattern
75 x 75 mm (2.95" x 2.95")
Secondary Safety Rope Mounting Holes
Available (safety rope not included)
Controls
Reset Button
Restores factory settings (network, audio, DECT)
Indicator
Status LED
Included Items
Power Supply
External 36 W with power cable, NEMA 1-15 2-pin mains plug, and C7 device plug
Thread Adapter
1/2" - 3/8" for tripod mounting
Phoenix Connectors
2 x FMCD 1,5/6-ST-3,5, 3.5 mm contact spacing, two rows, 6-pin
Cover Plates
4 x for cable feed-through of the wall mount (pre-assembled)
Screws
4 x M5x10 (for VESA adapter plate)
Nuts
4 x M5 (for VESA adapter plate)
Environmental
Operating Temperature
0 to +40 °C (32 to 104 °F)
Storage Temperature
-20 to +50 °C (-4 to 122 °F)
Relative Humidity
0 to 90%
