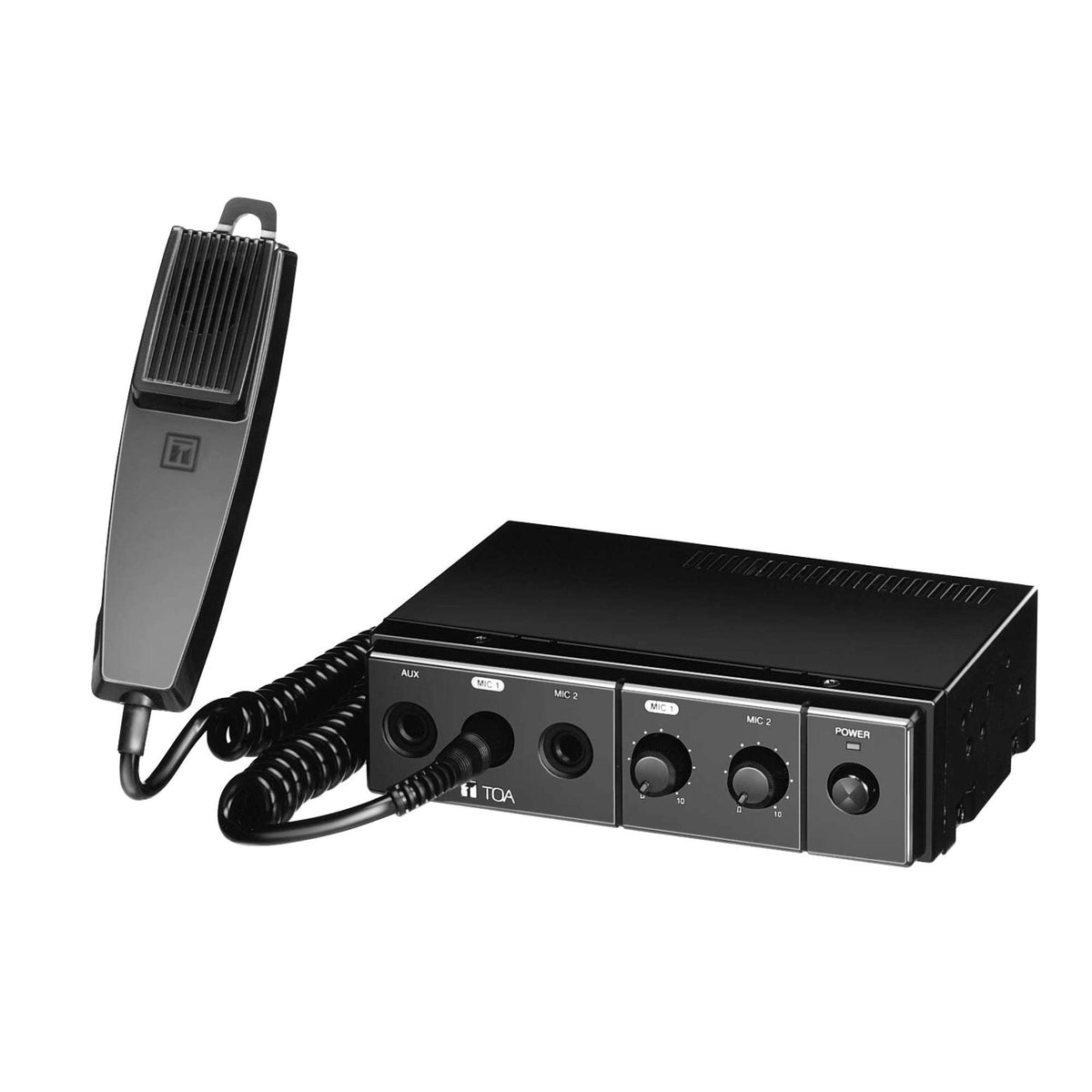

TOA CA-160 1-DIN Car Amplifier Mobile Mixer For 12V Vehicles

TOA CA-160 1-DIN Car Amplifier Mobile Mixer For 12V Vehicles

SoundPro Item: 51207 | Part Number: CA-160

$256.00
$316.00 $256.00
Your Price Sold out
MSRP: $316.00 | MAP: $256.00

Usually ships in 5-7 business days

  • Selectable 4 Or 8 Ohm Output Impedance For Flexible Speaker Matching
  • Dual Microphone Inputs Plus Aux Line Input For Mixed Source Operation
  • Operates Across 10-16V DC To Handle Real-World Vehicle Voltage Swings
  • 1-DIN Form Factor For Direct Dashboard Or Equipment Bay Installation
  • Zinc-Plated Steel Case Withstands Vibration And Mechanical Stress In Vehicles
  • Includes Mounting Bracket And Mic Holder To Simplify Fleet Installation
Log in or register for YOUR best price

The TOA CA-160 is built for mobile public address applications where reliable, self-contained amplification is required from a vehicle's 12V electrical system. At 1-DIN size, it mounts directly into a standard dashboard or equipment bay, making it a practical choice for emergency vehicles, utility trucks, and mobile command units that need a permanent, integrated audio solution without external power conditioning.

The unit accepts two microphone inputs and an auxiliary line input, allowing an operator to mix a handheld or mounted mic alongside a program source such as a radio or playback device. Output impedance is selectable between 4 and 8 ohms by reconfiguring the lead wire connections, which gives installers flexibility when matching the amplifier to available speaker loads in the field. Rated at 60W with a usable voltage window of 10 to 16V DC, the CA-160 maintains stable operation across the real-world voltage swings typical of running and idling vehicle electrical systems.

For AV integrators and fleet outfitters, the included mounting bracket, microphone holder, fuse, and connection cord simplify installation and reduce sourcing overhead. The zinc-plated steel case and ABS front panel are suited to the mechanical demands of vehicle-mounted duty where vibration and handling are daily factors.

Downloads

View full details

Specifications

Audio
Rated Output
60 W
Distortion
Less than 5% (at 1,000 Hz rated output)
Frequency Response
100 - 10,000 Hz
Output Impedance
4 Ω (BRN), 8 Ω (ORG), Common (WHT), changeable by lead wire connections
Electrical
Power Source
Standard voltage: 14 V DC; Usable voltage: 10 - 16 V DC (12 V battery)
Power Consumption
9 A or less at rated output
Connectivity
Mic Inputs
Mic 1, 2: 600 Ω, 4 mV, phone jack
Aux Input
10 kΩ, 500 mV, phone jack
Dimensions
Unit Dimensions
178 (W) x 50 (H) x 170 (D) mm (mounting device excluded)
Weight
Unit Weight
1.2 kg
Construction
Front Panel
ABS resin, black
Case
Zinc plated steel sheet
Included Items
Accessories
Microphone holder x1, Mounting bracket x1, Mounting screw x1 set, Fuse (12 A) x1, Connection cord x1 set
Accessory Microphone
Unidirectional dynamic type with talk switch; Impedance: 600 Ω; Sensitivity: -53 dB (1 kHz, 0 dB = 1 V/Pa)
