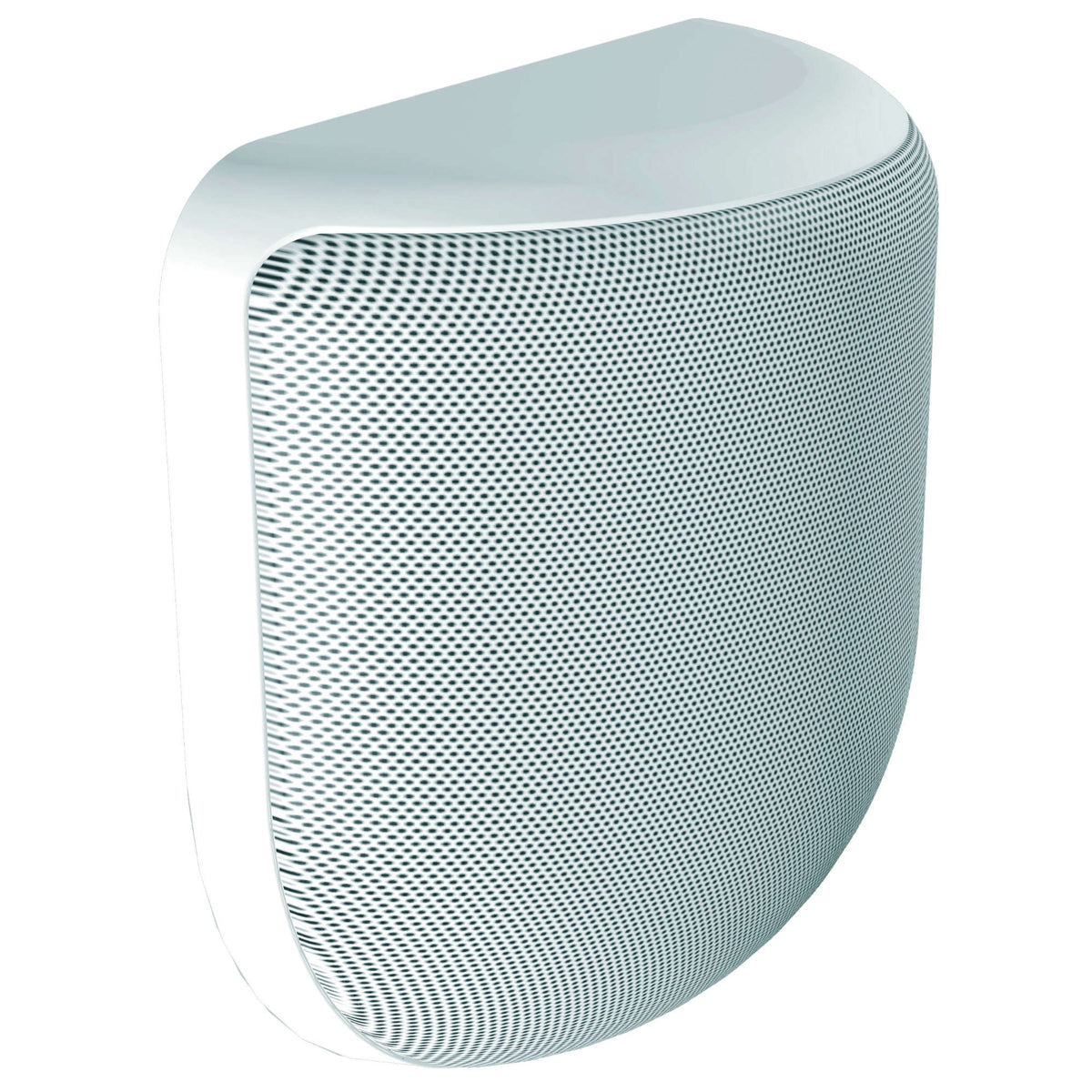

TOA H Series Wide-Dispersion Interior Design Speaker Wall-Mount 2-Way | Standard

TOA H Series Wide-Dispersion Interior Design Speaker Wall-Mount 2-Way | Standard

SoundPro Item: 55364 | Part Number: H-3 EX

$416.00
$513.00 $416.00
Your Price Sold out
MSRP: $513.00 | MAP: $416.00

Usually ships in 5-7 business days

  • 2-Way Driver Configuration Delivers Balanced Coverage Between And In Front Of Each Unit
  • Neodymium Magnet Woofers And Dome Tweeters For Accurate Distributed Audio Reproduction
  • 180-Degree Horizontal Coverage Pattern Eliminates Dead Zones In Distributed Installations
  • Selectable Low Or High Impedance Operation Fits 8 Ohm, 16 Ohm, 70V, And 100V Systems
  • Paintable Front Frame Allows Enclosure To Match Any Interior Finish Or Color Scheme
  • Fire-Resistant ABS Construction Meets UL94 V-0 For Commercial Fire Code Compliance
  • Available In Standard And Weather-Resistant Versions To Suit Indoor And Outdoor Installs
Log in or register for YOUR best price

The TOA H Series wide-dispersion interior design speakers are engineered for AV integrators and system designers who need consistent, gap-free coverage across lobbies, corridors, retail environments, and similar installed audio applications. The 2-way configuration pairs neodymium magnet cone woofers with dome tweeters to deliver balanced audio not only directly in front of each unit but also laterally between speaker positions, a critical advantage in distributed systems where listener position cannot be controlled.

Selectable low impedance (8 ohm and 16 ohm) and high impedance (70V and 100V) operation gives integrators the flexibility to drop these speakers into virtually any existing distributed audio infrastructure without additional transformers or wiring overhauls. The 180-degree horizontal coverage pattern eliminates the dead zones that plague narrower designs, reducing the number of speaker positions needed per zone. Above-head-height wall mounting keeps the enclosure out of sight lines while the paintable front frame allows the unit to blend with virtually any interior finish scheme. Available in standard and weather-resistant versions to suit a range of installation environments.

Fire-resistant ABS construction meets UL94 V-0 requirements, satisfying fire code compliance for commercial installs. The detachable screw terminal with bridging connection support simplifies field wiring, and compatibility with standard 2-gang electrical boxes keeps rough-in straightforward for electrical contractors working alongside AV teams.

Downloads

View full details

Specifications

Audio
Rated Input
30 W (16 Ω, high impedance)
Power Handling
150 W (Continuous program/8 Ω) 50 W (Continuous pink noise/8 Ω)
Rated Impedance
8 Ω, 16 Ω 100 V line: 330 Ω (30 W), 670 Ω (15 W), 1.3 kΩ (7.5 W) 70 V line: 170 Ω (30 W), 330 Ω (15 W), 670 Ω (7.5 W), 1.3 kΩ (3.75 W)
Sensitivity
89 dB (1 W, 1 m) at installation in 1/2 free sound field
Frequency Response
100 Hz - 20 kHz (-10 dB) at installation in 1/2 free sound field
Crossover Frequency
4 kHz
Speaker Component
Low frequency: 10 cm cone-type x 2 High frequency: 2.5 cm dome-type (neodymium magnet)
Connectivity
Input Terminal
Detachable screw terminal, (+)/(-) 2 each (for bridging connection)
Cable Requirements
Solid cable, stranded cable: 0.2 - 2.5 mm² (AWG No.24 - 14)
Construction
Enclosure
Sealed type
Finish
Enclosure: Fire-resistant ABS resin, black Front frame: Fire-resistant ABS resin, off-white, paint Punched net: Steel plate, off-white, paint Base frame: Steel plate, plating
Certifications
Fire Resistance
UL94 V-0
Dimensions
Dimensions
295 (W) x 318 (H) x 129 (D) mm
Weight
Weight
3.3 kg
Included Items
Included Accessories
Front grille x 1, Base frame x 1, Electrical box mounting screw x 1 set
Recommended Electrical Box
2-gang type
