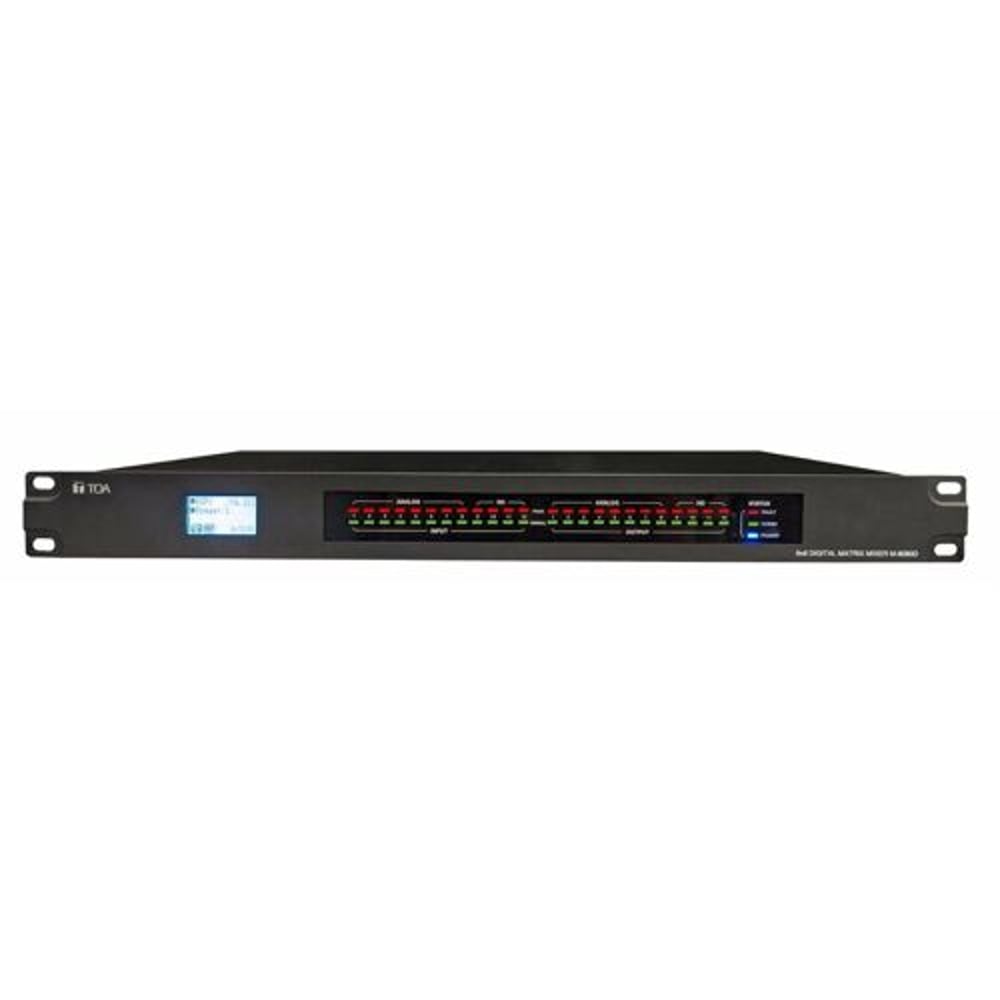

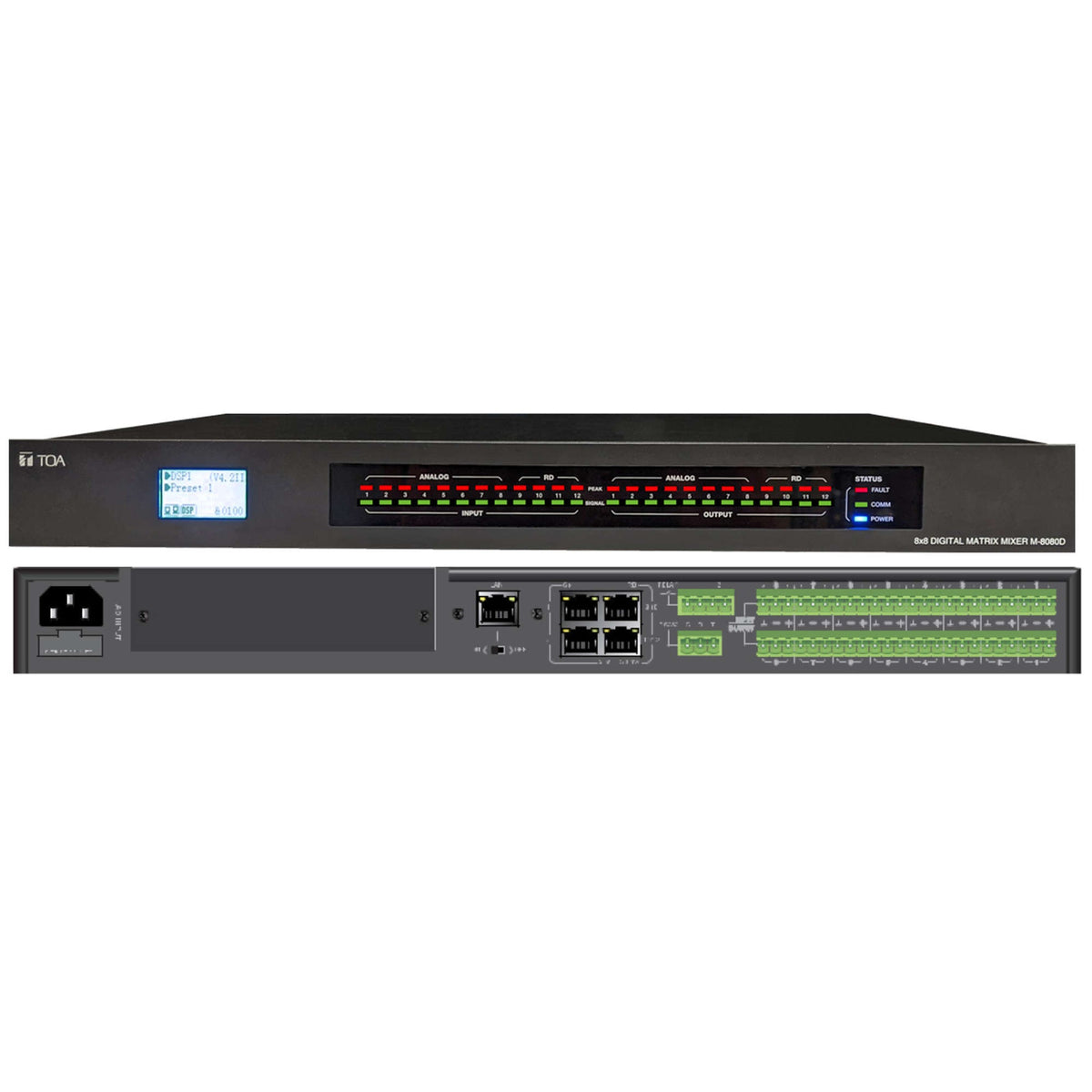

TOA M-8080D-AM 8x8 Digital Matrix Mixer For Commercial Audio

TOA M-8080D-AM 8x8 Digital Matrix Mixer For Commercial Audio

SoundPro Item: 140704 | Part Number: M-8080D-AM

$2,705.00
$3,348.00 $2,705.00
Your Price Sold out
MSRP: $3,348.00 | MAP: $2,705.00

Usually ships in 5-7 business days

  • Expandable From 8x8 To 12x12 With Optional Accessory Modules
  • Onboard DSP Includes EQ, Compressor, Ducker, Delay, And Priority Setting
  • Optional Dante Interface Card Enables Networked IP Audio Distribution
  • Crestron Module Suite Supported For Seamless Control System Integration
  • Dual RD Ports Carry AES3 Audio And Control Data To Remote Devices
  • DHCP-Enabled Network Port Simplifies Initial System Commissioning
  • PC-Based GUI Provides Intuitive Routing And DSP Configuration
Log in or register for YOUR best price

The TOA M-8080D-AM is an 8x8 digital matrix mixer engineered specifically for commercial audio applications including background music distribution, paging, discussion systems, and multi-zone management. It targets AV integrators and system designers who need reliable, scalable routing with onboard DSP, not a live-sound console. The combination of EQ, compressor, ducker, feedback suppressor, delay, and priority-setting tools addresses the full DSP workload of a managed installation without requiring external processing.

Scalability is a core strength of this platform. The base 8x8 configuration expands to 12x12 with optional accessory modules, and an optional Dante interface card opens the unit to networked audio environments where IP-based distribution is required. For control integration, a Crestron module suite is available, making the M-8080D-AM a practical fit for boardrooms, houses of worship, hospitality venues, and any facility already running a Crestron ecosystem. Two RD ports carry both AES3 digital audio and control data simultaneously, connecting dedicated remote panels, input modules, and paging microphones over shielded CAT5e or better cable runs up to 100 meters.

DHCP support on the network port simplifies initial commissioning, and the PC-based GUI provides an intuitive interface for routing, DSP configuration, and remote management without requiring specialized programming knowledge. Two contact closure inputs and two relay outputs add logic-level control integration for room automation or paging triggers. The aluminum and steel rack-mount chassis occupies a single rack unit, keeping the footprint minimal in equipment rooms where space is consistently at a premium.

Downloads

View full details

Specifications

Audio
Analog Inputs
8 (Input 1-8: -48 to 0 dBV, 6.8kΩ, electronic balanced removable terminal block, 3 pins x 8)
Analog Outputs
8 (Output 1-8: 0 dBV, 1.8kΩ, maximum output 20dB / 7.75V, electronic balanced removable terminal block, 3 pins x 8)
Digital Inputs
4
Digital Outputs
4
Frequency Response
20 - 20,000 Hz, ±3 dB
Crosstalk
Over 79 dB (A weighted)
Total Harmonic Distortion
0.01%
Signal to Noise Ratio
Over 105 dB (A weighted)
Performance
Feedback Suppressor Mode
Speech / Music; Filter release: fast / mid / low; FBC type: dynamic filters / static filters
Auto-Mixing Activation
10 ms - 6 s
Equalizer (Input)
5 band EQ (LPF and HPF)
Equalizer (Output)
8 band EQ (LPF and HPF)
Parametric Equalizer Range
19.7 - 20,160 Hz; ±18 dB; Q: 0.4 - 128; Type: peak/low/high
High-Pass Filter
19.7 - 20,160 Hz; Butterworth / Bessel / Linkwitz; 6-48 dB slopes
Low-Pass Filter
19.7 - 20,160 Hz; Butterworth / Bessel / Linkwitz; 6-48 dB slopes
Compressor Threshold
-30 to +20 dB in 1 dB steps
Compressor Ratio
1:1 to 10.0:1 plus Limit
Compressor Attack
10 - 150 ms
Compressor Release
10 ms - 1 s
Delay Time
0 - 1361.2916 ms
Connectivity
RD Ports
RJ45 x 2; transmits and receives AES3 digital audio plus control data; max cable length 100 m
Control Input
Contact closure x 2
Control Output
Relay 1-2; withstand voltage: 24V DC; control current: under 500 mA; removable terminal block (4 pins)
Compatible Remote Devices
M-82210, M-800RC, M-802RC, M-800RCT, M-800RM
Electrical
Power Source
100-240 V AC, 50/60 Hz
Power Consumption
40 W
Construction
Finish
Panel: Aluminum, black; Case: Surface-treated steel plate, black paint
Dimensions
Unit Dimensions
483 (W) x 44.2 (H) x 259 (D) mm (19.02" x 1.74" x 10.18")
Environmental
Operating Temperature
0°C to +40°C (32°F to 104°F)
Operating Humidity
90% RH or less (no condensation)
Identifiers
Optional Accessories
M-804EX, M-82210, M-800RC, M-802RC, M-800RCT, M-800RM
