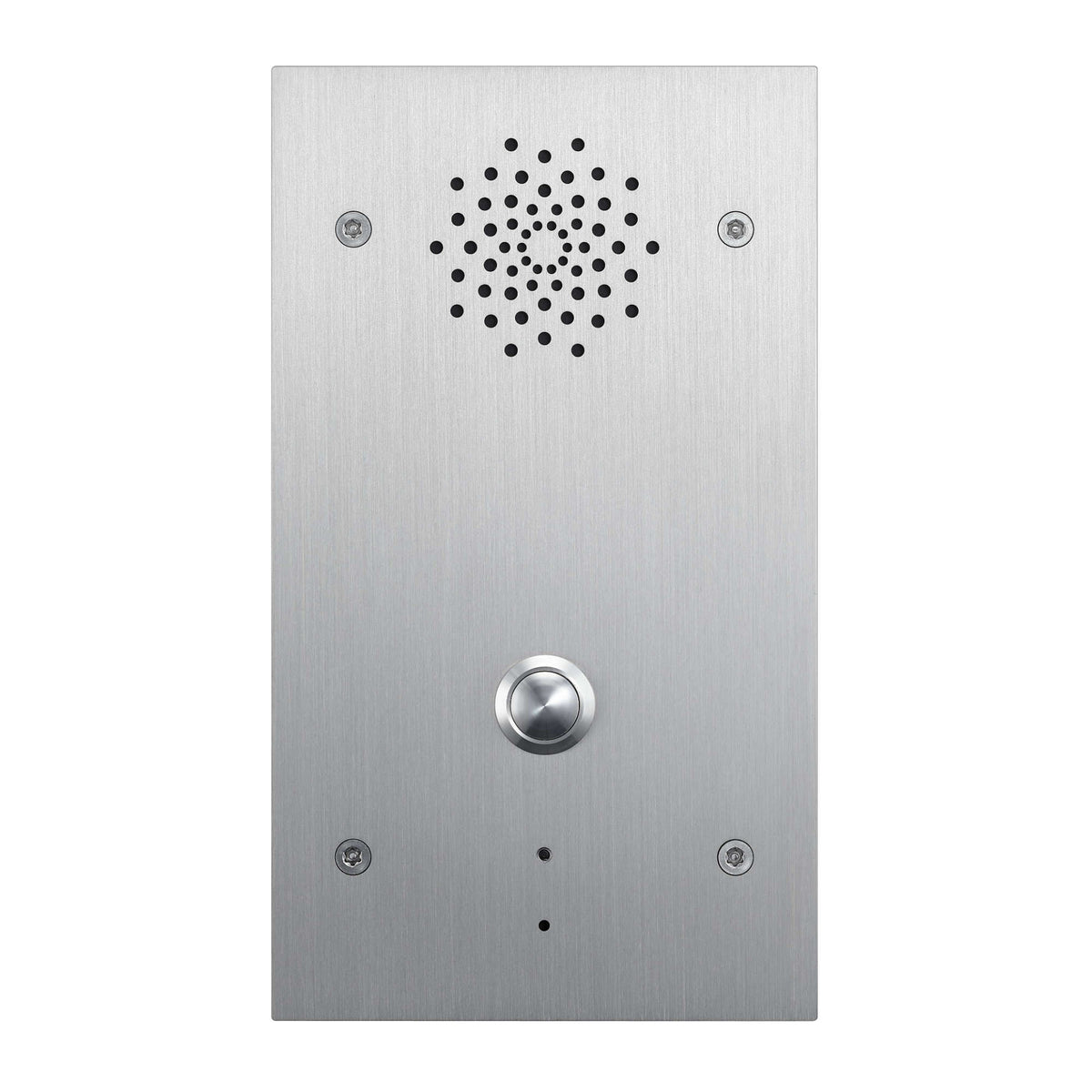

TOA N-SP80AS1 SIP Audio Door Station Weatherproof With PoE

TOA N-SP80AS1 SIP Audio Door Station Weatherproof With PoE

SoundPro Item: 107703 | Part Number: N-SP80AS1

$1,140.00
$1,411.00 $1,140.00
Your Price Sold out
MSRP: $1,411.00 | MAP: $1,140.00

Usually ships in 5-7 business days

  • IP65 Weatherproof Panel Rated For Outdoor And Semi-Exposed Mounting Locations
  • Built-In Acoustic Echo Canceller Enables Clear Full-Duplex Hands-Free Conversation
  • PoE Compatibility Eliminates Dedicated Power Runs For Simplified Cabling
  • Built-In Relay Output Provides Direct Door Unlock Control Without Extra Hardware
  • Multicast Audio Stream Reception Supports Facility-Wide Paging Integration
  • Peer-To-Peer Connection Allows Operation Without A SIP Server When Needed
  • SIP Server Compatibility Enables Integration Into Existing IP Telephone Systems
Log in or register for YOUR best price

The TOA N-SP80AS1 is a SIP-compliant audio door station built for integration with existing IP telephone infrastructure in commercial, institutional, and security-focused installations. It suits system integrators and AV professionals deploying access control and intercom solutions in lobbies, entry points, and secure facility perimeters where weatherproof construction and network-based communication are required.

The station connects to any PoE-compatible switching hub over a standard LAN cable, eliminating dedicated power runs and simplifying installation. Its built-in acoustic echo canceller supports full-duplex, hands-free conversation without feedback or clipping. A built-in relay output allows direct door unlock control, reducing the need for additional control hardware. Multicast audio stream reception extends the station's role to facility-wide paging scenarios, making it useful in campus and enterprise environments beyond simple intercom duty.

The stainless steel panel carries an IP65 dust and water protection rating, making it suitable for outdoor and semi-exposed mounting locations. Peer-to-peer connection capability means the unit can operate independently of a SIP server when required. Supporting G.711 and G.722 audio codecs, the N-SP80AS1 delivers up to 7 kHz audio bandwidth for voice clarity that outperforms standard telephony. Flush-mount installation and compatibility with a standard 4-size back box keep the deployment straightforward for integrators working within existing wall infrastructure.

Downloads

View full details

Specifications

Certifications
Dust/Water Protection
IP65 (Panel)
Dimensions
Dimensions
120 (W) x 210 (H) x 49.5 (D) mm (4.72" x 8.27" x 1.95")
Weight
Weight
870 g (1.92 lb)
Electrical
Power Supply
PoE (IEEE802.3af) or 12 V DC
DC Power Input
12 V DC
Power Consumption
12 W or less
Audio
Audio Bandwidth
G.722 codec: up to 7 kHz
Speech Method
Hands-free conversation
Hands-free Speaker
5 cm (1.97") Cone-type
Microphone
Omni-directional electret condenser microphone
Voice Encoding Method
G.711 u-law/A-law, G.722, G.729
Quantifying Bit Number
Maximum 16 bits
Speech Features
SIP Protocol
SIPv1 (RFC2543), SIPv2 (RFC3261)
Audio Processing
Acoustic echo canceller, VAD (Voice Activity Detection), Comfort noise generator
Other Features
Auto answer, Volume control, Peer-to-peer connection (Direct IP connection without SIP server)
Connectivity
Network Interface
10BASE-T/100BASE-TX (Auto-Negotiation)
Network Protocol
IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP, SIP
Packet Transmission System
Unicast, Multicast
Paging
Multicast receive x1
Connector
RJ45 2 ports (one supports PoE IEEE802.3af)
Control Input
2 channels, no-voltage make contact input, open circuit voltage: 5 V DC, short-circuit current: 10 mA or less
Control Output
2 channels, relay output, normal open/normal close output, withstand voltage: 30 V DC, control current: 1 A
Operation Button
Call button x1, Reset button x1
Indicator
Status LED
Security
Password protection, IP address filtering, SIP over TLS, HTTPS
Construction
Panel Finish
Stainless steel
Installation Method
Flush-mount
Compatible Back Box
YC-400 (4 size back box)
Environmental
Operating Temperature
-20 C to +55 C (-4 F to 131 F)
Operating Humidity
10% to 90% RH (no condensation)
Included Items
Included Accessories
Box mounting torx screw x4, Torx screwdriver x1
