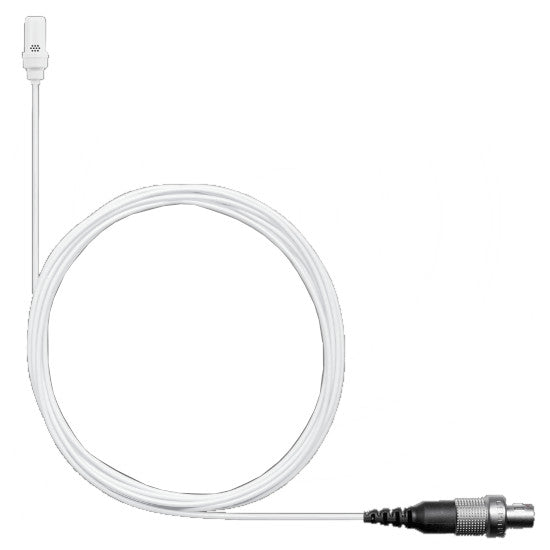

Shure UL4 UniPlex Cardioid Lavalier Microphone, Connector: LEMO3 | Color: White
Shure UL4 UniPlex Cardioid Lavalier Microphone, Connector: LEMO3 | Color: White
SoundPro Item: 135292 | Part Number: UL4W/C-LM3-A
Usually ships in 5-7 business days
- Directional Capture
- Durable Shure Plex Cable
- Exceptional Sound – Tailored for Speech
When direction matters. UniPlex delivers superb directional capture of your voice for presentations, conferences, education, broadcast and more. A lavalier microphone with a cardioid polar pattern, UniPlex is the perfect solution for speaking situations when rejection of sound from stage noise, an audience, or close-proximity presenters is called for.

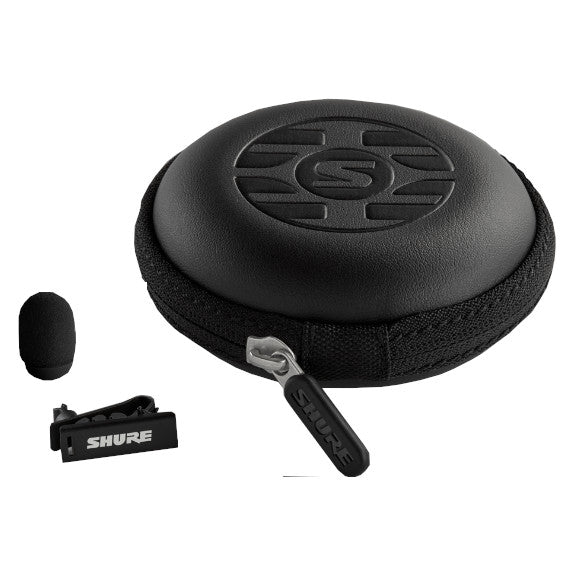

Ideal for corporate presentations and guest speakers in conference rooms, lecture halls, theaters and arenas, UniPlex is a directional lapel microphone that delivers excellent isolated audio capture. Tailored for speech and presentations, UniPlex is offered in four colors and three connector types, and ships with a protective case, snap-fit windscreen and a tie clip.
- Available in four colorsBlack, Cocoa, Tan, White
- Available in three connector typesTA4F, LEMO*, XLR
- Microphone Capsule MEMS
- Polar Pattern Cardioid
- Frequency Response 40 Hz to 20 kHz
- Sensitivity –42.5 dBV/Pa (Pa=94 dB SPL)
- Self-Noise 32 dB SPL-A A-weighted, Equivalent Acoustical
- Signal-to-Noise Ratio 62 dB-A
- Maximum SPL 130.0 dB SPL (1 kHz @ 1% THD, typical)
- Dynamic Range 98 dB (Typical)
- Microphone Current Draw 530 µA, maximum
- Bias Voltage Recommended (Operating Voltage) 3.5-5 VDC (5.5VDC MAX)
- Housing Molded ABS
- Polarity
- MTQG: Positive Pressure on diaphragm produces positive voltage on Pin 3 with respect to Pin 1
- LEMO: Positive pressure on diaphragm produces positive voltage on Pin 3 with respect to Pin 1
- Cable Diameter 1.6 mm
- Cable Length 66" (1.67 m)
- Net Weight 12.5g (0.44 oz)
- Capsule Dimensions (L × D)17 mm × 5 mm
