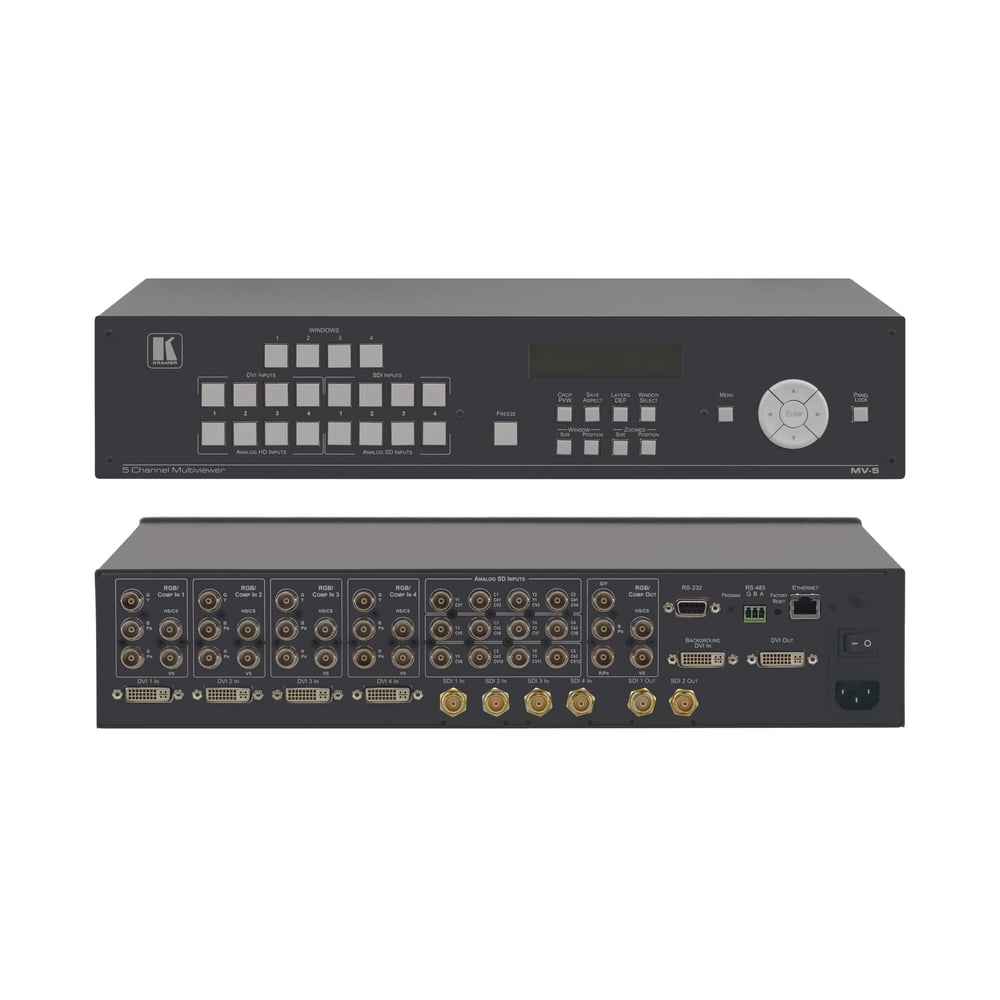

Visonary Solutions MV5 5Channel Multiviewer

Visonary Solutions MV5 5Channel Multiviewer

SoundPro Item: 151862 | Part Number: MV5

$5,993.00
$5,993.00 $5,993.00
Your Price Sold out
| MAP: $5,993.00

Usually ships in 5-7 business days

  • Max Data Rate - 3Gbps
  • Kramer Equalization & re-Klocking™
  • Format Conversion
  • Input Cable Equalization
  • Chroma-Key
  • Window & Image Scaling
  • Independent Layer Transparency Control
  • Proc Amp
  • 16 Screen Layouts.
  • Control - Ethernet & RS-232.
Log in or register for YOUR best price

The MV-5 is a versatile, high-performance video and graphic multi-window viewer for DVI signals, SD and HD analog signals up to 1920x1200@60Hz, and SDI signals up to 3G HD-SDI. The device can window up to four sources (plus a background) in any layout and output the image as SDI, DVI, component and composite video signals. Both preprogrammed and customizable screen division is supported.

  • Max. Input Data Rate - 3Gbps.
  • Kramer Equalization & re-Klocking™ Technology - Rebuilds the digital signal to travel longer distances.
  • Multi-Video Output Formats - SD-SDI (259M), HD-SDI (292M) and 3G HD-SDI (SMPTE 424M), HDMI, HD, SD, analog and composite.
  • HDTV Compatible.
  • HDCP Support on DVI Inputs/Outputs.
  • Powerful Cross Conversion - Any format to any format, any standard to any standard.
  • Input Cable Equalization - Up to 350m (1150ft) for SD signals, 140m (459ft) for 1.5GHz HD signals, and 120m (394ft) for 3GHz HD signals.
  • Chroma-Key Engines - Four independent chroma-key engines for each image layer.
  • Window and Image Scaling - Zooming (up to 1000%) and aspect ratio control.
  • Independent Layer Transparency Control.
  • Image Controls - Brightness, contrast, color and sharpness.
  • Window or Input Label Insertion.
  • 16 User-Definable Screen Layouts.
  • Screen Handling Buttons - Freeze, size, position.
  • Lock Button - To prevent unwanted tampering.
  • Flexible Control Options - Front panel with menu LCD, on-screen display (OSD), Ethernet and RS-232.
  • Worldwide Power Supply - 100-240V AC.
View full details

Specifications

'General Information
Manufacturer
Kramer Electronics LTD
Manufacturer Part Number
MV-5
Brand Name
Kramer
Product Name
5-Channel Multiviewer
Product Type
Multiview Device
Additional Product Specifications
Full Product Specifications
Click to view
Technical Information
Functions
MultiView
Maximum Resolution
1920 x 1200
Interfaces/Ports
DVI
Yes
Network (RJ-45)
Yes
Physical Characteristics
Form Factor
Rack-mountable
Miscellaneous
Package Contents
5-Channel Multiviewer Power Cord Rack Ears
