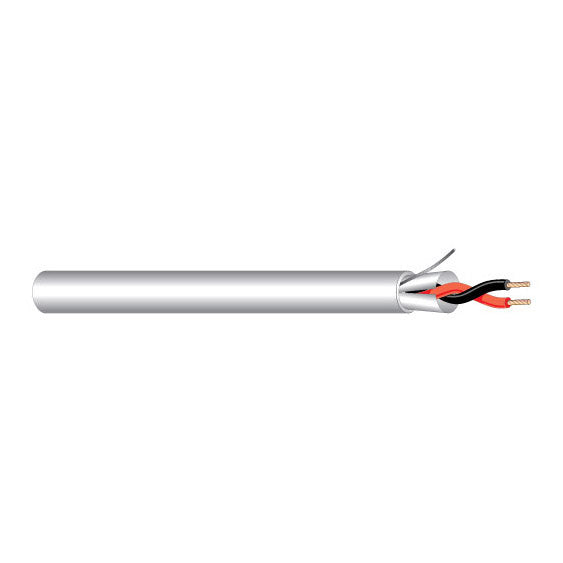

West Penn 25291B 22G Shielded Audio Wire | Color: Grey, Length: 500 feet
West Penn 25291B 22G Shielded Audio Wire | Color: Grey, Length: 500 feet
SoundPro Item: 10906 | Part Number: 25291BGY0500
Usually ships in 5-7 business days
- 22/2 shielded CMP
- Audio and control
- Aluminum foil shield type
The West Penn 25291B is a 22/2 shielded CMP audio cable available in different lengths and colors.
- Conductor parameter
- Conductors: 2
- AWG size: 22
- Conductor stranding: 7x30
- Conductor type: bare copper
- Nominal DCR: 17Ohm/1000ft
- Cabling lay length: 2.5"
- Twists/foot: 4.8
- Insulation parameter
- Insulation type: Plenum PVC
- Insulation thickness: 0.008"
- Insulation color code: 1.Black 2.Red
- Shielding parameter
- Shield type: overall 100% aluminum foil
- Drain wire type: tinned copper
- Drain wire AWG: 24 AWG
- Nom. cap. between conducotrs54pF/ft
- Nom. cap. conductor to shield97pF/ft
- Jacket typeflexible Plenum
- Jacket thickness0.015"
- Nominal cable diameter0.116"
- Operating temperature32°F to 140°F (0°C to 60°C)
- Ratings
- NEC UL Rating: CMP
- RoHS Compliant
- UL Flammability: NFPA 262 Plenum
- UL Voltage Rating: 300
