West Penn 292 20G Shielded Audio Cable | Color: Gray, Length: 1000 feet

West Penn 292 20G Shielded Audio Cable | Color: Gray, Length: 1000 feet

SoundPro Item: 11305 | Part Number: 292GY1000

$180.60
$180.60 $180.60
Your Price Sold out
MSRP: $180.60 | MAP: $180.60

Usually ships in 5-7 business days

  • 20G Shielded Speaker Wire
Log in or register for YOUR best price

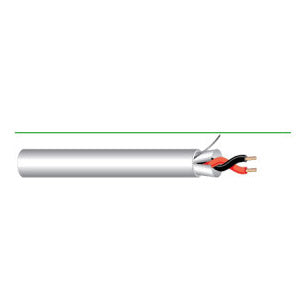

The 292 from West Penn 20G Shielded Speaker Wire. Available in gray and black (black not pictured).

View full details
  • CONDUCTOR PARAMETER
    • Number of Conductors: 2
    • AWG Size: 20
    • Conductor Stranding: 7x28
    • Conductor Type: Bare copper
    • Nominal DCR: 10.5 Ohm/1000ft
    • Cabling Lay Length: 2.5 in
    • Twists/Foot: 4.8 twist/ft
  • INSULATION PARAMETER
    • Insulation Type: Th rmoplastic
    • Insulation Thickness: 0.007 in
    • Insulation Color Code: 1. Black 2.Red
  • SHIELDING PARAMETER
    • Shield Type Overall: 100% Aluminum Foil
    • Drain Wire Type: Tinned Copper
    • Drain Wire AWG: 24 AWG
  • ELECTRICAL CHARACTERISTICS
    • Nom. Cap. Between Conductors: 38 pF/ft
    • Nom. Cap. Conductor to Shield: 75 pF/ft
  • OVERALL CONSTRUCTION PARAMETERS
      Jacket Type PVC
    • Jacket Thickness: 0.017 in
    • Nominal Cable O.D.: 0.14 in
    • Plenum: No
    • NEC UL Rating: CMR, CMG
    • RoHS Compliant: Yes
    • Pull Tension: 37 lbs
    • Bend Radius: 1.26 in
    • Cable Weight: 17 lbs
  • OVERALL ELECTRICAL/OPTICAL CHARACTERISTICS
    • UL Flammability: UL1666 Vertical Shaft
    • CSA Flammability: FT4
    • Operating Range: -20 to 60 Deg C
    • UL Voltage Rating: 300
