• Whirlwind IMCOML IMP Line Level Combiner
1 1

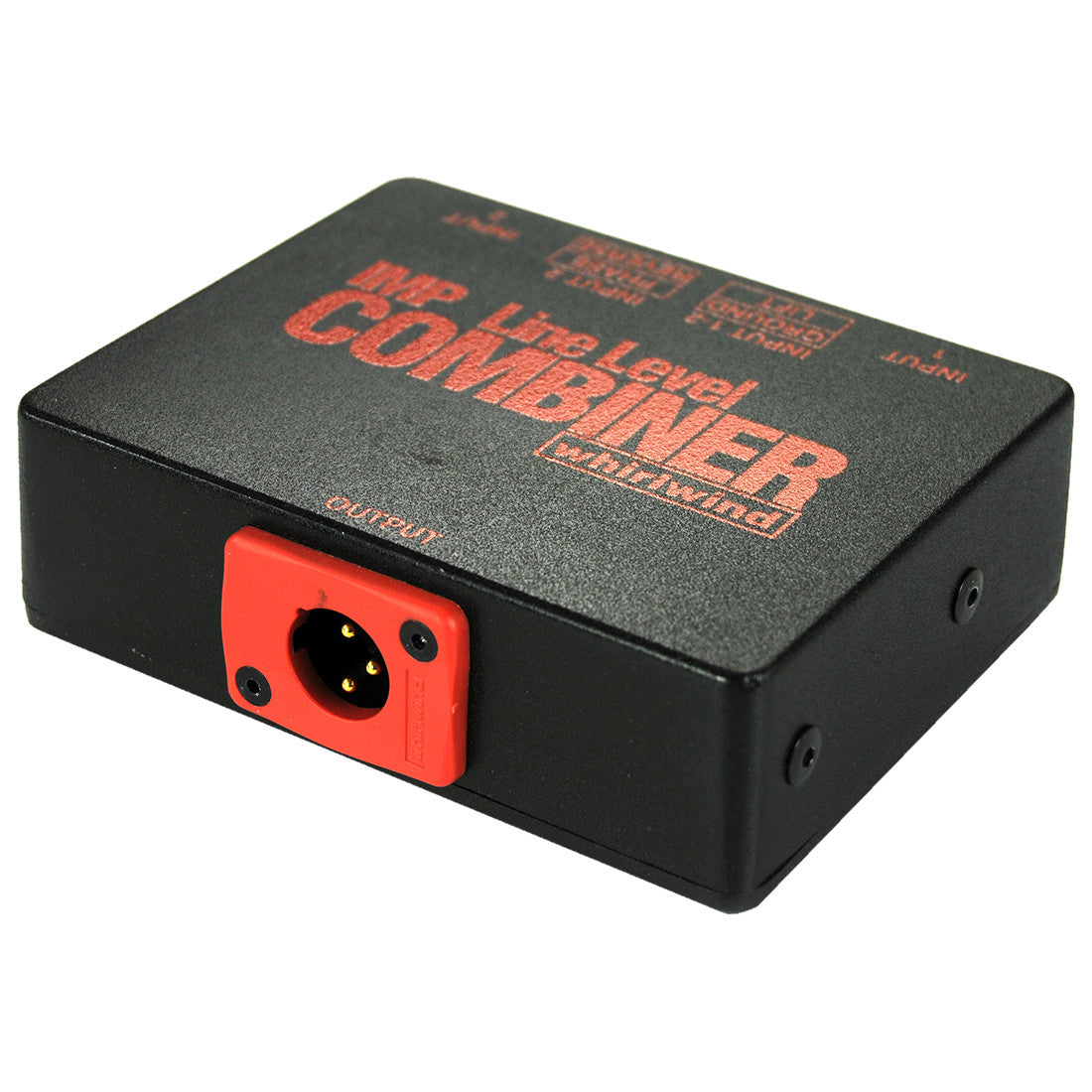

Whirlwind IMCOML IMP Line Level Combiner

Whirlwind IMCOML IMP Line Level Combiner

SoundPro Item: 36298 | Part Number: IMCOML

$178.00
$178.00 $178.00
Your Price Sold out
MSRP: $178.00 | MAP: $178.00

Usually ships in 5-7 business days

  • Use to create a mono mix from a stereo source when you need to keep the original stereo signals isolated
  • Great for feeding a DAT player or CD into a mono system or single channel on a board
  • Compensates for the 6dB of gain that occurs when two in-phase signals are combined
  • Handy ground-lift switch breaks the shield connection between the inputs
  • Connections are female XLRs in, male XLR out
Log in or register for YOUR best price

Use the Whirlwind IMCOML IMP Line Level Combiner when you want to create a mono mix from a stereo source but need to keep the original stereo signals isolated. It's great for feeding a DAT player or CD into a mono system or single channel on a board. This unit not only combines two line-level signals into one line level output, it also compensates for the 6dB of gain that occurs when two in-phase signals are combined. A handy ground-lift switch breaks the shield connection between the inputs. Connections are female XLRs in, male XLR out.

View full details
  • Frequency response±0.3dB 20Hz-20kHz
  • Total harmonic distortion + noiseLess than 0.025% at 1kHz
  • Isolation between inputsGreater Than 42dB
  • Insertion loss-0.6dB, 50 Ohms source impedance -3.8dB, 200 Ohms source impedance
  • Output level-3.8dB with both channels at 0dB sine wave input, in phase
  • Maximum input level+28dBm
  • Input impedance600 Ohms
  • Output impedanceLess than 100 Ohms
