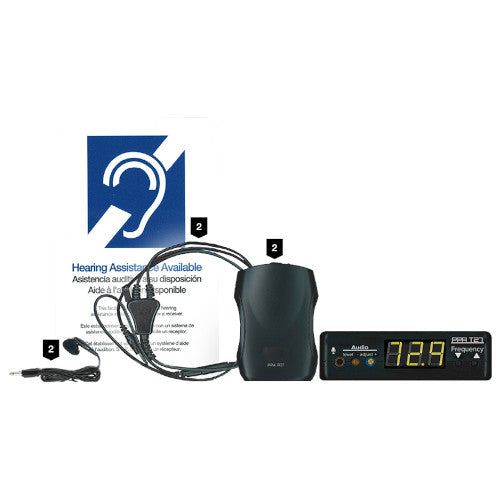

Williams AV FM ADA KIT 1 Large Venue FM ADA Compliance Kit
Williams AV FM ADA KIT 1 Large Venue FM ADA Compliance Kit
SoundPro Item: 36086 | Part Number: FM ADA KIT 1
Usually ships in 5-7 business days
- This kit provides everything you need to accommodate individuals for hearing accessibility
- Great for auditoriums, theaters, conferences and houses of worship
- PPA T27 transmitter broadcasts a speakers voice, music program or audio source wirelessly up to 1000 feet to a listening audience
The Williams AV FM ADA KIT 1 Large Venue FM ADA Compliance Kit provides everything you need to accommodate individuals for hearing accessibility in large venues such as auditoriums, theaters, conferences and houses of worship. The PPA T27 transmitter broadcasts a speakers voice, music program or audio source wirelessly up to 1000 feet to a listening audience.
The Americans with Disabilities Act (ADA) requires public facilities to provide equal access to people with disabilities, including those who are hard-of-hearing. The Williams Sound FM ADA Kit 1 is a convenient and economical solution for satisfying these requirements.
- PPA T27
- Dimensions (WxLxH): 4.1x6.1x1.3" (104.1x154.9x33mm)
- Weight: 7.8 oz. (221 g)
- Color: Black
- Power (U.S./Canada): 105-130 VAC, 50-60 Hz, 3.2 W at 120 VAC
- Operating Frequencies: 72-76 MHz*: 72.1 (CH A), 72.2 (CH K), 72.3 (CH B), 72.4 (CH N), 72.5 (CH C), 72.6 (CH O), 72.7 (CH D), 72.8 (CH P), 72.9 (CH E), 74.7 (CH I), 75.3 (CH J), 75.4 (CH R), 75.5 (CH F), 75.6 (CH S), 75.7 (CH G), 75.8 (CH T), 75.9 (CH H)
- Frequency Selector: External switches, 17 channels (lockable)
- RF Field Strength: Does not exceed 80mV/m @ 3m
- Nominal Range: Up to 1000 feet (305 m) w/standard ANT 021 “rubber duckie" antenna or optional ANT 005 coaxial antenna.
- Modulation: FM, 75 kHz deviation (wide–band) max.
- Stability: ± .005% over 0-50°C
- Pre-Emphasis: 75 µS
- Frequency Response: 85Hz - 14kHz ±3dB
- Distortion: 1% Max. THD
- Signal to Noise Ratio: 65 dB with R35 Receiver
- Microphone Input: 3.5mm mini phone jack, supplies +DC for electret mics
- Mic Input Level: 1–10 mV, nominal
- Line-Level Input: RCA Jack, Hi Z, unbal.
- Line Input Level: .1–1 Vrms, nominal
- Input Attenuator: Pot, screwdriver-adjustable
- Antenna Outputs: Thread mount for ANT 021 “rubber duckie" antenna or ANT 025 telescoping antenna RF connector for ANT 024 dipole or ANT 005 coaxial antenna
- Approvals: FCC including part 15*, Industry Canada, RoHS, WEEE
- Warranty: Lifetime PLUS Limited Warranty, 90 Days on most accessories
- PPA R37
- Dimensions: 4.1" x 2.85" x 1.38" (104 x 72 x 35mm)
- Weight: 4.6oz (130g) with batteries. 2.6oz (73g) without batteries
- Color: Black
- Battery Type: (2) AA Alkaline or 2 x AA NiMH
- Battery Life:
- Two (2) AA non-rechargeable alkaline batteries (BAT 001), approx. 50 hrs
- (2) AA rechargeable NiMH batteries (BAT 026), 1500 mAh, approx. 32 hrs
- Current Consumption: 52mA nominal
- Temperature Range: – 0 to 50C
- Channels 17, accessed via seek button in battery compartment
- Operating Freq.: 72.1, 72.2, 72.3, 72.4, 72.5, 72.6, 72.7, 72.8, 72.9, 74.7, 75.3, 75.4, 75.5, 75.6, 75.7, 75.8, 75.9 MHz*
- Intermediate Freq.: 75 kHz
- FM Deviation: 75 kHz
- De-Emphasis: 75 µS
- LED Indicator: Power: Green; Low Battery: Flashes Green
- AFC Range: ± 120 kHz
- Sensitivity: 2 µV at 12 dB Sinad with squelch defeated
- Input Overload: 100 mV
- Frequency Response: 200 – 15 kHz
- Modulation: FM, +/- 75 kHz peak deviation
- Signal-to-Noise Ratio: 65 dB min @ 100 uV
- Receive Antenna: Integral with earphone/headphone cord
- Audio Output: 35 mW max, peak into 16 ohms
- Output Connector: 3.5 mm stereo/mono phone jack
- Earphone: Earbud-type with foam cushion, 3.5 mm plug, 32 Ω
- Auto Shut-off: Enters sleep mode after approx 6 mins of no RF signal
- Approvals: FCC, Industry Canada, RoHS, WEEE
- Warranty: Lifetime PLUS Limited Warranty, 90 Days on most accessories.
- BAT 001-2 Alkaline, 1.5 Volt
- EAR 013
- Plug: 3.5 mm mono
- Cord length: 39 inches
- Impedance: 32 Ohms
- Frequency Range: 20 - 20kHz
- Max input power: 5mV
- Sensitivity: 128dB @ 1kHz
- Driver size: 13 mm
- Weight: 9g
- Replacement earpad: EAR 015
- NKL 001
- Color: Black
- Weight: 1.5 oz
- Length: 18.5” cord
- Connector: NKL 001: 3.5 mm mono plug NKL 001-S: 3.5 mm stereo plug with ring disconnected
- Impedance: 8-16 Ohms
- Input Power: 500 mW max
- IDP 008 10-3/8" (L) x 6-¼" (W) x 1/8" (H)
- ANT 021
- Note: The FCC requires this antenna to be professionally installed.
- Used with: PPA T45, PPA T55, PPA T55C, PPA T27 Transmitters
- Connector type: Screw to PCB
- Cable type: N/A
- Nominal Impedance: 75 Ohms
- Length: 9 inches
- TFP 036 Input: 120 VAC, 60 Hz, 15 W Output: 12 VAC, 800 mA
