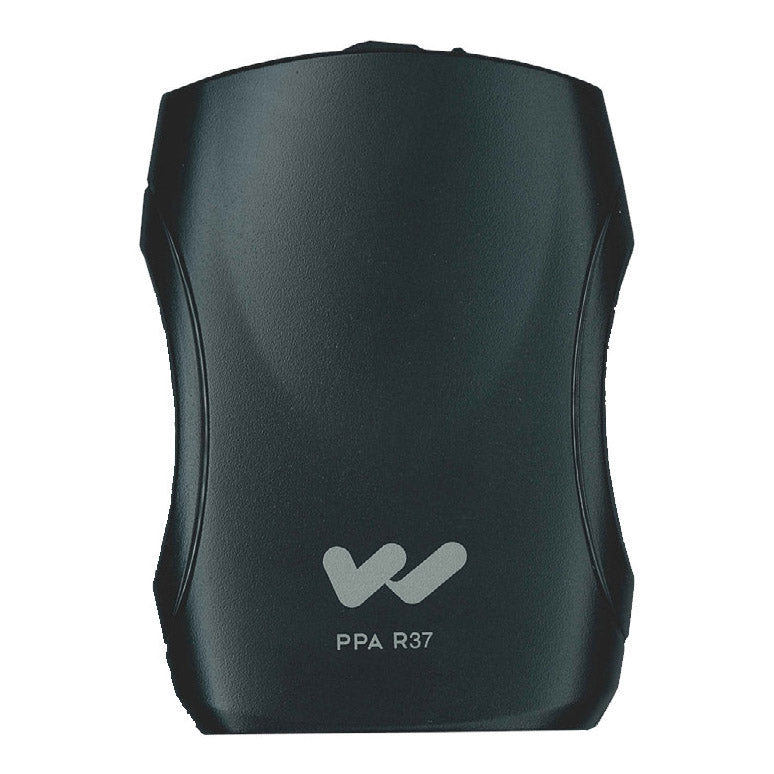

Williams AV FM R37 FM Receiver with EAR 022

Williams AV FM R37 FM Receiver with EAR 022

SoundPro Item: 30481 | Part Number: FM R37

$160.00
$176.00 $160.00
Your Price Sold out
MSRP: $176.00 | MAP: $160.00

Usually ships in 5-7 business days

  • Seek-button access to all 17 wideband frequencies in the 72-76 MHz bandwidth
  • Channel-lock capability
  • Battery-saving sleep mode
  • Low-battery indicator
  • Field tunable
  • Compatible with Williams Sound transmitters PPA T46, PPA T45, PPA T45NET, PPA T27
Log in or register for YOUR best price

Flexible and simple. The Williams AV FM R37 FM Receiver with EAR 022 features easy-to-use, seek-button channel selection with access to 17 pre-set wideband frequencies between 72-76 MHz. Digitally synthesized for even greater audio clarity and stability. A versatile 3.5mm stereo/mono jack allows for a variety of earphone and headphone options and is neck loop/telecoil-equipped-hearing-aid compatible.

View full details
  • Current consumption52mA nominal
  • Channels17, accessed via seek button in battery compartment
  • Operating frequency72.1, 72.2, 72.3, 72.4, 72.5, 72.6, 72.7, 72.8, 72.9, 74.7, 75.3, 75.4, 75.5, 75.6, 75.7, 75.8, 75.9 MHz
  • Intermediate frequency75kHz
  • FM deviation75kHz
  • De-emphasis75 µS
  • AFC range+/-120kHz
  • Sensitivity2 µV at 12 dB Sinad with squelch defeated
  • Input overload100 mV
  • Frequency response200-15kHz
  • Input overload100 mV
  • Frequency response200 - 15kHz
  • ModulationFM, +/- 75 kHz peak deviation
  • Signal to noise ratio65 dB min @ 100 uV
  • Receive antennaintegral with earphone/headphone cord
  • Audio output35 mW max, peak into 16 ohms
  • Output connector3.5mm stereo/mono phone jack
  • Earphoneearbud-type with foam cushion, 3.5mm plug, 32Ω
  • Auto shut offenters sleep mode after approximately 6 minutes of no RF signal
  • Dimensions4.1" x 2.85" x 1.38"
  • Weight4.6 oz (130 g)
