Williams AV IR SY2 Small-Area Infrared System for Two
Williams AV IR SY2 Small-Area Infrared System for Two
SoundPro Item: 30550 | Part Number: IR SY2
Usually ships in 5-7 business days
- High-efficiency LEDs display power status and audio input
- Power with[nbsp]A/C[nbsp]power supply or standard USB port on a TV
- Plug-and-play install with 3.5MM audio input
- One- or two-channel operation (2.3 and 2.8 MHz)
- Provides coverage area of up to 1300 square feet

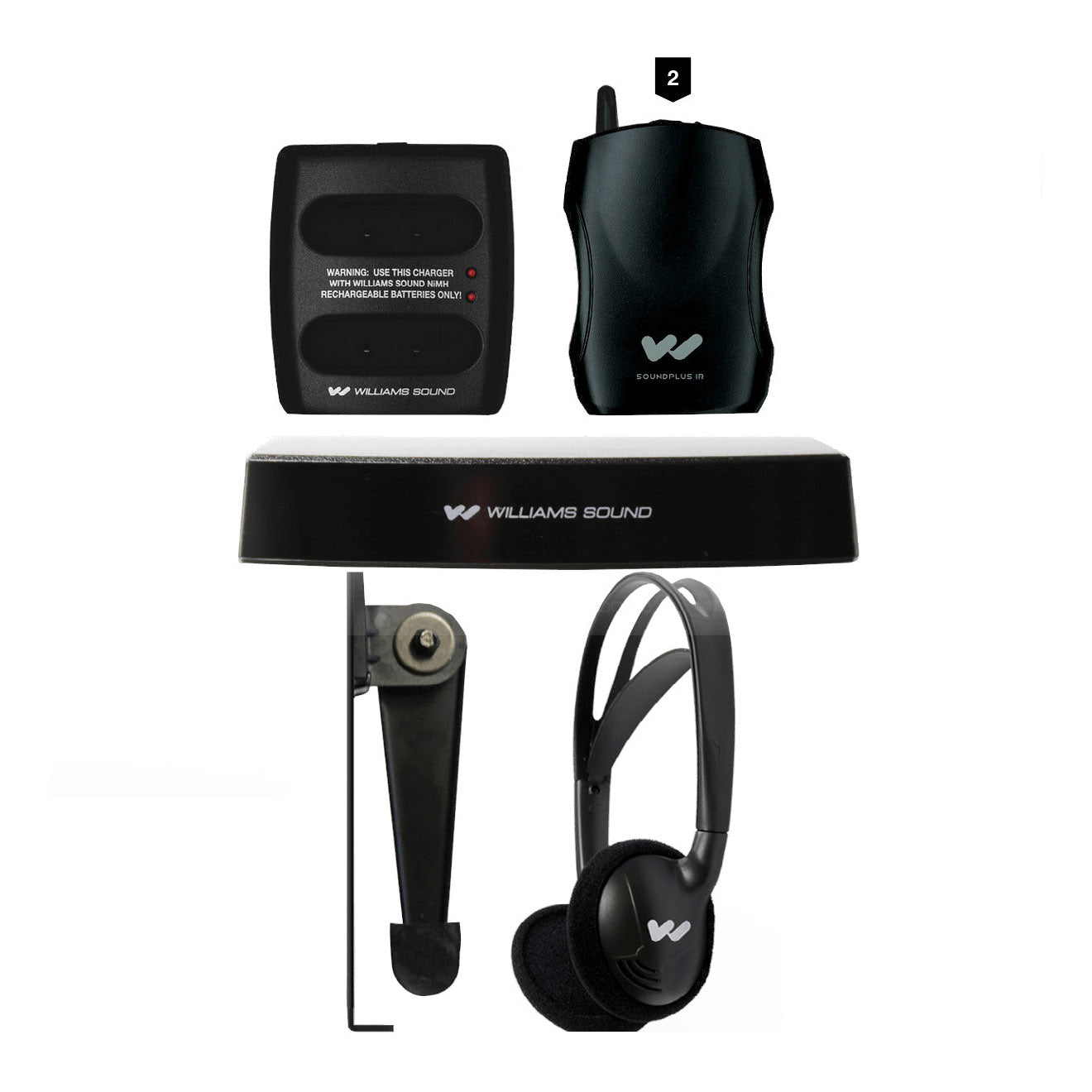

The Williams AV IR SY2 Small-Area Infrared System for Two comes with 2 receivers and a charger.
Small-area infrared system ideal for use as a small-area assistive listening system or for private TV listening in small conference rooms, hospital rooms, assisted living facilities, medical treatment centers and/or jury deliberation rooms. High-efficiency LEDs display power status and audio input. Power with A/C power supply or standard USB port on a TV. Plug-and-play install with 3.5MM audio input. One- or two-channel operation (2.3 and 2.8 MHz). Provides coverage area of up to 1300 square feet.
- BAT 026-2NiMH, 1.2 Volt, 1500 mAh
- CHG 3502
- Dimensions (LxWxH): 4-7/8x3-7/8x2" (12.4x9.8x5.1 cm)
- Shipping Weight: 1.1 lbs (0.5 kg)
- Enclosure: Black, ABS plastic
- Charger Power: Input: 6 VDC, 300mA, Center Positive
- Output: 100mA per bay
- Power Supply: Williams Sound TFP 041 (US)
- Input: 100-240 VAC, 50-60Hz, 0.5-0.3 A
- Output: 6 VDC, 1.5 A
- Charging Time: 16 hours nominal*
- Unit Capacity: 2 Units
- Indicators: 2 Red LEDs - one for each bay. LEDs are lit when charging
- Approvals: CE, FCC, RoHS
- HED 027
- Style: Heavy-duty, folding, mono headphones
- Plug: 3.5mm mono
- Cord: 39"
- Driver Size: 40 mm
- Nominal Impedance: 16Ω
- Freq. Response: 20 - 20kHz
- Weight: 102g
- Max Power Input: 100 mW
- Sensitivity: 96 dB @ 1kHz
- Replacement Pads: EAR 035 (one pair)
- NKL 001
- Color: Black
- Weight: 1.5 oz
- Length: 18.5” cord
- Connector: NKL 001: 3.5 mm mono plug NKL 001-S: 3.5 mm stereo plug with ring disconnected
- Impedance: 8-16 Ohms
- Input Power: 500 mW max
- Magnetic Field Strength: 25 mW input at 1000 Hz produces 1.7 A/m 6” above the center of loop 85μW input produces 0.1 A/m (IEC Standard)
- Approvals: RoHS, WEEE
- Warranty: One Year
- STD 008
- Weight: 0.6 lb (272 g)
- Dimensions: 6” W x 4.75” D (15 cm W x 12 cm D)
- Material: Painted Steel
- Color: Flat Black
- Shelf support: Front padded lip rests on TV. Adjustable arm with swivel lock supports rear of shelf.
- WIR RX22-4N
- Receiver Style: Body-Pack, dual-lens detector, lanyard
- Size: 4.1" L x 2.85" W x 1.2" H (104.1 mm x 72.4 mm x 30.4 mm)
- Weight: 4.5 oz (127 g) with batteries
- Color and Material: Black
- Lanyard: 3 ft (0.91 m), allows receiver to be worn around the neck
- Operating Temperature: -10° C to +50° C
- Battery Type: 2 x AA, alkaline (BAT 001-2) or NiMH (BAT 026-2)
- Battery Life: Alkaline: 60 hours, NiMH: 30 hours/charge
- Battery Drain: 25 mA, nominal
- Charging Contacts: For use only with CHG 3512
- Carrier Frequency: Channel 1: 2.3 MHz, Channel 2: 2.8 MHz Channel 3: 3.3 MHz, Channel 4: 3.8 MHz
- De-Emphasis: 50 uS
- FM Deviation: ±50 kHz
- Signal-to-Noise Ratio: 60 dB min.
- Squelch: Receiver squelches (mutes) at 28 dB S/N ratio
- Frequency Response: 25 Hz to 16 KHz, +1 dB, -3 dB, electrical response
- Total Harmonic Distortion: Less than 1%, electrical response
- Controls: ON/OFF/VOLUME: combination thumbwheel knob Channel Selector: four-position rotary switch
- Indicators: Red LED “ON" indicator, flashes to indicate Low battery
- Audio Output Jacks: 3.5 mm stereo mini phone jack Accepts 3.5 mm mono or stereo phone plug
- Audio Output Power: 15 mW max at 32 Ω
- Acoustic Output: 125 dB SSPL90 with HED 021; 110 dB SSPL90 w/ EAR 013
- Sensitivity: Better than 1 nW/cm2 for 40 dB signal-to-noise ratio
- Approvals: CE, FCC, RoHS, WEEE
- Warranty: 5 years on receiver, 90 days on accessories
- Compatible Headphones/Earphones: Mono or stereo, 8-32 ohms, 3.5 mm mini phone plug, HED 021, HED 026, EAR 013, EAR 014, EAR 022, NKL 001
