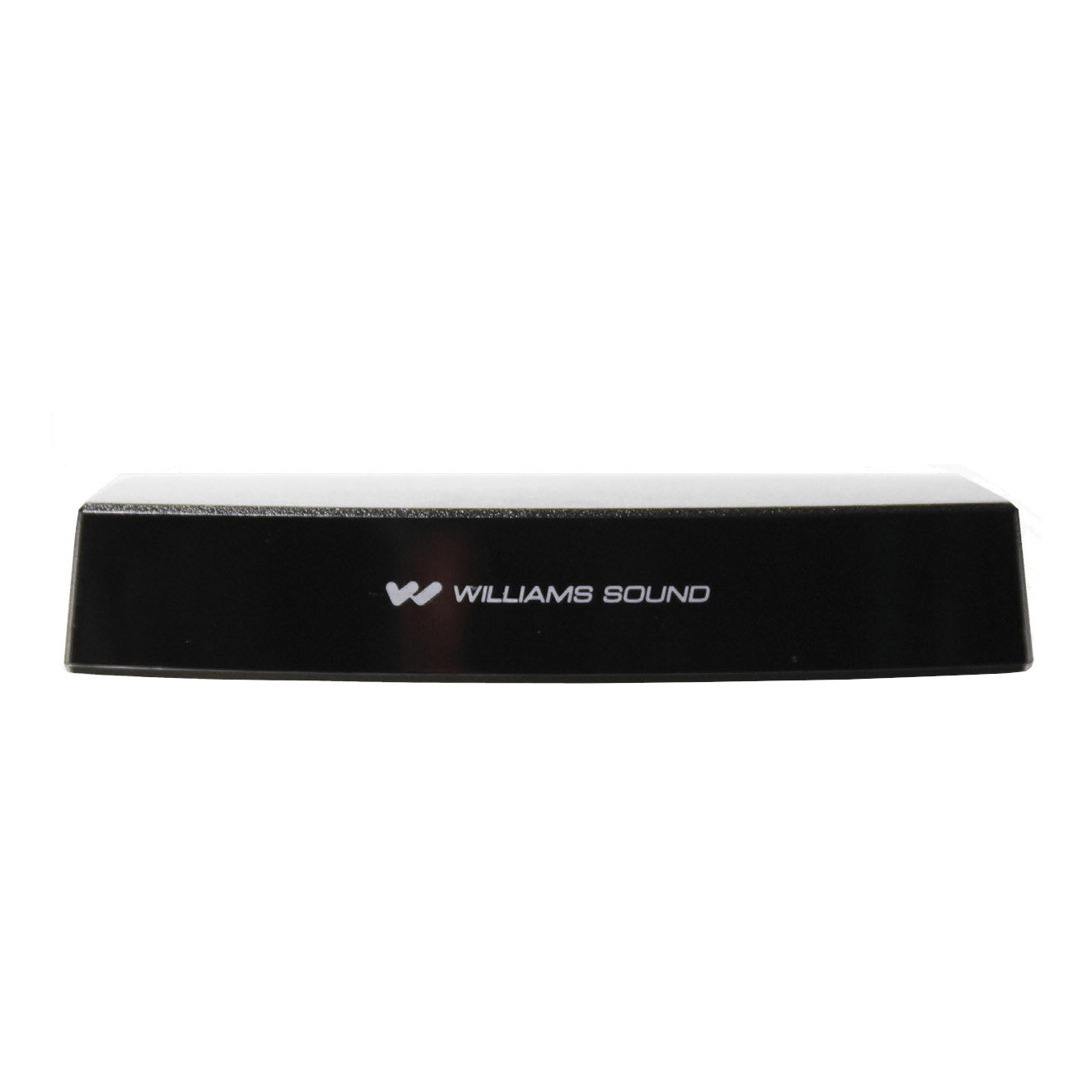

Williams AV IR T1 Small-Area Infrared Transmitter
Williams AV IR T1 Small-Area Infrared Transmitter
SoundPro Item: 30583 | Part Number: IR T1
Usually ships in 5-7 business days
- Commercial-quality design
- High-efficiency LEDs[nbsp]display power status and audio input
- Tripod mount or optional flat panel[nbsp]TV[nbsp]mounting bracket
- Power with[nbsp]A/C[nbsp]power supply or USB (from TV)
- Plug-and-play install with 3.5MM audio input 1- or 2-channel operation (2.3 and 2.8)
The Williams AV IR T1's sleek, compact footprint is ideal as an assistive listening system for small areas or for private TV listening in areas such as small conference rooms, hospital rooms, assisted living facilities, medical treatment centers and jury deliberation rooms. The T1 is so energy efficient it can be powered from a standard USB port on a TV. Provides a coverage area of up to 1300 square feet.
- Dimensions Width: 5.65”(14.4 cm), Depth: 3.65”(9.3 cm), Height: 1.15”(2.9 cm)
- Weight 8.3 oz (235 g)
- Color Black
- Power Supply TFP 055 – 100-240VAC 50/60Hz Input; 5VDC, 1A USB Output, Universal Supply with international adapters Other USB Power Supply (must be at least 5VDC, 0.2A)
- Power Cable USB to micro USB cable
- DC Power Input Micro USB connector, 5VDC, 0.2A
- Power Indicator Green LED
- Sleep/Power Save Mode Shuts off carrier when no audio present for 12 minutes
- Modulation FM Wideband, ±50 kHz deviation max, 50 μS pre-emphasis
- Carrier Frequencies 2.3MHz (Ch 1) and 2.8MHz (Ch 2); Default at power on = carriers off. Carriers are automatically enabled upon presence of audio.
- Coverage Area 1,300 sq. ft (120 sq. m.) with the WIR RX22-4; 1000 sq. ft. (93 sq. m.) with the IR RX20
- Audio Inputs 3.5mm stereo line level input jack, Ch 1 connected to tip, Ch 2 connected to ring, GND connected to sleeve
- Audio Indicators One Yellow LED per channel, lights up and stays on steady with minimum audio level.
- Signal-to-Noise Ratio 70 dB at onset of limiting
- Frequency Response 100 – 12,000 Hz
- Operating Requirements 32°-122°F (0-50°C)
- Compatible Receivers WIR RX22-4, IR RX20
- Approvals/Regulatory Compliance
- CE, RCM, FCC, Industry
- Canada, PSE, CUL, WEEE, RoHS, CB Scheme
