Williams AV TGS PRO 737 Personal PA FM Tour Guide System
Williams AV TGS PRO 737 Personal PA FM Tour Guide System
SoundPro Item: 37783 | Part Number: TGS PRO 737
Usually ships in 5-7 business days
- Featuring the sleek PPA T46 FM body-pack transmitter
- Allows full freedom of movement for tour group
- Easy set-up, simple operation
- Single-channel, field-tunable receiver
- Auxiliary input—broadcast any audio source
- Belt clips included for hands-free operation
- Lifetime PLUS Limited Warranty (90 days on accessories)
The Single-Channel FM Tour Guide System TGS PRO 737 is a lightweight, single-channel system that helps tour participants with hearing difficulties listen directly to the tour guide and control their own volume. This system features the FM R37 receiver, which can be tuned to a single FM channel via a seek function.
No installation required — save time and money. Ensures wireless/effortless communication between guide and participants. Combines superior audio with easy-to-use controls. No installation required–save time and money. This single-channel FM tour guide system is designed to meet Americans with Disabilities Act (ADA) accessibility requirements.

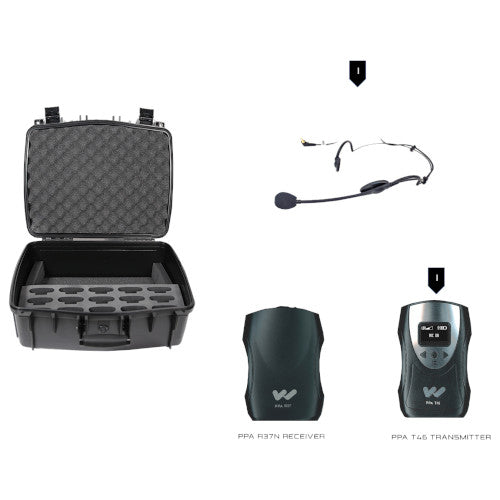

The TGS PRO 737 comes with a microphone, PPA T46 transmitter and 10 PPA R37 receivers in a carrying case. It does not come with any earphones, headphones or neckloops.
NOTE: This System is approved by the FCC for operation in U.S. markets. The system cannot be used in all countries. Check with your government´s radio regulations for 72-76 MHz operation.
Disclaimer: FCC rules limit use of this equipment to auditory assistance.
- BAT 001-2Alkaline, 1.5 Volt
- CCS 056 S
- Interior Dimensions 13.0” W x 18.0” L x 6.7”H (33 cm W x 46 cm L x 17 cm H)
- Exterior Dimensions 15.7” W x 19.7” L x 7.2” H (40 cm W x 50 cm L x 18 cm H)
- Lid Inner Depth 1.5” (4 cm)
- Bottom Inner Depth 5.2” (13 cm)
- Approx. weight (empty) 6.6 lbs (3 kg)
- Material Copolymer
- Minimum Temperature -40ºF (-40ºC)
- Maximum Temperature 160ºF (71.1ºC)
- Foam - FMP 057
- Dimensions 18.25" x 12.5" x 3"
- MIC 100
- Element Electret-Condenser
- Phantom Powered No
- Pick-Up Pattern Uni-directional
- Frequency Response 50 Hz – 16 kHz
- Sensitivity -70 dB ± 3 dB
- Impedance 600 W
- Plug 3.5 mm mono, right-angle
- Cord Length 39”
- Color Black
- Weight 0.35 lbs
- Replacement Windscreen WND 009
- Approvals RoHS
- Warranty 90 days
- PPA R37
- Dimensions: 4.1" x 2.85" x 1.38" (104 x 72 x 35mm)
- Weight: 4.6oz (130g) with batteries. 2.6oz (73g) without batteries
- Color: Black
- Battery Type: (2) AA Alkaline or 2 x AA NiMH
- Battery Life
- (2) AA non-rechargeable alkaline batteries (BAT 001), approx. 50 hrs
- (2) AA rechargeable NiMH batteries (BAT 026), 1500 mAh, approx. 32 hrs
- Current Consumption: 52mA nominal
- Temperature Range: – 0 to 50C
- Channels 17, accessed via seek button in battery compartment
- Operating Freq.: 72.1, 72.2, 72.3, 72.4, 72.5, 72.6, 72.7, 72.8, 72.9, 74.7, 75.3, 75.4, 75.5, 75.6, 75.7, 75.8, 75.9 MHz*
- Intermediate Freq.: 75 kHz
- FM Deviation: 75 kHz
- De-Emphasis: 75 µS
- LED Indicator: Power: Green; Low Battery: Flashes Green
- AFC Range: ± 120 kHz
- Sensitivity: 2 µV at 12 dB Sinad with squelch defeated
- Input Overload: 100 mV
- Frequency Response: 200 – 15 kHz
- Modulation: FM, +/- 75 kHz peak deviation
- Signal-to-Noise Ratio: 65 dB min @ 100 uV
- Receive Antenna: Integral with earphone/headphone cord
- Audio Output: 35 mW max, peak into 16 ohms
- Output Connector: 3.5 mm stereo/mono phone jack
- Earphone: Earbud-type with foam cushion, 3.5 mm plug, 32 Ω
- Auto Shut-off Enters sleep mode after approx 6 mins of no RF signal
- Approvals: FCC, Industry Canada, RoHS, WEEE
- Warranty: Lifetime PLUS Limited Warranty, 90 Days on most accessories.
- PPA T46
- Dimensions: 4.1” L x 2.8” W x 1.1” D (104 mm x 71 mm x 28 mm)
- Weight: 2.6 oz (74 g), no batteries
- Color: Black/Silver
- Enclosure Material: Shatter-resistant PC/ABS plastic with textured scratch-resistant aluminum faceplate
- Battery Type options:
- Two (2) AA 1.5 V non-rechargeable Alkaline batteries (BAT 001-2), 75 mA nominal current drain, up to 30 hours battery life
- Two (2) AA 1.5 V NiMH rechargeable batteries (BAT 026-2), 75 mA nominal current drain, up to 20 hours battery life per charge, recharges in 14–16 hours, uses CHG 3502 or CHG 3512 Charger
- Operating Frequencies: Selectable, 17 channels, 72.1 – 75.9 MHz*. Switchable 8 or 17 Channel Mode. (8-channel mode setting corresponds with PPA R35-8 receiver channels)
- Stability: ± .005%, frequency synthesized, crystal reference, PLL
- Modulation: Wide-band FM, 75 kHz peak, 75 µS pre-emphasis
- RF Output: 80 mV/m at 3 m (max. allowed by FCC rules)
- Range: 150 ft/45 m
- Frequency Response: 180 Hz to 13 kHz, ± 3 dB at 1% max. THD
- Signal-to-Noise Ratio: 65 dB (typical) transmitted
- Transmit Antenna: Integral with microphone cord
- Microphone: Electret type, 3.5 mm mono plug
- External Display: OLED for status and menu information. Status: Ch/Freq, Mic Audio Level, Auxiliary Input Audio Level, Battery Status, Mic Mute, Channel Lock, Dual-Preset mode. Menu: Ch/Freq display mode select, Volume, Aux Input, Compression, 17 or 8-channel mode, screen time out, screen brightness, restore default settings
- External Controls: Momentary push button: push and hold 3 seconds for power On/Off, push and release for microphone mute On/Off. “Up”, “Down” and “Menu” buttons for accessing and changing transmitter settings. Battery type switch (Alkaline or NiMH) located behind the battery compartment door
- External Indicators: Power LED - Green, flashes when battery is low
- Mic Input: 3.5 mm mono jack with electret mic bias, adjustable gain with 25 dB range
- Aux Input: 2.5 mm stereo jack, adjustable gain with 60 dB range
- Audio Compression: 1:1 (off) or 2:1 (on) selectable in menu
- Compatible Receivers: PFM R31, PFM R32, PFM R33, PFM R36, PPA R35, PPA R37, PPA R35-8, PPA R1600,
- Approvals/Directives: FCC, Industry Canada, RoHS, WEEE
- Warranty: Lifetime PLUS Limited Warranty, 90 Days on most accessories.
