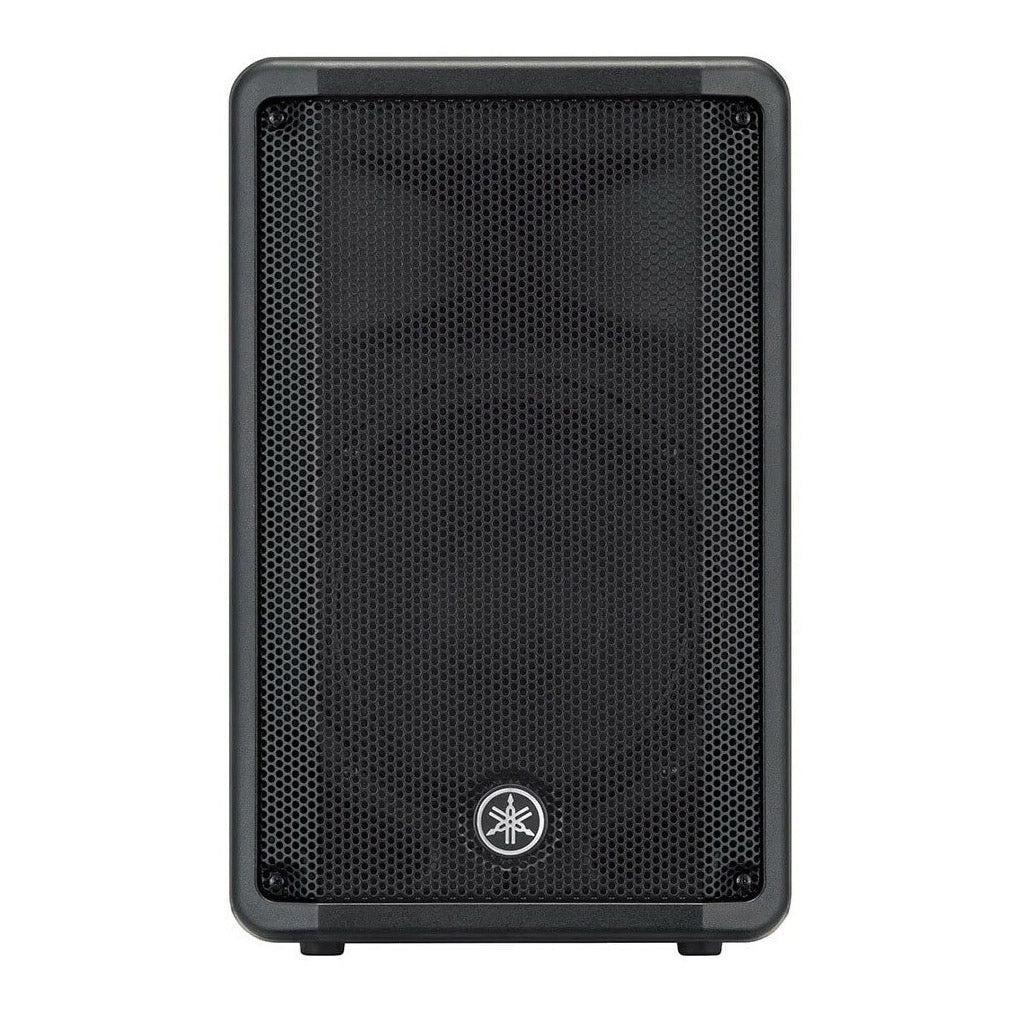

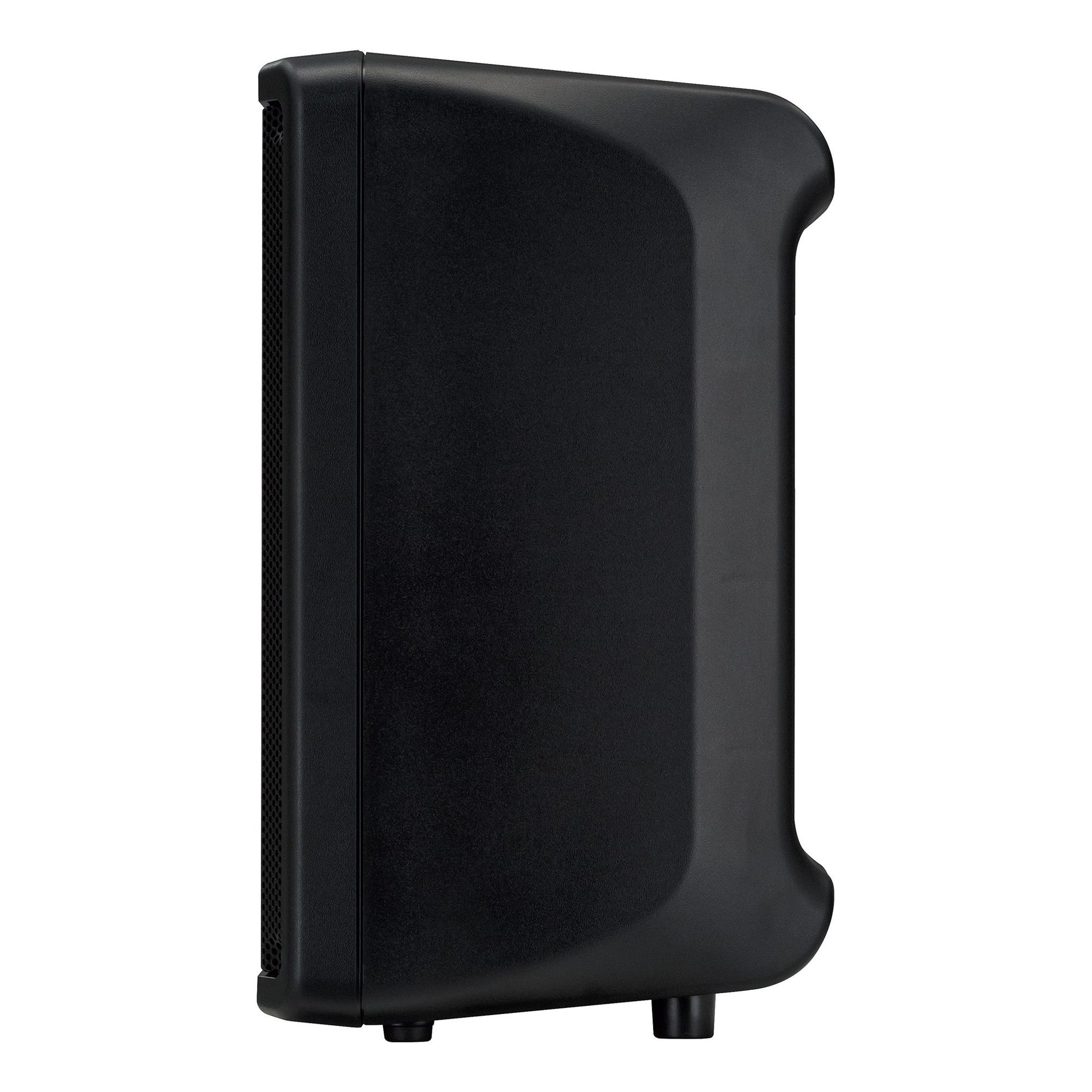

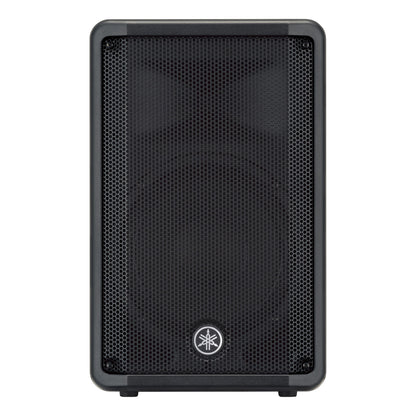

Yamaha CBR10 10-Inch Passive Speaker

Yamaha CBR10 10-Inch Passive Speaker

SoundPro Item: 26068 | Part Number: CBR10-CA

$299.99
$411.00 $299.99
Your Price Sold out
MSRP: $411.00 | MAP: $299.99

Usually ships in 5-7 business days

  • Custom designed transducers and wide-dispersion constant directivity horn for powerful high-definition sound
  • HF protection function and highly responsive LF unit for reliable performance at any output level
  • Rugged, highly portable enclosure design
  • Simple connectivity- versatility for a variety of applications

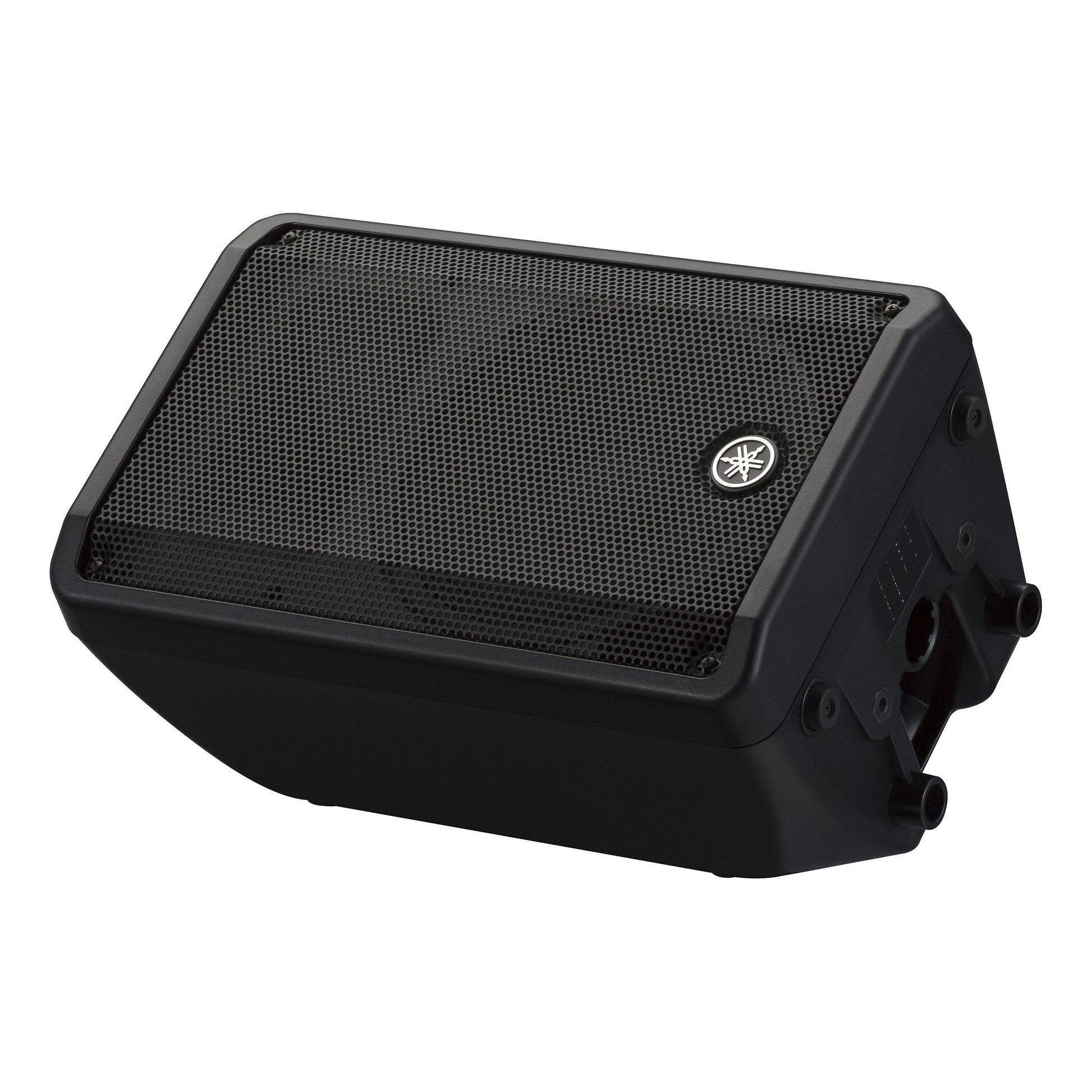

  • Smart enclosure design for floor monitoring
  • Rigging points for installation applications
Log in or register for YOUR best price

At just 10 inches in size and boasting a 2” compression driver, the CBR10 passive speaker is the most compact member of Yamaha’s CBR family.

Don’t let its small dimensions fool you; the CBR10 also delivers astonishing power, making it ideal for both portable and installed sound systems.

View full details
  • Speaker Type2-way speaker, bass-reflex type
  • Frequency Range (-10 dB)50Hz - 20,000Hz
  • Nominal Coverage (HxV)90° x 60°
  • Components
    • LF: 10" cone, 2" voice coil (ferrite magnet)
    • HF: 1" voice coil, compression driver (ferrite magnet)
  • Crossover2.8kHz
  • Power Rating
    • Noise: 175W
    • PGM: 350W
    • Peak: 700W
  • Nominal Impedance8 Ω
  • SPL
    • Sensitivity (1W; 1m on axis): 94 dB SPL
    • Peak (calculated): 123 dB SPL

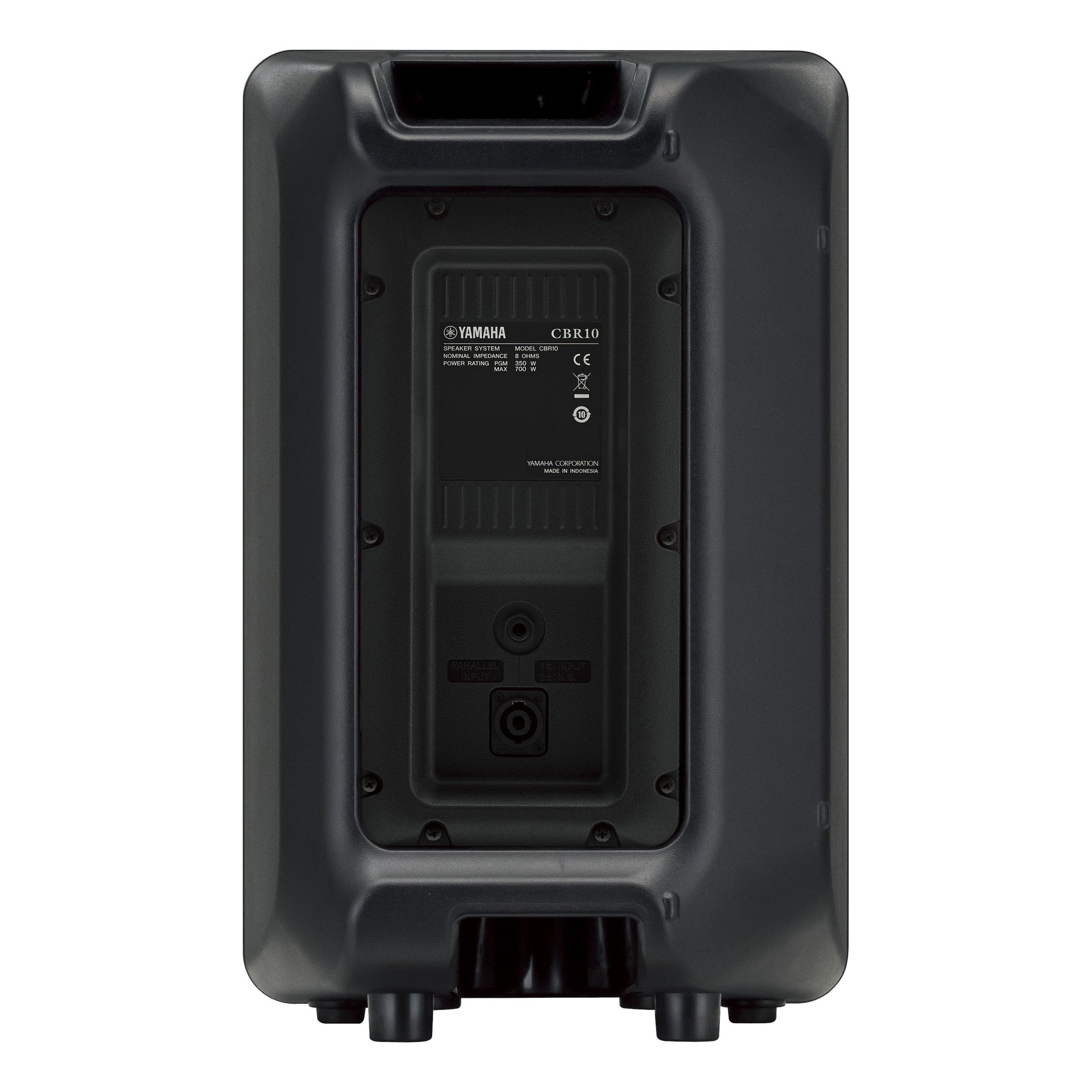

  • I/O Connectors1/4" Phone x 1, speakON NL4MP x 1
  • Cabinet Materialplastic
  • Handle1 on top
  • Flying and Mounting HardwareBottom x 2 (Fit for M8 x 15mm Eyebolts)
  • Pole SocketΦ35 mm Bottom x 1
  • Dimensions (WxHxD)12.1x19.4x11.4"
  • Weight20.7 lbs
