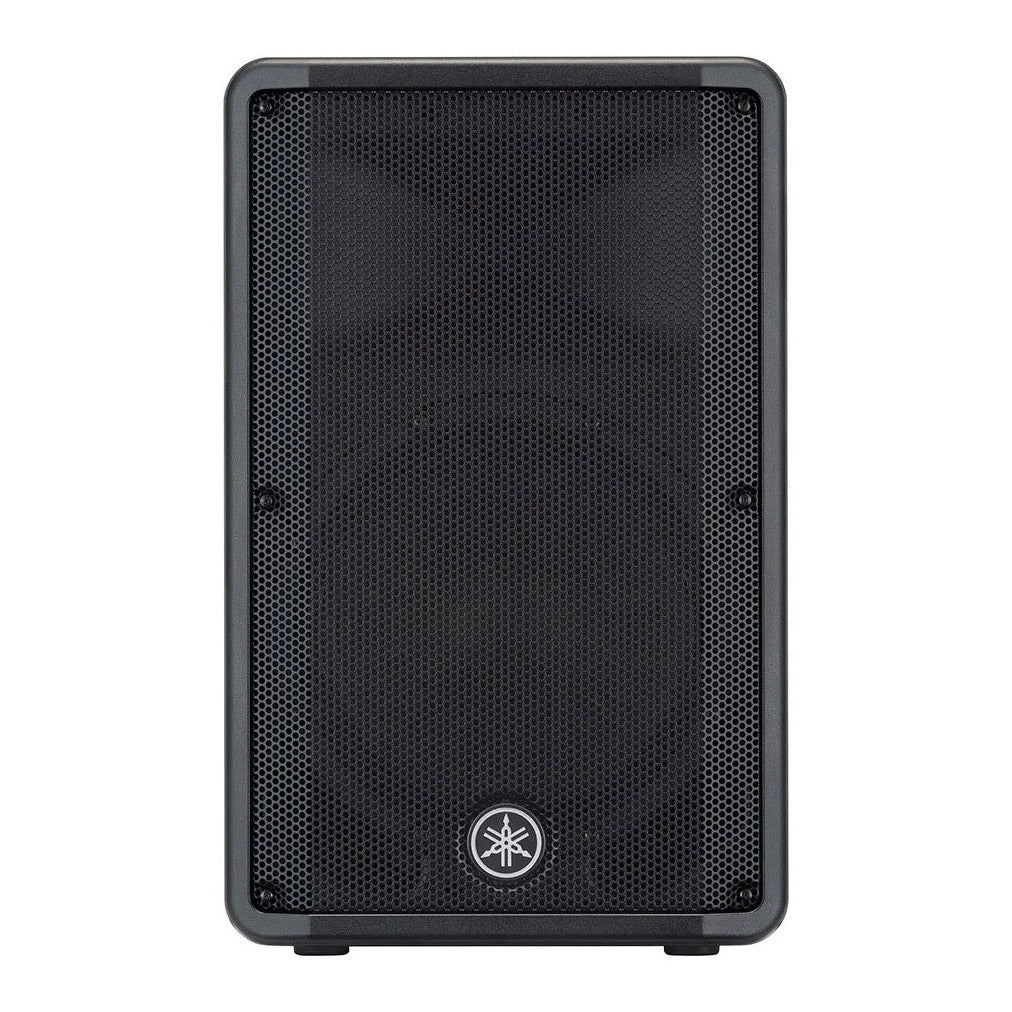

Yamaha CBR12 12-Inch Passive Speaker
Yamaha CBR12 12-Inch Passive Speaker
SoundPro Item: 26069 | Part Number: CBR12-CA
In stock and ready to ship
- Custom designed transducers and wide-dispersion constant directivity horn for powerful high-definition sound
- HF protection function and highly responsive LF unit for reliable performance at any output level
- Rugged, highly portable enclosure design
- Simple connectivity- versatility for a variety of applications
- Smart enclosure design for floor monitoring
- Rigging points for installation applications
Perfectly combining size and performance, the 12-inch CBR12 from Yamaha’s CBR Series of passive speakers is ideal for a wide range of applications, including front-of-house, floor monitoring, and rigged installations.
The CBR12 features a 2” compression driver, as well as a symmetrically-shaped build that lets you configure multiple units in a mirror-mode floor monitoring system…resulting in a larger, more defined sweet spot.
- Speaker Type2-way speaker, bass-reflex type
- Frequency Range (-10 dB)48Hz - 20,000Hz
- Nominal Coverage (HxV)90° x 60°
- Components
- LF: 12" cone, 2" voice coil (ferrite magnet)
- HF: 1.4" voice coil, compression driver (ferrite magnet)
- Crossover2.1kHz
- Power Rating
- Noise: 175W
- PGM: 350W
- Peak: 700W
- Nominal Impedance8 Ω
- SPL
- Sensitivity (1W; 1m on axis): 96 dB SPL
- Peak (calculated): 125 dB SPL
- I/O Connectors1/4" Phone x 1, speakON NL4MP x 1
- Cabinet Materialplastic
- Handle2 (1 x side)
- Flying and Mounting HardwareBottom x 2, Rear x 1 (Fit for M8 x 15mm Eyebolts)
- Pole SocketΦ35 mm Bottom x 1
- Dimensions (WxHxD)14.8x23.7x13.7"
- Weight30.6 lbs
