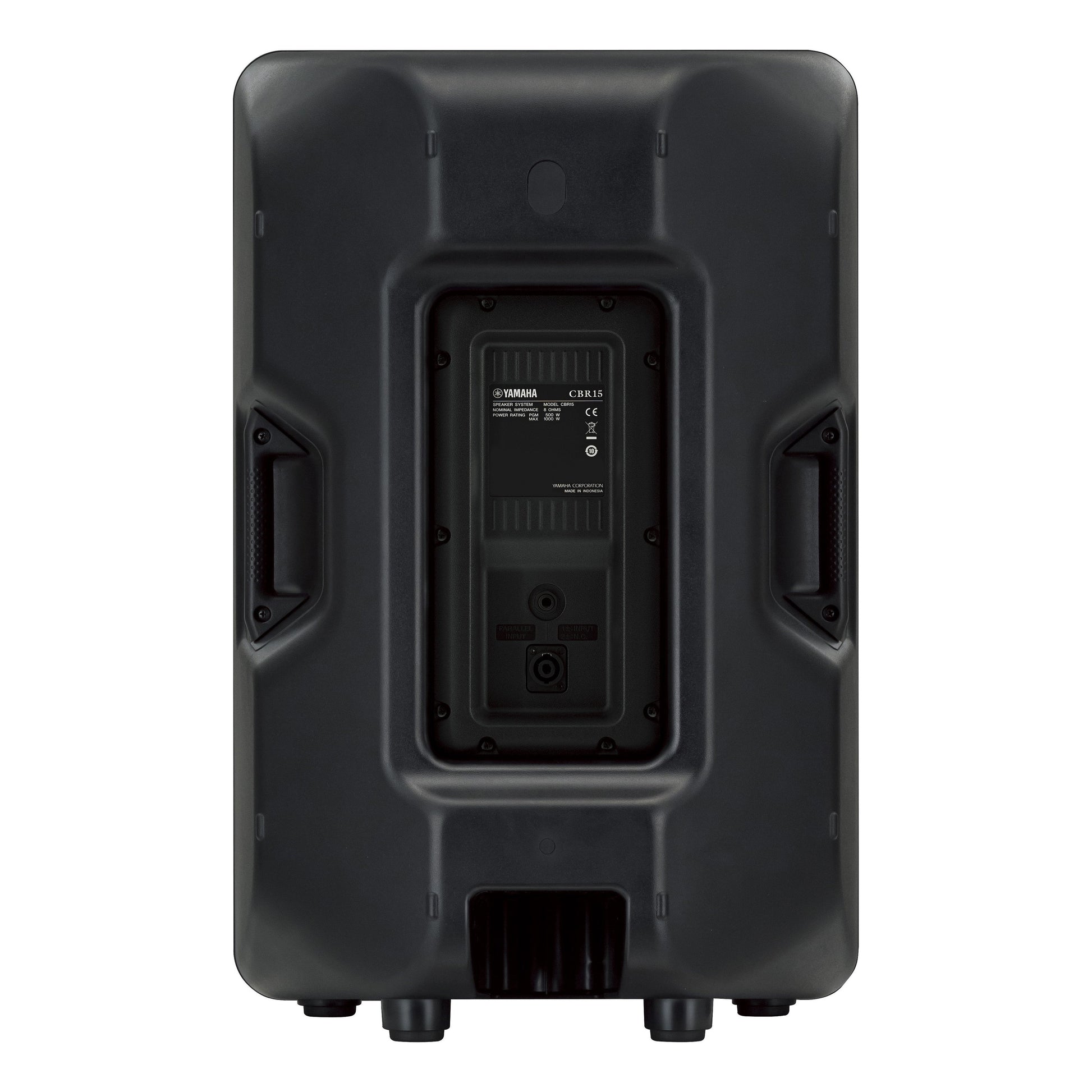

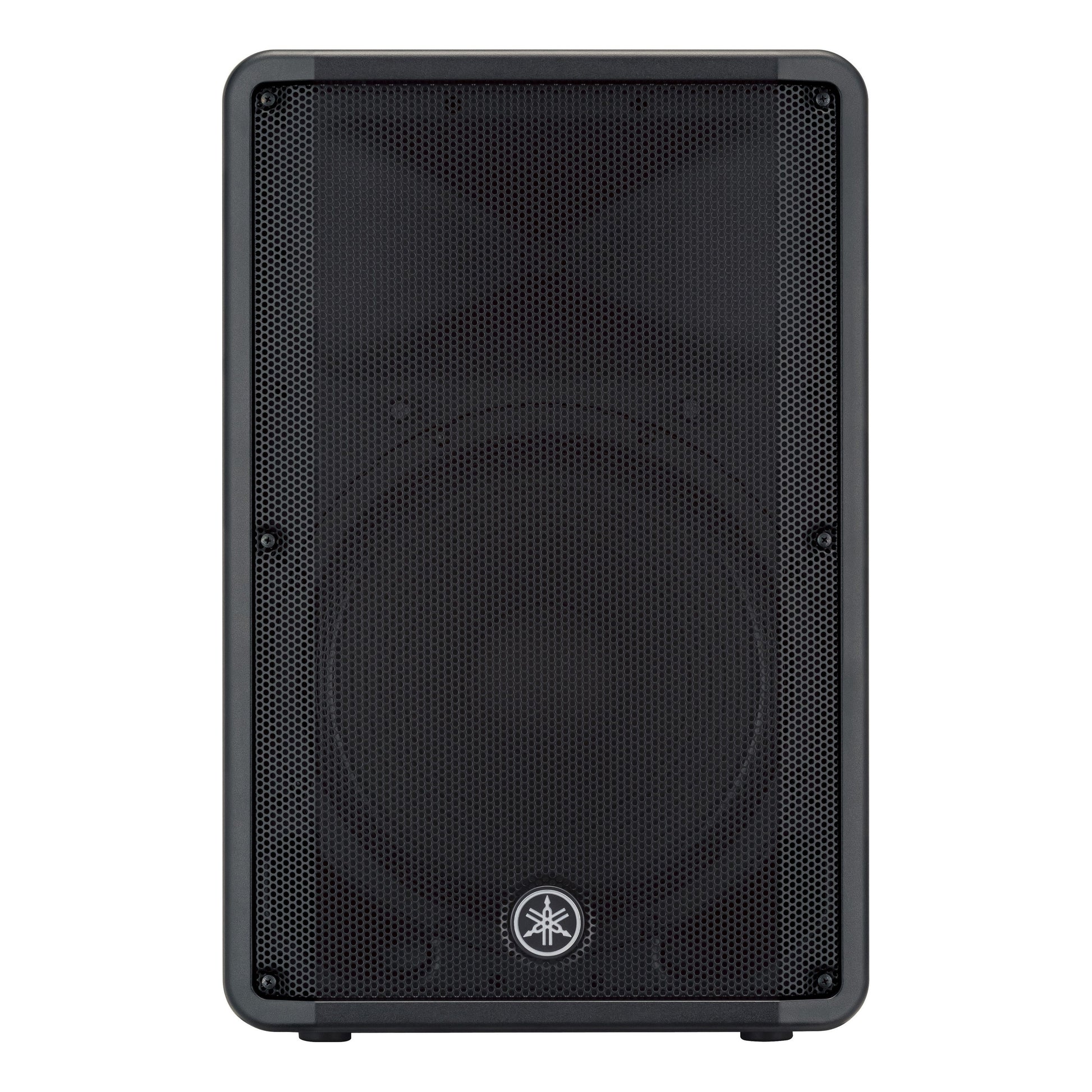

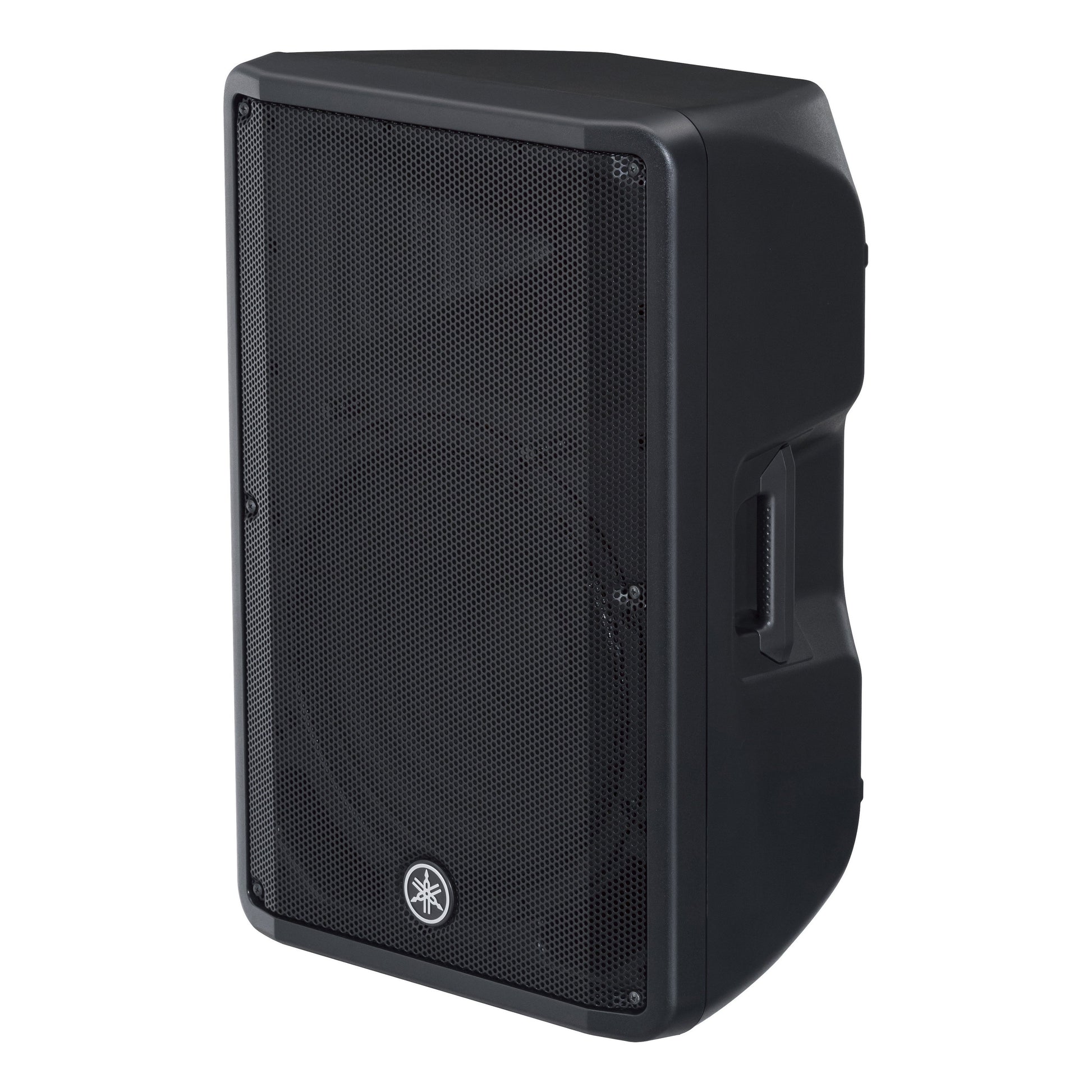

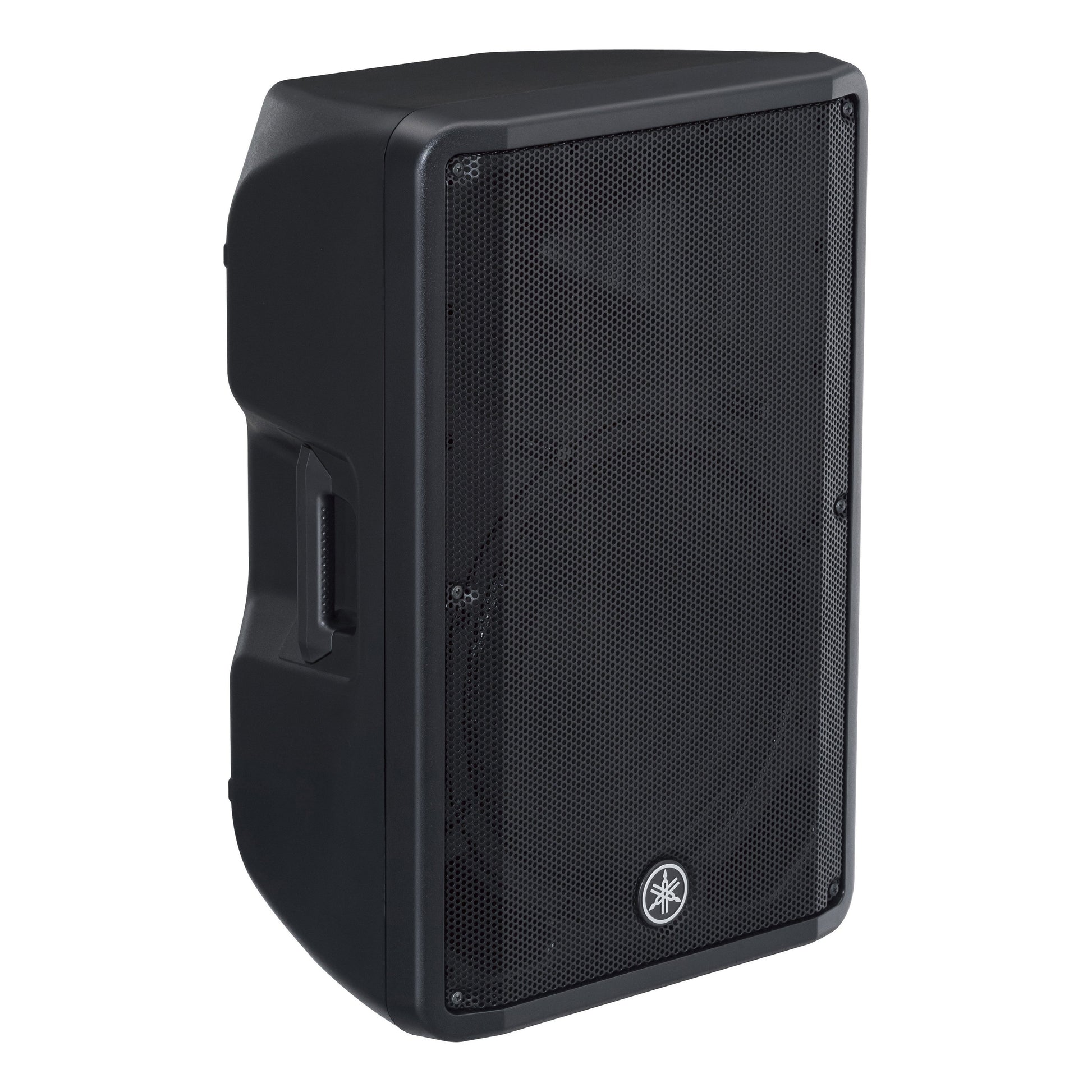

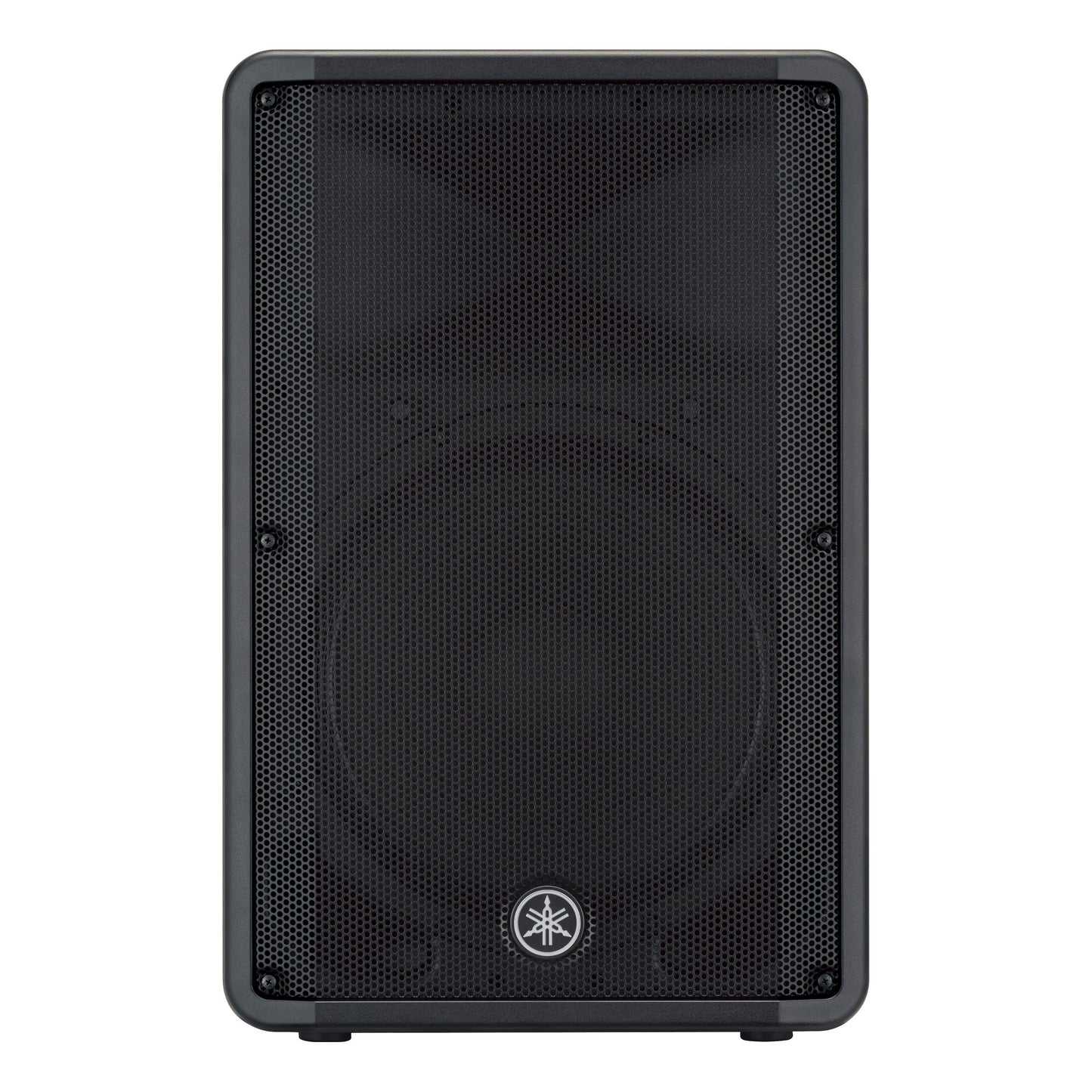

Yamaha CBR15 15-Inch Passive Speaker

Yamaha CBR15 15-Inch Passive Speaker

SoundPro Item: 26070 | Part Number: CBR15-CA

$384.99
$548.00 $384.99
Your Price Sold out
MSRP: $548.00 | MAP: $384.99

Usually ships in 5-7 business days

  • Custom designed transducers and wide-dispersion constant directivity horn for powerful high-definition sound
  • HF protection function and highly responsive LF unit for reliable performance at any output level
  • Rugged, highly portable enclosure design
  • Simple connectivity- versatility for a variety of applications

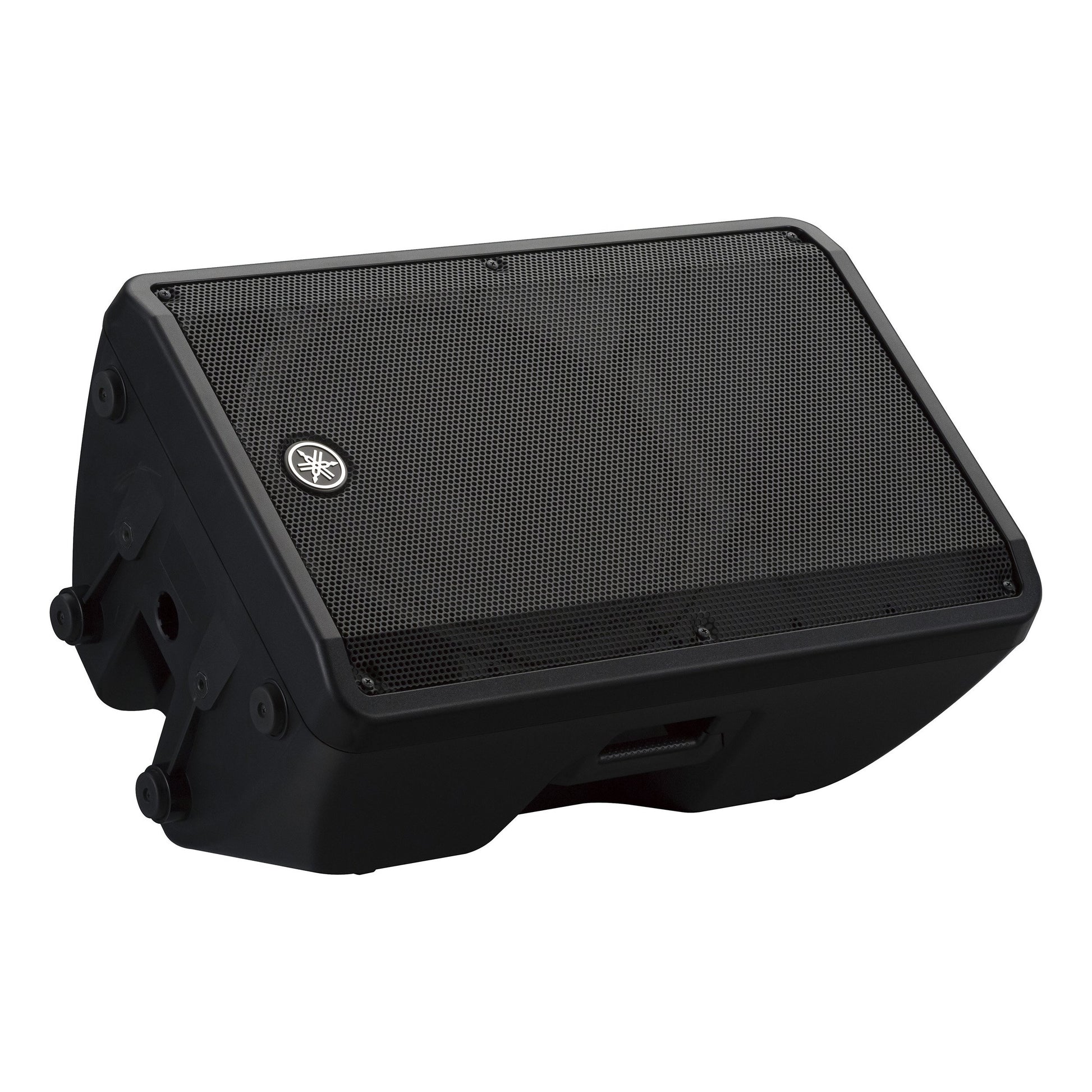

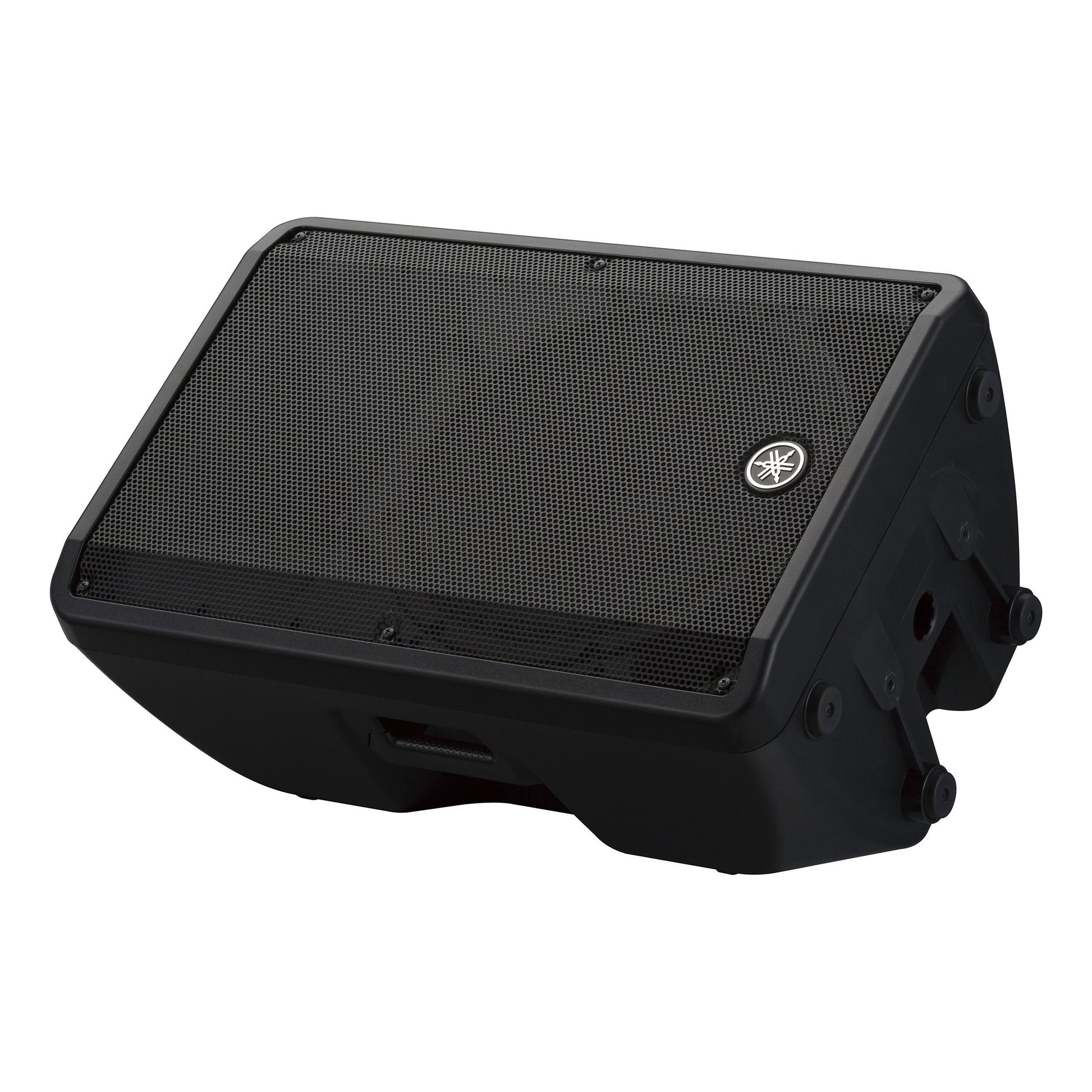

  • Smart enclosure design for floor monitoring
  • Rigging points for installation applications
Log in or register for YOUR best price

Ideal for live sound applications such as front-of-house, DJ performances, and installed setups, the CBR15 from Yamaha delivers the lowest frequency and optimized sound pressure level handling of all the CBR series of passive speakers.

This 15" model features a 2.5” compression driver, as well as a symmetrically-shaped build that lets you configure multiple units in a mirror-mode floor monitoring system…resulting in a larger, more defined sweet spot.

View full details
  • Speaker Type2-way speaker, bass-reflex type
  • Frequency Range (-10 dB)46Hz - 20,000Hz
  • Nominal Coverage (HxV)90° x 60°
  • Components
    • LF: 15" cone, 2.5" voice coil (ferrite magnet)
    • HF: 1.4" voice coil, compression driver (ferrite magnet)
  • Crossover2.0kHz
  • Power Rating
    • Noise: 250W
    • PGM: 500W
    • Peak: 1000W
  • Nominal Impedance8 Ω
  • SPL
    • Sensitivity (1W; 1m on axis): 96 dB SPL
    • Peak (calculated): 126 dB SPL

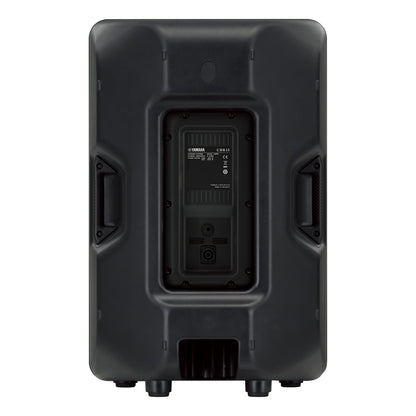

  • I/O Connectors1/4" Phone x 1, speakON NL4MP x 1
  • Cabinet Materialplastic

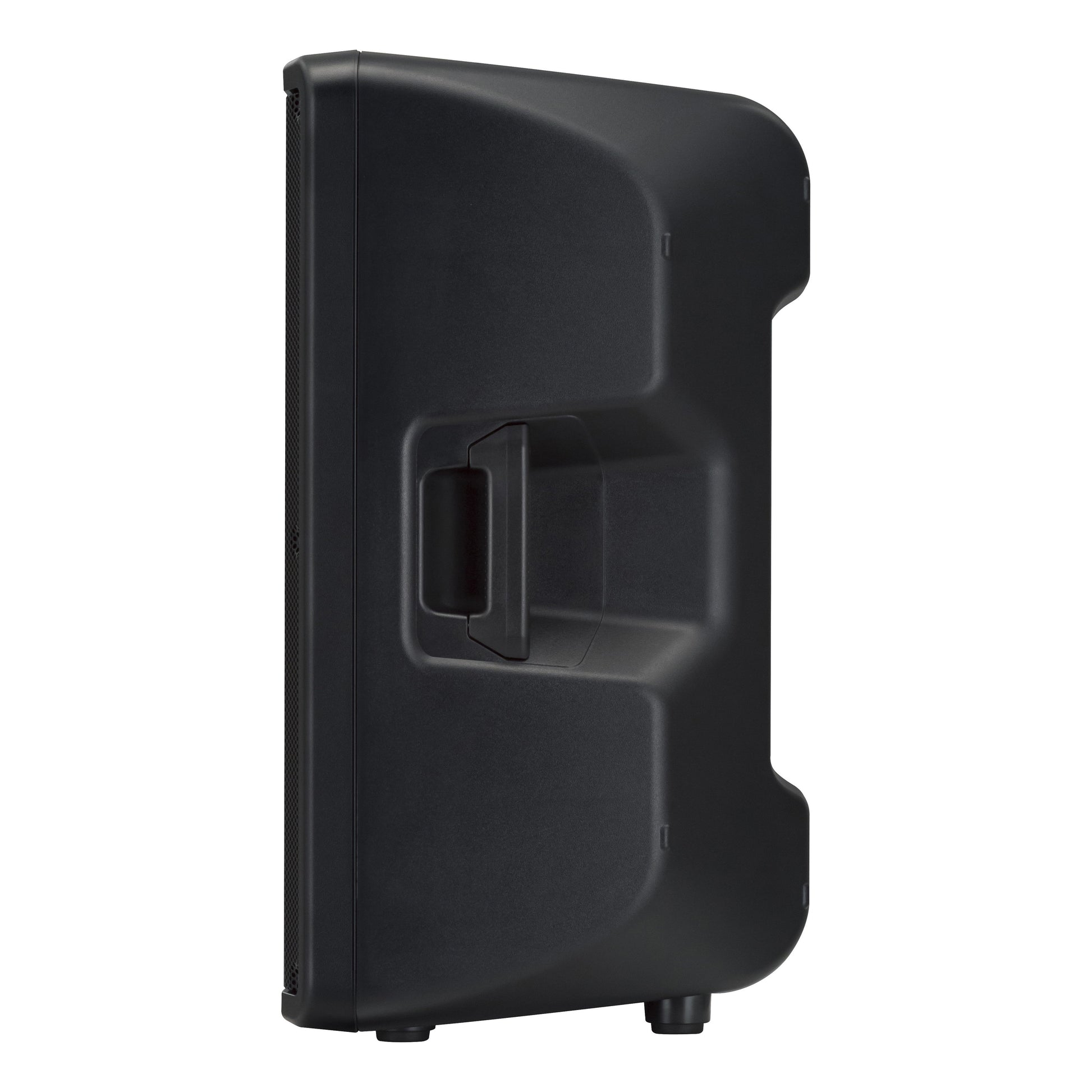

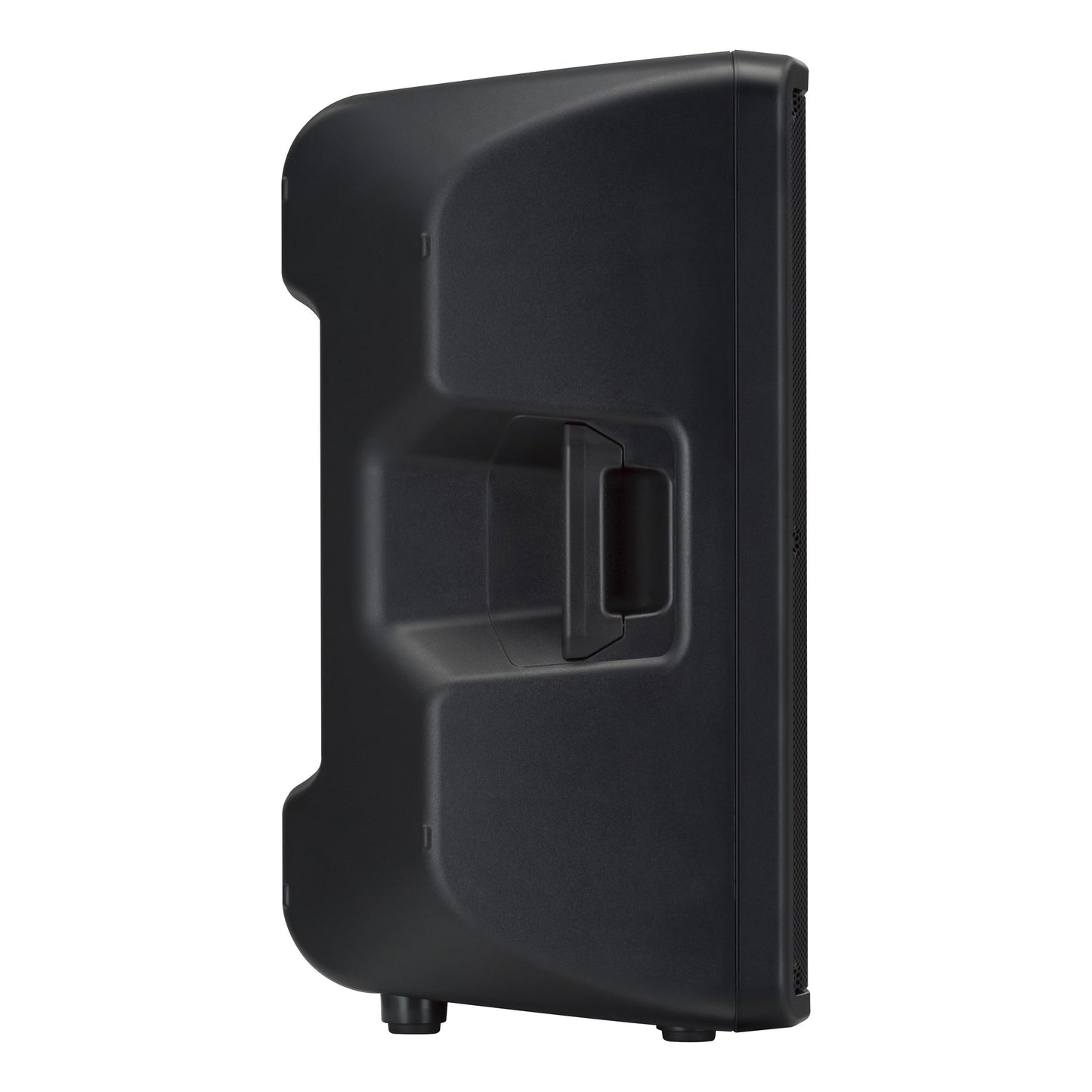

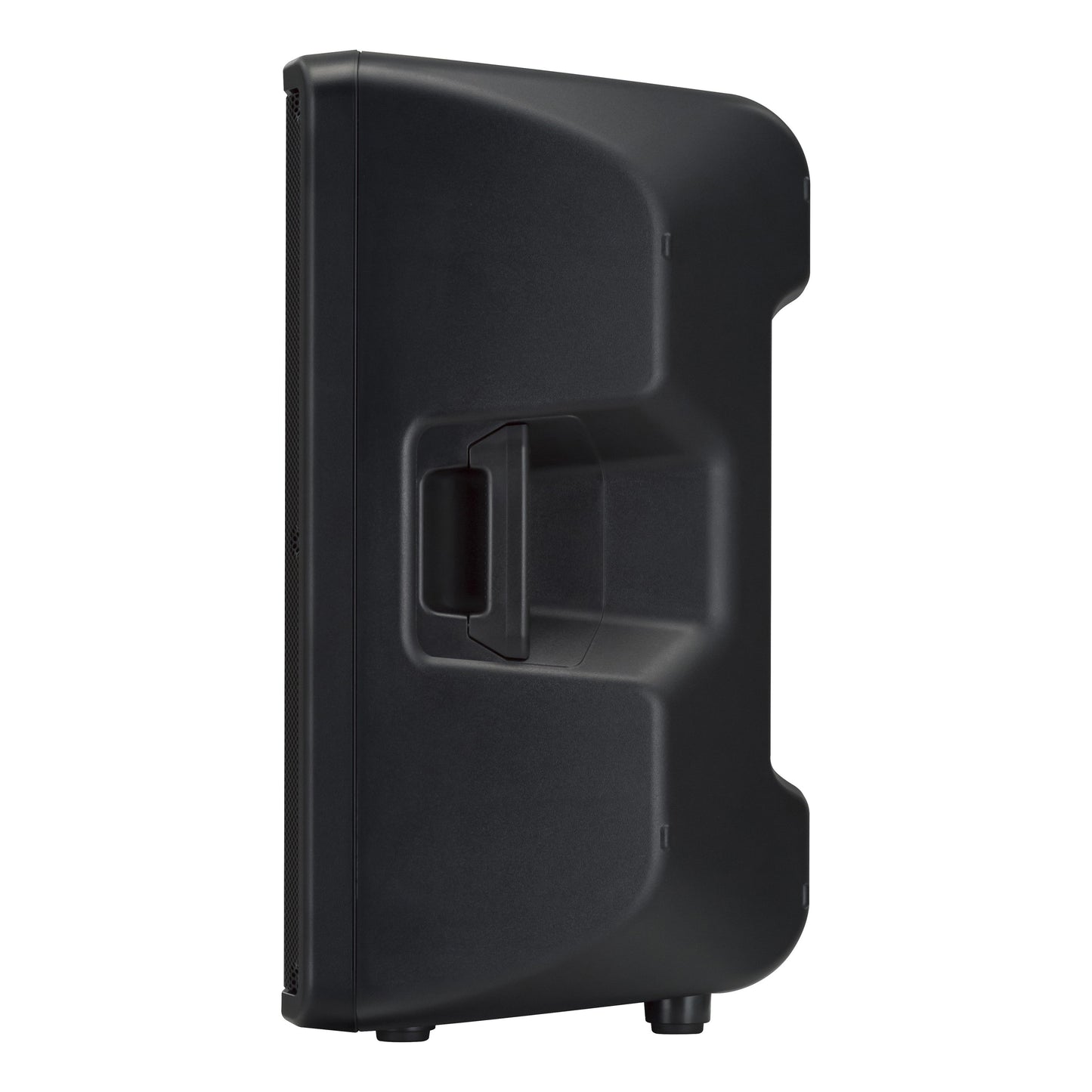

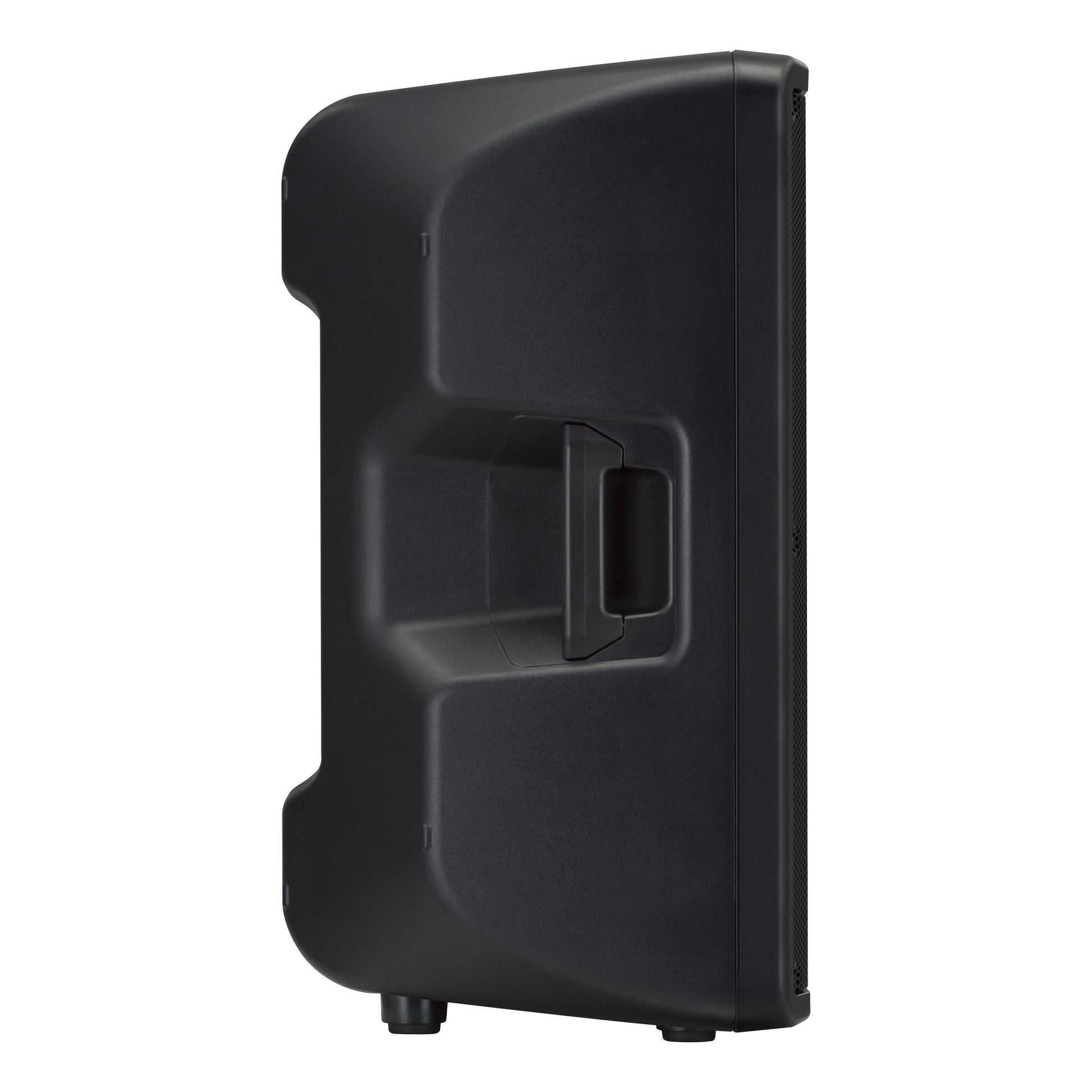

  • Handle2 (1 x side)
  • Flying and Mounting HardwareBottom x 2, Rear x 1 (Fit for M8 x 15mm Eyebolts)
  • Pole SocketΦ35 mm Bottom x 1
  • Dimensions (WxHxD)17.9x27.6x14.9"
  • Weight39 lbs
