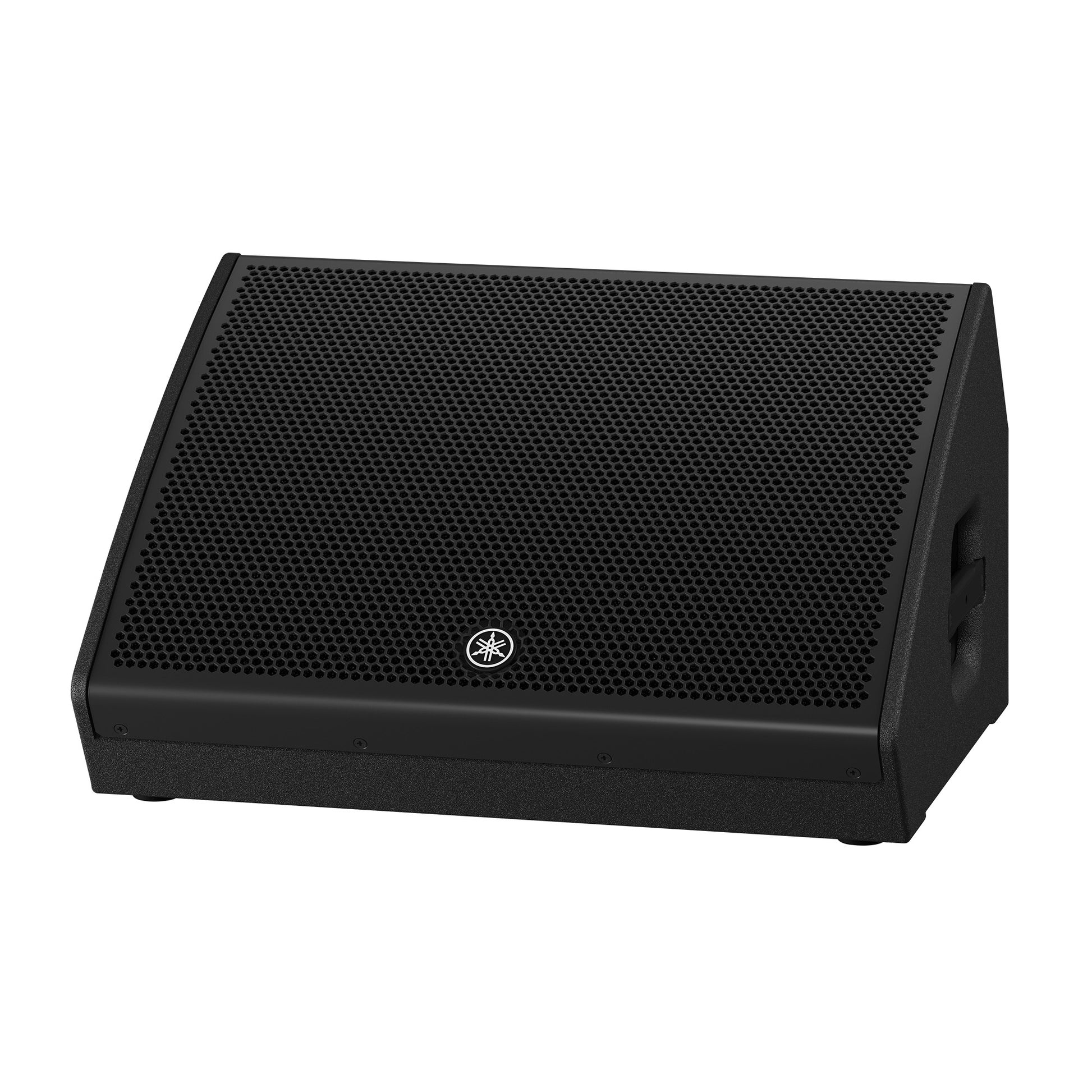

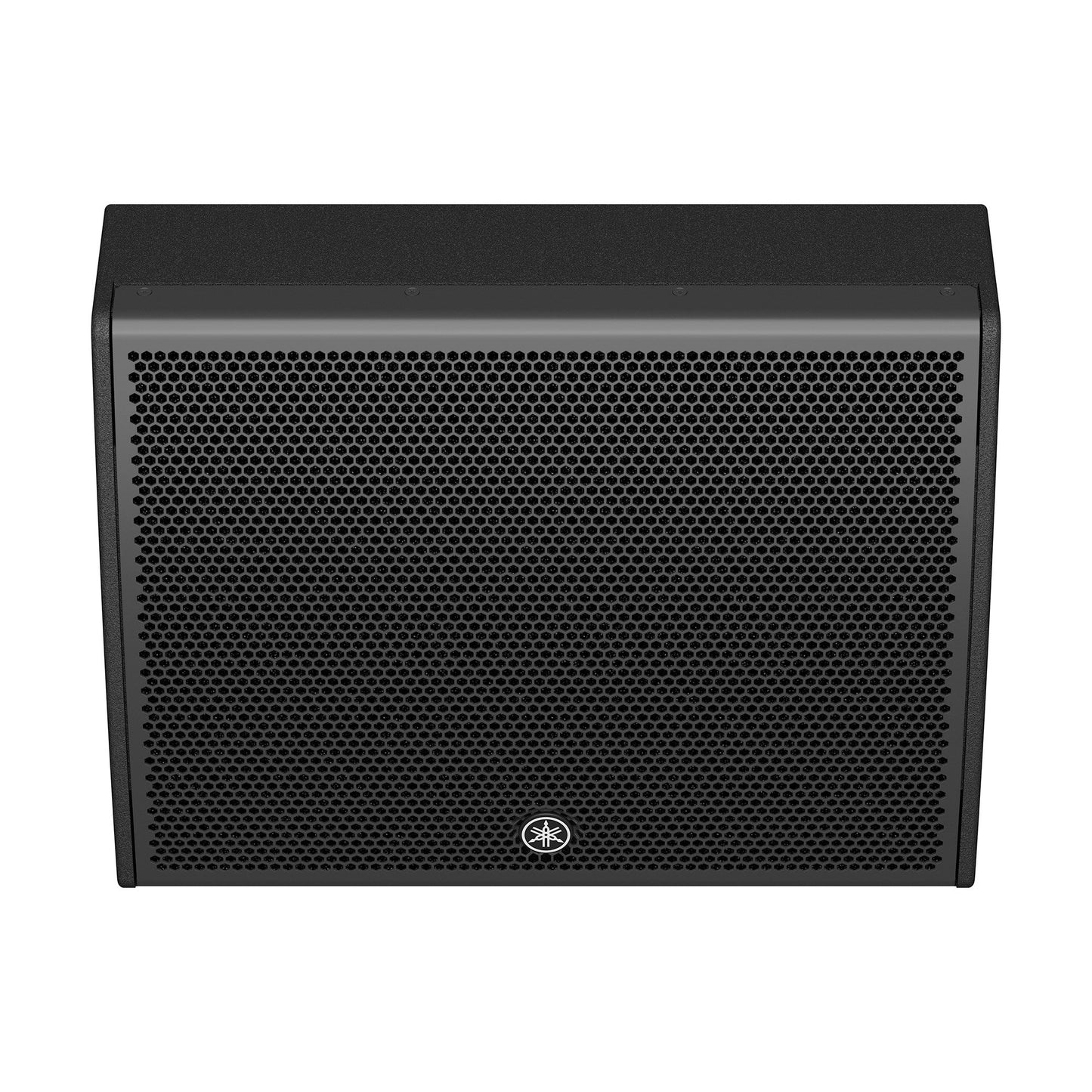

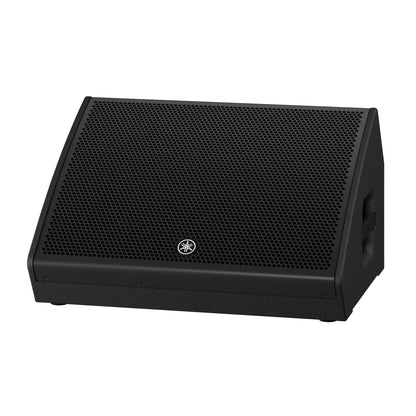

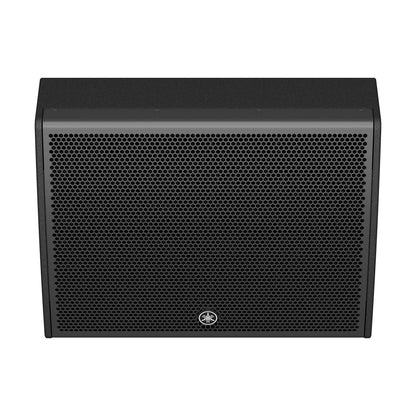

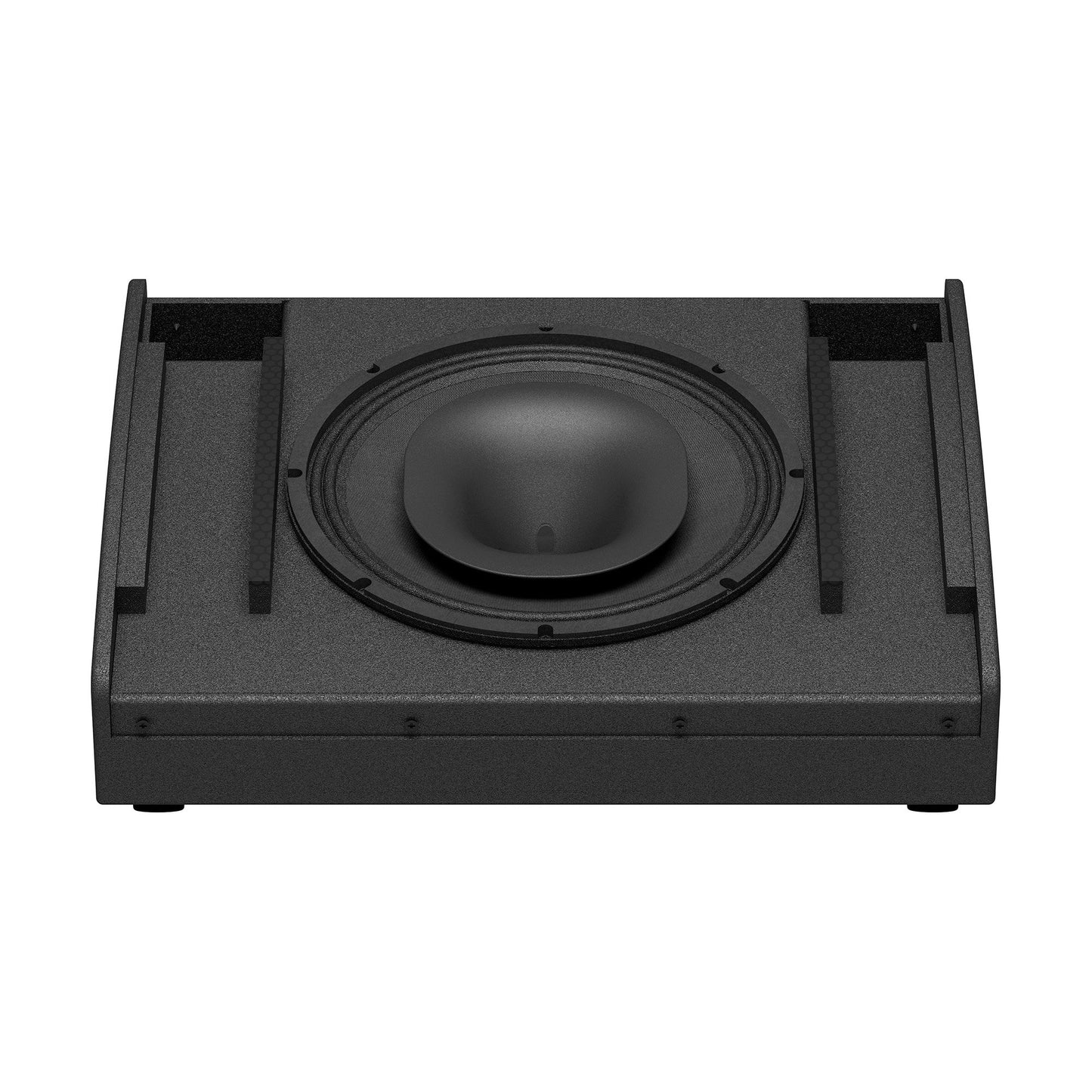

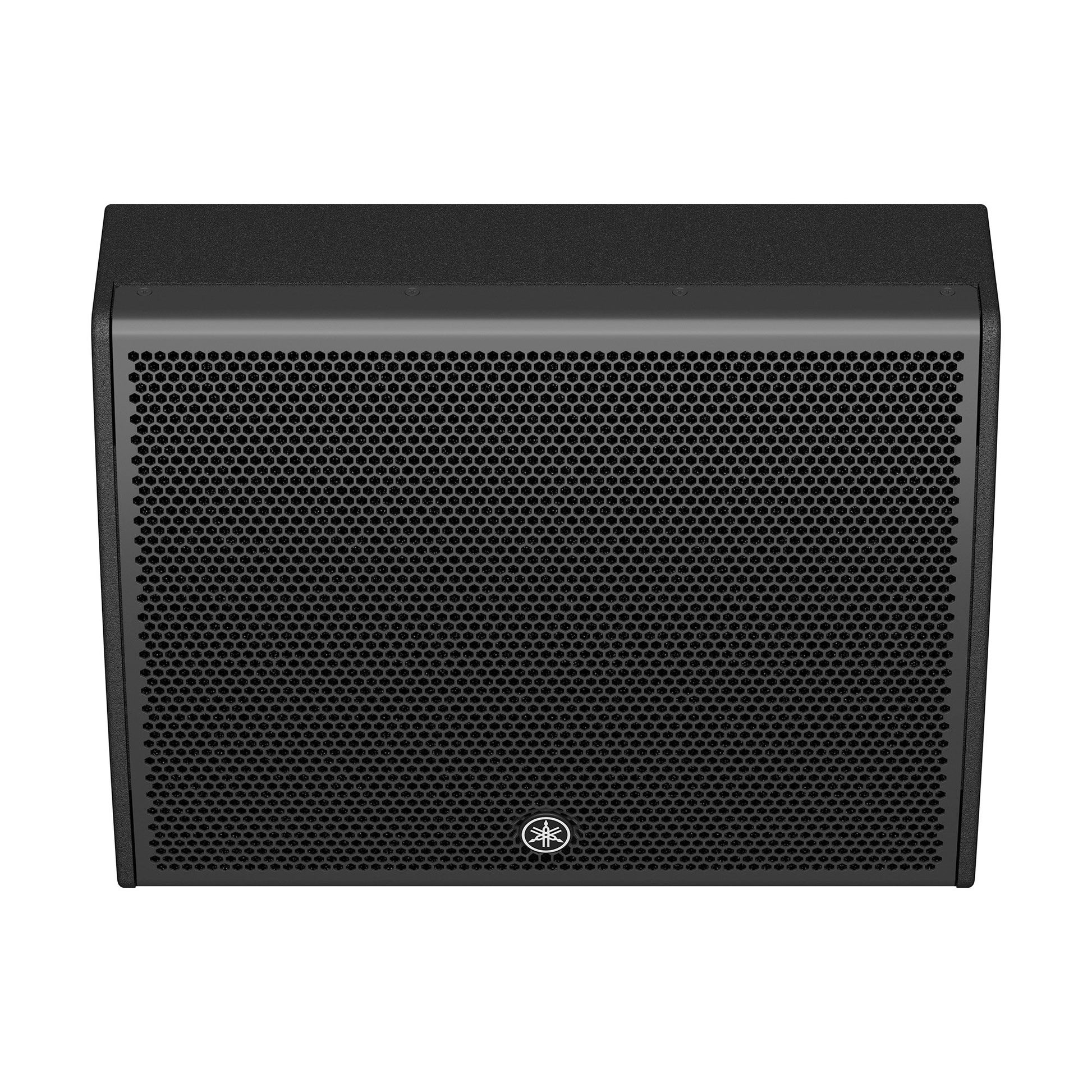

Yamaha CHR15M 15-Inch Passive Stage Monitor
Yamaha CHR15M 15-Inch Passive Stage Monitor
SoundPro Item: 144448
In stock and ready to ship
- The coaxial driver delivers precise, smooth phase and frequency response characteristics ideal for use in monitoring applications
- Featuring a plywood cabinet that delivers a clear sound with minimal vibration
- Compact, low profile, plywood enclosure with a polyurea coating for a robust, scratch-resistant surface
- A pole socket for use on a stand
- Yamaha DSP equipped amplifiers or other compatible signal processors have dedicated speaker processor tuning settings to maximize system performance

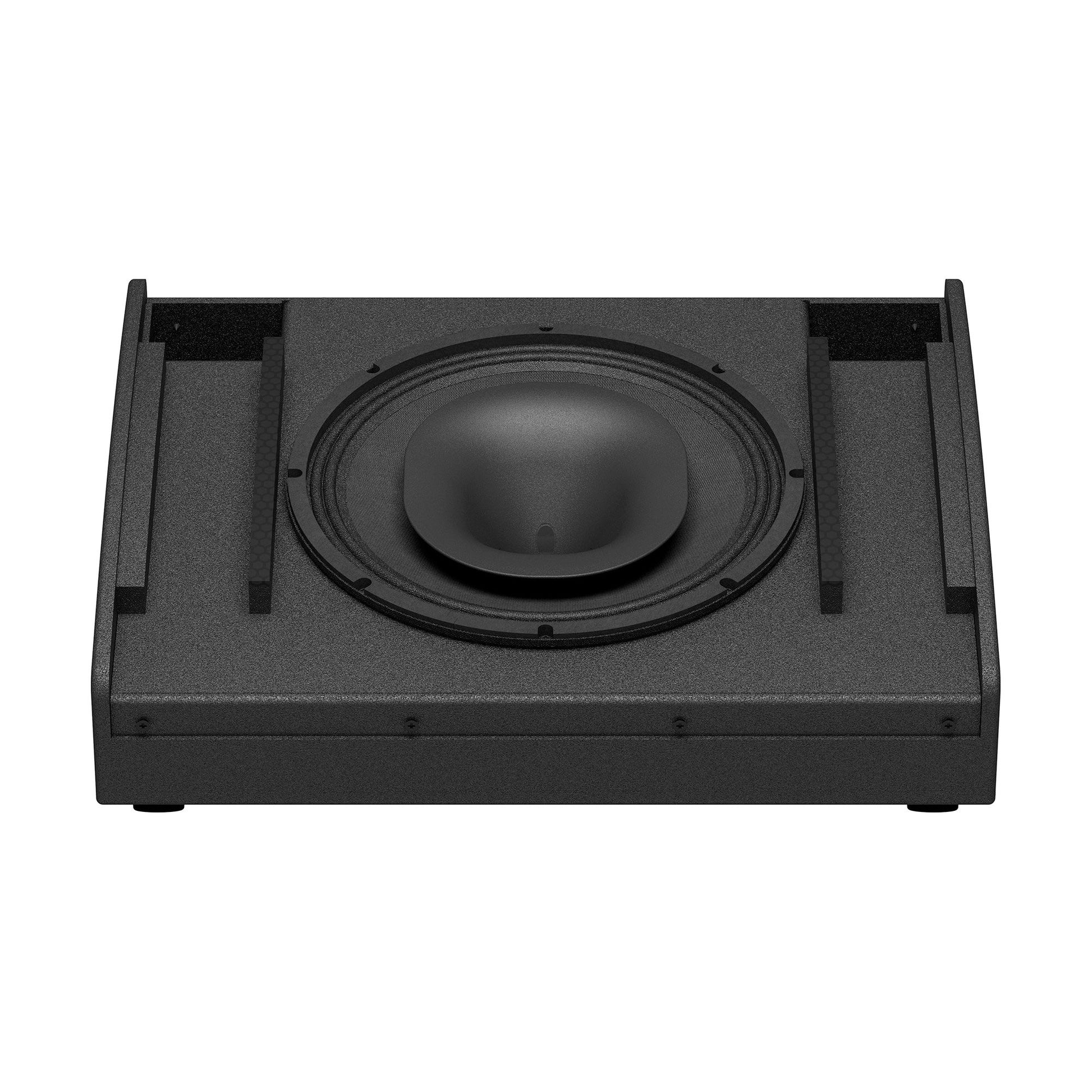

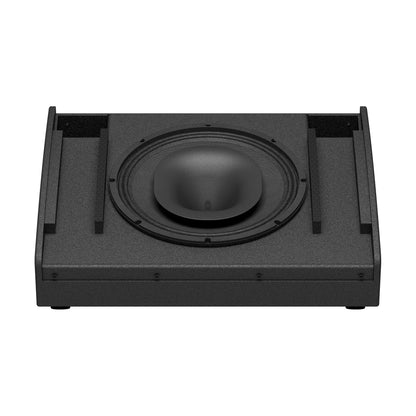

The CHR15M is a 2-way loudspeaker featuring a 15-inch woofer and a 1.75-inch HF driver in a space saving coaxial configuration with a custom-designed constant directivity horn, perfect for use as a floor monitor. Combining carefully selected and customized transducers with the same plywood construction found on our high-end CZR Series, the CHR15M offers best-in-class sound quality and durability.
- Speaker type2-way Speaker, Bass-reflex
- Frequency range (-10dB) 58 Hz - 20 kHz
- Coverage areaH65° x V75°
- Crossover2.0 kHz
- Nominal impedance8Ω
- SPL
- Sensitivity (1W; 1m on axis): 95 dB SPL
- Peak (Calculated): 125 dB SPL
- Components
- LF: Diameter: 15" cone, Voice Coil: 3", Magnet: Ferrite
- HF: Diaphragm: 1.75", Type: 1" throat compression driver Coaxial, Magnet: Ferrite
- Power rating
- NOISE: 275W
- PGM: 550W
- PEAK: 1100W
- I/O connectorsSpeakON NL4MP x 3 (Parallel)
- Cabinet materialPlywood
- FinishDurable Polyurea Painting, Black

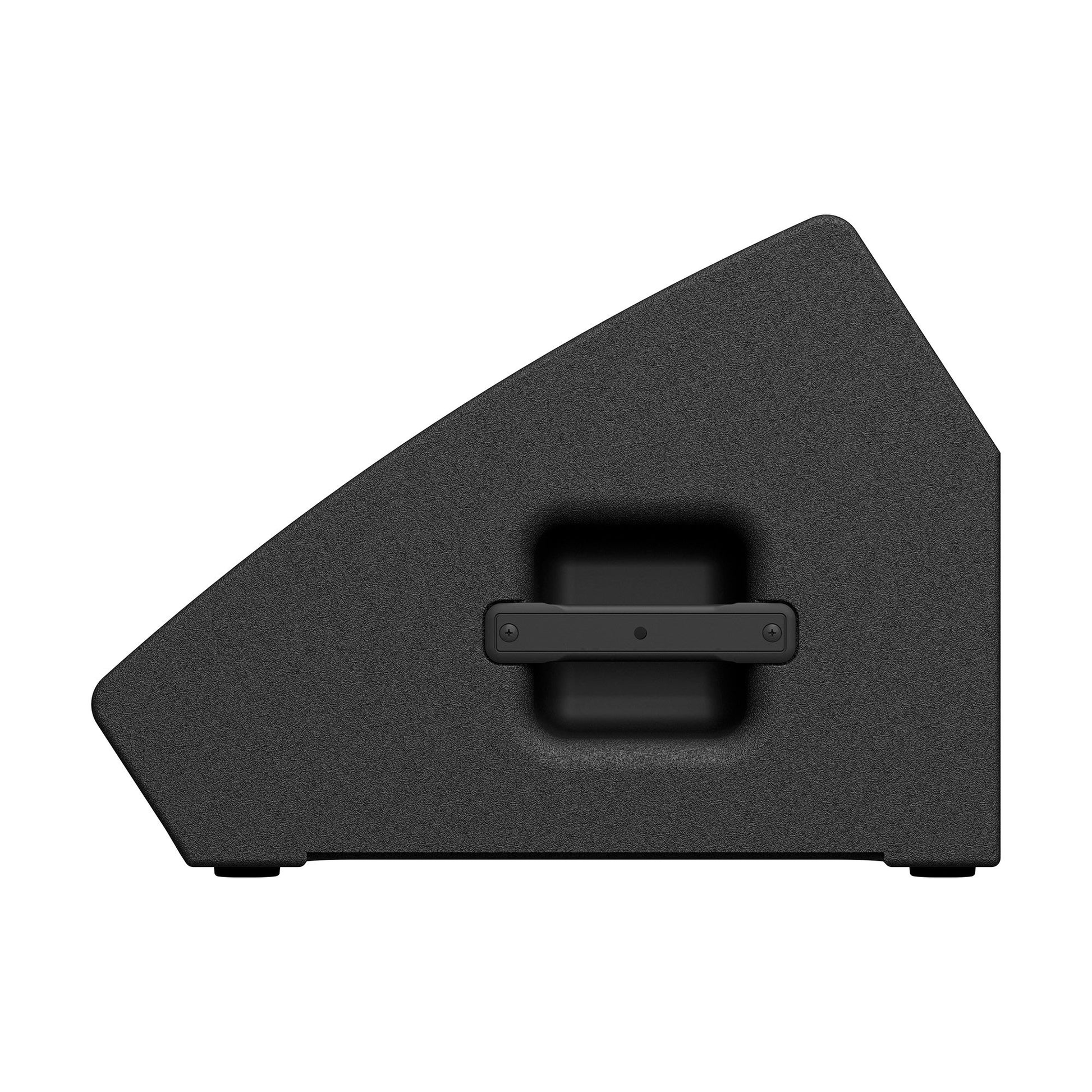

- HandleSide x1

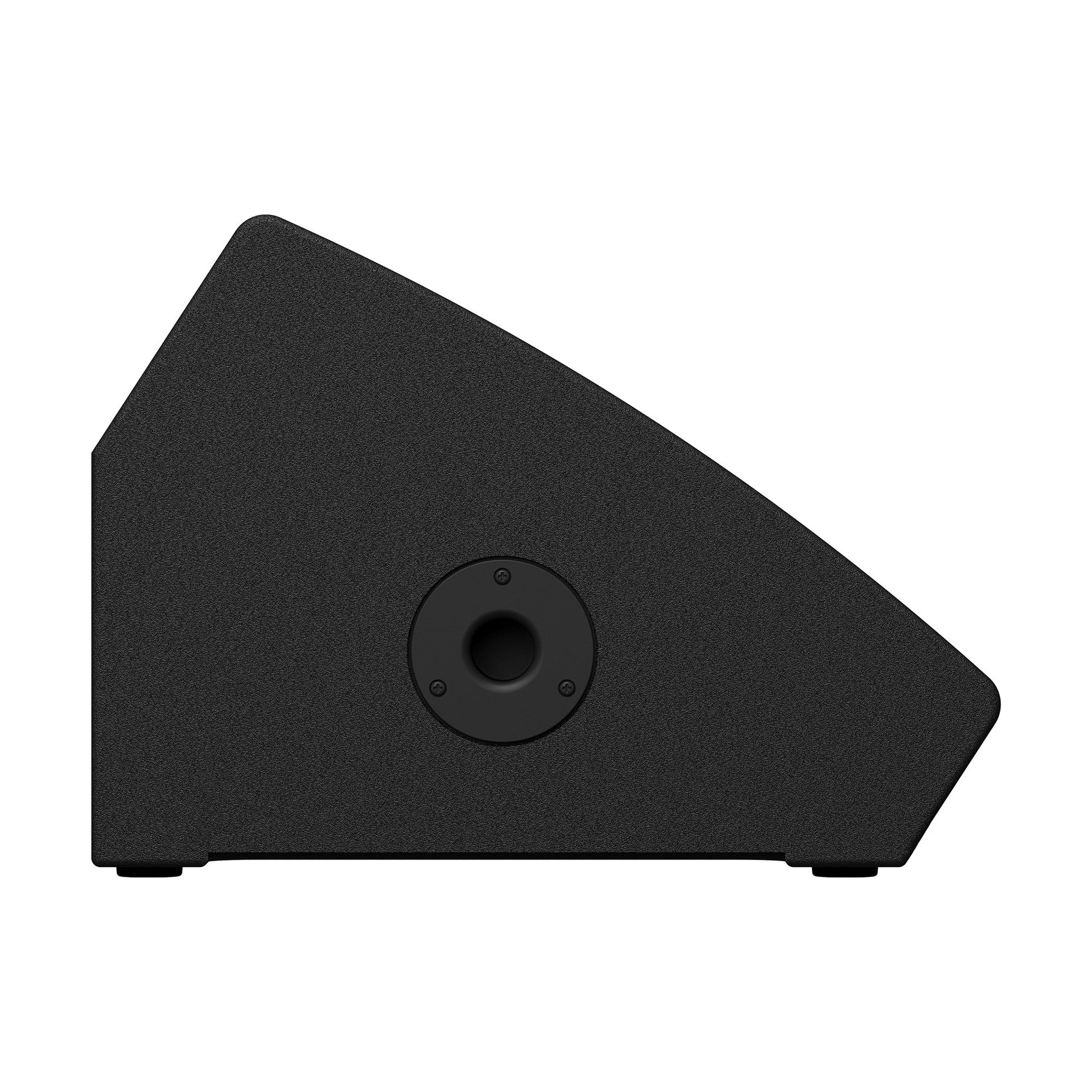

- Pole socketΦ35 mm x1 (Side)
- RiggingNA
- Floor Monitor Angle57°
- Dimensions (WxHxD) 25.3x14.5x19.9” (642x369x505mm) (with rubber feet)
- Net weight47 lbs (21.3kg)
