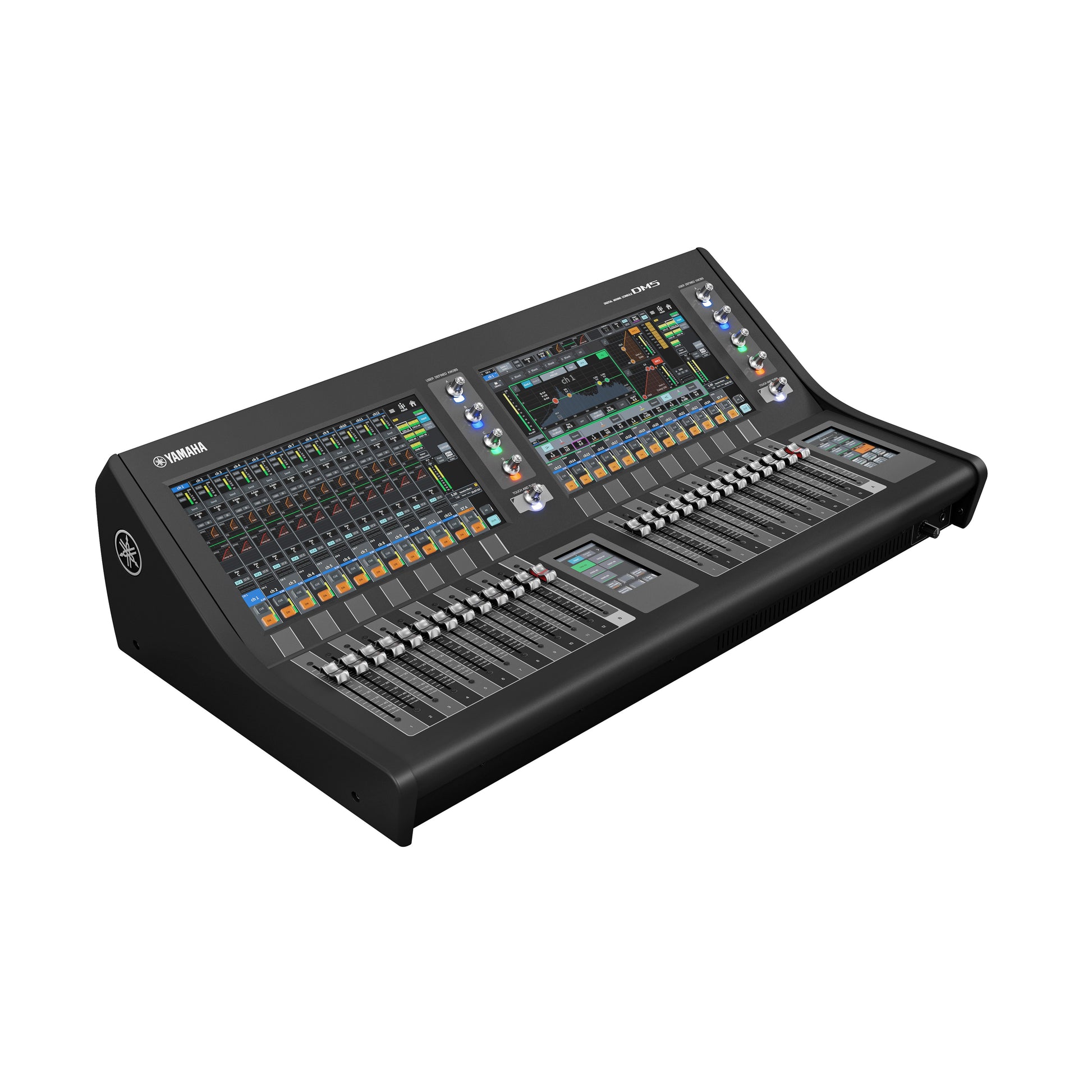

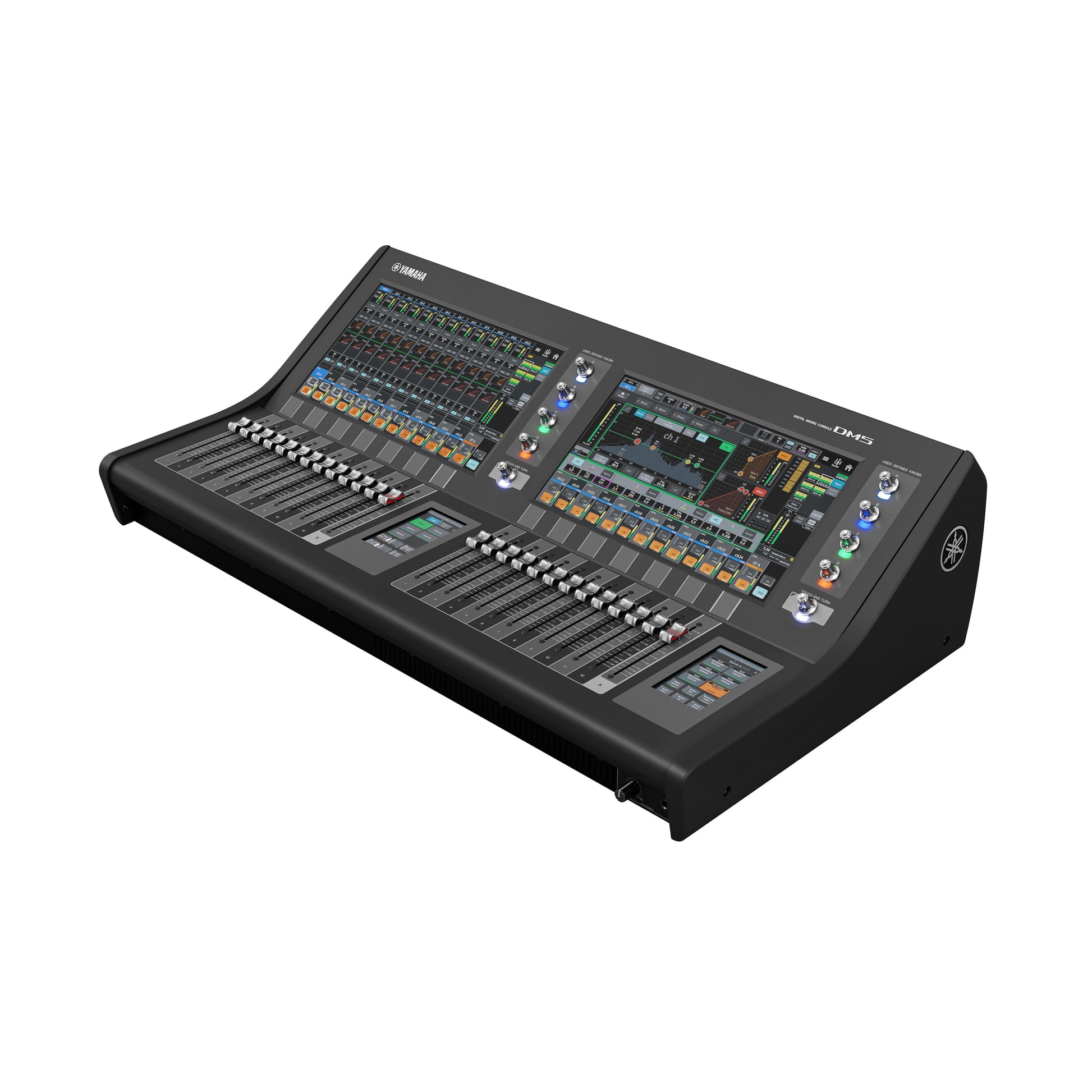

Yamaha DM5 Digital Mixing Console

Yamaha DM5 Digital Mixing Console

SoundPro Item: 207016 | Part Number: DM5

$9,999.99
$11,999.00 $9,999.99
Your Price Sold out
MSRP: $11,999.00 | MAP: $9,999.99

Usually ships in 5-7 business days

  • 96 KHz Operation Supports High-Resolution Mixing
  • Dual Touchscreens Speed Up Console Navigation
  • 26 Motorized Faders Improve Hands-On Control
  • Dante 64x64 Enables Network Audio Integration

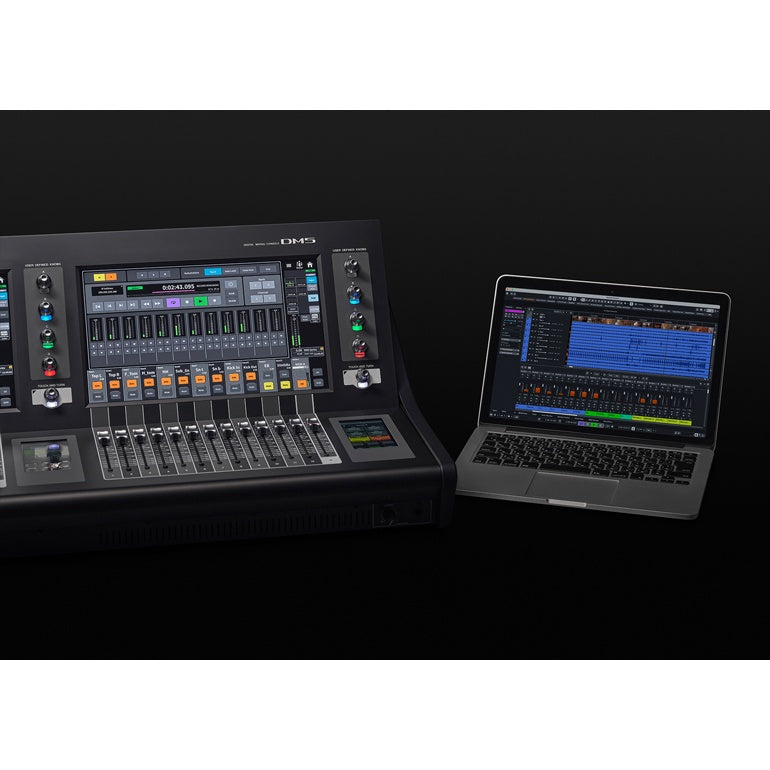

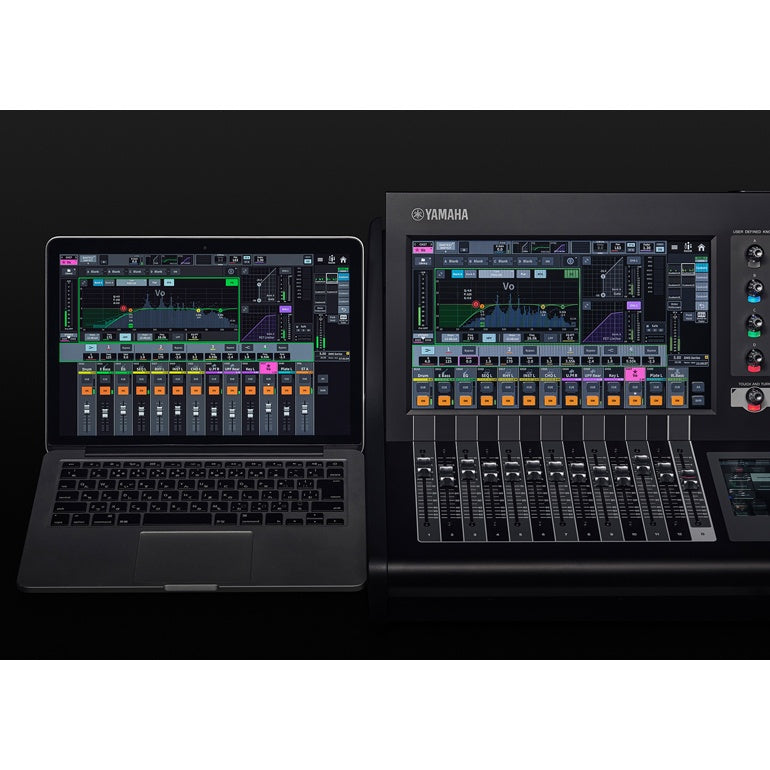

  • DM Series Editor Supports Shared Show Workflows

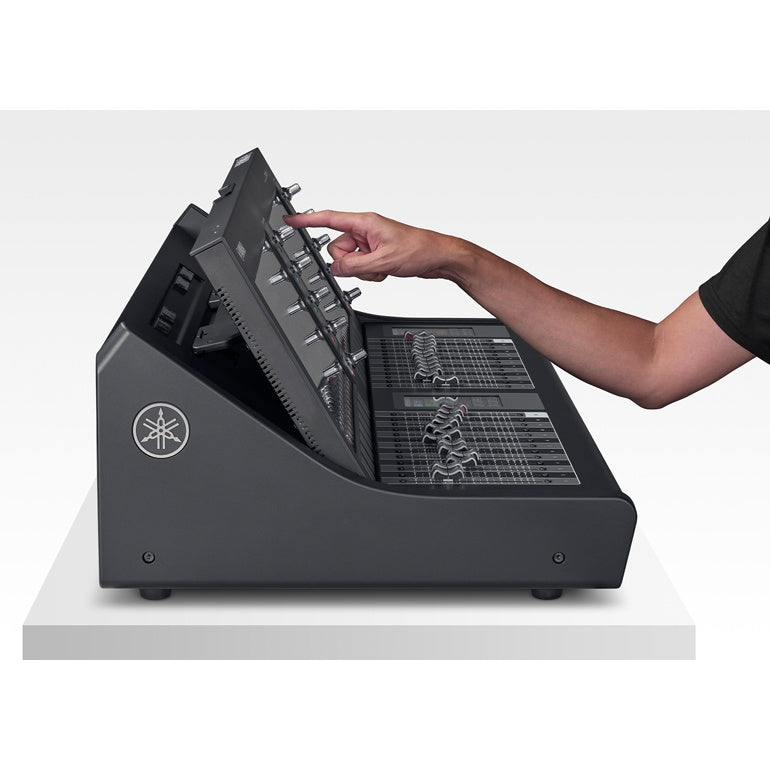

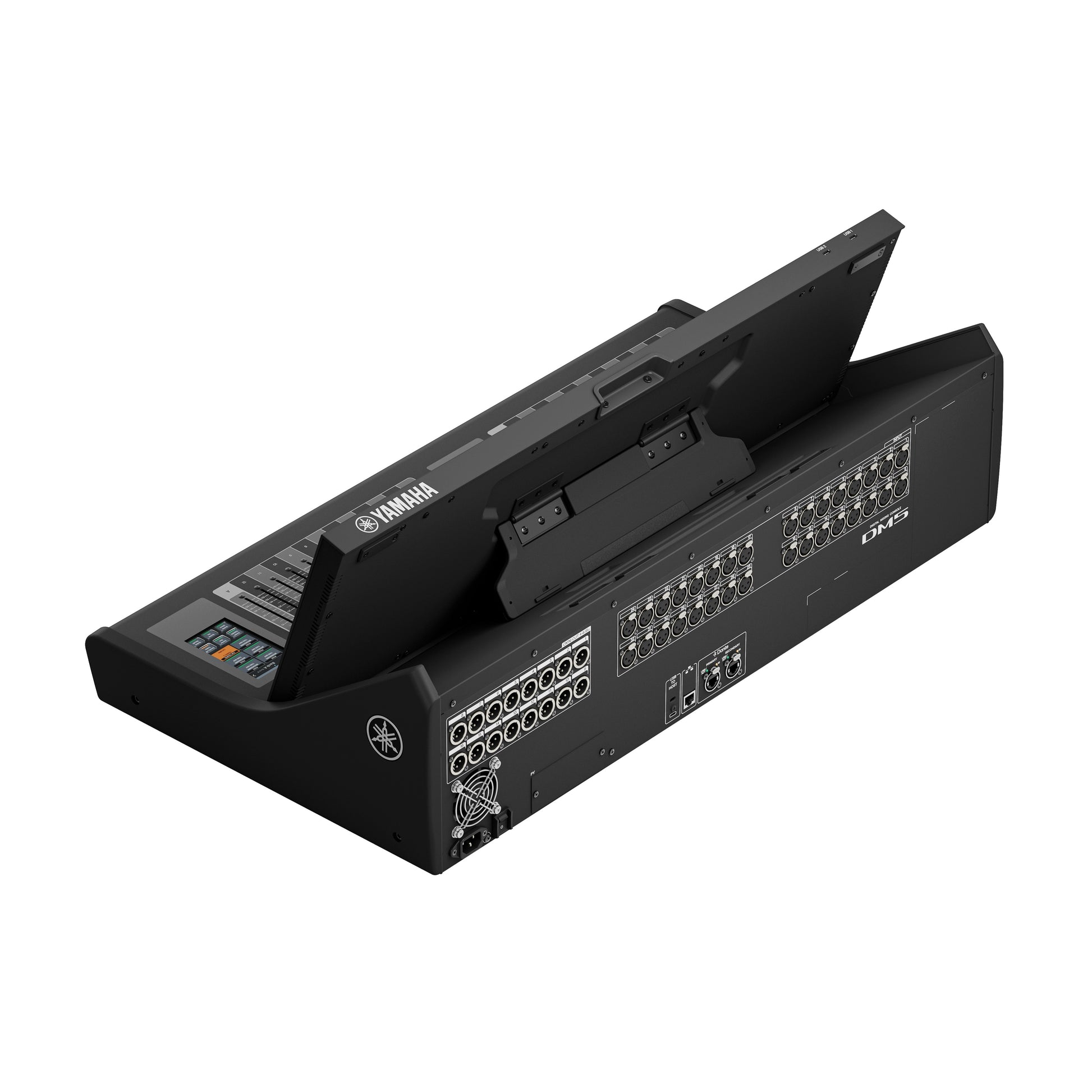

  • Adjustable Display Angle Helps Reduce Glare
Log in or register for YOUR best price

Estimated shipping October 2026 Limited Supply

**Priority Pre-Order Now**

The Yamaha DM5 is a professional digital mixing console built for engineers who need compact control without stepping down from serious production capability. Designed around the DM7 Series engine, it supports 60 inputs and 96 kHz operation for live sound, corporate events, broadcast, and theater applications. Its dual-bay layout combines fast hands-on access with a streamlined footprint for spaces where sightlines, transport, and operator comfort matter.

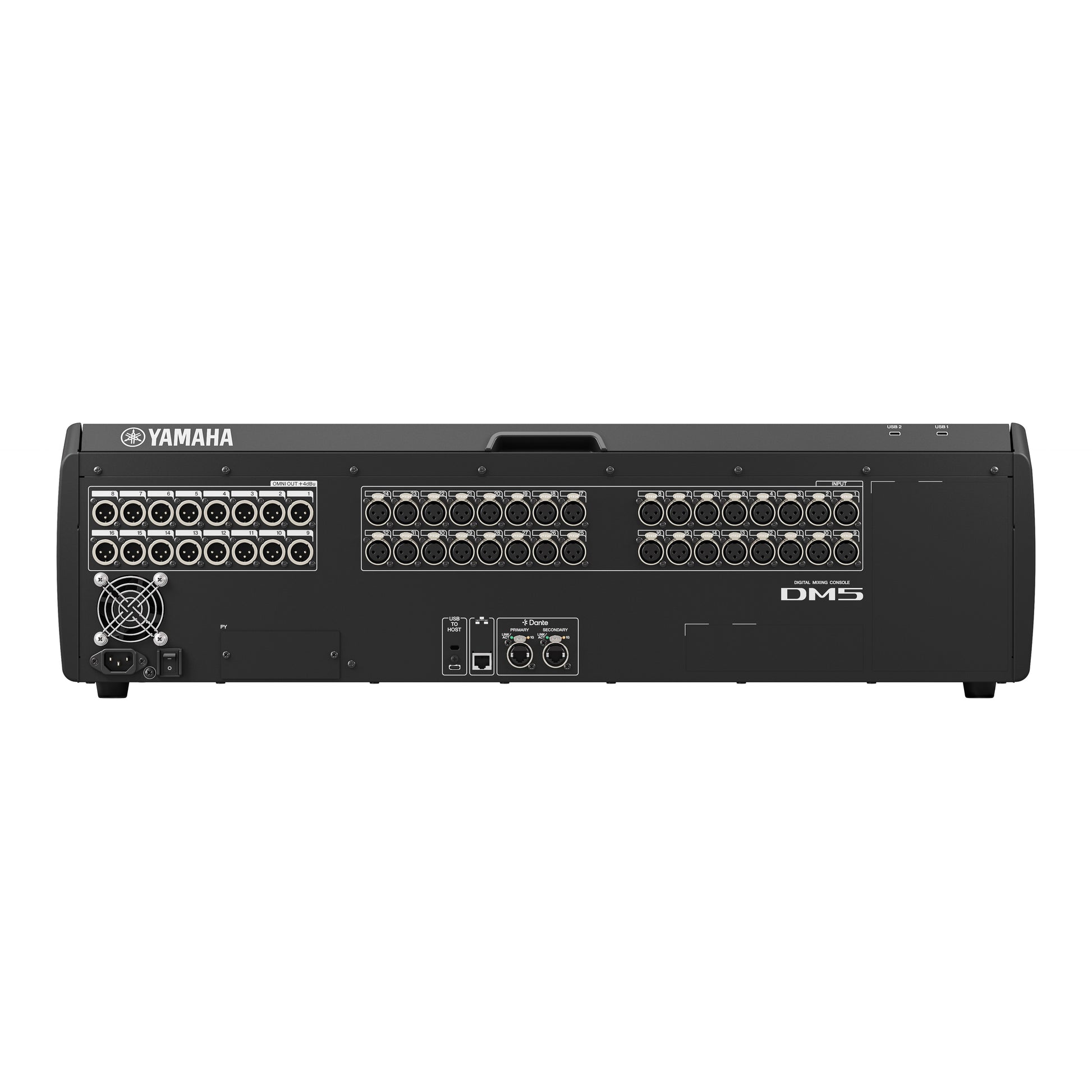

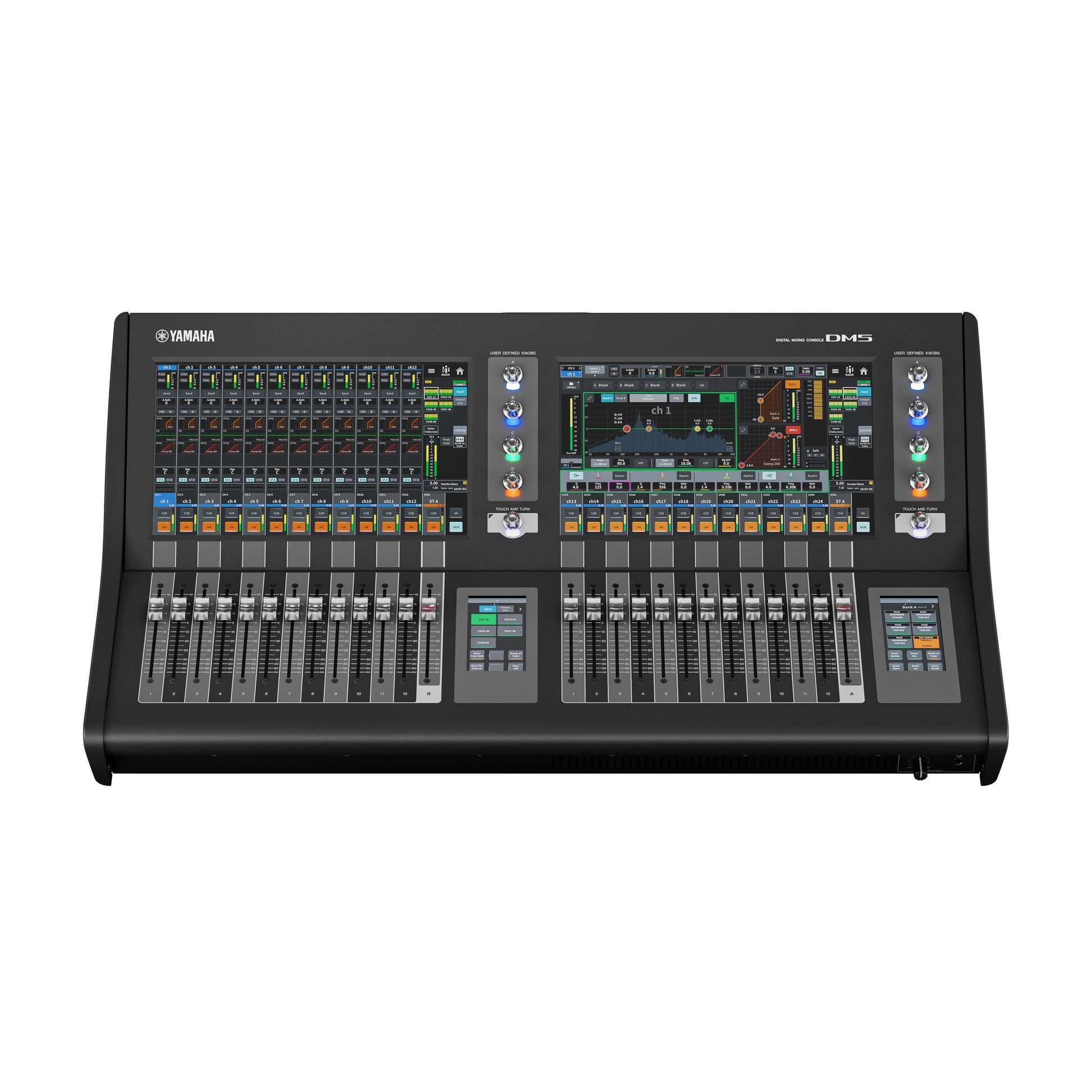

For practical day-to-day operation, the DM5 provides 26 touch-sensitive motorized faders, dual 13.3" multi-touch displays, and dual 4.3" utility touchscreens to keep critical functions close at hand. With 32 analog inputs, 16 analog outputs, Dante 64x64, and USB to Host 18x18, it fits modern networked audio systems while supporting flexible show workflows. The adjustable display angle helps reduce glare in changing environments, and compatibility with the DM Series editor supports efficient show file handling across productions.

Whether deployed at front of house, in a broadcast position, or for installed performance environments, the DM5 offers a strong balance of channel capacity, tactile control, and system integration. Included accessories such as a power cord, dust cover, cable hook, and software downloads add immediate operational value for professional users preparing for rehearsals, events, and touring schedules.

View full details

Specifications

Mixing Capacity
Mixing Capacity
60 inputs
Mix Buses
24
Matrices
12
Stereo Buses
2
Cue Buses
1
I/O
Analog Input
32
Analog Output
16
Sampling Frequency
External Clock — Frequency Range
48 kHz / 96 kHz ±200 ppm
Internal Clock — Frequency
48 kHz / 96 kHz
Signal Delay
Delay
Less than 1.5 ms, INPUT to OMNI OUT @Fs=96 kHz
Screens
Display 1
13.3"" multi-touch screen with Glass key x 2
Display 2
4.3"" multi-touch screen with Glass key x 2
Selected Channel
Touch-sensitive knobs in the Selected Channel section
Fader
Fader
100 mm touch-sensitive motorized fader (resolution = 1024 steps) x 26
Power
Power Requirements
100 to 240V, 50/60 Hz
Power Consumption
130 W
Physical
Dimensions (W x H x D)
32.5 x 9.3 x 17.3 in (including rubber feet)
Weight
47.5 lbs.
NC Value
Fan Speed LOW
NC=20
Fan Speed HIGH
NC=25
Environmental
Operating Temperature Range
32°F – 104°F
Storage Temperature Range
-4°F – 140°F
Included Accessories
Accessory 1
Read This First x 1
Accessory 2
Power cord x 1
Accessory 3
Dust cover x 1
Accessory 4
Cable hook x 1
Accessory 5
Nuendo Live and VST Rack Elements
