• Yamaha DZR10 10" 2-Way Powered Speaker
1 1

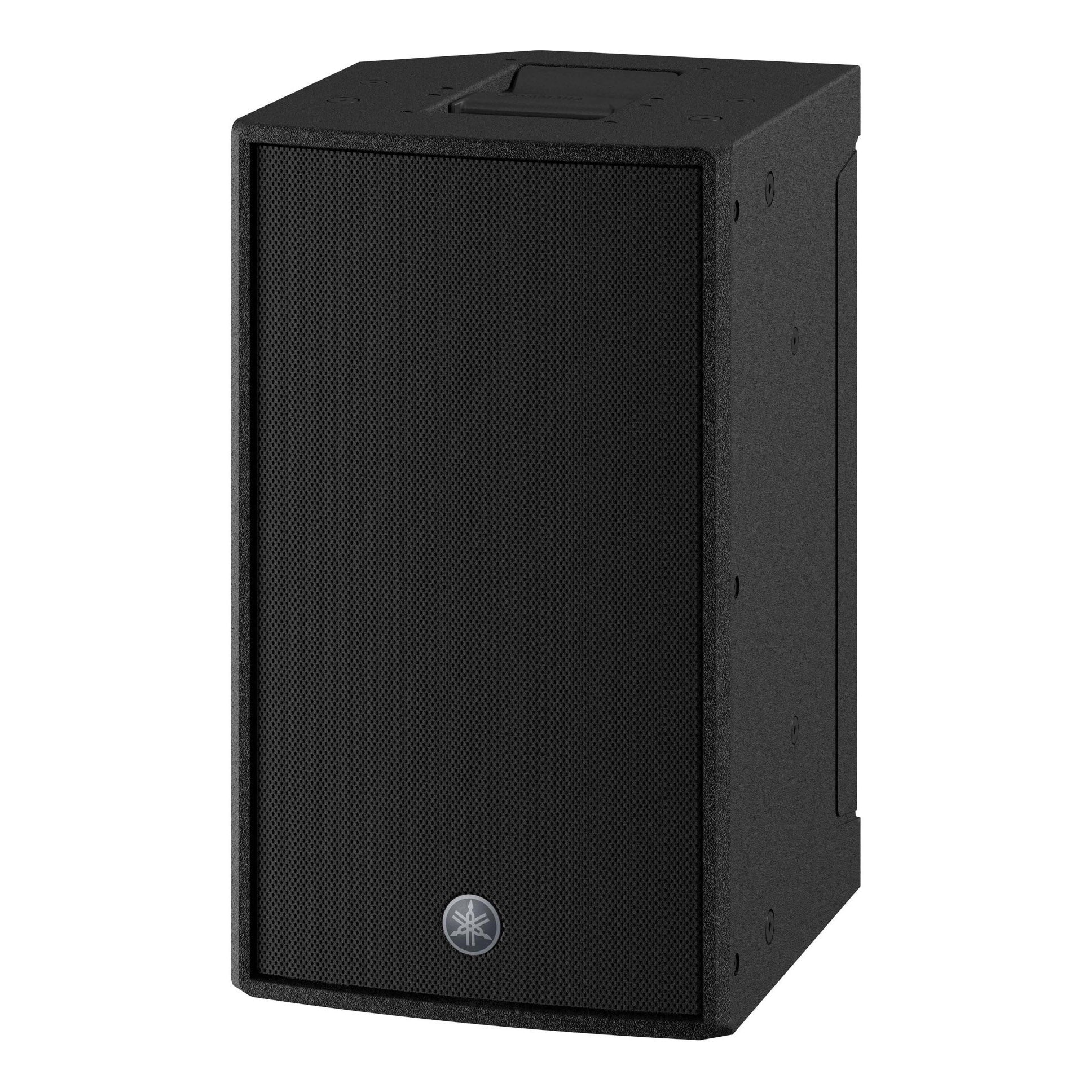

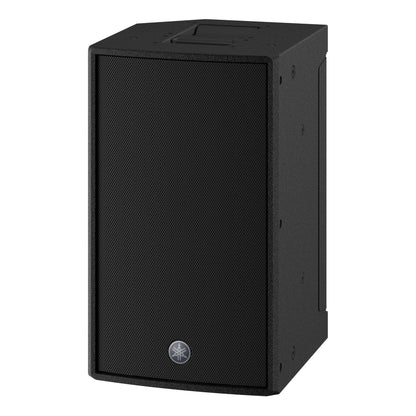

Yamaha DZR10 10-Inch Powered Speaker

Yamaha DZR10 10-Inch Powered Speaker

SoundPro Item: 34547 | Part Number: DZR10

$1,113.49
$1,964.00 $1,113.49
Your Price Sold out
MSRP: $1,964.00 | MAP: $1,113.49

Usually ships in 5-7 business days

  • 10-inch, 2-way bi-amped loudspeaker
  • Delivers exceptional clarity with an impressive sound pressure level of 137dB SPL
  • Compact enough to be ideal for portable performances
  • Choose from black or white finish to blend into permanent installation environments
  • Advanced FIR-X Tuning
  • D-Contour
  • DSP protection functions for maximum output and component longevity
  • Dante-equipped professional SR loudspeakers
  • Power in flexibility with rotatable coverage angle
  • Variety of rigging points for vertical or horizontal mounting
Log in or register for YOUR best price

Yamaha's DZR10 is a powerful 10-inch, 2-way bi-amped loudspeaker that delivers exceptional clarity with an impressive sound pressure level of 137dB SPL.

View full details
  • Speaker Type2-way, bi-amped powered speaker, bass reflex
  • Frequency Range (-10 dB)44Hz - 20,000Hz
  • Coverage Angle (HxV)90° x 60° (rotatable)

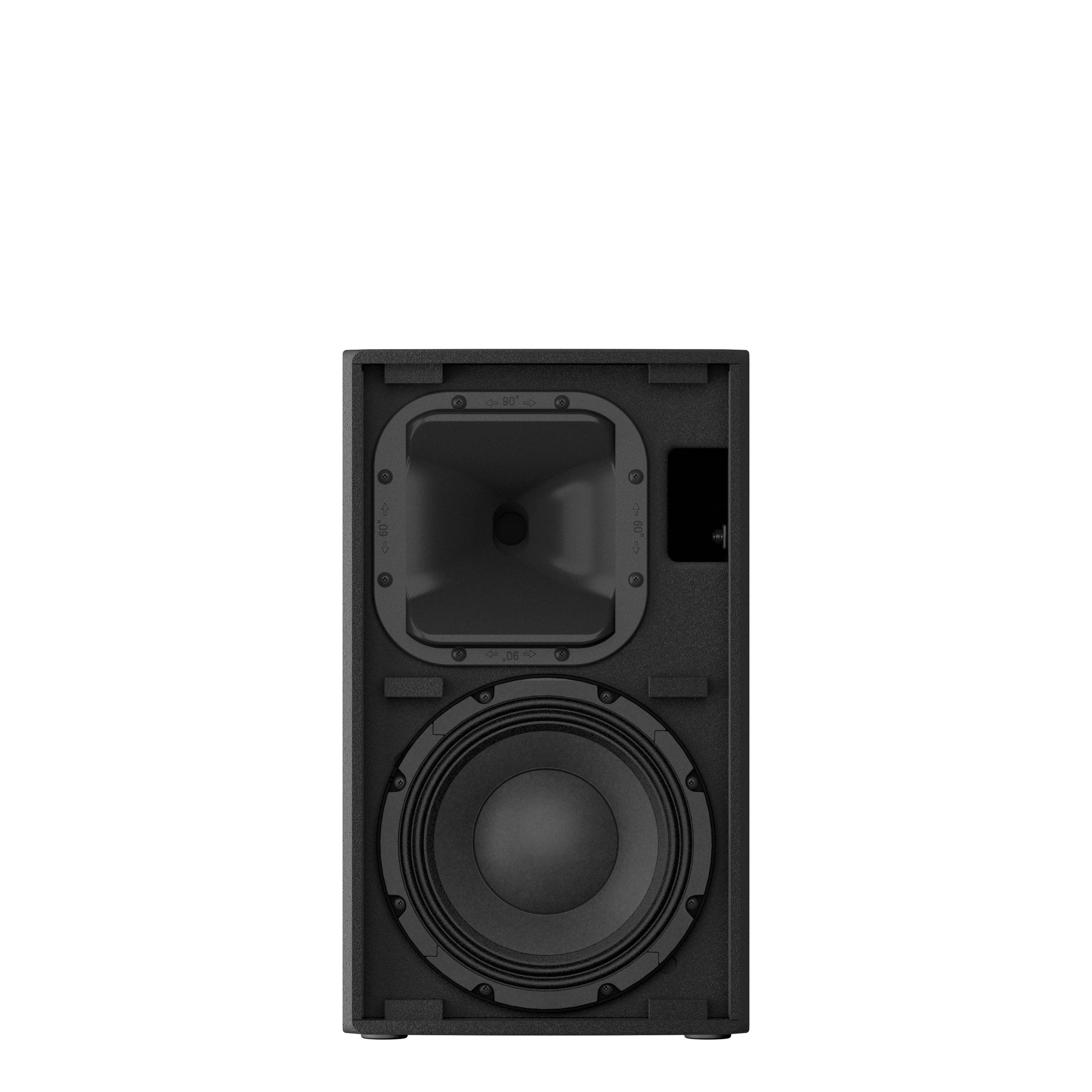

  • Components
    • LF: 10" cone, 3" voice coil, neodymium magnet
    • HF: 2" voice coil, 1" throat compression driver, titanium diaphragm, neodymium magnet
  • Crossover1.8 kHz (FIR-X)
  • Sampling Frequency Rate (internal)96kHz AD/DA
  • Max. Output Level (1m; on axis)137 dB SPL
  • Power Rating
    • Dynamic: 2000W (LF: 1000W, MF/HF: 1000W)
    • Burst (20ms): 1100W (LF: 1000W, MF/HF: 100W)
    • Continuous: 950W (LF: 850W, MF/HF: 100W)

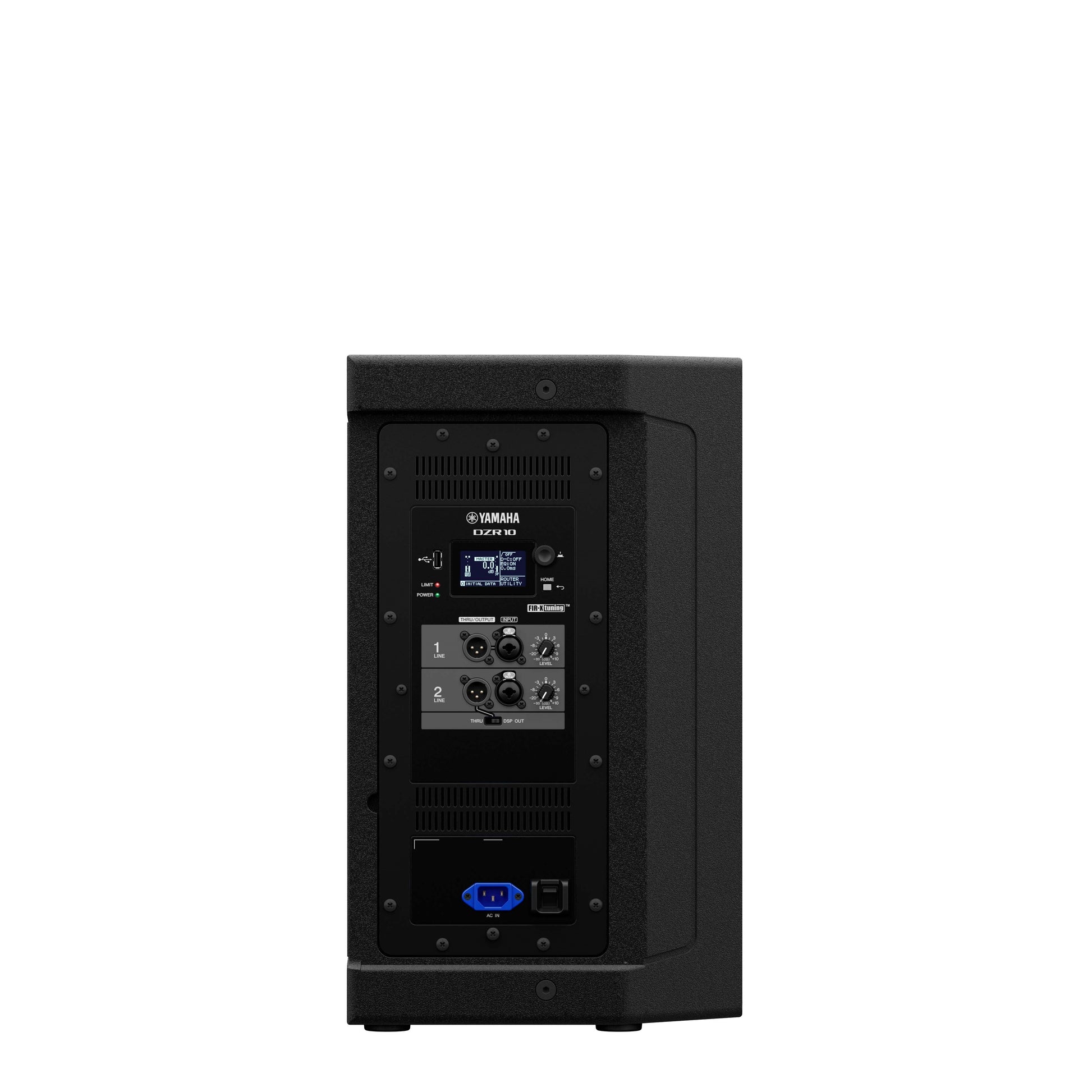

  • I/O Connectors
    • Analog I/O
      • Analog IN: Combo x2, Line level (Maximum +24dBu), Input impedance 20kΩ
      • Analog OUT: XLR3-32 x2, CH1: THRU (fix), CH2: THRU or DSP OUT
    • Others: USB2.0 Host 5V 500mA for USB memory DATA storage/load
    • AC: IEC AC inlet x1 (V-Lock)
  • Amplifier ClassClass D
  • Coolingfan cooling, variable speeds
  • Power Consumption45W (idle), 150W (1/8)
  • Handlealuminum die-cast, top x 1, side x 1
  • RiggingM10 x8, M8 x2
  • Dimensions (WxHxD)12.4x21.1x13.6"
  • Pole SocketΦ35 mm x2 (0° or -7°)
