Yamaha EXi8 Audio Input Expander

Yamaha EXi8 Audio Input Expander

SoundPro Item: 53817 | Part Number: EXI8

$1,419.99
$1,576.00 $1,419.99
Your Price Sold out
MSRP: $1,576.00 | MAP: $1,419.99

Usually ships in 5-7 business days

  • Support for the newly-developed "YDIF" digital audio transmission format
  • Enormous installation flexibility with compact 1U chassis
Log in or register for YOUR best price

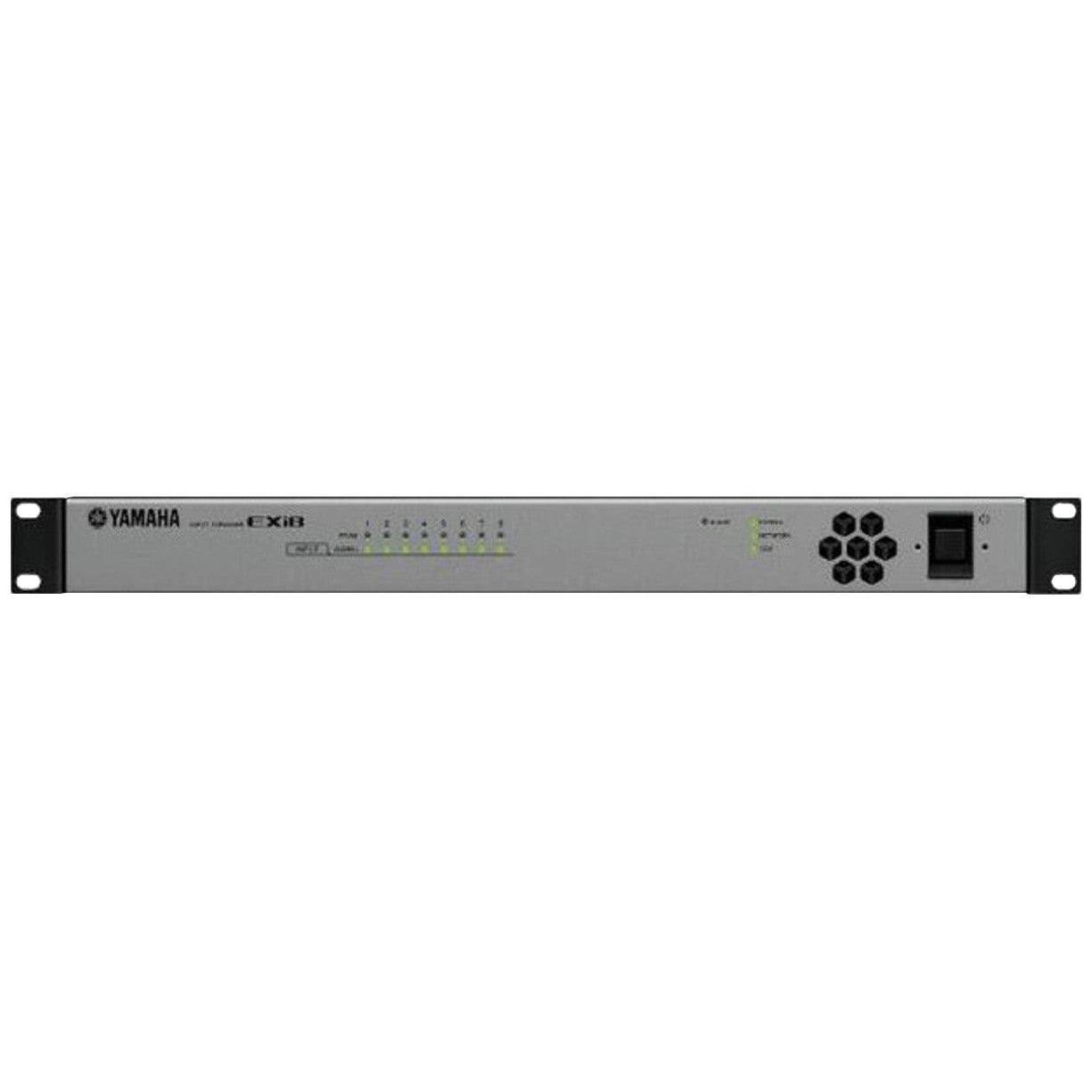

The EXi8 Analog Input Expansion Unit from Yamaha converts analog microphone/line audio into a digital signal and transmits that signal using Yamaha's YDIF format. The EXi8's preamps can be controlled remotely from an MTX processor via Ethernet cable. Boasting enormous installation flexibility--all packed into a low-profile chassis that takes up 1U of space--the EXi8 Expansion Unit supports the innovative "YDIF" digital audio transmission format.

Included with the EXi8 Analog Input Expansion Unit are a power cord and eight Euroblock plugs (3-pin, tabbed).

View full details
  • Sampling frequency48kHz/44.1kH
  • Signal delayLess than 2.5ms
  • Total harmonic distortionLess than 0.05% (+4dBu , Gain:-6dB); less than 0.1% (+4dBu , Gain:+66dB)
  • Frequency response20Hz to 20kHz, -1.5dB min, 0dB typ., +0.5dB max
  • Dynamic range107dB (Gain:-6dB)
  • Equivalent input noise (EIN)-126dBu (Gain: +66dB)
  • Phantom power+48V (per channel; individually settable)
  • Crosstalk-100dB (@1kHz)
  • Heat dissipation (per hour)21.5 kcal max.
  • Power supply voltage100V 50/60Hz
  • Power consumption25 W max.
  • Dimensions (WxHxD)480x44x351mm, 1U
