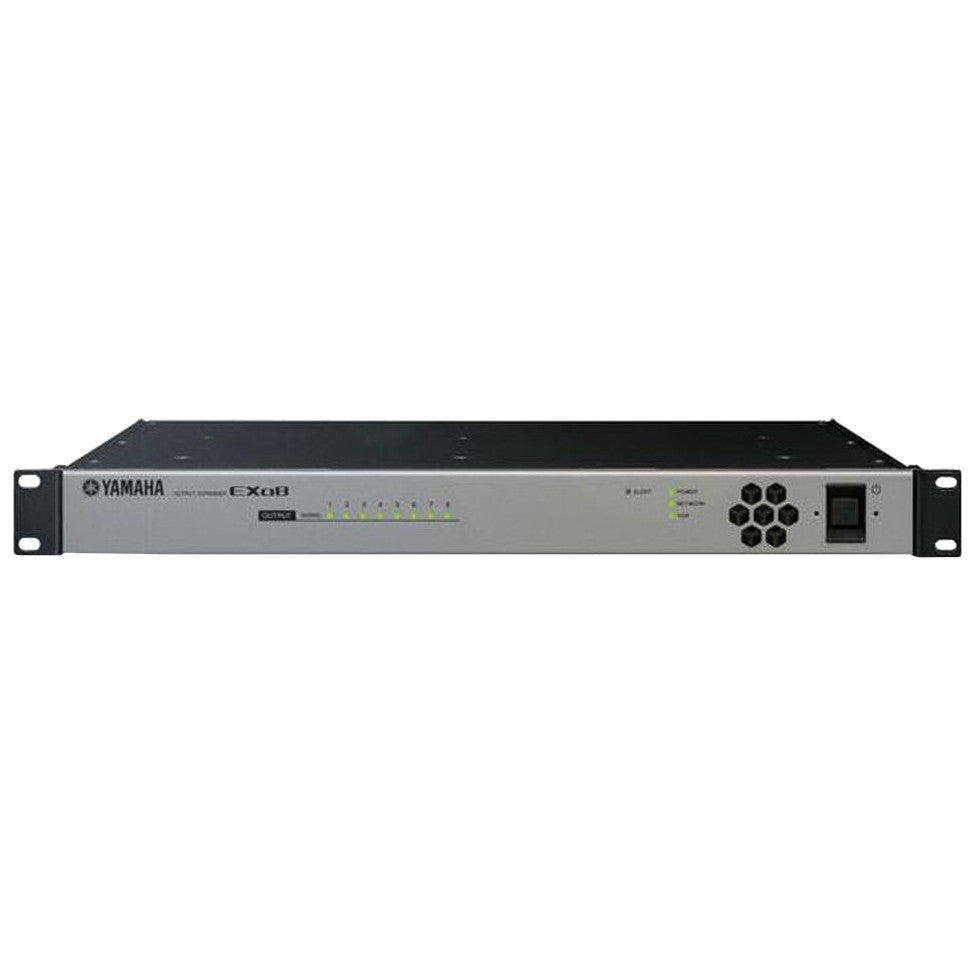

Yamaha EXo8 Audio Output Expander
Yamaha EXo8 Audio Output Expander
SoundPro Item: 53818 | Part Number: EXO8
Usually ships in 5-7 business days
- Sampling frequency: 48kHz/44.1kHz
- Signal delay: Less than 2.5ms
- Frequency response: 20Hz-20kHz, -1.5dB min, 0dBtyp., +0.5dB max
The Yamaha EXo8 output expander features 8 channels of DA converters that produce high-quality analog audio by converting digital output from MTX Series processors via YDIF. The EXo8 boasts a sampling frequency of 48kHz/44.1kHz, a signal delay of less than 2.5 milliseconds, and a frequency response of 20Hz-20kHz, -1.5dB min, 0dBtyp., +0.5dB max.
- Sampling frequency48kHz/44.1kH
- Signal delayLess than 2.5ms
- Total harmonic distortionLess than 0.05% (+4dBu , Gain:-6dB); less than 0.1% (+4dBu , Gain:+66dB)
- Frequency response20Hz to 20kHz, -1.5dB min, 0dB typ., +0.5dB max
- Dynamic range107dB (Gain:-6dB)
- Equivalent input noise (EIN)-126dBu (Gain: +66dB)
- Phantom power+48V (per channel; individually settable)
- Crosstalk-100dB (@1kHz)
- Heat dissipation (per hour)21.5 kcal max.
- Power supply voltage100V 50/60Hz
- Power consumption25 W max.
- Dimensions (WxHxD)480x44x351mm, 1U
