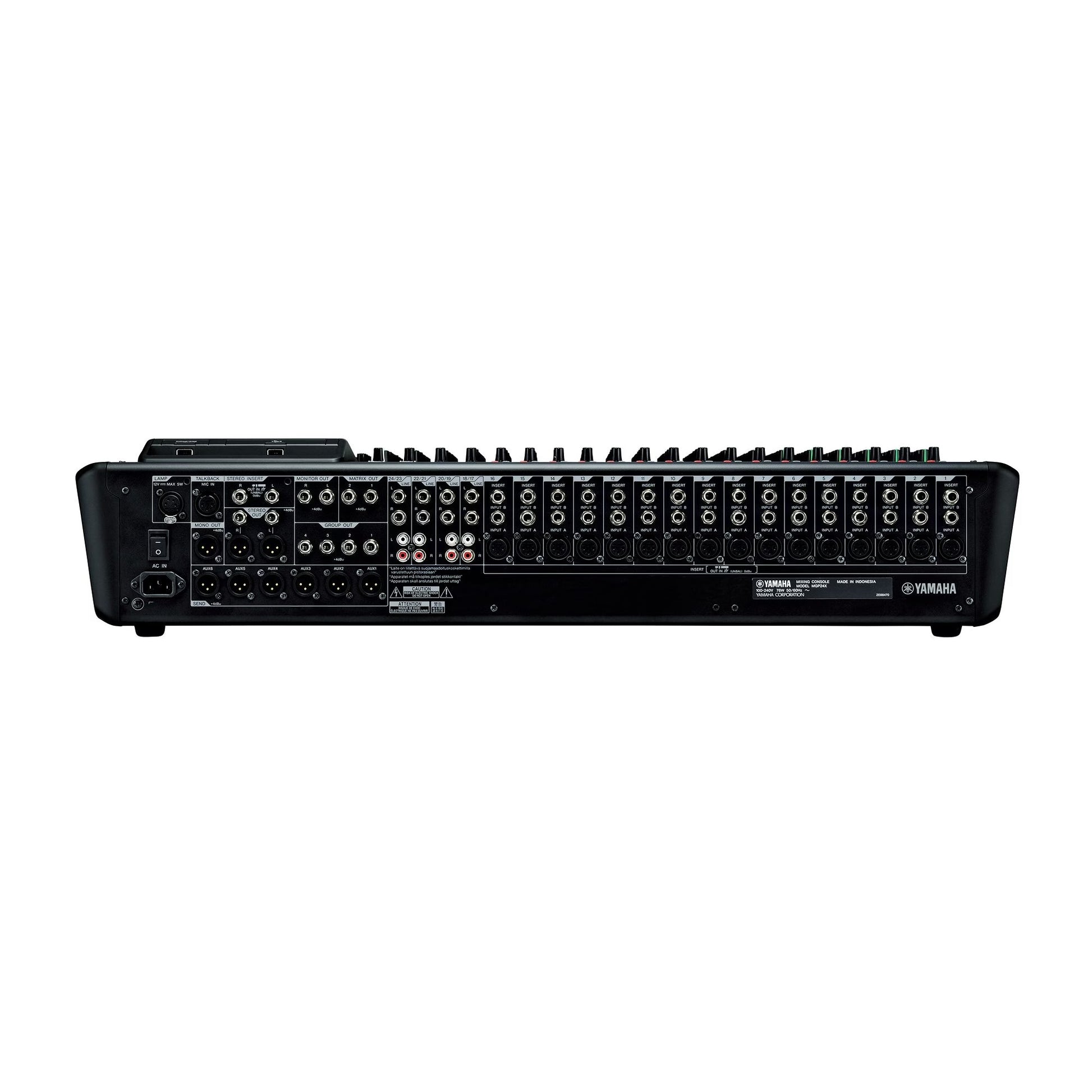

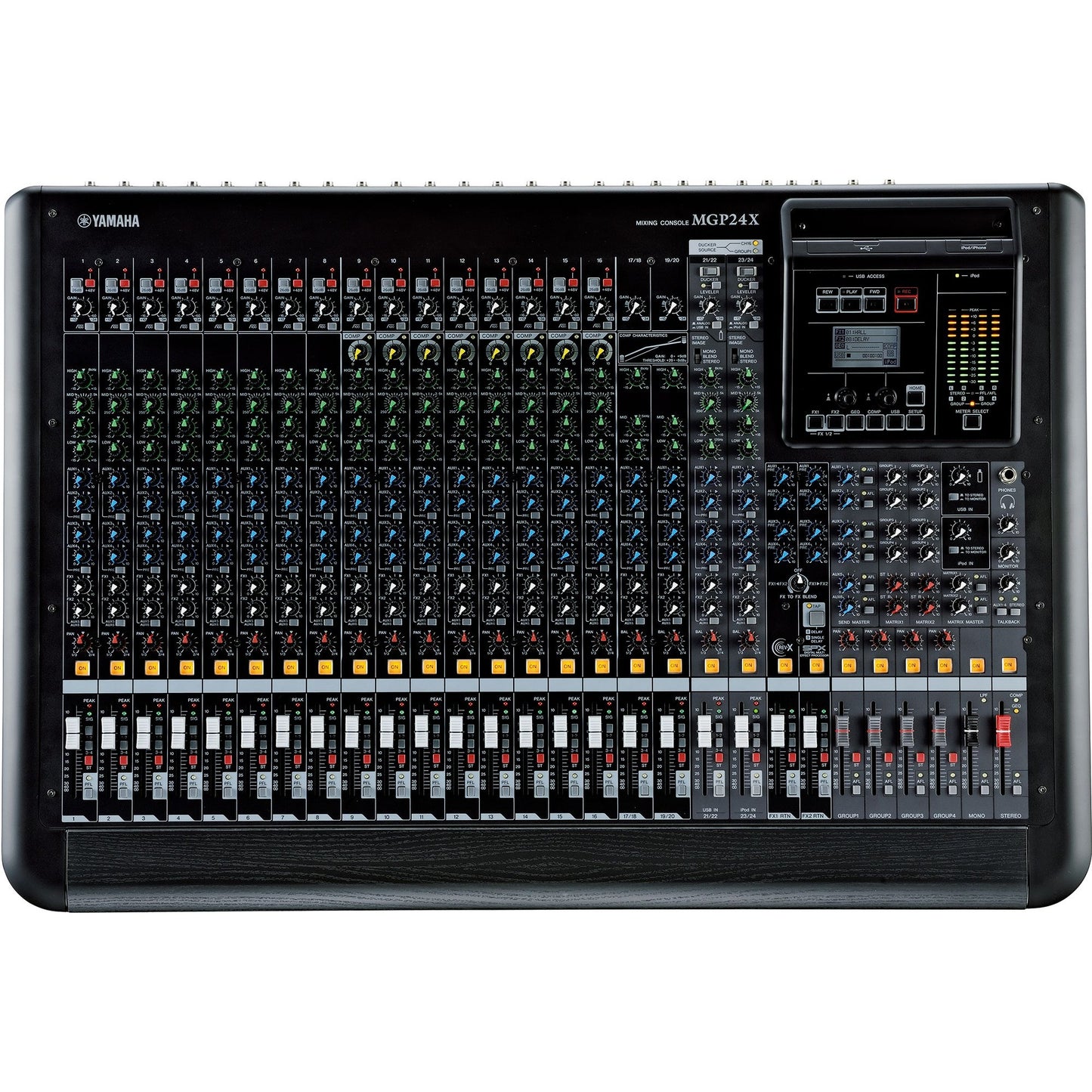

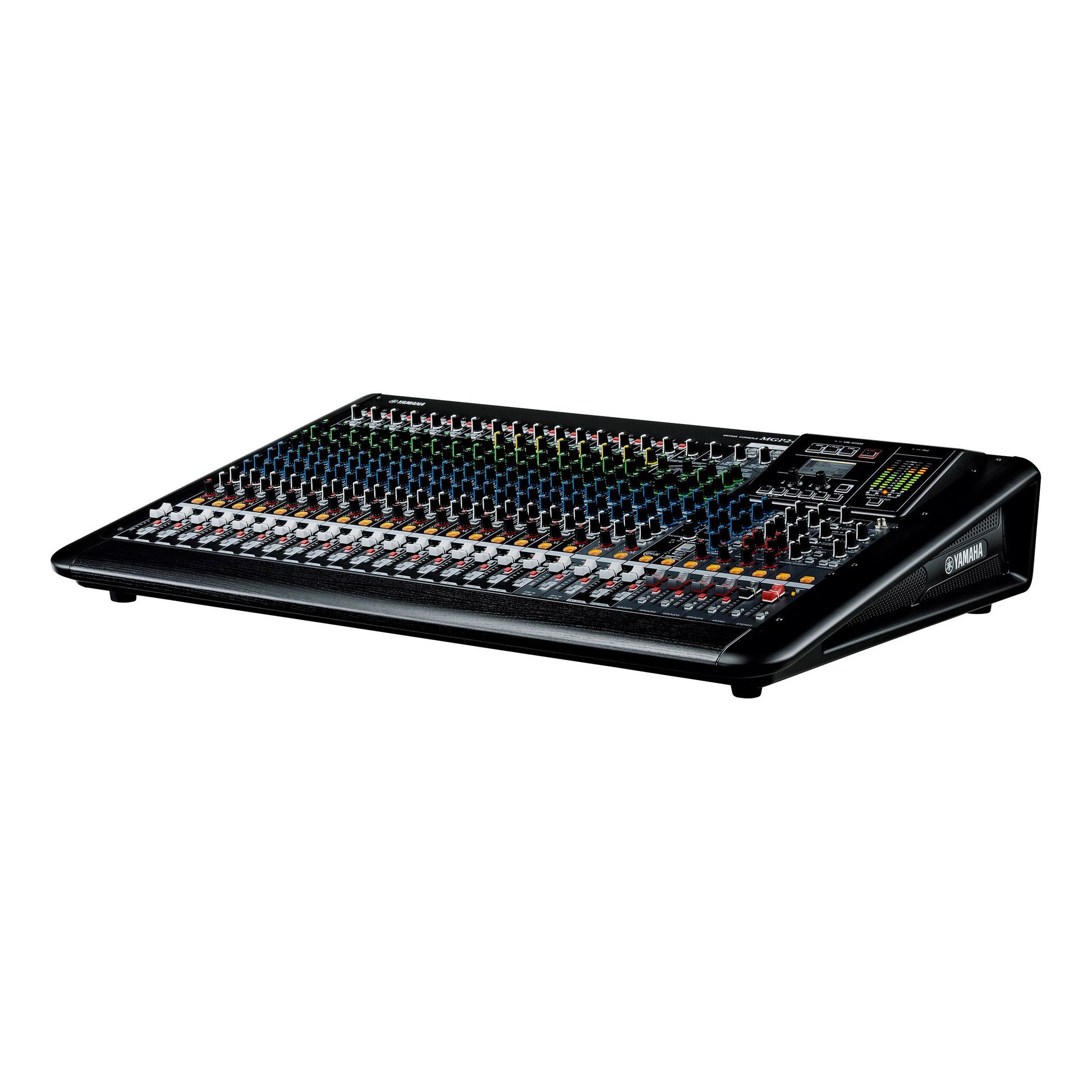

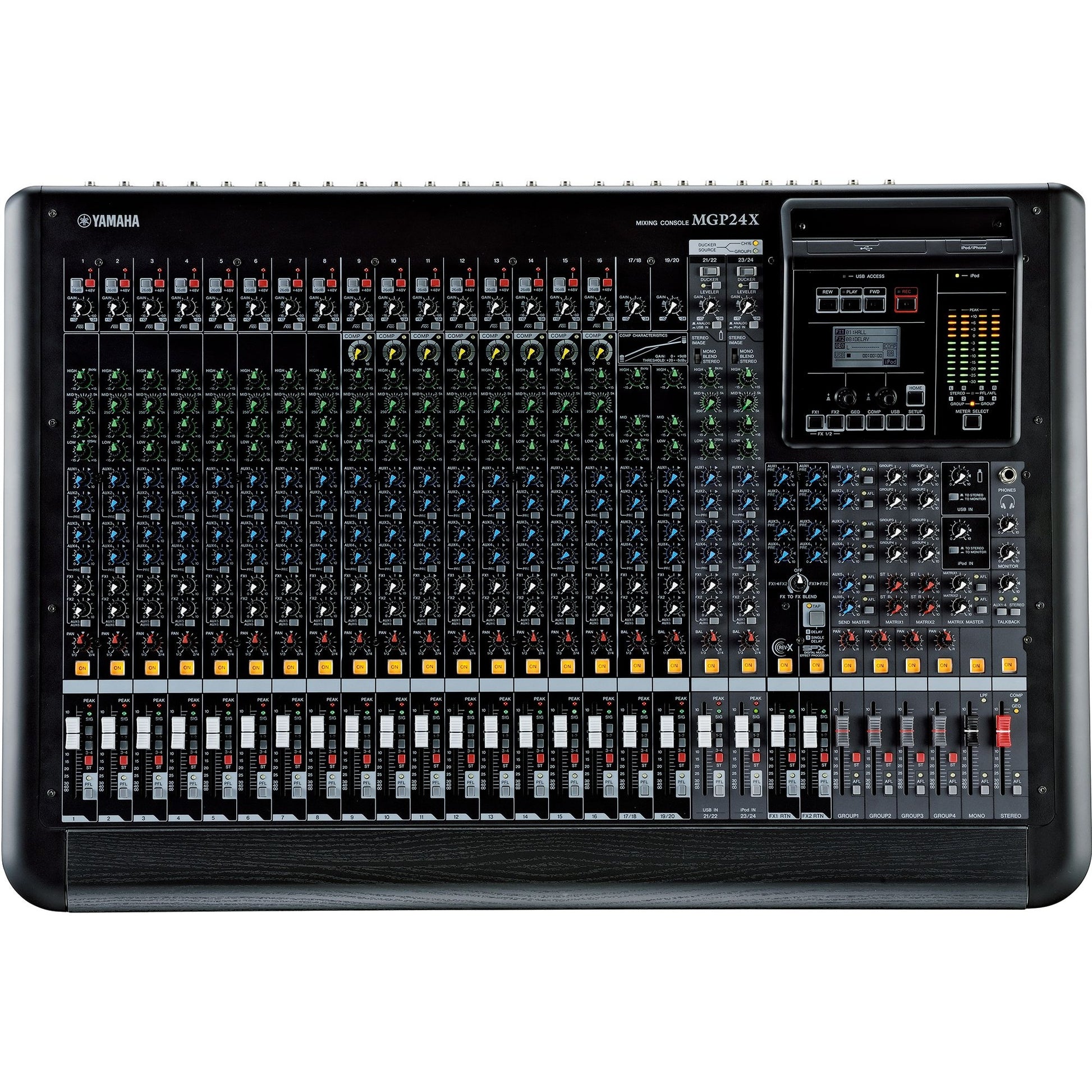

Yamaha MGP24X 24-Channel Premium Analog Mixer
Yamaha MGP24X 24-Channel Premium Analog Mixer
SoundPro Item: 58850 | Part Number: MGP24X
Usually ships in 5-7 business days
- 24-Channel Premium Analog Mixer
- 16 Mic Inputs with 48V Phantom Power and HPF per Channel
- 24 Line Inputs (16 mono and 4 stereo)
- 6 AUX Sends + 2 FX Sends
- 4 GROUP Buses + ST Bus
- 2 Matrix out
- 1 Mono out
Part of the compact and innovative MGP Series, the MGP24X from Yamaha is a premium 24-channel analog mixing console.
- Mixing Capability
- Mixing Channels: 24 line inputs (16 mono and 4 stereo)
- Group: 4 Group Buses + ST Bus
- Aux: 6 Aux Sends + 2 FX sends
- Matrix: 1 Matrix out
- On-Board Processors: FX1:REV-X(8 PROGRAM, PARAMETER control)/ FX2:SPX(16 PROGRAM, PARAMETER control)
- I/O
- Mic Inputs: MIC: 16 (INPUTS HPF: 100Hz 12dB/oct)
- Phantom Power: 48V phantom power per channel
- Line Inputs: LINE: 16 mono + 4 stereo, CH INSERT: 16 RETURN: 1 stereo
- Digital I/O: USB device, iPod/iPhone
- THD0.02% (20Hz-20kHz@ +14dBu)
- Frequency+0.5/-1.0dB 20Hz - 20kHz, refer to the nominal output level @1kHz
- Hum & Noise Level
- EIN: -128dBu equivalent input noise
- Residual Output Noise: -92dBu residual output noise
- Crosstalk-74dB @ 1kHz
- Power Requirements100-240V 50Hz/60Hz
- Power Consumption86w max.
- Dimensions (WxHxD)32.2x6.7x22.2"
- Weight34.2 lbs
