• Yamaha MTX3 Matrix Processor
1 1

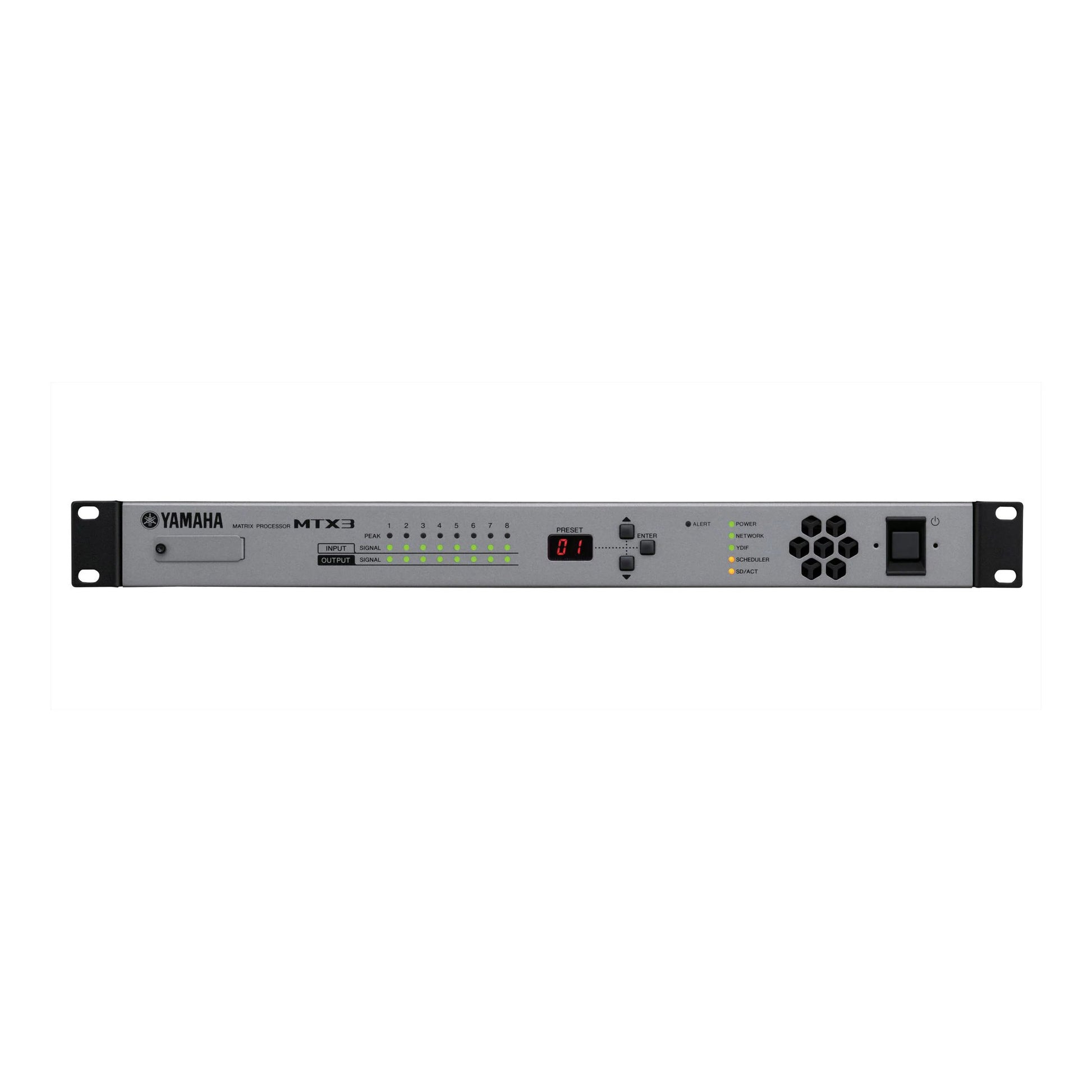

Yamaha MTX3 Matrix Processor

Yamaha MTX3 Matrix Processor

SoundPro Item: 59643 | Part Number: MTX3

$1,729.99
$1,919.00 $1,729.99
Your Price Sold out
MSRP: $1,919.00 | MAP: $1,729.99

Usually ships in 5-7 business days

  • Matrix Processor with versatile features
  • Suitable for small or mid-sized installed systems
  • Essential tools for applications ranging from retail stores to restaurants, banquet rooms, and more
  • 26 x 8 Matrix Mixer / Signal Processor
  • 8ch mic/line input and 8ch analog output
  • 16ch YDIF digital I/O
  • SD Card Slot for playback
  • Newly-developed "YDIF" digital audio transmission format
  • Versatile input/output and SD memory card slot
  • Support for external controls
  • Two built-in effect processors
  • Dedicated "MTX-MRX Editor" application software for designing the entire system
  • iPhone app support
Log in or register for YOUR best price

The MTX3 from Yamaha is a matrix processor that boasts versatile features that are essential tools for applications ranging from retail stores to restaurants, banquet rooms, and more.

Central to your system’s processing functions, the MTX3 lets you configure, program, and manage your sound using its intuitive interface to control Yamaha’s MTX Editor software application.

View full details
  • Mixing channelsMixing Channel : 8 Mono + 3 Stereo + 2 Effect Return + 8 Direct-in to Matrix/ Output Busses : 8 Mono
  • Input channel functions Mono CH : 3-band PEQ, Comp, Gate, Auto Gain Control, Feedback suppressor (only available in ch 1-4)/ Stereo CH: 3-band PEQ, Comp, Auto Gain Control
  • Output channel functions Room Delay, Room EQ, Speaker Processor, X-Over (1way,2way), Delay, 6-band PEQ, Limiter
  • IO Phantom Power+48V
  • Internal processing Priority Ducking, Ambient Noise Compensator
  • Internal Sampling Frequency Rate 48kHz/44.1kHz
  • Signal Delay Less than 2.5ms (AD-DA @48kHz)
  • THD Less than 0.05% (+4dBu, Gain:-6dB), Less than 0.1% (+4dBu, Gain:+66dB)
  • Frequency Response 20Hz to 20kHz, +0.5dB, -1.5dB
  • Dynamic Range 107dB (Gain:-6dB)
  • Hum & Noise LevelEquivalent input noise -60dBu (Gain:+66dB), -83dBu (Gain:-6dB)
  • Crosstalk-100dB
  • Heat dissipation 43kcal/h max
  • Power requirements AC100V-240V 50Hz/60Hz
  • Power consumption 50W
  • Dimensions (WxHxD) 18.9x1.7x14.3 inches (480x44x362mm)
  • Net weight 10.6 lbs (4.8 kg)
  • Memory bank PRESET 50
  • Notes
    • * Total harmonic distortion is measured with a 18dB/Oct fi lter @80kHz.
    • * Hum & noise level is measured with a 6dB/oct fi lter @12.7kHz; equivalent to 20kHz fi lter with infi nite dB/Oct attenuation.
