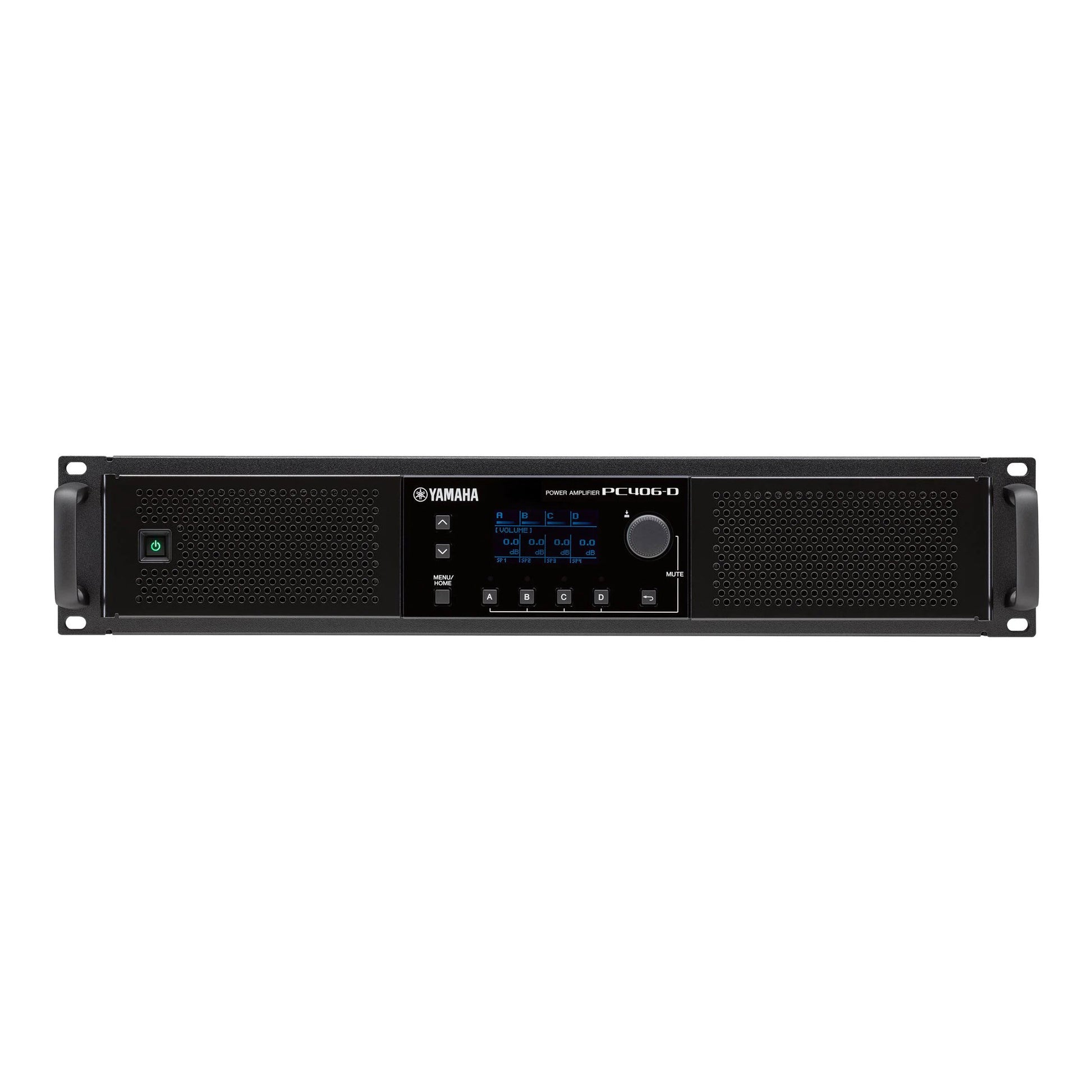

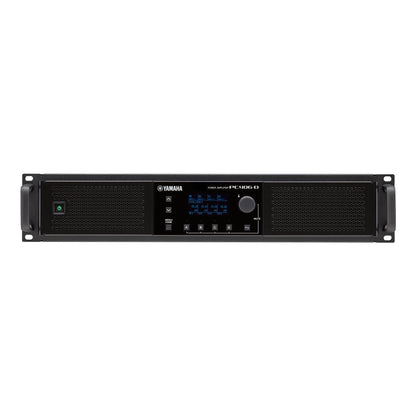

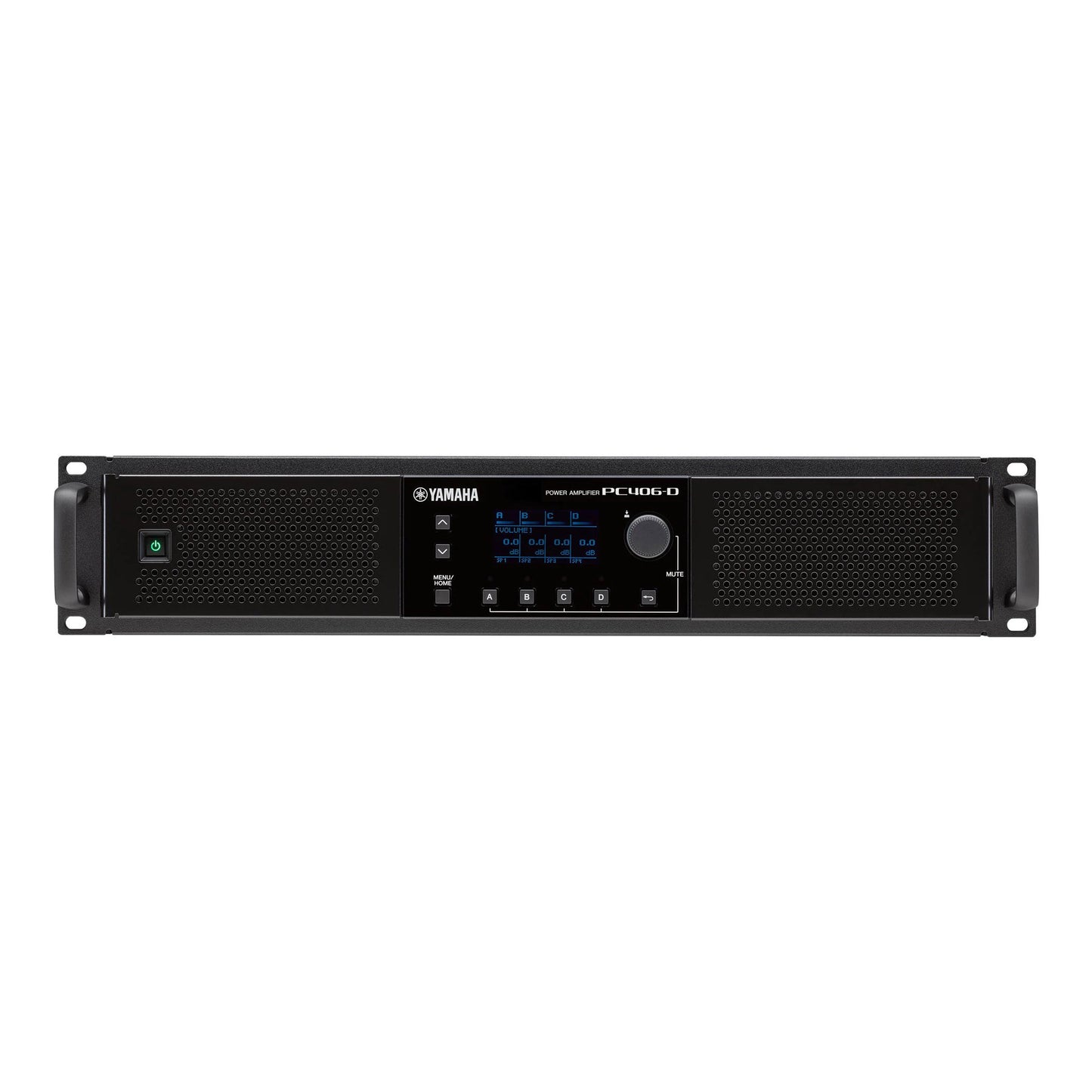

Yamaha PC406-D 4-Channel 600W Power Amplifier
Yamaha PC406-D 4-Channel 600W Power Amplifier
SoundPro Item: 85385 | Part Number: PC406-D
Usually ships in 5-7 business days
- 4 x 600W at 8Ω
- 20 x 8 powerful input matrix function
- Sampling frequency is up to 96k
- 16ch Dante input/output
- Speaker processor such as 16 band PEQ, crossover, filters, delay and limiter
- Yamaha speaker presets
- Remote control via ProVisionaire Touch/Control
Take customized control with the PC406-D 4-Channel 600W Power Amplifier from Yamaha. Use the PC406-D as a supplementary matrix to expand the overall system matrix, allow direct sound input from other analog devices or Dante gear, and more.
Several processing features are available with the PC406-D. This includes 16-band PEQ, delay, peak limiting, and RMS limiting. Different functions ensure speakers can be perfectly tuned precisely and easily. Other adjustments are made possible with Dante outputs, adding more Room EQ for more amp channels. Optimized presets are supplied in the speaker library for Yamaha speakers so perfect tuning of Yamaha speakers is effortless.
- Output power at 1kHz, non-clip, 20msec burst, all channels driven
- 16Ω: 300W x 4
- 8Ω: 600W x 4 (1800W x 2 in BRIDGE mode)
- 4Ω: 900W x 4 (2600W x 2 in BRIDGE mode)
- 2Ω: 1300W x 4
- Amplifier classClass D, single ended output
- THD0.01%
- Frequency response+0.5, -1.5dB (8Ω, 1W, 35Hz to 20kHz)
- Crosstalk≤ -60dB (8Ω, 1kHz, Half power, Input 150Ω shunt A-weighted)
- S/N ratio109dB (8Ω, Gain setting = 32dB, A-weighted)
- Max input voltage+25dBu
- Input impedance20kΩ (balanced)
- Sampling frequency rate96kHz
- A/D converters32-bit linear, 64 times over sampling
- D/A converters32-bit linear, 128 times over sampling

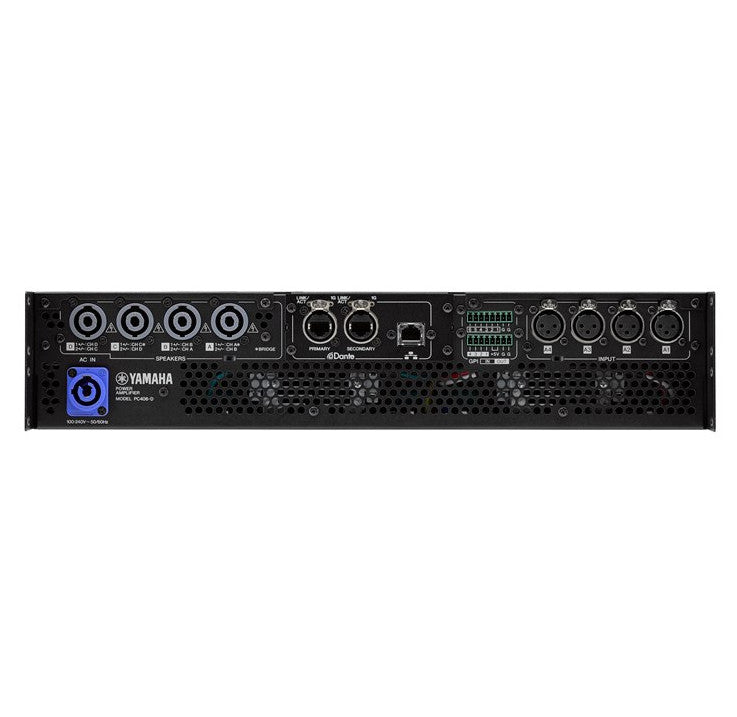

- I/O connectors
- Analog input: XLR-3-31 x 4
- Digital I/O: Dante Interface etherCON x 2 (Redundant/Daisy Chain)
- Speaker ouput: Neutrik speakON NL4 x 4
- Control ports: RJ45 x 1
- AC: AC inlet (powerCON 20A) x 1
- Other: Remote, Fault Output: Euro block 8pin (mini) x2 (GPI x 4, GPO x 6, +5V x 2)
- Power requirements100V - 240V 50Hz/60Hz
