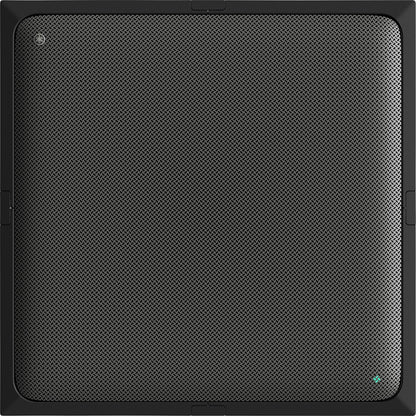

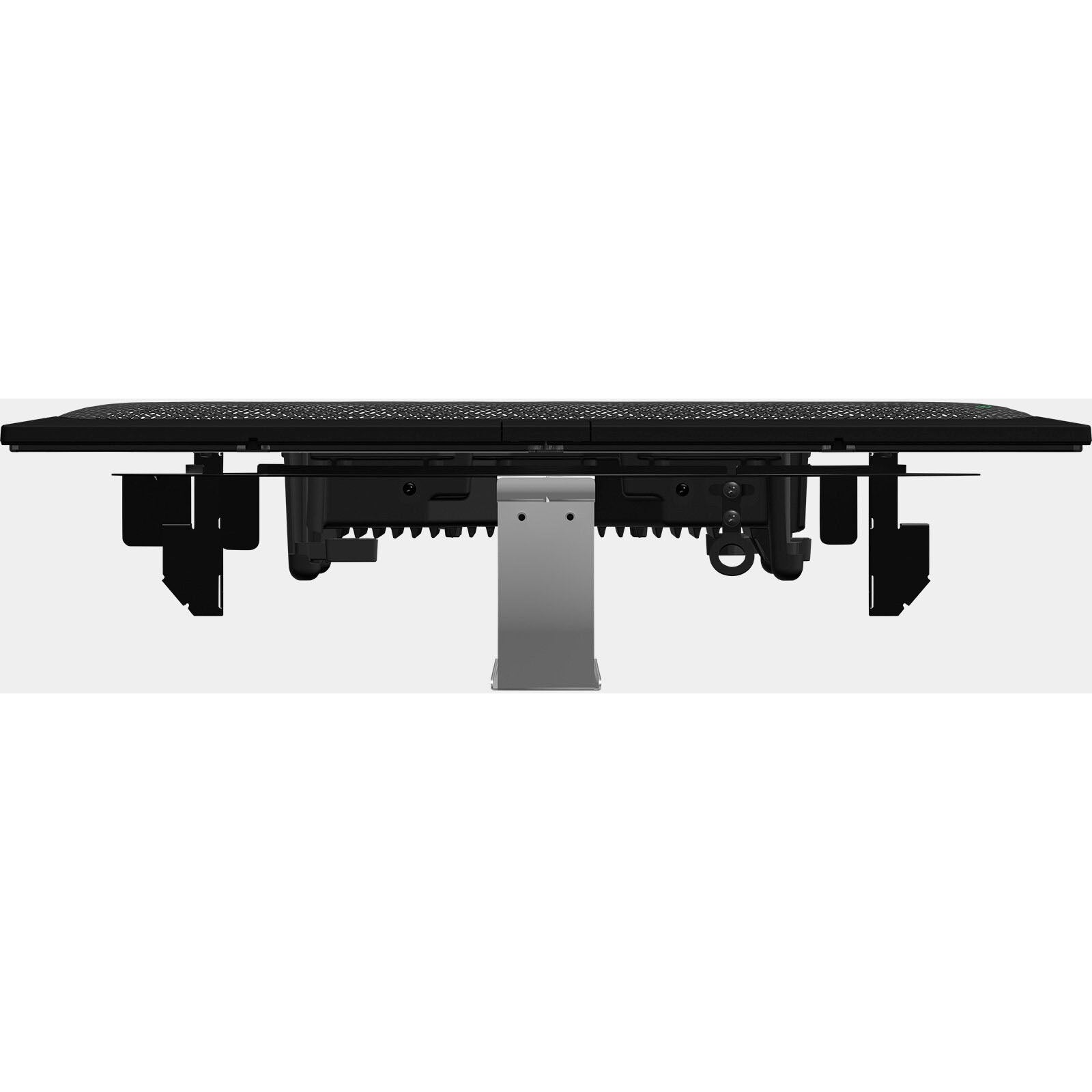

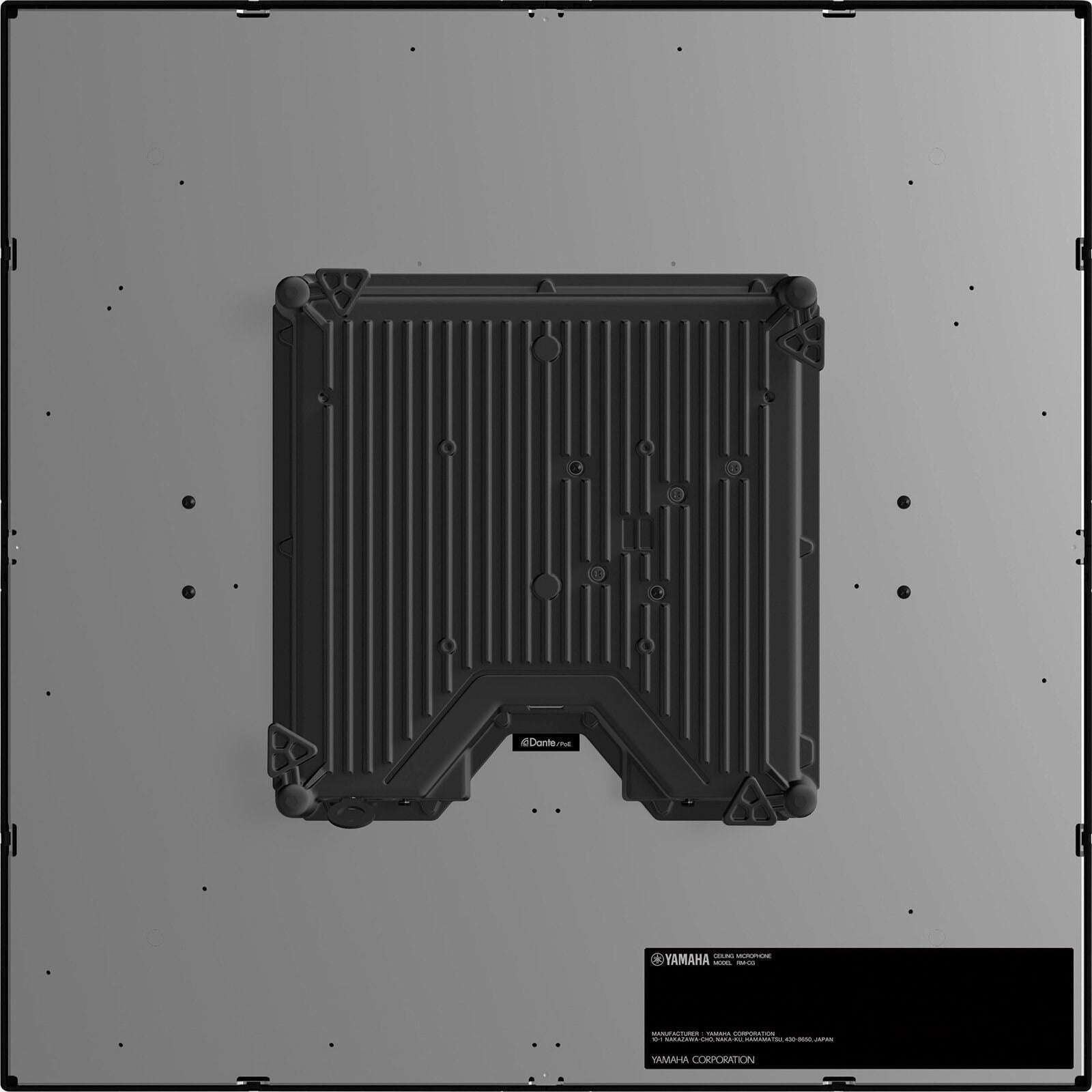

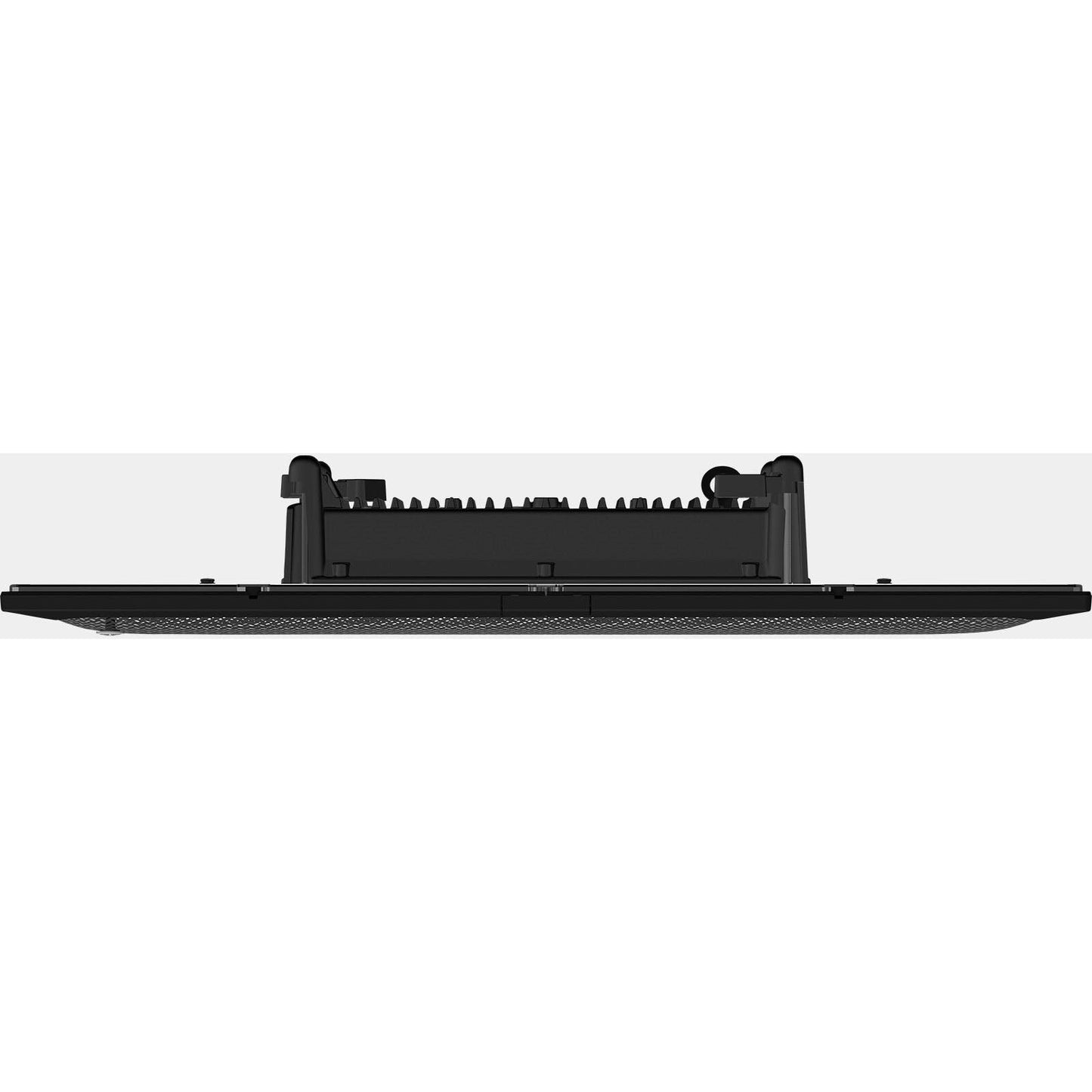

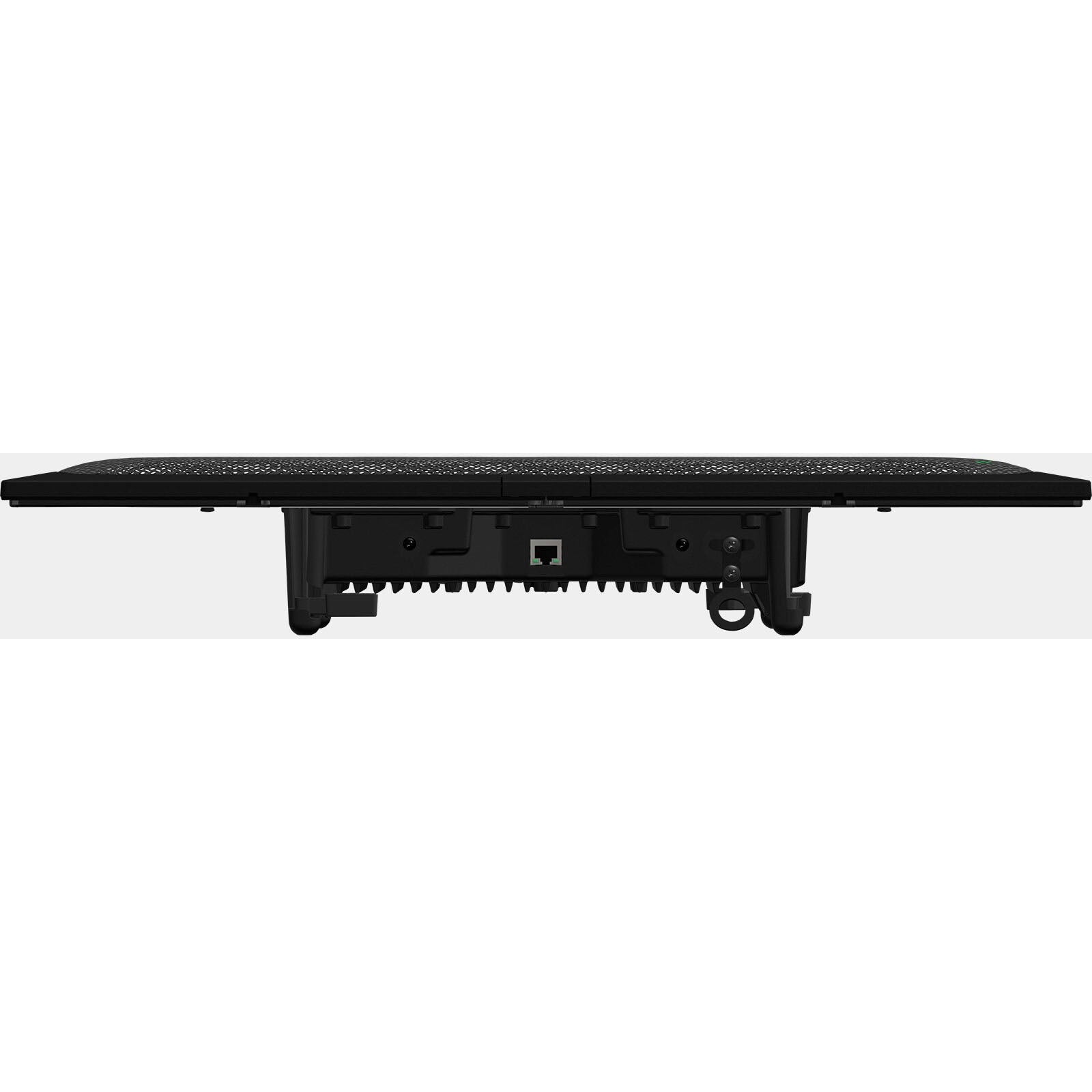

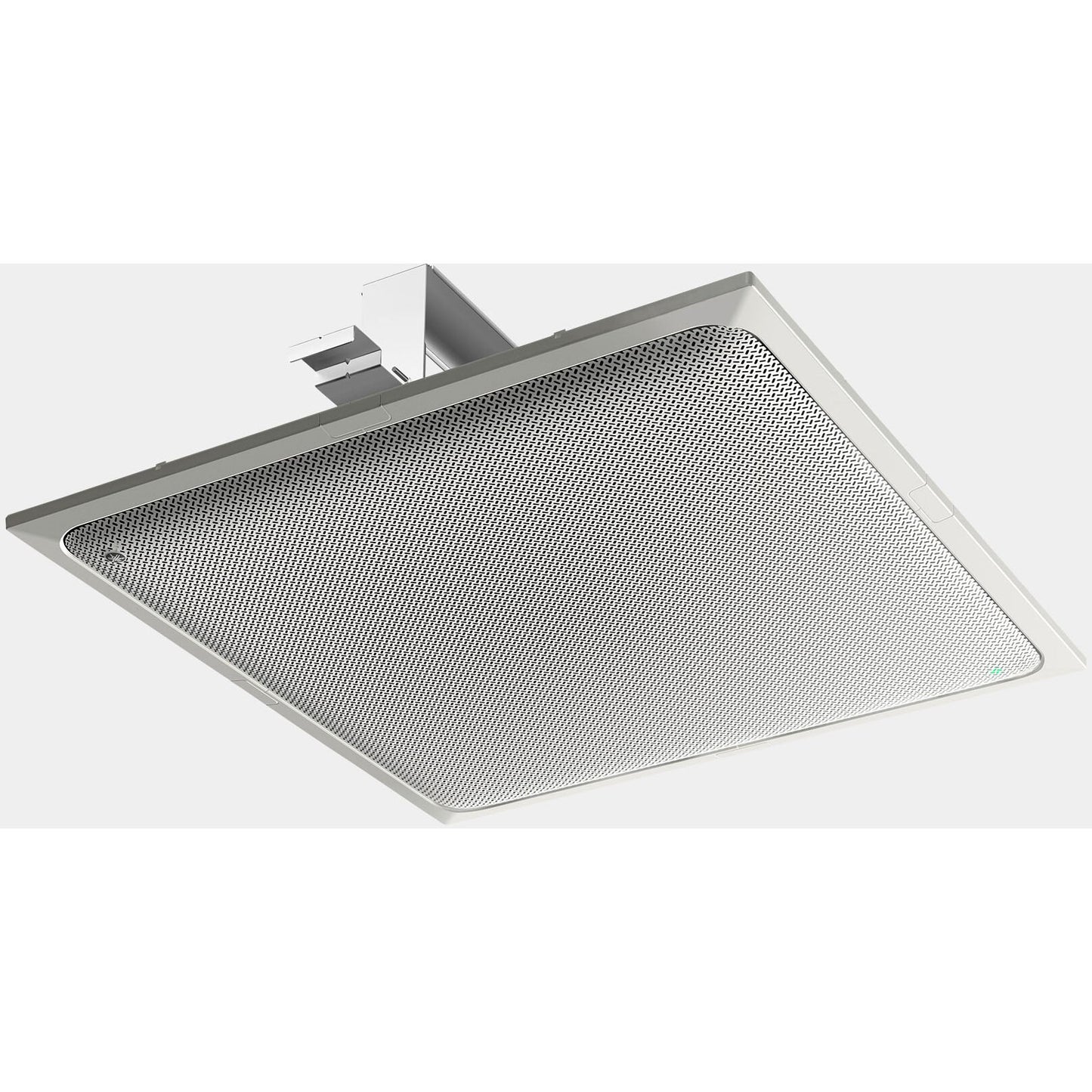

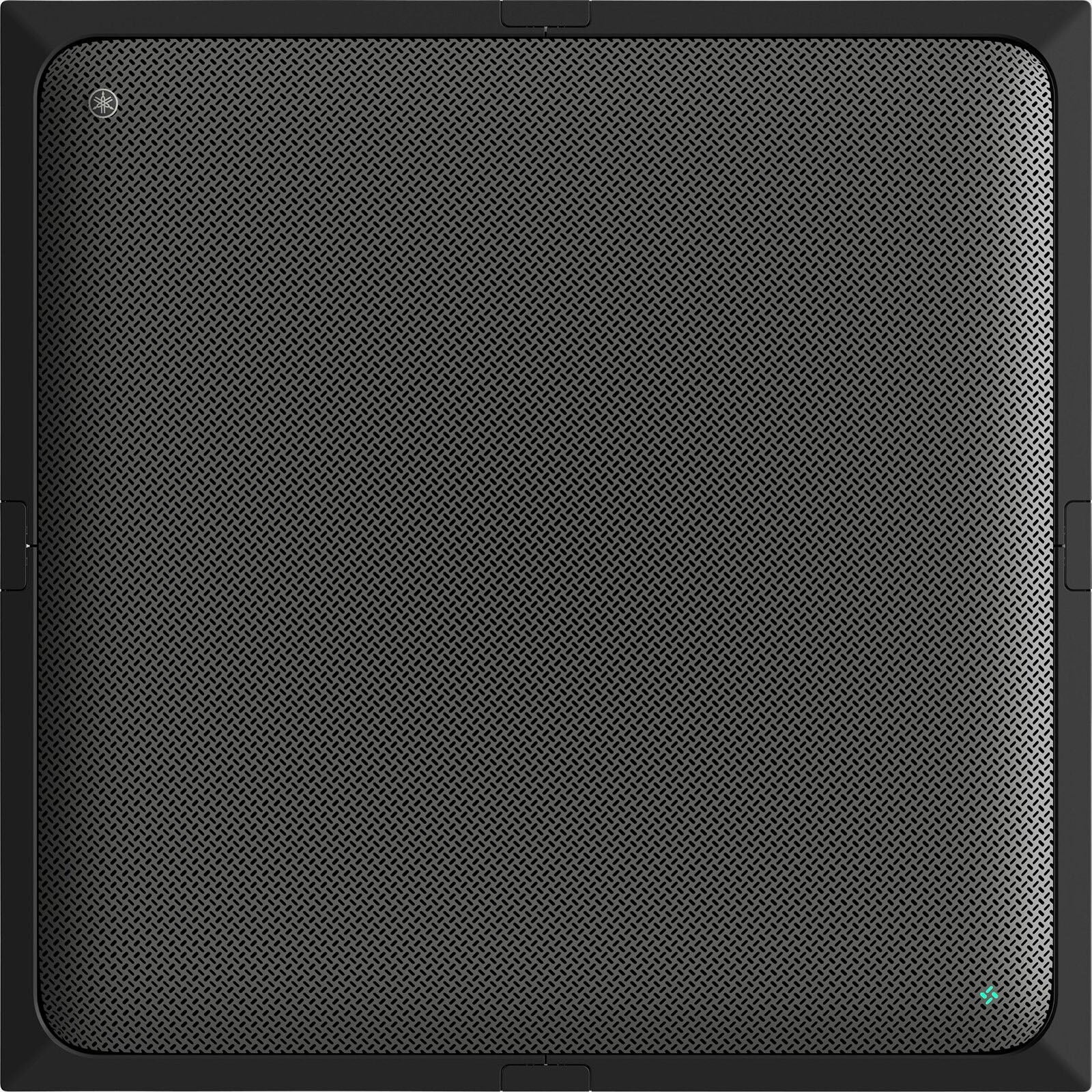

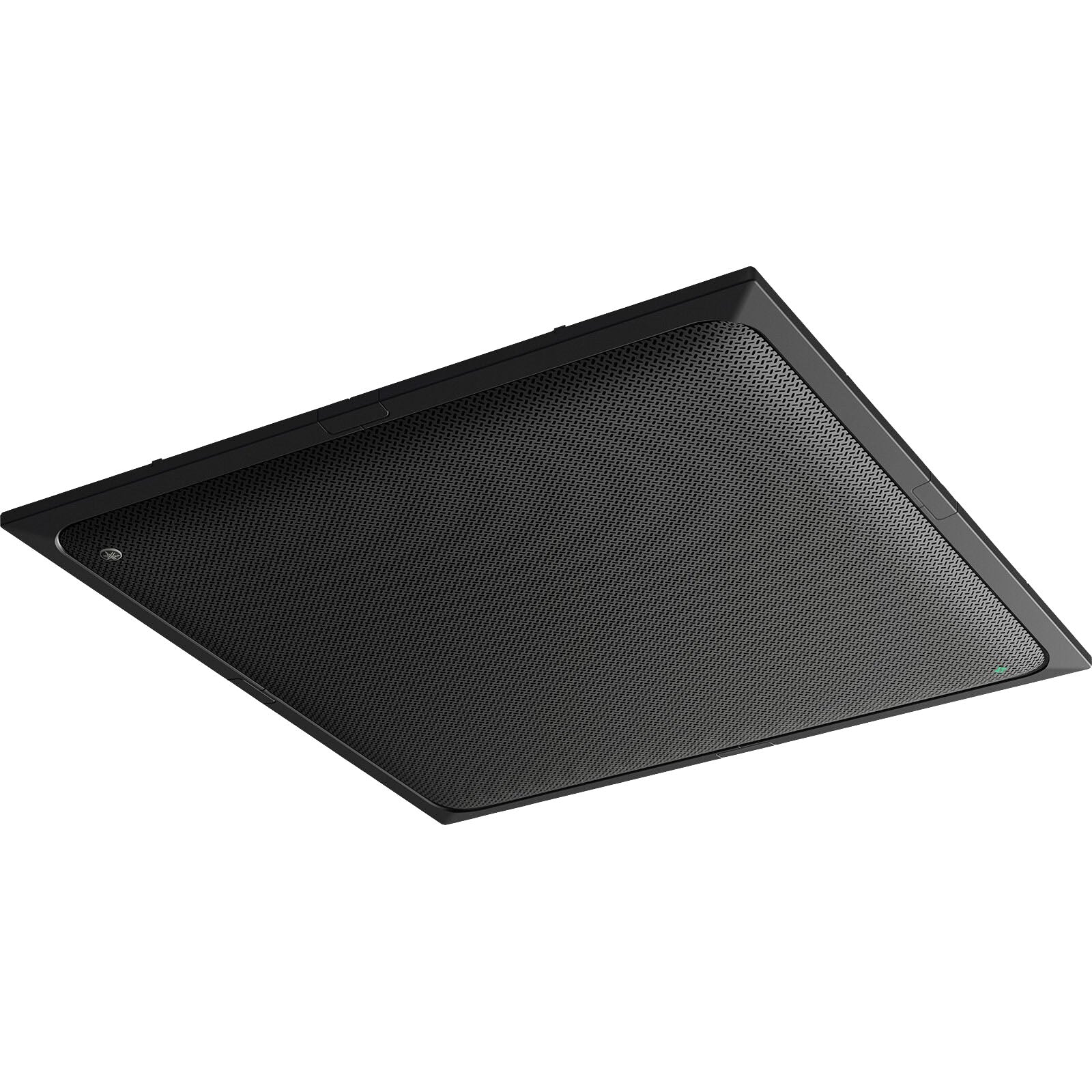

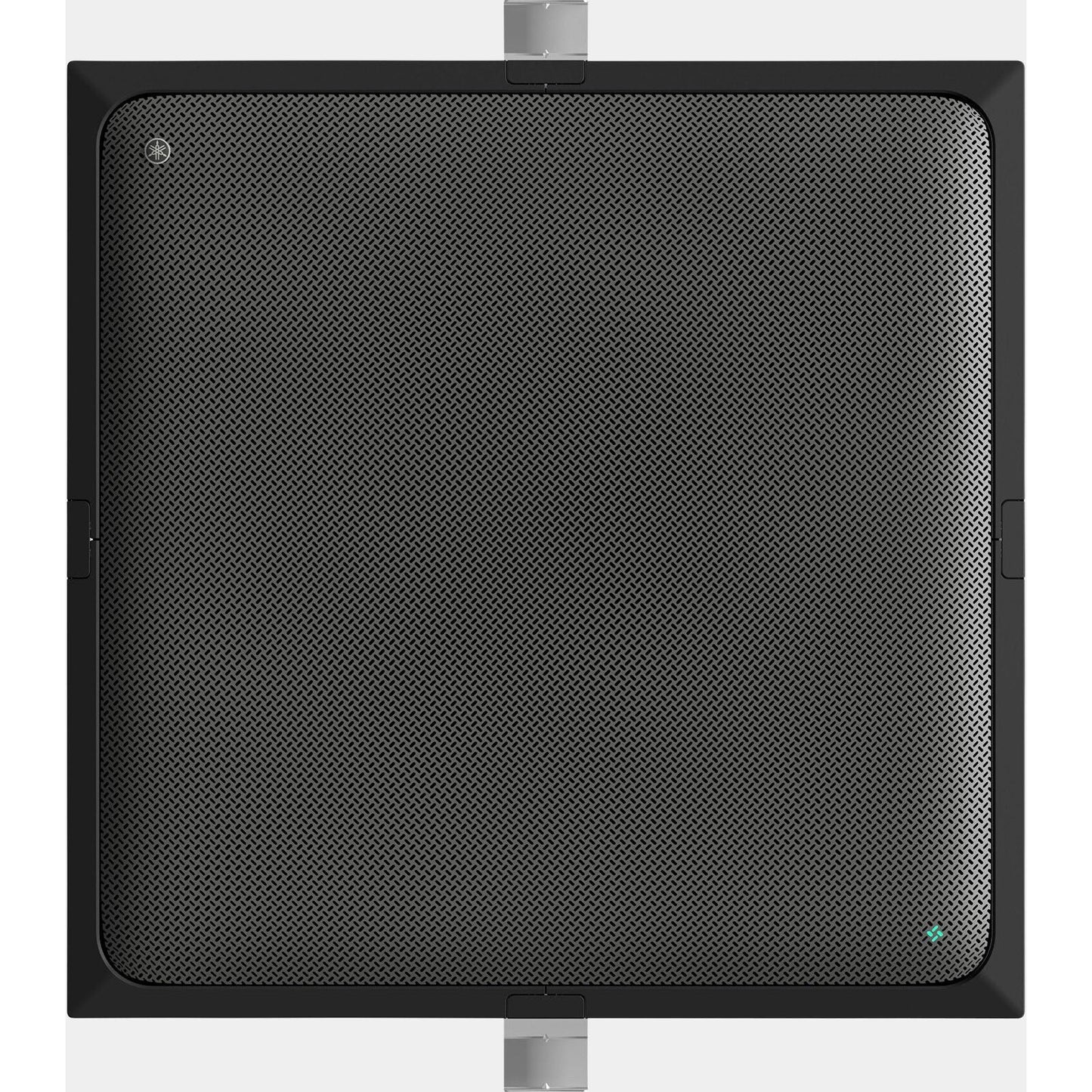

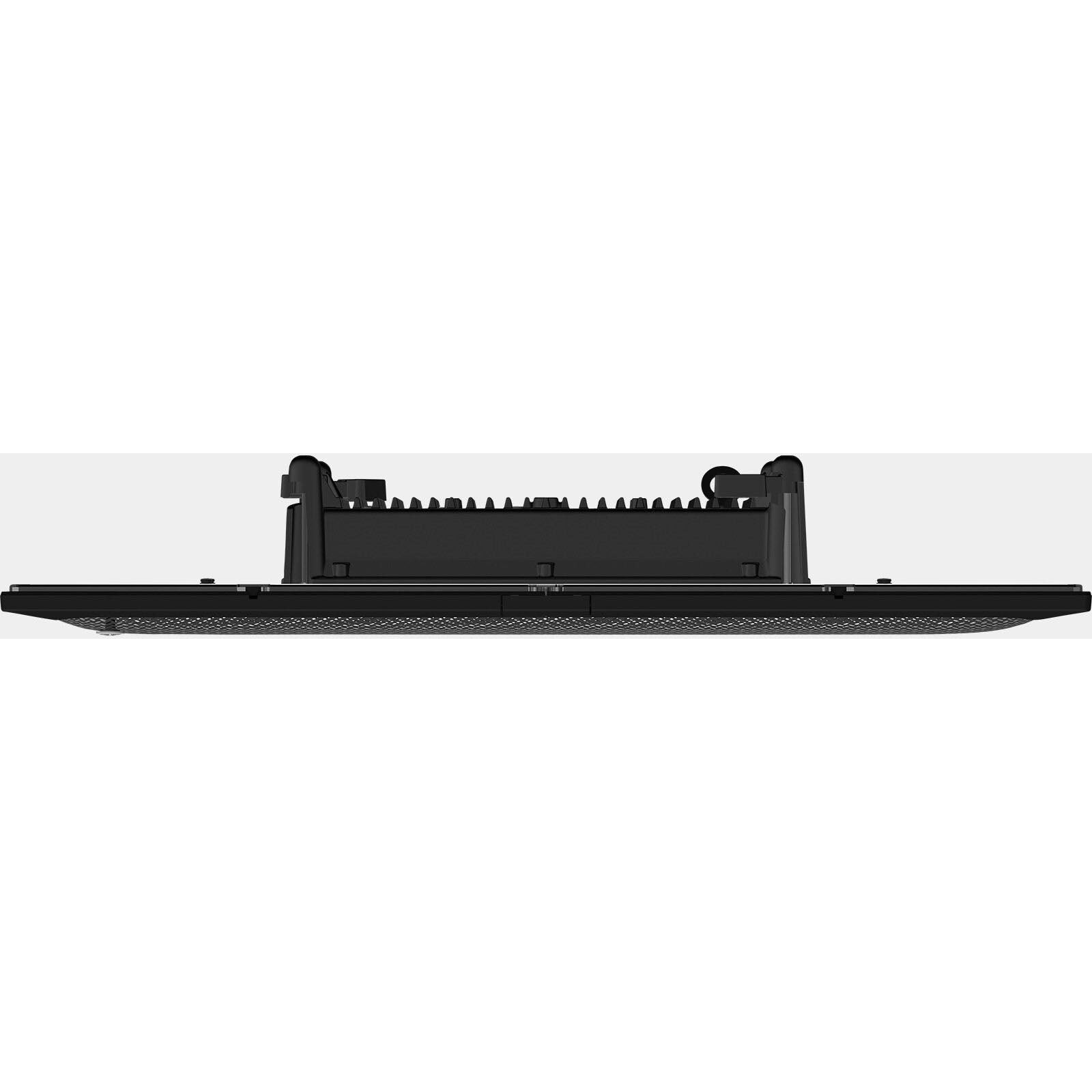

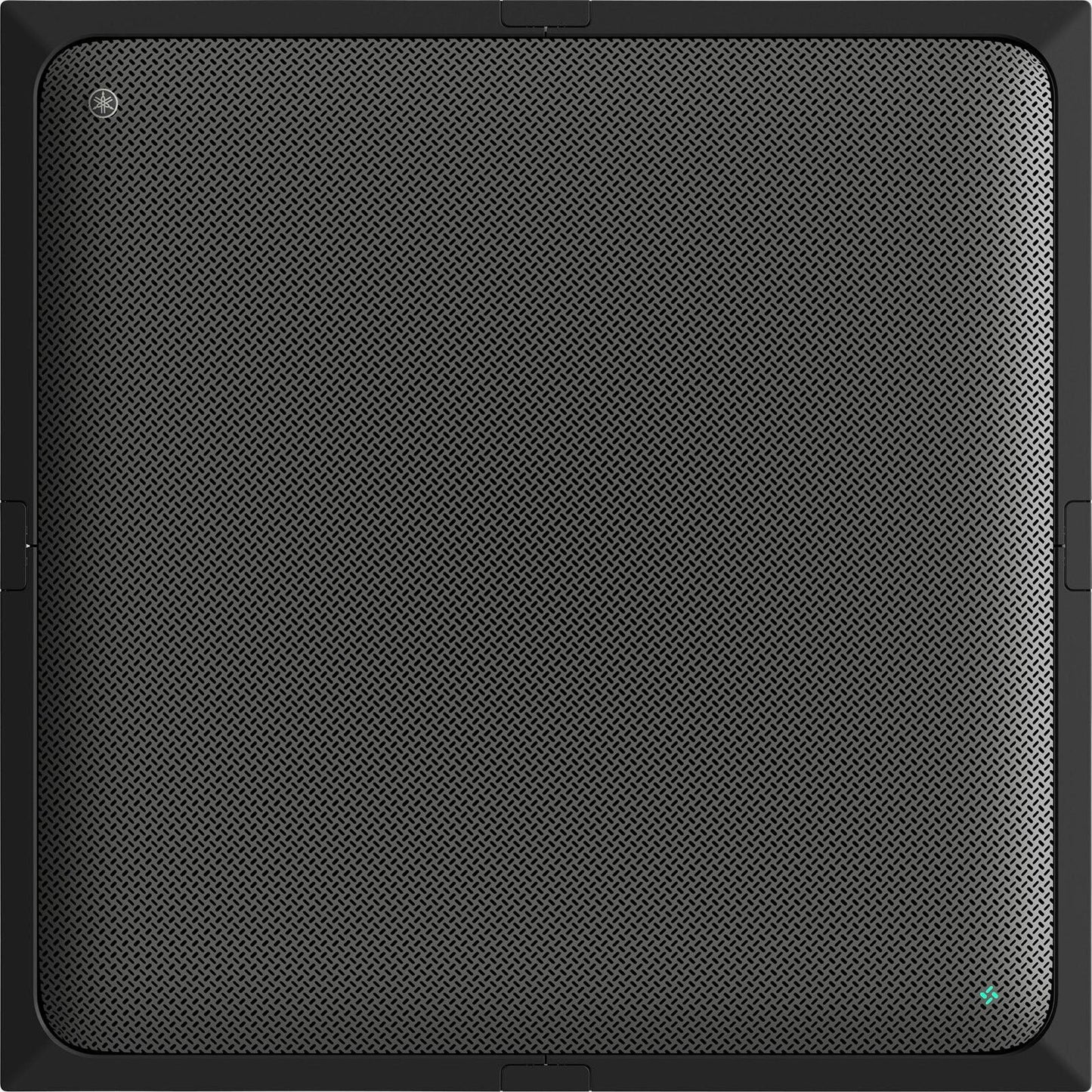

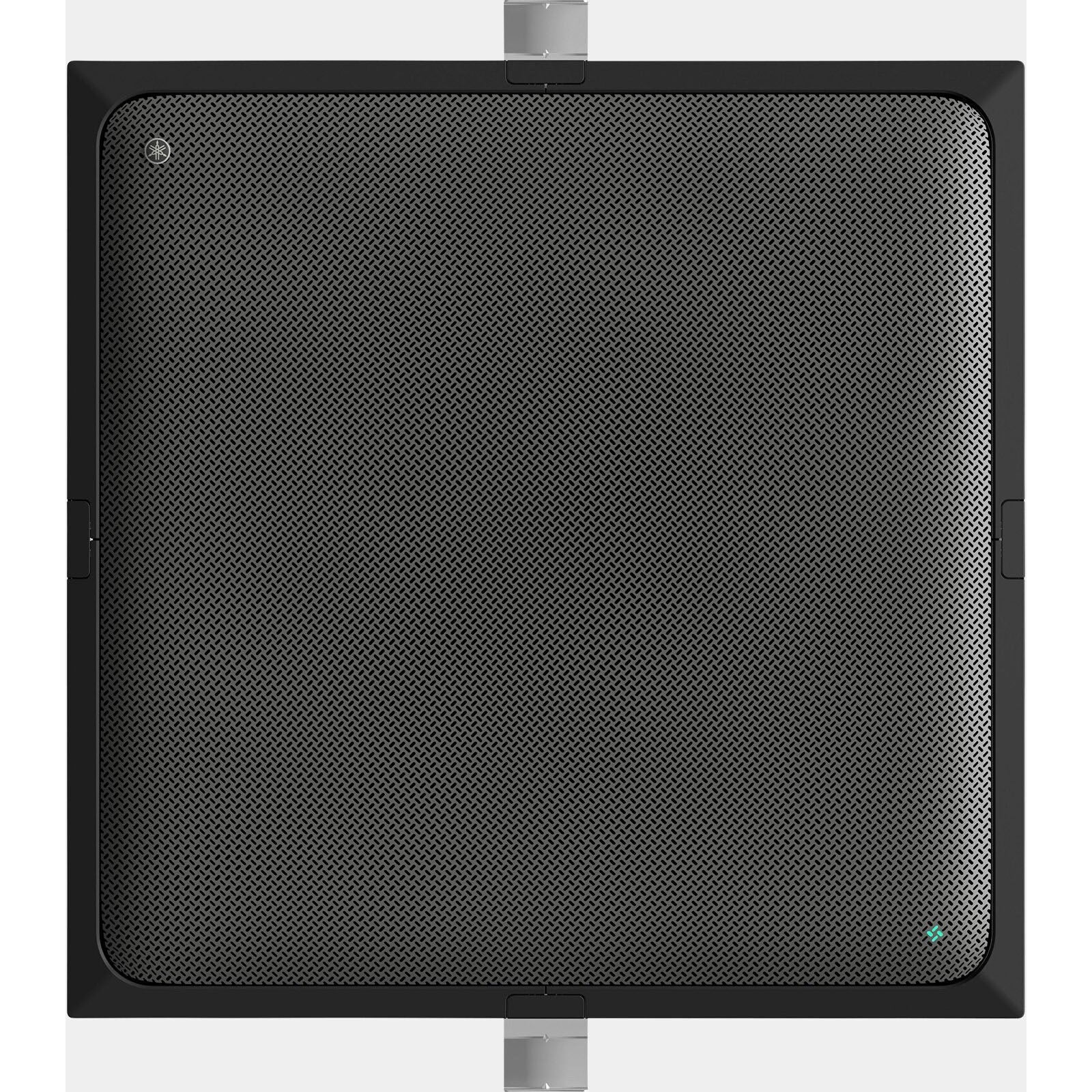

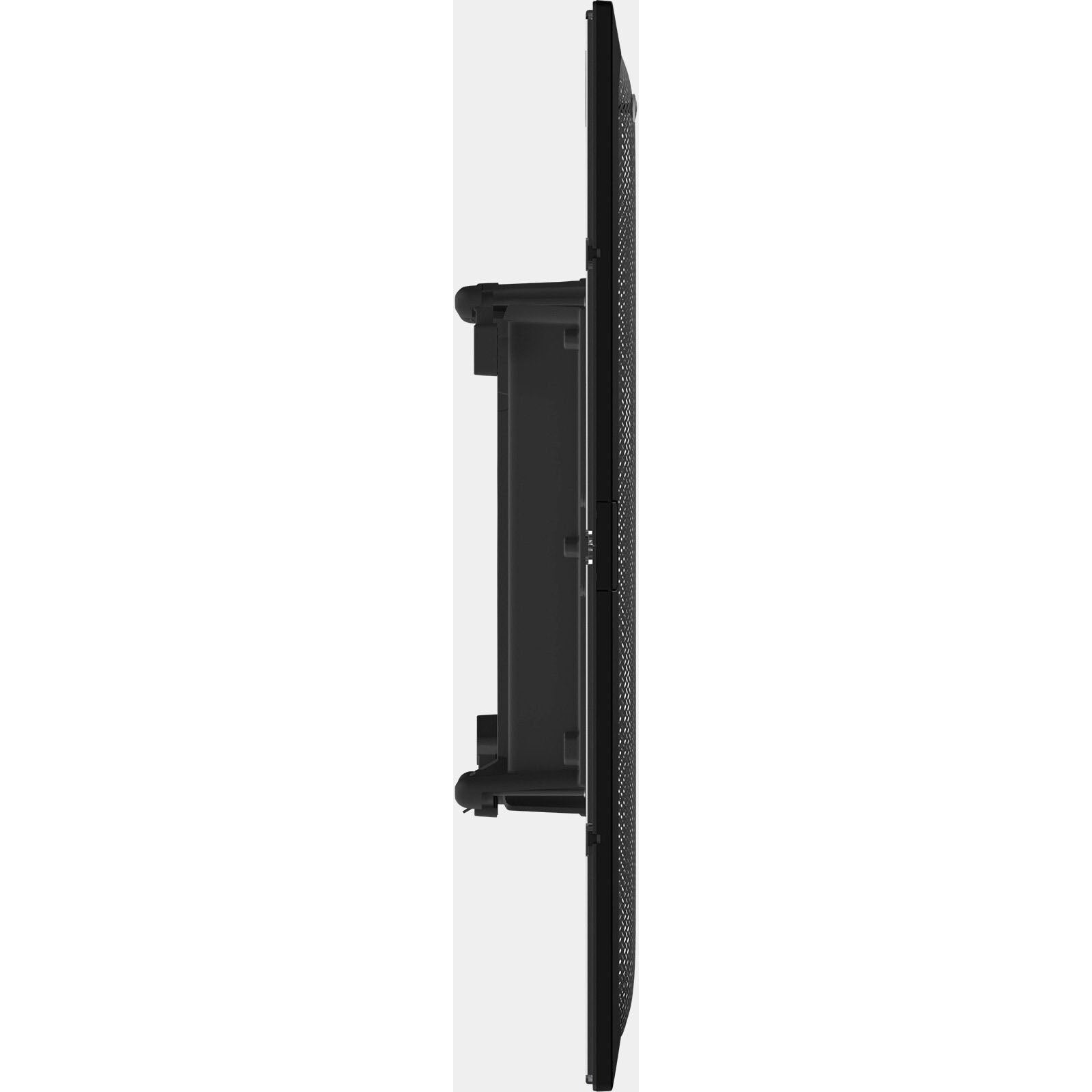

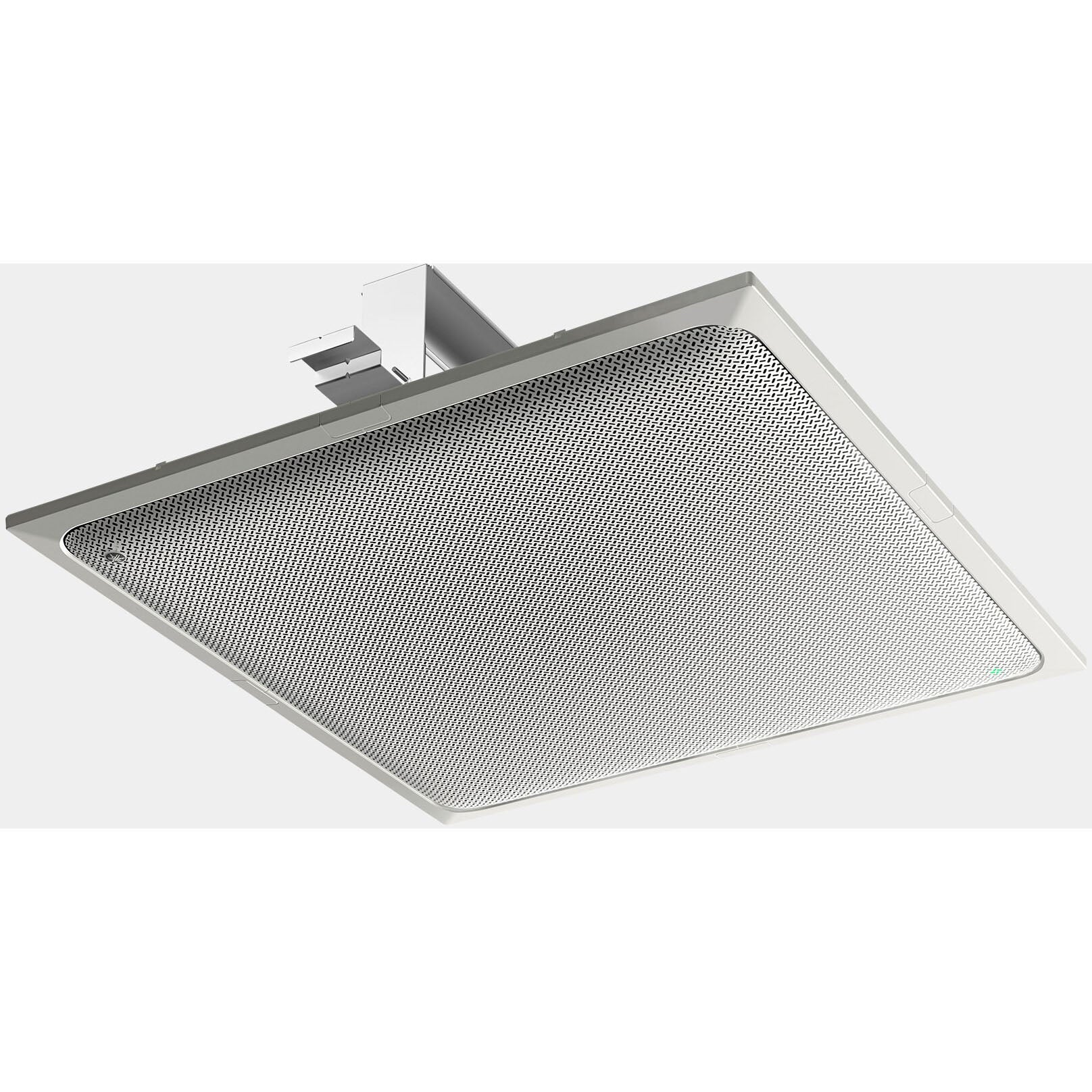

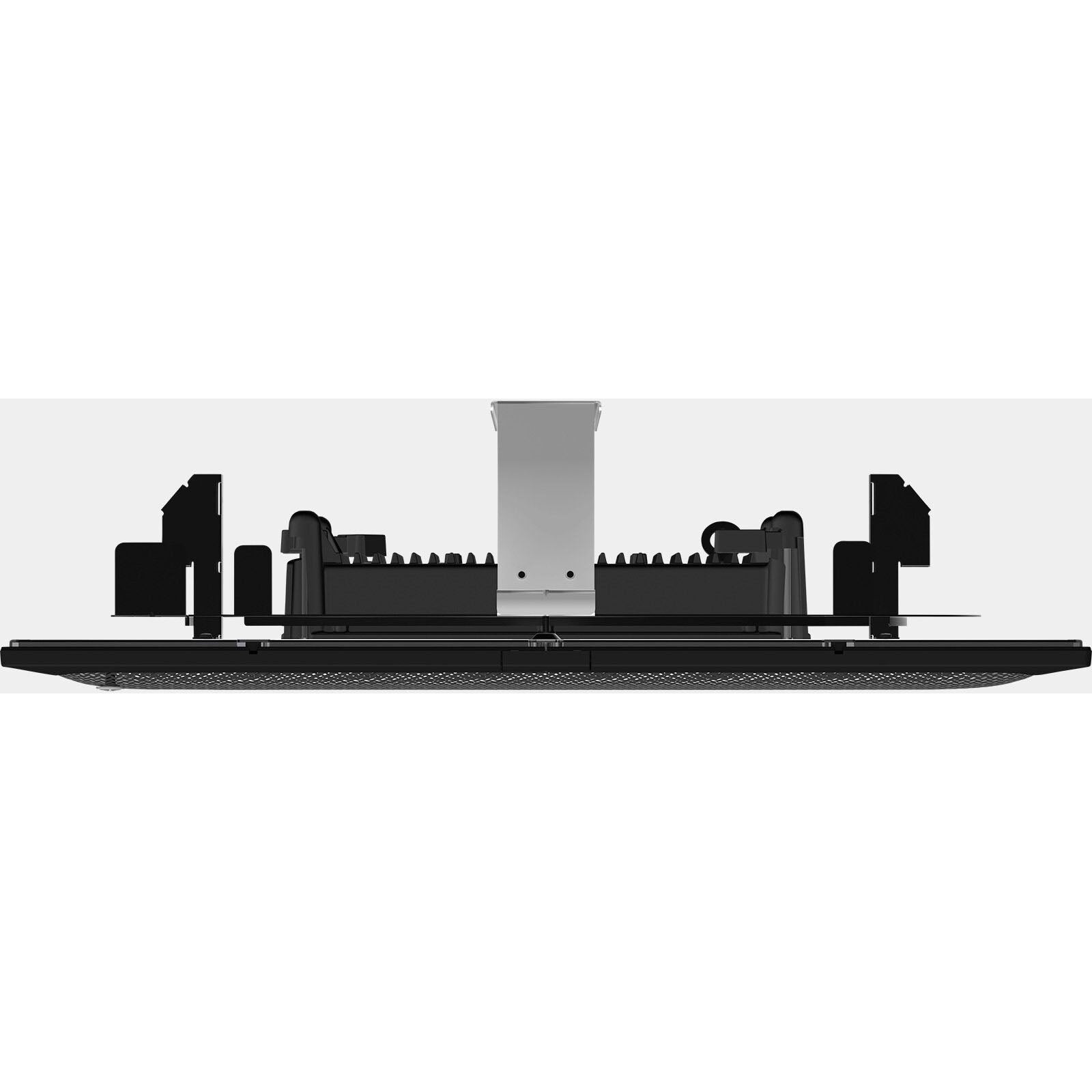

Yamaha RM-CG Ceiling Array Microphone

Yamaha RM-CG Ceiling Array Microphone

SoundPro Item: 145063 | Part Number: RM-CG-B

$4,949.99
$4,950.00 $4,949.99
Your Price Sold out
MSRP: | MAP:

Usually ships in 5-7 business days

  • Standard network audio support for "Dante"
  • "Multi-beam tracking that scans for human voice and track simultaneous speech allowing for lively conversations
  • Delivers high intelligible voice with unique audio signal processing technologies
  • Utilizes one PoE+ network cable connection avoiding troublesome wiring and enabling audio control via Dante
  • Supports 3 types of mounting methods for use with a variety of ceiling conditions
  • Automatic detection and configuration with Remote Conference Processor RM-CR
Log in or register for YOUR best price

Equipped with unique audio signal processing technology for the best performance

A ceiling array microphone equipped with unique audio signal processing technology that enables high-quality communication

View full details

Specifications

Dimensions
W560 mm x D560 mm x H90 mm (Includes protrusion/microphone panel: 22 mm)
Weight
5.6 kg
Power Requirements
PoE (IEEE 802.3af)
Maximum Power Consumption
7.2 W
Connector
RJ45
Temperature
0°C - 40°C
Humidity
30% - 90% (no condensation)
Indicator
Front Indicator (Mute/Unmute & Status), Network Port Indicator
Mount
Ceiling mount, Wire mount, VESA mount
Maximum Device Number with RM-CR
14 (without VXL1-16P, up to 16)
Accessories
Construction description, (Guarantee), Grille x 1, Screws for grille (M3 x 8 mm) x 5*, Screw cover x 4, Cutting template x 1, C ring x 1, Screws for C ring x 2, Hanger angle x 1, Screws for hanger angle (M4 x 20 mm) x 5*, Terminal Cover x 1, Safety wire x 1, Binding band x 1, Clamp plate x 2 *Including a spare respectively
Dust Protection
IP5X for dust protection (with terminal cover)
Plenum Rating
UL2043 (with terminal cover)
Network Specifications
Ether1
Dante, Remote Control, WebUI, PoE
Cable Requirements
Cat 5e or higher (STP)
Audio Specifications
Audio I/O (Dante)
1in/2out, In1=AEC reference signal / Out1=output of beam mix, Out2=output of beam mix (simple processed)
Sampling Rate
48 kHz
Bit Depth
24 bit
Latency
58 ms (including signal processing), 22 ms (low-latency mode)
Frequency Response
160 Hz - 16 kHz (-10 dB)
Maximum Input Level of SPL (0dBFS)
117.8 dB SPL
Self Noise
-0.8 dBA SPL
SN Ratio (Ref. 94 dB SPL at 1 kHz)
94.8 dBA
Sensitivity
-23.8 dBFS/Pa
Dynamic Range
118.6 dBA
Signal Processing
Multi Beam Tracking, Adaptive Echo Canceler, Noise Reduction, Dereverberation, Auto Mixer, Auto Gain Control, Parametric EQ, Output Gain Adjustment
