• Yamaha RMio64-D Digital Interface
1 1

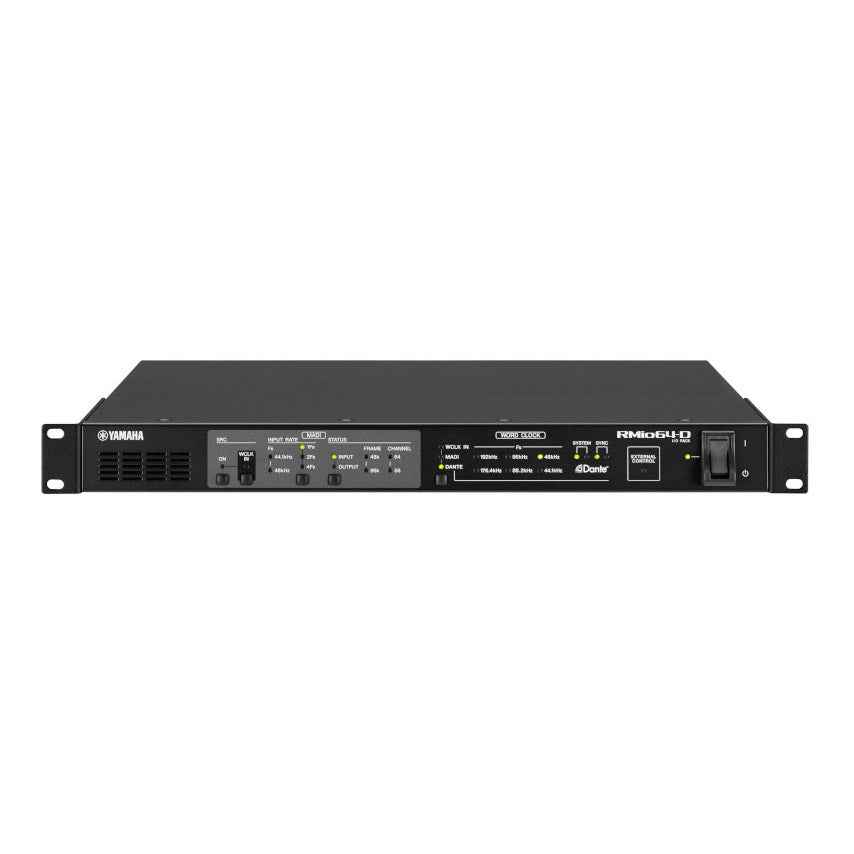

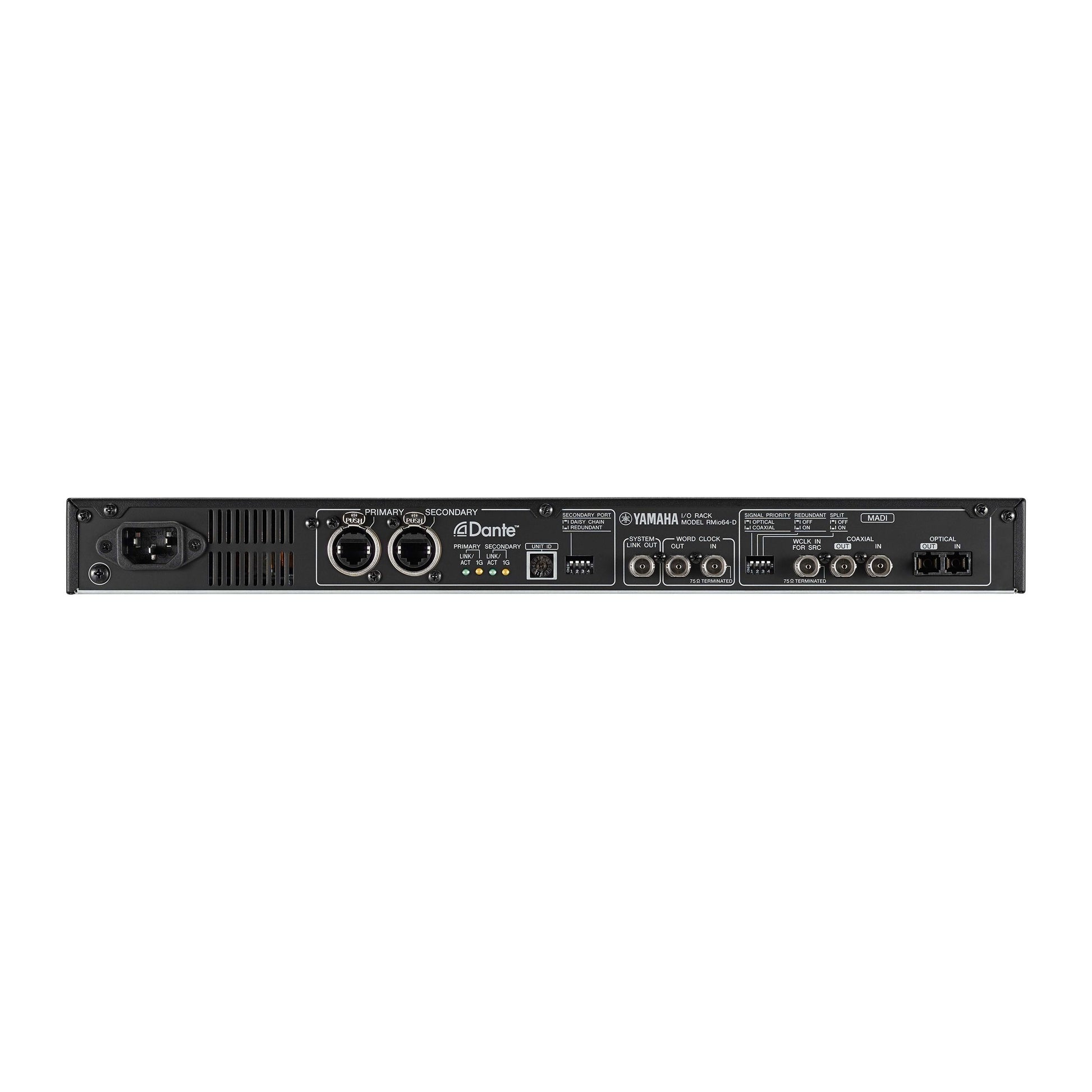

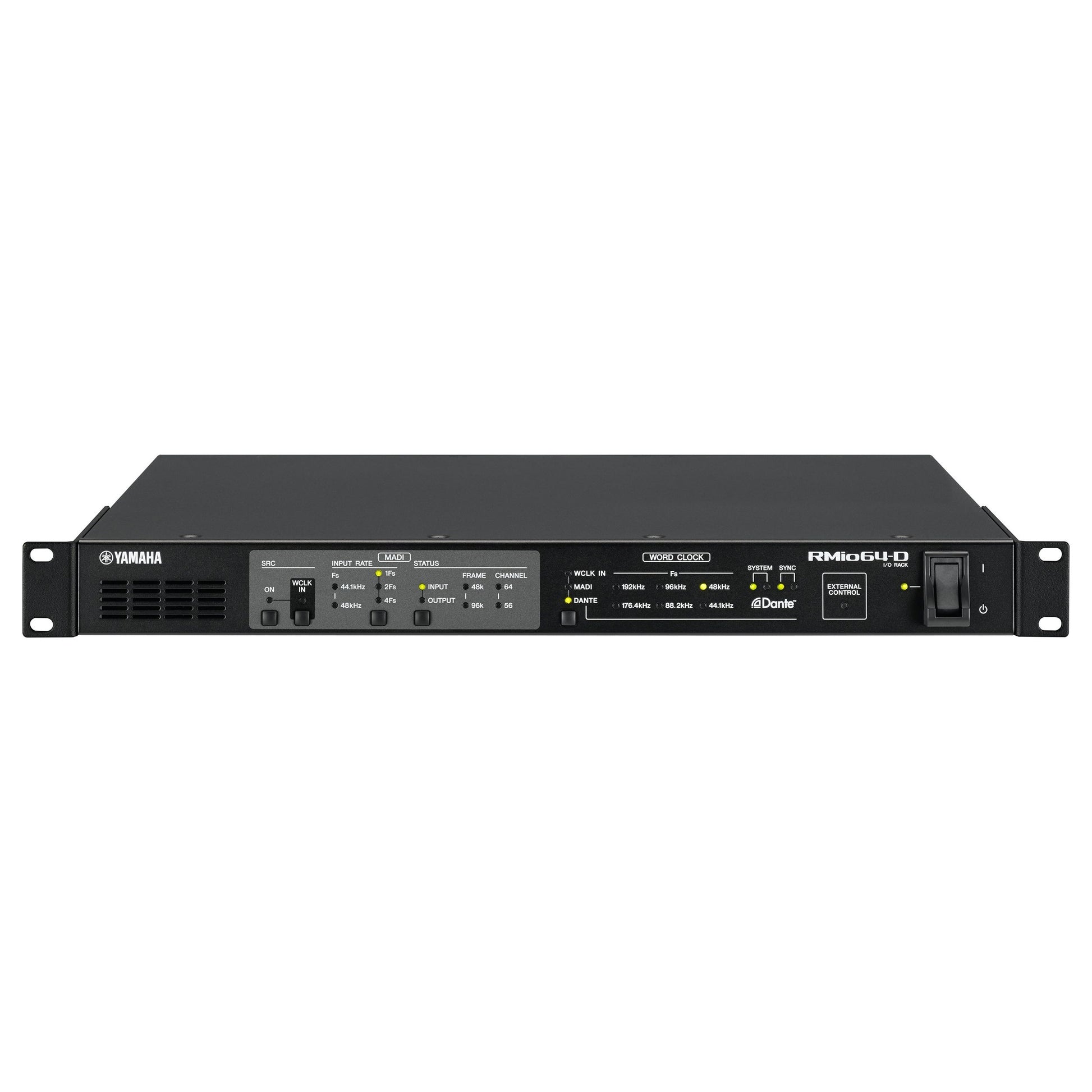

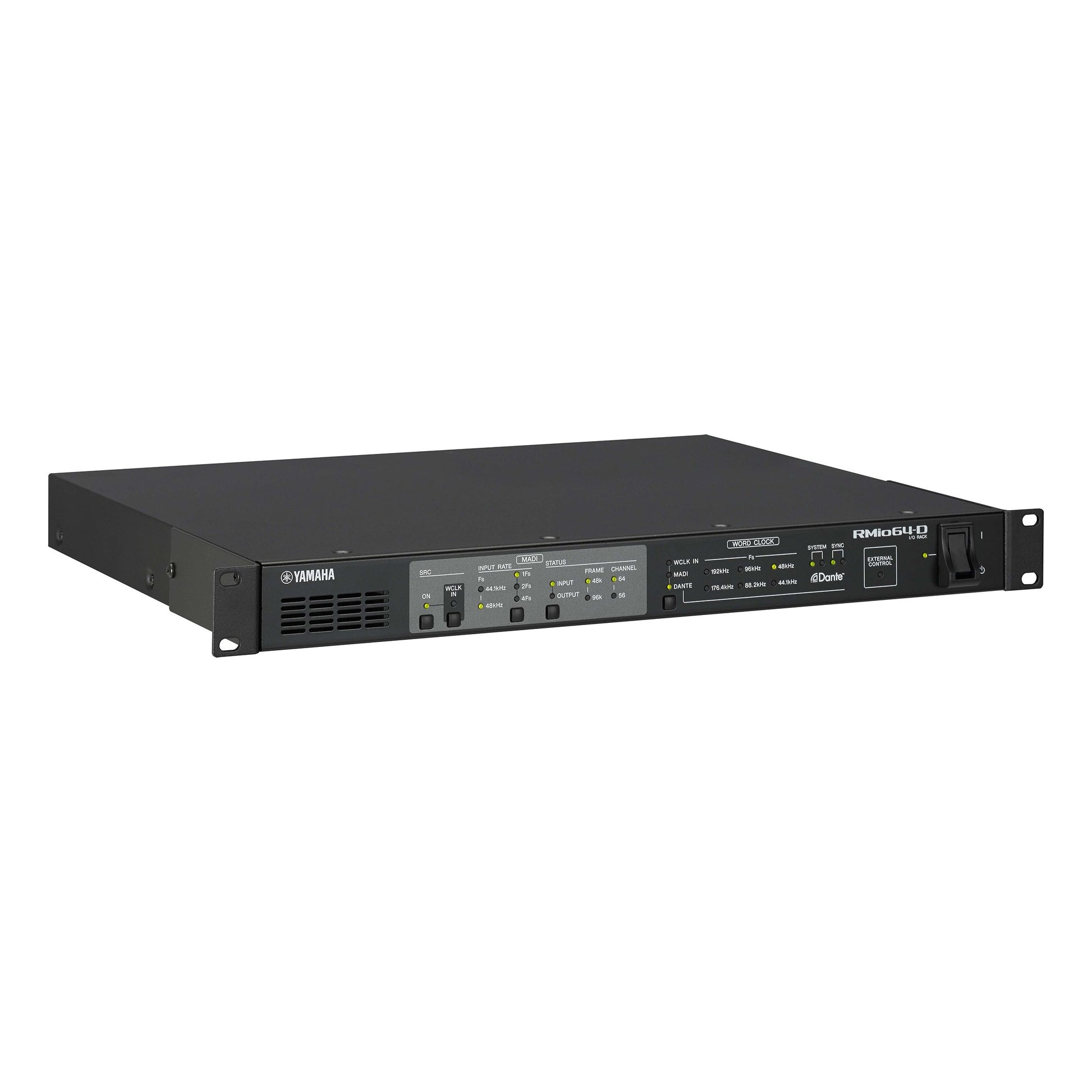

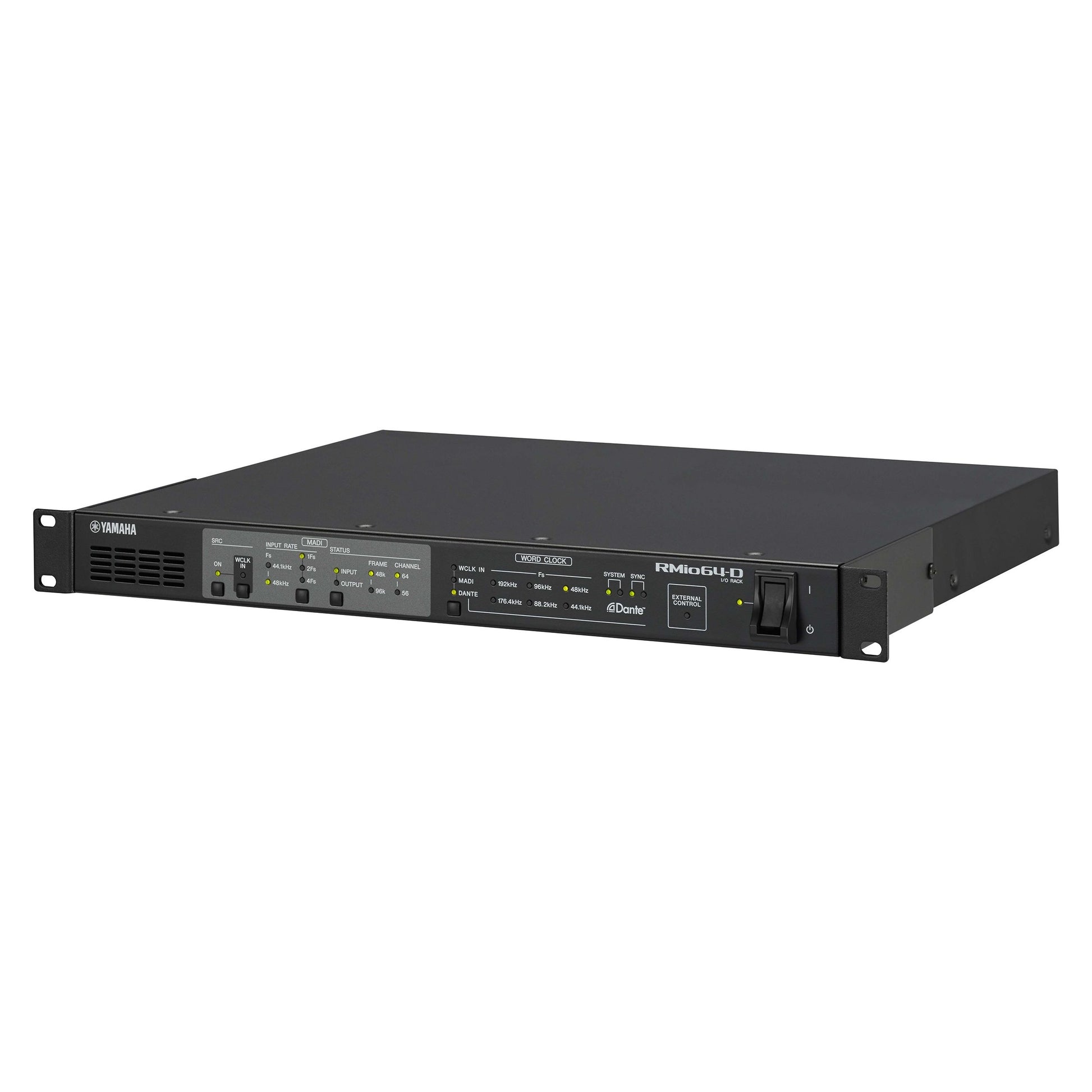

Yamaha RMio64-D Dante Digital Interface

Yamaha RMio64-D Dante Digital Interface

SoundPro Item: 28567 | Part Number: RMIO64-D

$4,199.00
$4,409.00 $4,199.00
Your Price Sold out
MSRP: $4,409.00 | MAP: $4,199.00

Usually ships in 5-7 business days

  • Dante-equipped Dante digital interface
  • Supports redundancy for both Dante and MADI, and provides a high level of reliability
  • Sampling rate converter (SRC) in MADI inputs and outputs
  • Signals can be looped back from MADI optical to coaxial, or from coaxial to optical (MADI split)
  • Enhanced linkage functionality with Steinberg Nuendo, such as direct monitoring and high-precision clock sync with Nuendo SyncStation
Log in or register for YOUR best price

Yamaha’s RMio64-D is an I/O rack and stagebox designed specifically for Dante/MADI conversion. Feature-packed and offering tons of flexibility, it’s ideal for a wide range of broadcast and live sound applications.

View full details
  • Sampling Frequency
    • Internal
      • 44.1kHz +4.1667%/+0.1%/-0.1%/-4.0% ±50ppm
      • 48kHz +4.1667%/+0.1%/-0.1%/-4.0% ±50ppm
      • 88.2kHz +4.1667%/+0.1%/-0.1%/-4.0% ±50ppm
      • 96kHz +4.1667%/+0.1%/-0.1%/-4.0% ±50ppm
      • 176.4kHz +4.1667%/+0.1%/-0.1%/-4.0% ±50ppm
      • 192kHz +4.1667%/+0.1%/-0.1%/-4.0% ±50ppm
    • External
      • 44.1kHz +4.1667%/+0.1%/-0.1%/-4.0% ±200ppm
      • 48kHz +4.1667%/+0.1%/-0.1%/-4.0% ±200ppm
      • 88.2kHz +4.1667%/+0.1%/-0.1%/-4.0% ±200ppm
      • 96kHz +4.1667%/+0.1%/-0.1%/-4.0% ±200ppm
      • 176.4kHz +4.1667%/+0.1%/-0.1%/-4.0% ±200ppm
      • 192kHz M+4.1667%/+0.1%/-0.1%/-4.0% ±200ppm
  • MADI Channels & Formats
    • fs=44.1kHz/48kHz: MADI Single fs 44.1/48k frame, 56/64 channels
    • fs=88.2kHz/96kHz
      • MADI Double fs 44.1/48k frame, 28/32 channels
      • MADI Double fs 88.2/96k frame, 28/32 channels
    • fs=176.4kHz/192kHz: MADI Quad fs 44.1/48k frame, 14/16 channel
  • SRC
    • SRC Lock Range: 38.59kHz – 216kHz
    • Sample Rate Ratio Limit: 6:1
  • Dimensions (WxHxD)18.9x1.7x14.72" (480x44x374mm)
  • Net Weight10.4lbs (4.7kg)
  • Power Requirements
    • Wattage: 25W
    • Voltage and Hertz
      • US/Canada: 120V 60Hz
      • Japan: 100V 50/60Hz
      • China: 110-240V 50/60Hz
      • Korea: 220V 60Hz
      • Other: 110-240V 50/60Hz
  • Temperature Range
    • Operating temperature range: 0 - 40°C
    • Storage temperature range: –20 - 60°C
