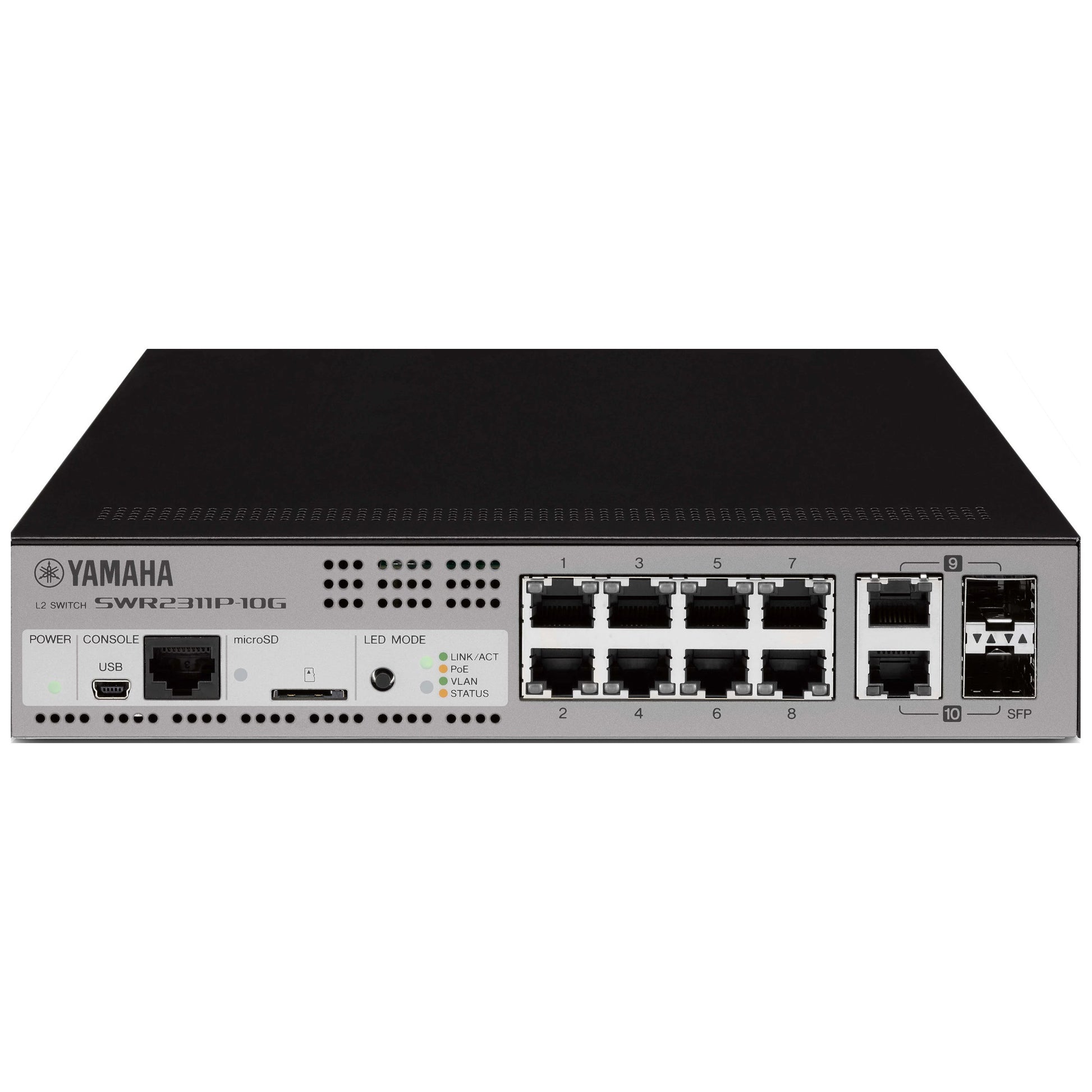

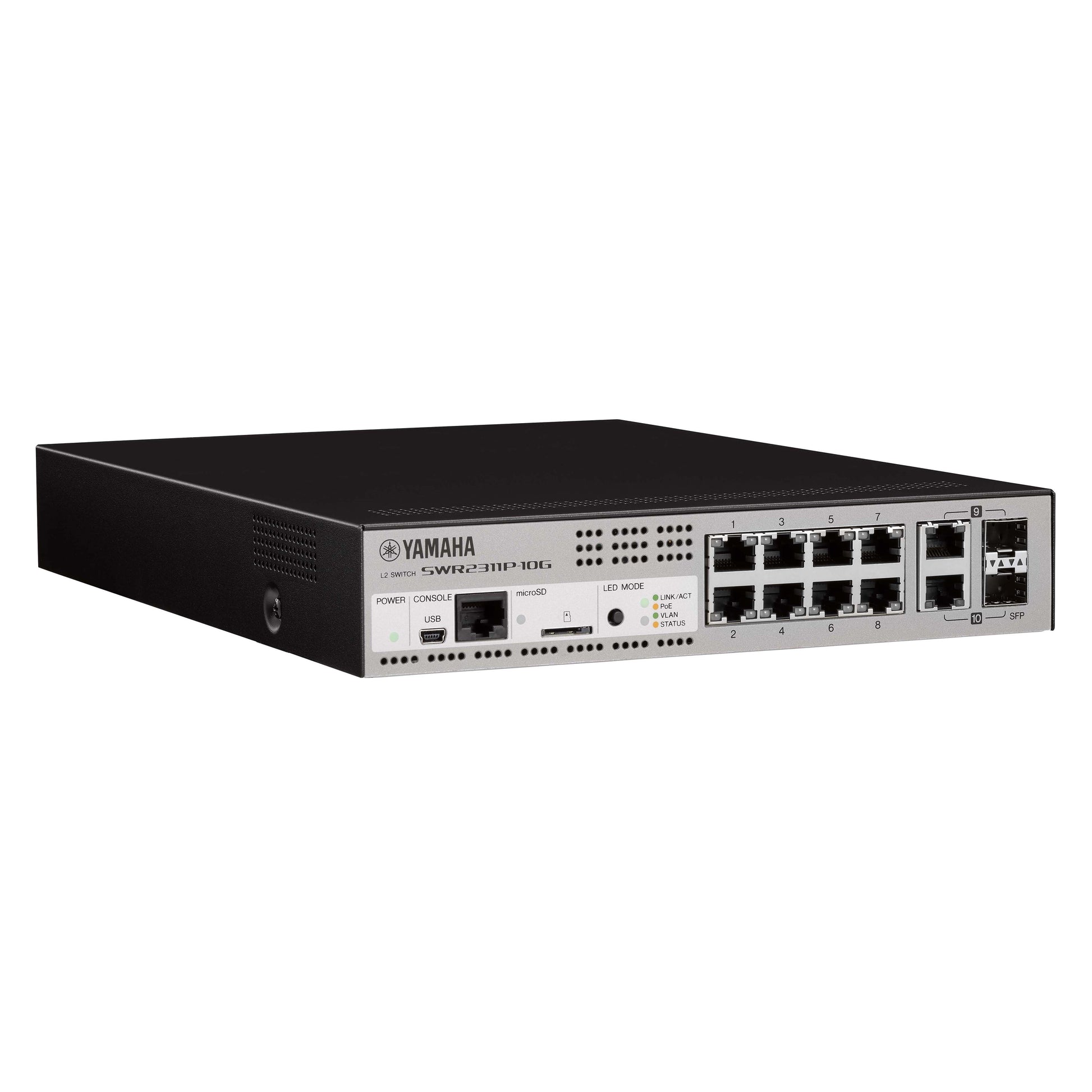

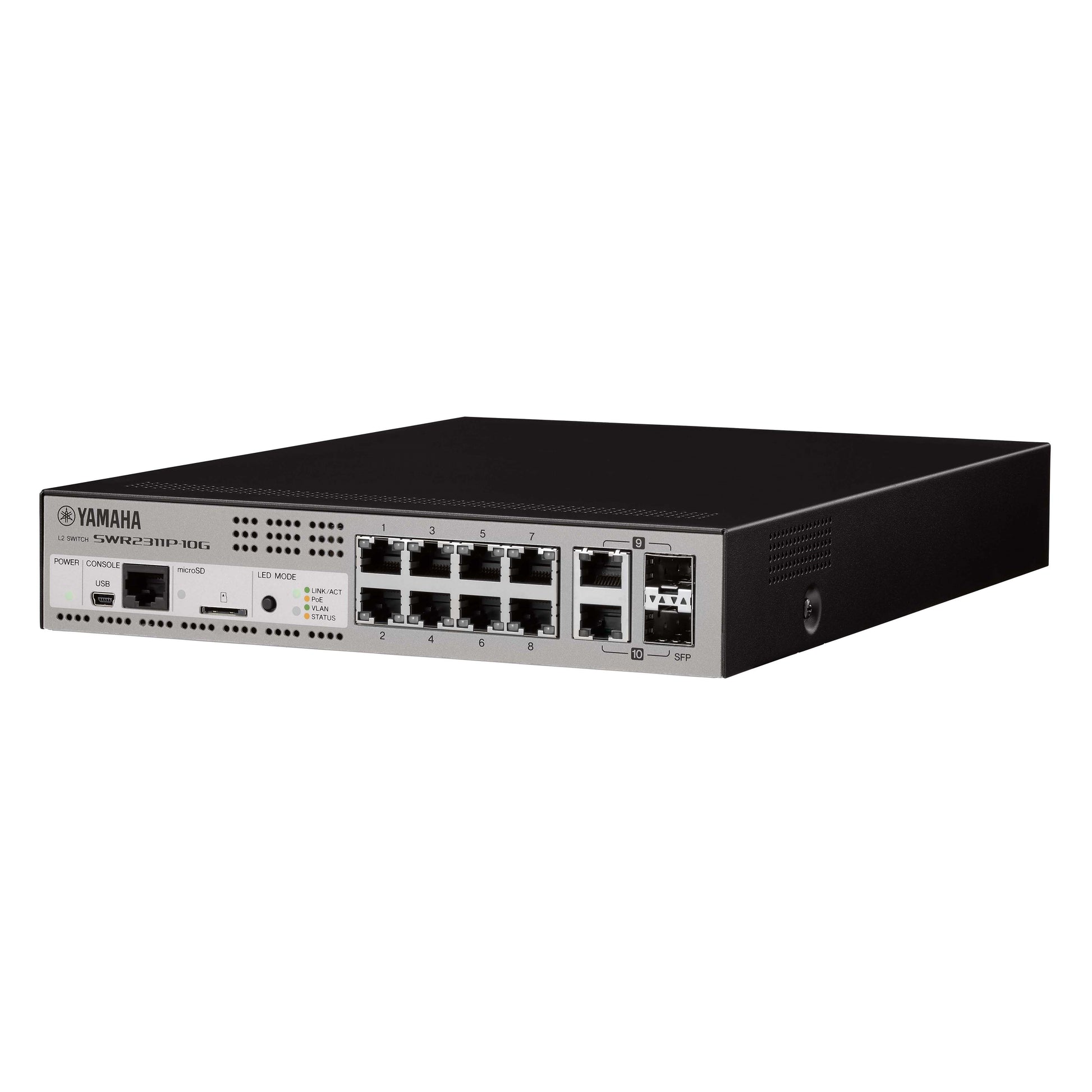

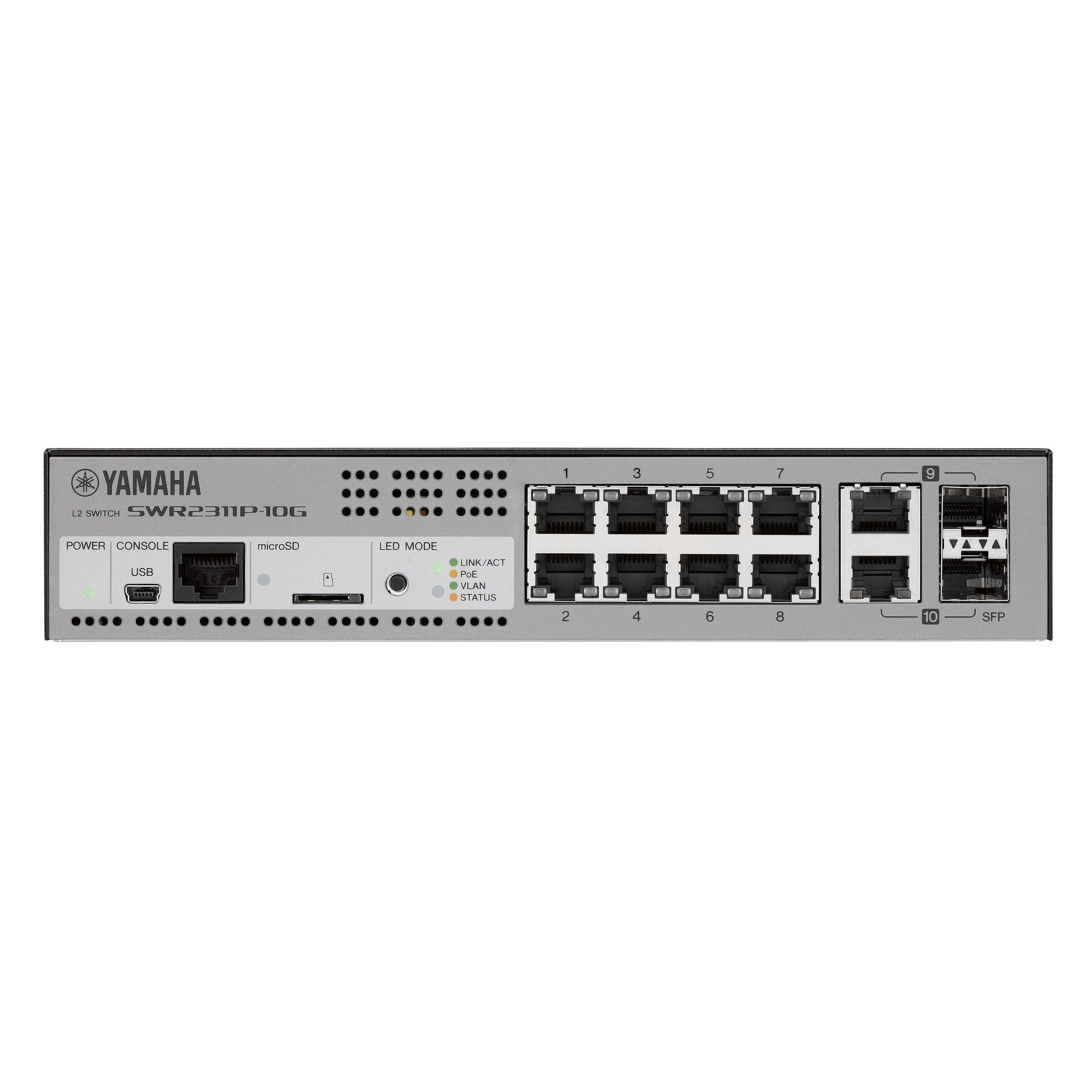

Yamaha SWR2311P-10G 10-Port L2 Network Switch
Yamaha SWR2311P-10G 10-Port L2 Network Switch
SoundPro Item: 38909 | Part Number: SWR2311P-10G
Usually ships in 5-7 business days
- An intelligent, 10-port L2 network switch optimized for Dante® audio networks
- Designed to easily set up a stable Dante network (such as QoS, EEE, and IGMP Snooping)
- LAN ports equipped with PoE supply: 8(1-8)
- LAN/SFP combo ports: 2(9, 10) (The LAN port and SFP slot are exclusively used)
- PoE supply is compliant with IEEE 802.3at, and can supply up to 30W to all PoE ports
- Built-in RADIUS server for advanced security management
Couldn't load pickup availability
Combining IT and audio know-how, the SWR2311P-10G from Yamaha is an intelligent, 10-port L2 network switch optimized for Dante® audio networks.
This switch is designed to easily set up a stable Dante network (such as QoS, EEE, and IGMP Snooping).
The SWR2311P-10G can supply power to devices that are compatible with Power over Ethernet (PoE). PoE supply is compliant with IEEE 802.3at, and can supply up to 30W to all eight of its PoE-equipped ports (1-8)—this excludes two LAN/SFP combo ports: 2(9, 10).
In addition, the SWR2311P-10G features a built-in RADIUS server for advanced security management.
- LAN Ports
- Standard: IEEE 802.3 (10BASE-T/100BASE-TX/1000BASE-T)
- Number of ports: 10
- Communication mode: Auto negotiation
- Connector type: RJ-45
- MAC address: Printed on top surface label
- Polarity: Straight/cross automatic detection
- Combo Ports
- LAN ports: IEEE 802.3 (1000BASE-T) 2 ports (use is mutually exclusive with SPF ports)
- SFP portsSFP (Small Form-factor Pluggable) 2 ports (use is mutually exclusive with LAN ports)
- Console portRJ-45(RS-232C), USB mini-B(5pin)(USB2.0): 9600 bit/s
- Ports available for PoE power supply8 (ports 1-8)
- PoE StandardsIEEE 802.3at
- Power Supply SystemAlternative A
- Maximum Power Supply
- Per port: 30W
- All ports: 240W
- MicroSD Slot
- Standard: SD/SDHC
- Number of slots: 1
- IndicatorsPOWER, microSD, LED MODE, LAN port, SFP port
- Operating EnvironmentAmbient temperature: 0–40 °C, Ambient humidity: 15–80%, non-condensing
- Storage EnvironmentAmbient temperature: -20–50 °C, Ambient humidity: 10–90%, non-condensing
- Power Supply Voltage, FrequencyAC100 ~ 240V, 50/60Hz
- Maximum Power Consumption280W
- Dimensions (WxHxD)220x294x42.4mm
- Weight2.3 kg
