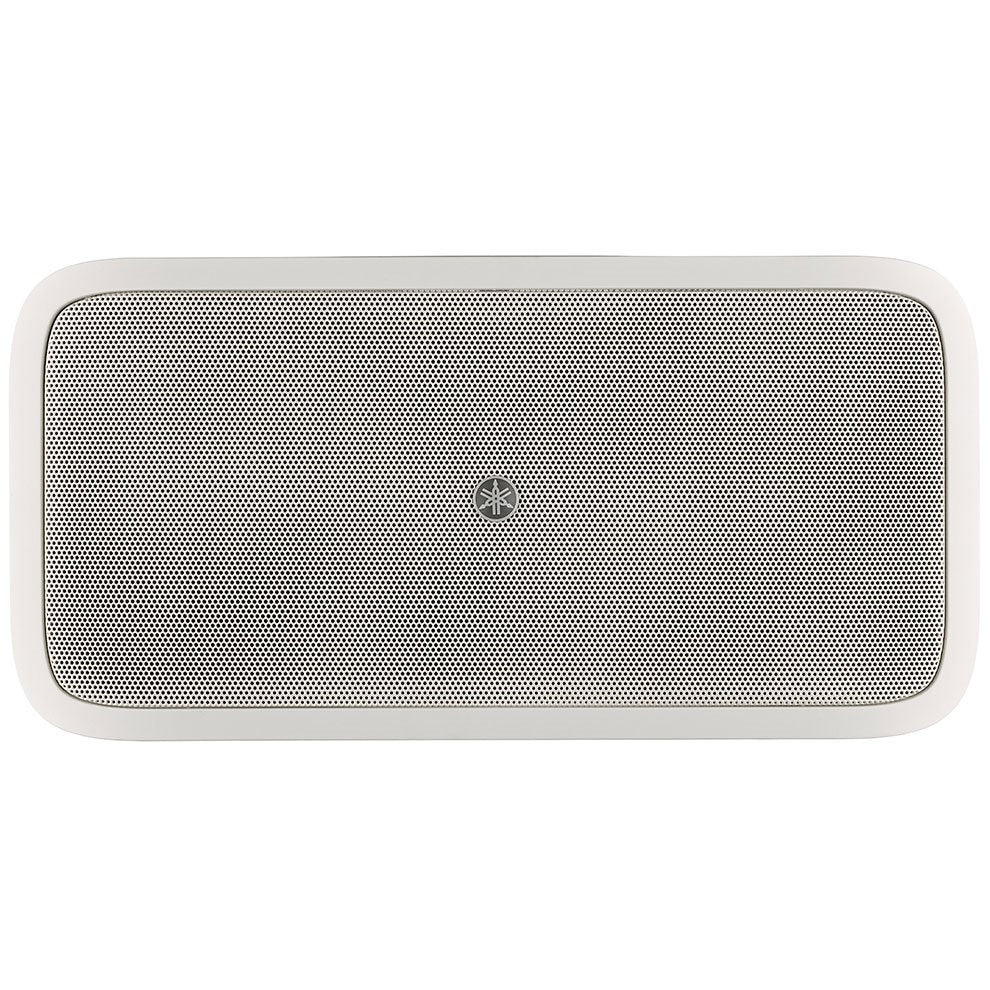

Yamaha VXS3S 3.5-Inch Surface-Mount Subwoofer | Color: White
Yamaha VXS3S 3.5-Inch Surface-Mount Subwoofer | Color: White
SoundPro Item: 31289 | Part Number: VXS3SW
Usually ships in 5-7 business days
- Versatile subwoofer compatible with low and high impedance systems
- Sound and size ideally matched to the VXS1ML
- SR-Bass™ technology delivers solid bass in a compact unit
- Satellite connectors for easy setup
- Dedicated wall/ceiling mount hardware supplied
- Black and white models available
- Paintable enclosures and grilles
- Recommended satellite speakers: VXS1ML
The VXS3S from Yamaha is a 3.5" Dual SR-Bass™ subwoofer for high and low impedance systems.
VXS series “S” model subwoofers are ideal matches for VXS and VXC series speakers, smoothly extending the low frequency range with superb sonic quality for bigger, more true-to-life musical reproduction. Although no larger than a compact surface-mount speaker the VXS3S delivers solid, natural-sounding low-end reinforcement, while the VXS10S and VXS10ST make even more low-frequency power available for situations that require maximum bass authority.
- Speaker typeSR-Bass™ type Subwoofer
- Frequency range (-10dB) 65Hz-180Hz
- Components (LF) 3.5" Cone
- Power rating
- NOISE: 20W
- PGM: 40W
- PEAK: 80W
- Nominal impedance8Ω
- Satellite impedance8Ω load per satellite output recommended *1
- Transformer taps
- 100V: 15W, 7.5W, 3.8W
- 70V: 15W, 7.5W, 3.8W, 1.9W
- SPL
- Sensitivity (1W; 1m on axis): 79dB SPL *3
- Peak (Calculated): 98dB SPL *4

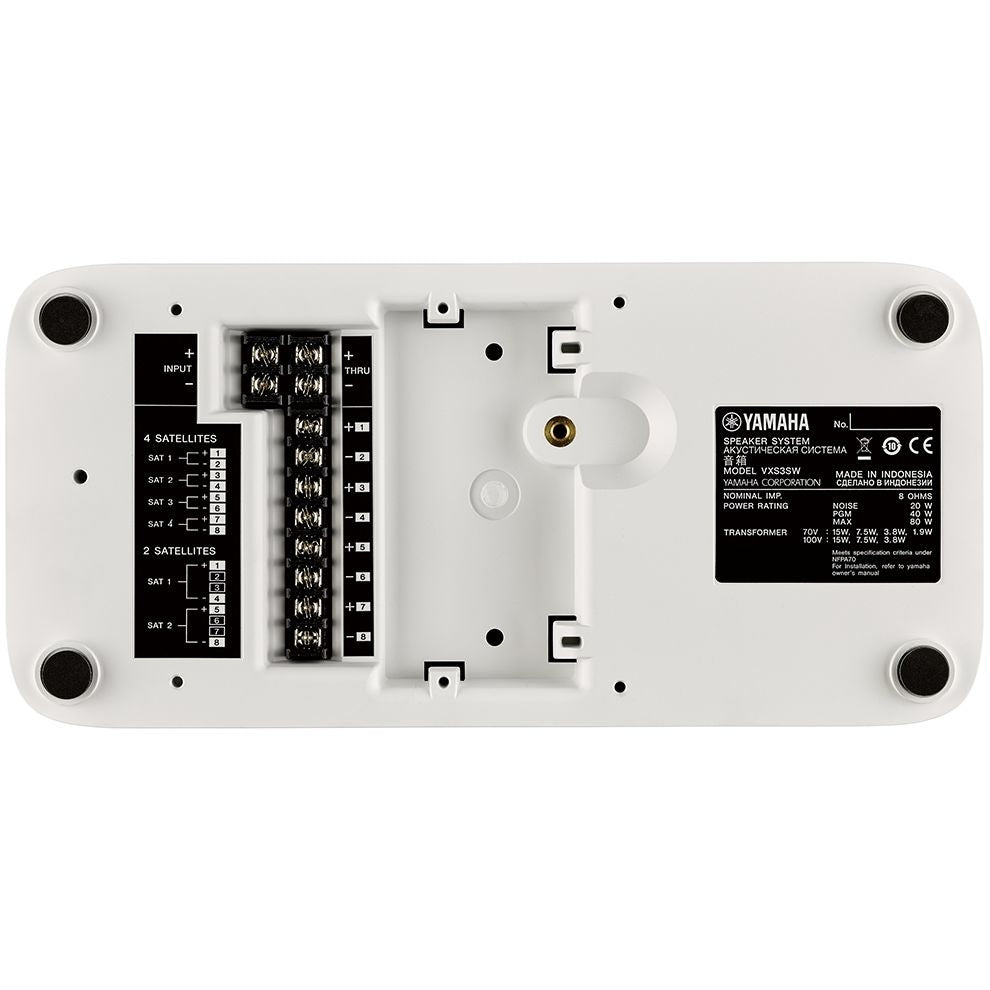

- I/O connectors TERMINAL BLOCKS(4pin) Input: +/-, Loop-thru: +/-, TERMINAL BLOCKS(8pin) Satellite output:+/- (ST1~ST4)
- Protection circuit (Load protection) Full-range power limiting for protecting network and transducers
- ShapeABS Rectangular
- Cabinet materialABS
- Finish VXS3SB:Black (approximate value:Munsell N3) VXS3SW:White (approximate value:Munsell N9)
- Dimensions (WxHxD) 12.7x6.4x4.6” (322x162x118mm) *5
- Net weight 2.7kg (6.0 lbs) *5
- Packaging Packaged each
- Certificate NFPA70, CE, RoHS
- Options CMA3SB / CMA3SW: Ceiling Mount Adapter
- Notes
- *1 Satellite impedance: When connecting 8Ω satellites, the combined impedance is 4Ω (when connecting four satellites) or 3.5Ω (when connecting two satellites).
- *2 Satellite impedance: Impedance lower limit (per satellite output) VXS10S/10SW: 4Ω, VXS10ST/10STW: 8Ω
- *3: VXS10S / VXS10ST:Half space (2π), VXS3S:Full-space (4π)
- *4: Calculated based on power rating and sensitivity, exclusive of power compression *5: Speaker only
