• Yamaha XMV4140 4-Channel Power Amplifier
1 1

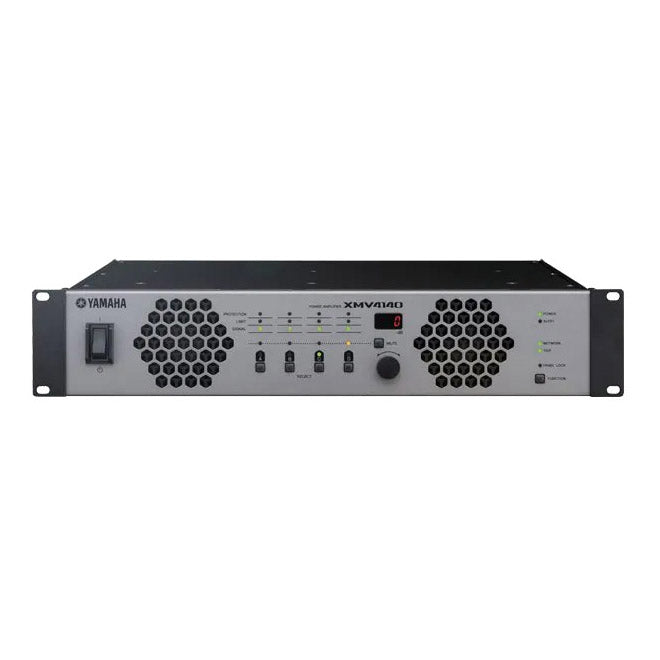

Yamaha XMV4140 4-Channel Power Amplifier

Yamaha XMV4140 4-Channel Power Amplifier

SoundPro Item: 67556 | Part Number: XMV4140

$1,729.99
$1,917.00 $1,729.99
Your Price Sold out
MSRP: $1,917.00 | MAP: $1,729.99

Usually ships in 5-7 business days

  • Can operate in high-impedance or low-impedance modes simultaneously
  • Double Power Mode function
  • YDIF digital audio format allows easy setup using Ethernet cables
  • Perfect companion for MTX/MRX series processors
  • Circuit topology brings efficiency level of amplifier's output stage up over 90%
  • Protective features guard against low load impedance, overcurrent, and overheating
  • External control via Ethernet
  • Source select
  • Backup Mode and Override Mode offer protective redundancy
Log in or register for YOUR best price

Yamaha’s XMV series of multi-channel power amplifiers offer a comprehensive line-up to power your sound solution. XMV amps combine Class-D efficiency and features that specifically benefit commercial installation sound systems. When used in systems with MTX/MRX series processors, XMV amps offer additional advantages, particularly when paired with the MTX-MRX Editor software application. The XMV4140 has YDIF digital audio format, ensuring easy setup with the use of Ethernet.

Installed sound applications often require both high and low impedance connectivity in the same venue: with an XMV amplifier, you no longer need a separate amp or dedicated transformer. The XMV4140 has a high-impedance mode (70V/100V line) and a low-impedance mode (4Ω/8Ω) which can operate simultaneously. XMV power amplifiers also support both 70V and 100V operation for every pair of channels, selected via dip switches on the rear panel.

View full details
  • Output power140W x 4
  • Output power, double power mode280W x 2
  • Output power, high impedance125W x 4
  • Voltage gain28.7dB, 31.7dB double power mode
  • Power consumption1/8 power (4Ω pink noise):150W, Idle (4 Ω):37W, Standby:18.5W
  • THD≤ 0.2% (1kHz, half power)
  • Frequency response20Hz - 20kHz +/-1dB
  • S/N ratio≥ 100dB(A-weighted)
  • Crosstalk≤ -60dB
  • Input sensitivity+4dBu
  • Input impedance20kΩ (balanced), 10kΩ (unbalanced)
  • I/O Connectors
    • Analog I/O input: Euroblock x 2 (6P, balanced)
    • Digital I/O: RJ45 x 2 (YDIF IN / OUT)
    • Speaker output: Barrier strip x 4 pairs
    • Control ports: Remote, Fault Output : Euroblock (3P) x 1
    • Network: RJ45 x 1
    • Others: AC Inlet x 1
  • Input level+24dBu (max)
  • Cooling3-speed fan x2 front-to-back airflow
  • Power requirements100V, 120V, 230V-240V; 50Hz/60Hz
  • Dimensions (WxHxD)18.9x3.5x16.6"
  • Weight17.9 lbs (8.1 kg)
