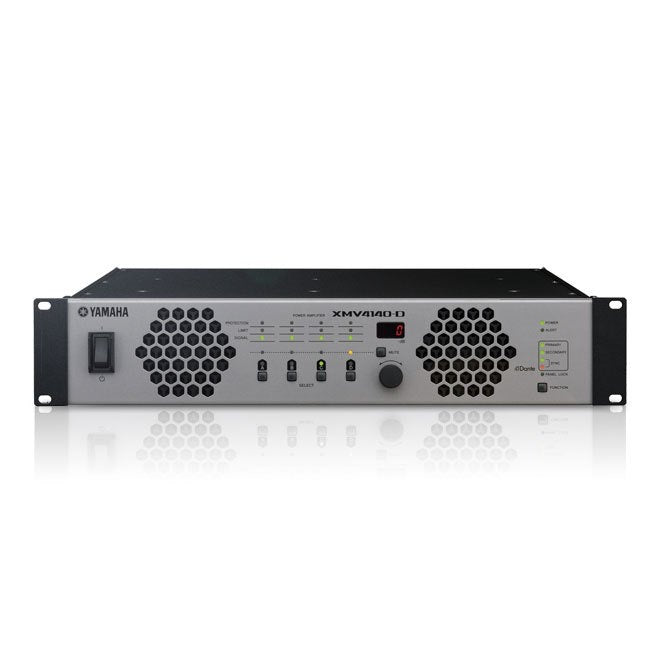

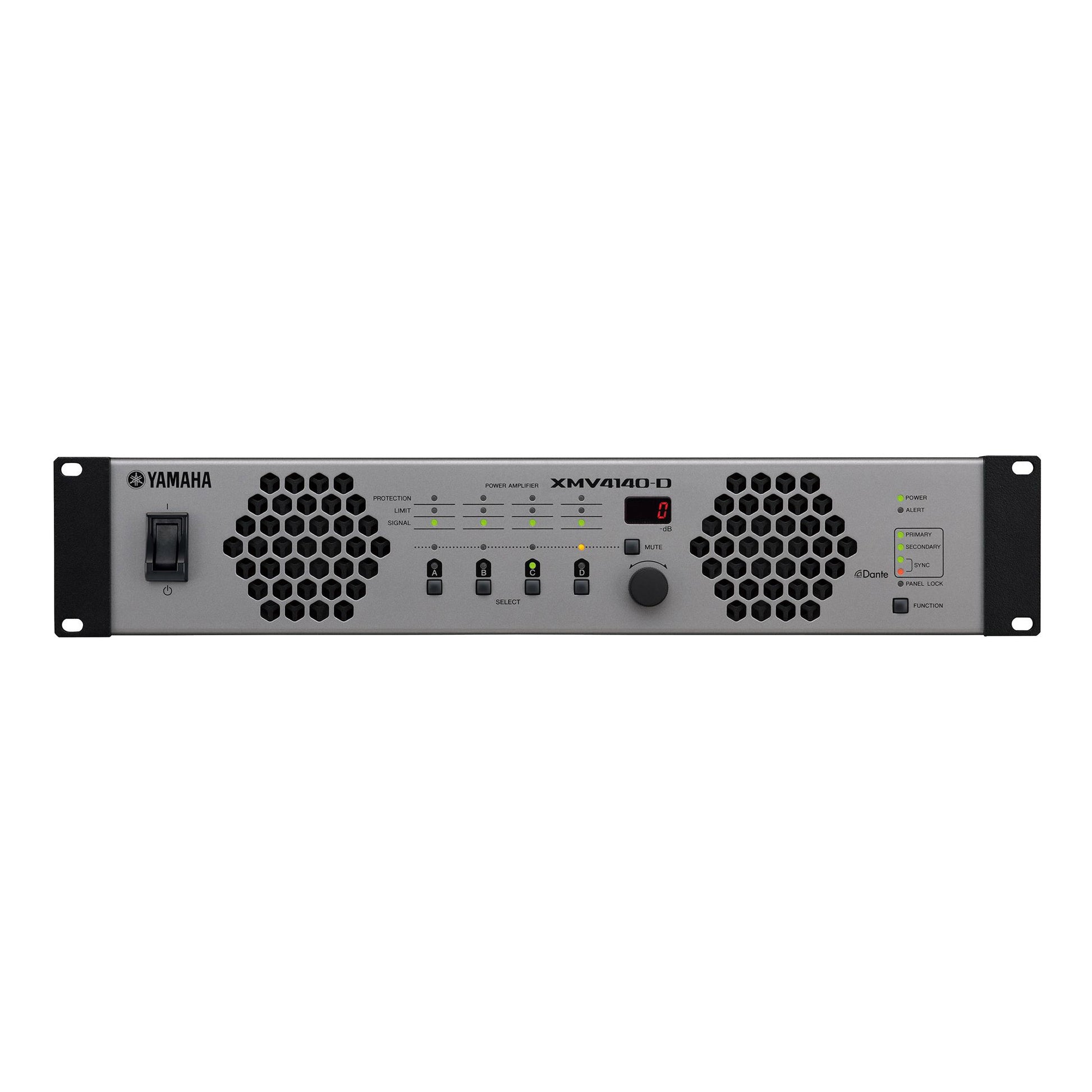

• Yamaha XMV4140-D 4-Channel Dante Power Amplifier
1 1

Yamaha XMV4140-D 4-Channel Dante Power Amplifier

Yamaha XMV4140-D 4-Channel Dante Power Amplifier

SoundPro Item: 67557 | Part Number: XMV4140-D

$2,539.99
$2,858.00 $2,539.99
Your Price Sold out
MSRP: $2,858.00 | MAP: $2,539.99

Usually ships in 5-7 business days

  • 4-channel Dante power amplifier with Class-D efficiency
  • Ideal for commercial installation sound systems, particularly in larger venues
  • Can operate simultaneously in high or low impedance mode so you don't need additional equipment
  • Double Power Mode doubles output power of selected channels
  • Supports Dante Domain Manager, AES67, and Dante Device Lock
  • Works well with MTX Series processors
  • Protective functions for long product life and reliable operation
  • External control via Ethernet
  • Source Select function
  • Backup Mode and Override Mode for redundancy and protection
Log in or register for YOUR best price

The XMV4140-D from Yamaha is a 4-channel Dante power amplifier that boasts Class-D efficiency ideal for commercial installation sound systems. It comes with Dante to better equip the amp to work in larger venues where long-distance cabling is required.

View full details
  • Output Power
    • 1kHz (THD+N=1%: 4Ω): 140W x 4
    • 1kHz (THD+N=1%: 8Ω):140W x 4
    • 1kHz (THD+N=1%: 4Ω/Double Power Mode):280W x 2
    • 1kHz (THD+N=1%: 8Ω/Double Power Mode): 280W x 2
    • High impedance (100V line):125W x 4/80Ω
    • High impedance (70V line):125W x 4/40Ω
  • Voltage Gain
    • RL=8Ω: 28.7dB
    • RL=8Ω/Double Power Mode: 31.2dB
    • 100V: 38.2dB
    • 70V:35.2dB
  • Power Consumption1/8 power (4 Ω pink noise):150W, Idle (4 Ω):37W, Standby:18.5W
  • Total Harmonic Distortion≤ 0.2% (1kHz, half power)
  • Frequency Response0dB, ±1.0dB (RL=8Ω, 100V/70V, Po=1W, 20Hz - 20kHz)
  • S/N Ratio≥100dB(A-weighted)
  • Crosstalk≤-60dB
  • Input Sensitivity+4dBu
  • Input Impedance20kΩ (balanced), 10kΩ (unbalanced)

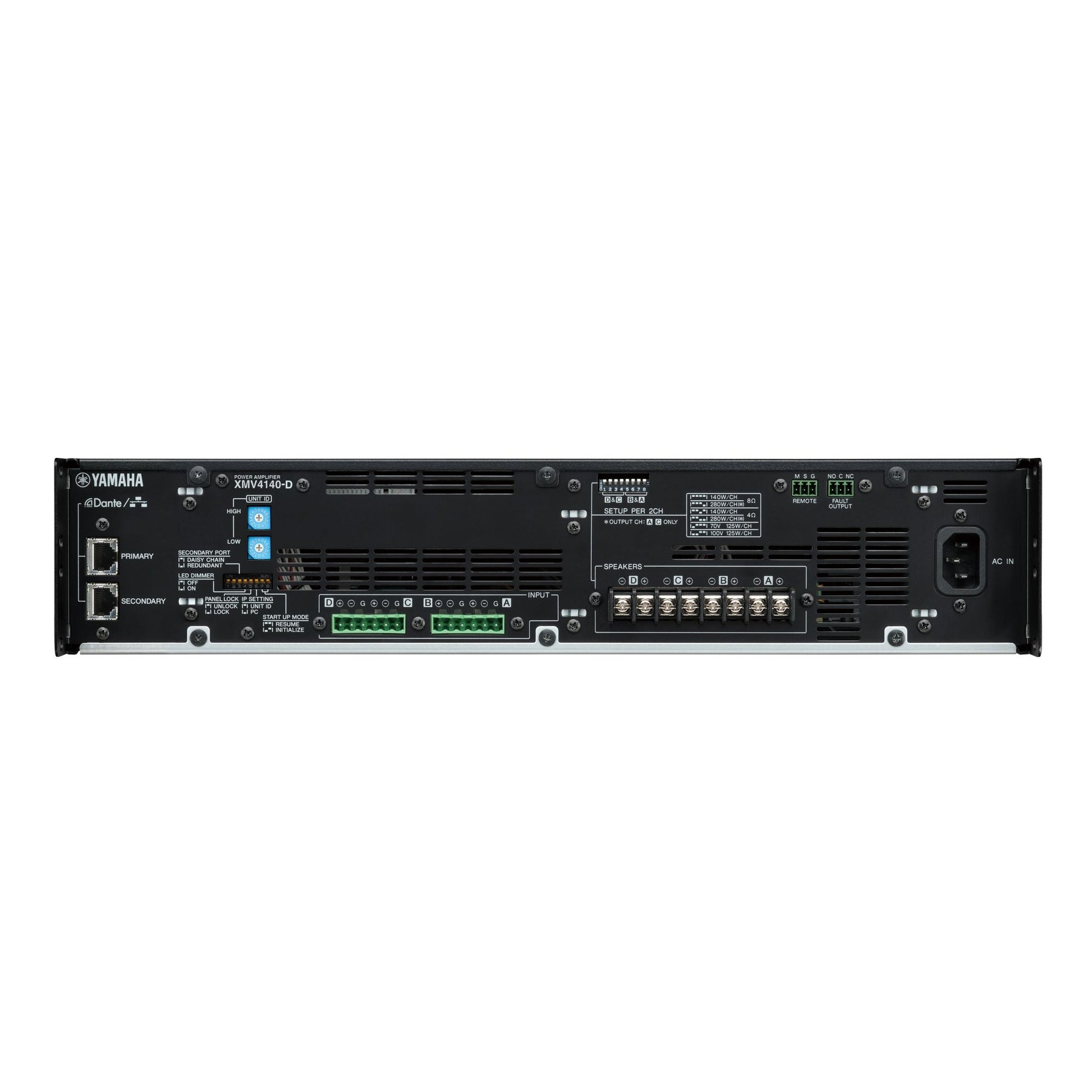

  • I/O Connectors
    • Analog I/O: Input: Euroblock x 2 (6P, balanced)
    • Digital I/O: RJ45 x 2 (Dante PRIMARY / SECONDARY)
    • Speaker Output: Barrier strip x 4 pairs
    • Control Ports: Remote, Fault Output : Euroblock (3P) x 1
    • Network: Shared with Dante ports
    • Others: AC Inlet x 1
  • Input Level+24dBu (Maximum)
  • Protection Circuit
    • Load Protection: POWER switch on/off: Output mute, DC-fault: Power supply shuts down, Clip limiting
    • Amplifier Protection:
      • Thermal: Output mute (heatsink temp ≥90°C) (Restored automatically), Overcurrent: Output mute (Restored automatically), Low load impedance: Output mute (Restored automatically)
    • Power Supply Protection:
      • Thermal: Amplifier shuts down automatically (heatsink temp ≥100°C) , Integrated power: Gain reduction (Restored automatically)
  • Cooling3-Speed fan x 2, front-to-back airflow
  • Power Requirements100V, 120V, 230V-240V; 50Hz/60Hz
  • Dimensions (WxHxD)18.9x3.5x16.6" (480x88x422 mm)
  • Net Weight17.9 lbs (8.1 kg)
