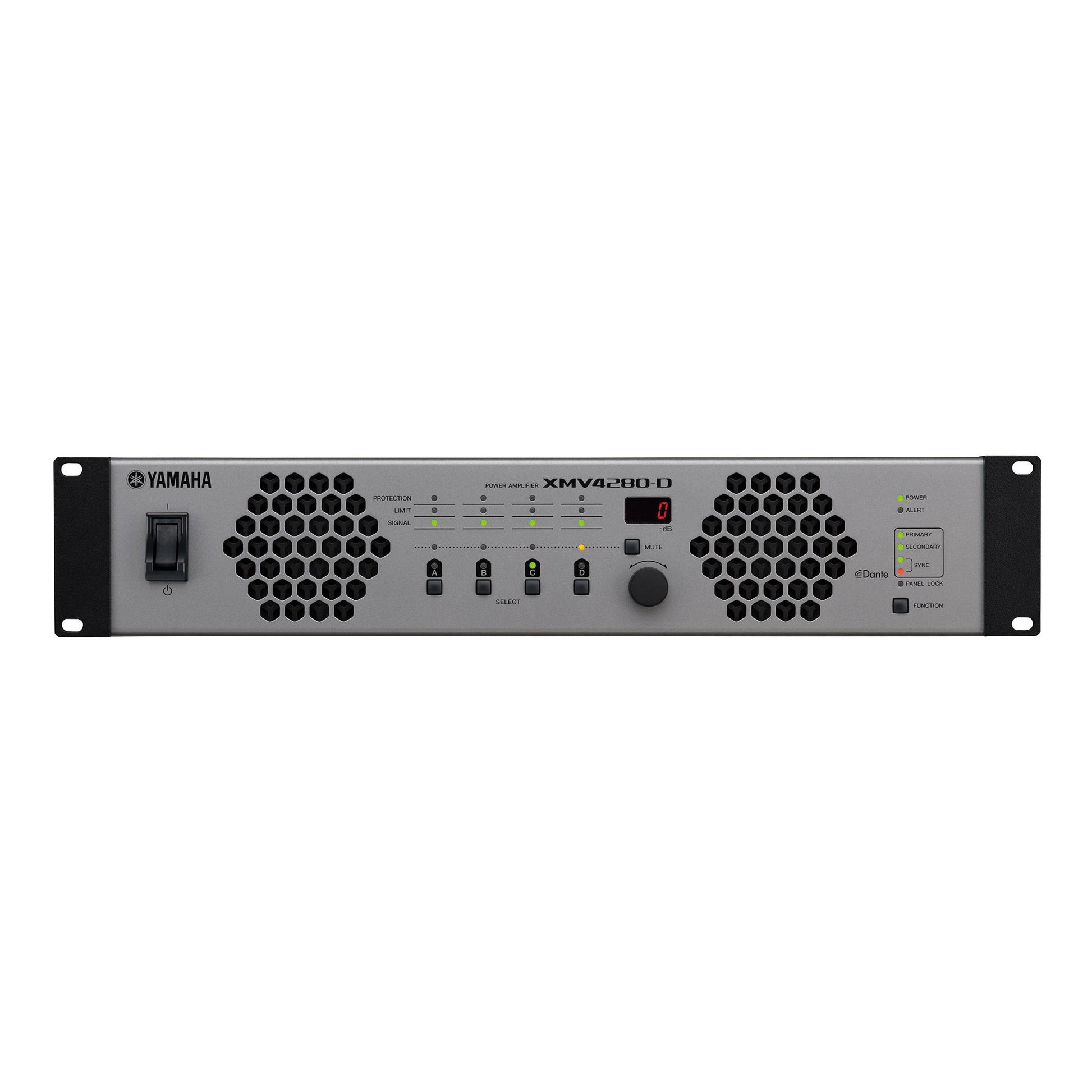

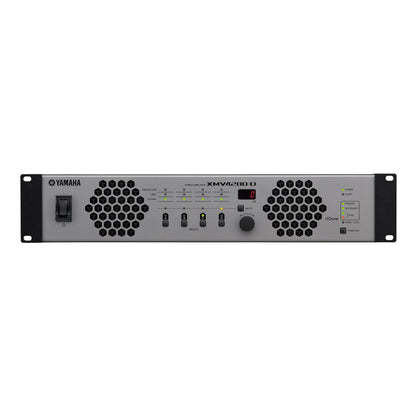

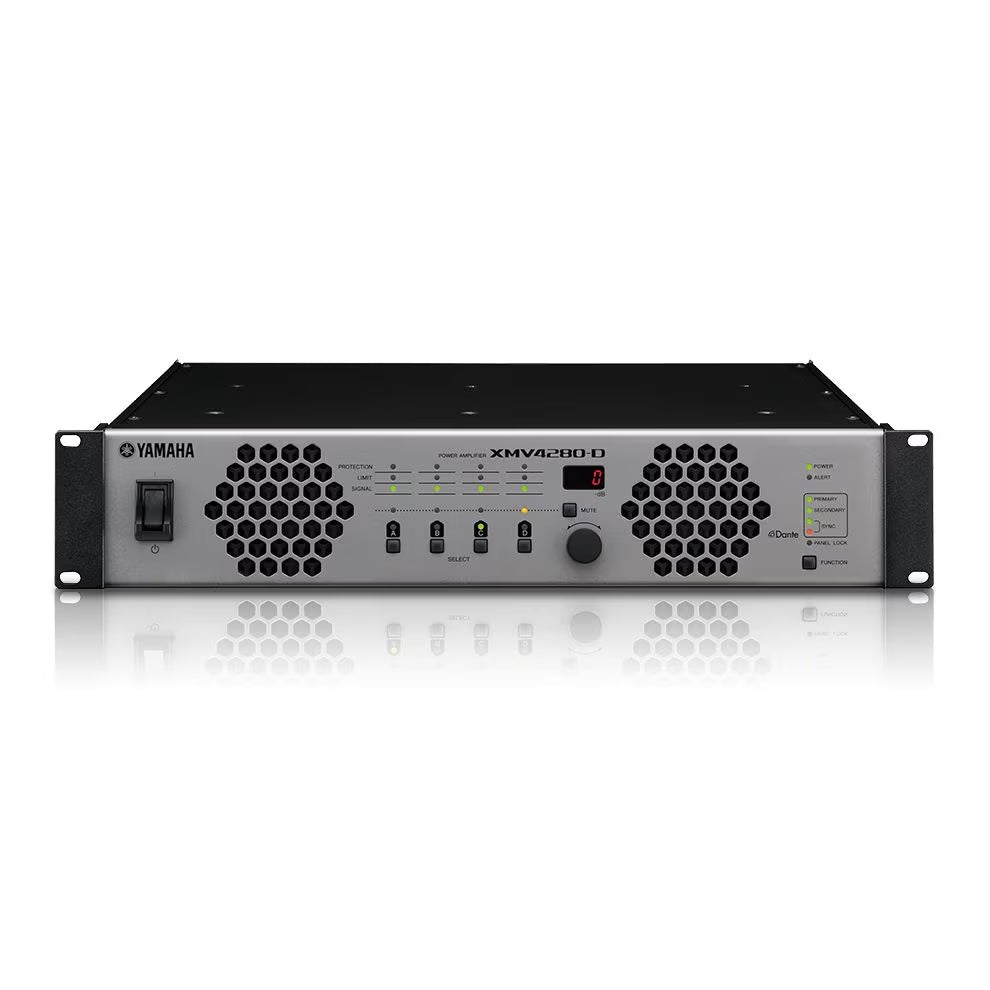

Yamaha XMV4280-D 4-Channel Dante Power Amplifier
Yamaha XMV4280-D 4-Channel Dante Power Amplifier
SoundPro Item: 67559 | Part Number: XMV4280-D
Usually ships in 5-7 business days
- Can operate simultaneously in high or low impedance mode so you don't need additional equipment
- Supports Dante Domain Manager, AES67, and Dante Device Lock
- Works well with MTX Series processors
- Protective functions for long product life and reliable operation
- External control via Ethernet
- Source Select function
- Backup Mode and Override Mode for redundancy and protection
Yamaha’s XMV series of multi-channel power amplifiers offer a comprehensive line-up to power your sound solution. XMV amps combine Class-D efficiency and features that specifically benefit commercial installation sound systems. When used in systems with MTX/MRX series processors, XMV amps offer additional advantages, particularly when paired with the MTX-MRX Editor software application.
The Dante-equipped XMV4280-D is excellent for larger venues where long-distance cabling is required. AES67 audio network interconnection standard is supported so you can connect via AES67 audio networks.
- Output power
- Output power: 280W x 4
- Double power mode: 560W x 2
- High impedance: 250W x 4
- Voltage gain31.7dB, 34.7dB double power mode
- Power consumption
- 1/8 power (4 Ω pink noise): 250W
- Idle (4 Ω): 37W
- Standby: 18.5W
- THD≤ 0.2% (1kHz, half power)
- Frequency response20Hz - 20kHz (+/-1dB)
- S/N ratio≥ 100dB(A-weighted)
- Crosstalk≤ -60dB
- Input sensitivity+4dBu
- Input impedance20kΩ (balanced), 10kΩ (unbalanced)

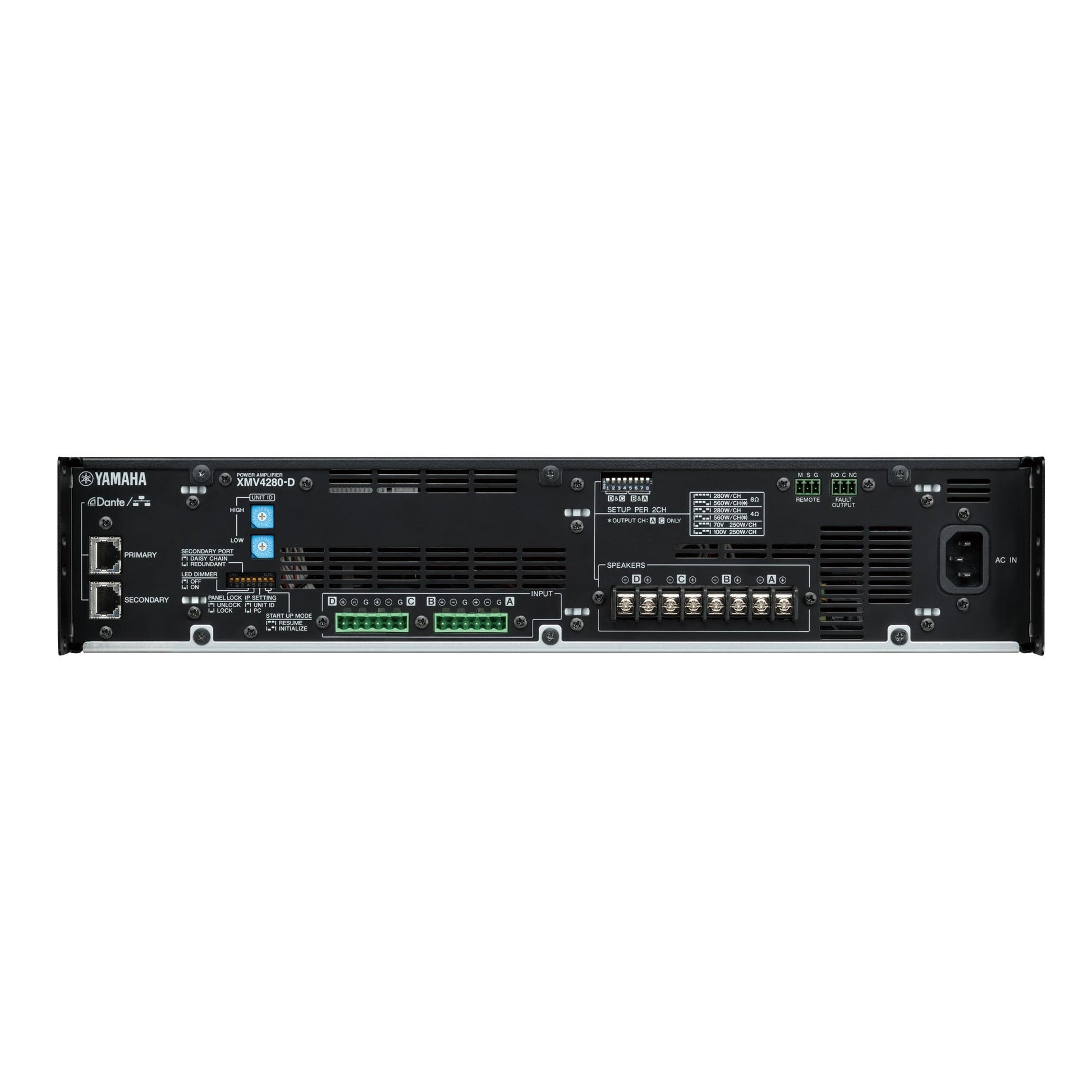

- I/O connectors
- Analog I/O input: Euroblock x 2 (6P, balanced)
- Digital I/O: RJ45 x 2 (Dante PRIMARY / SECONDARY)
- Speaker output: Barrier strip x 4 pairs
- Control ports: Remote, Fault Output : Euroblock (3P) x 1
- Network: Shared with Dante ports
- Others: 1 AC inlet
- Input level+24dBu (max)
- Cooling3-speed fan x2, front-to-back airflow
- Power requirements100V, 120V, 230V-240V; 50Hz/60Hz
- Dimensions (WxHxD)18.9x3.5x16.6"
- Weight17.9 pounds (8.1 kg)
